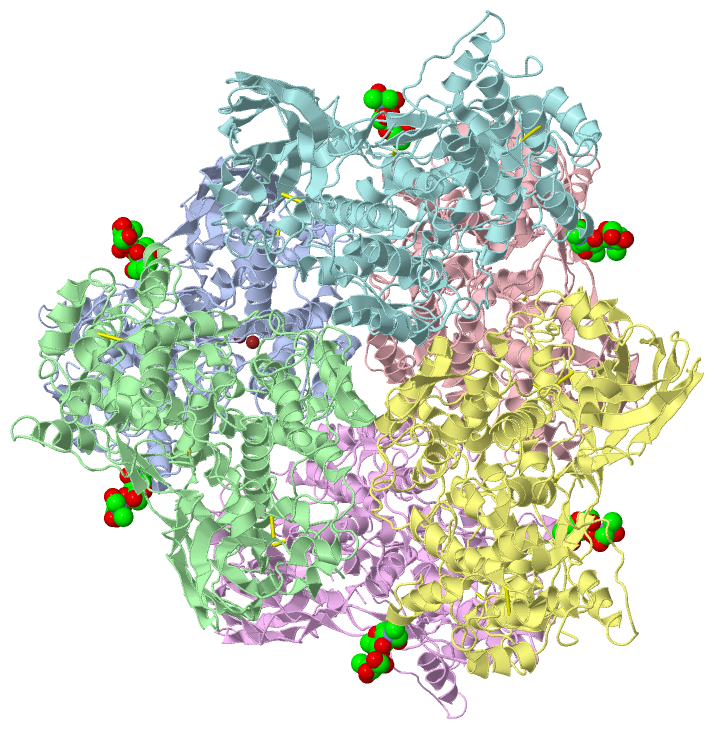

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

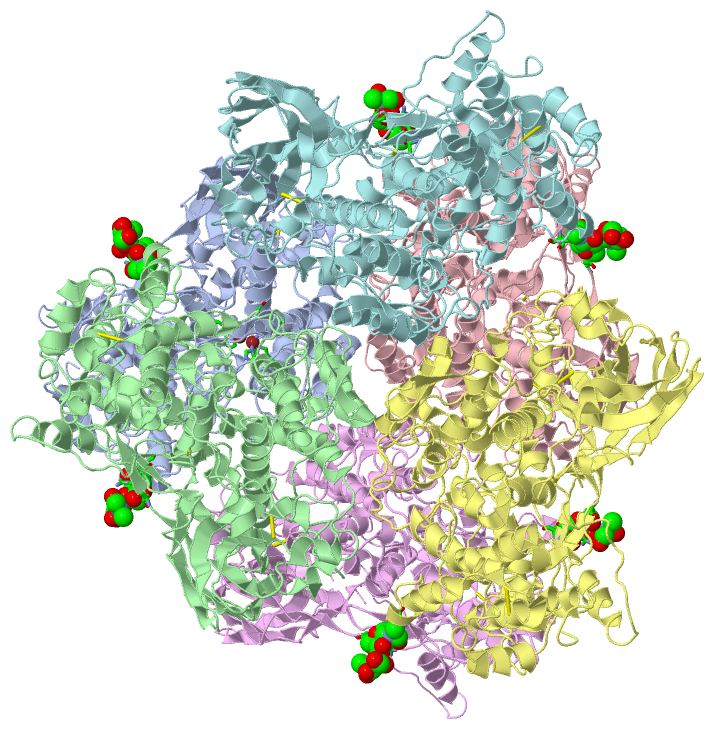

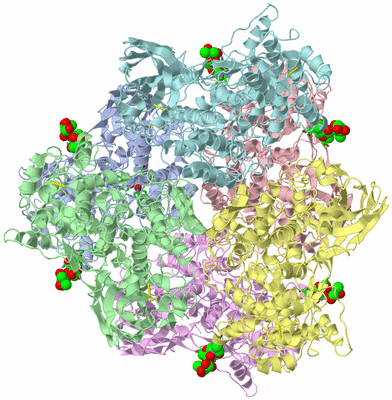

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HEXAMERIC HAEMOCYANIN FROM PANULIRUS INTERRUPTUS REFINED AT 3.2 ANGSTROMS RESOLUTION

Authors :  A. Volbeda, W. G. J. Hol
Date :  15 May 91  (Deposition) - 31 Jan 94  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.20
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Oxygen Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Volbeda, W. G. Hol
Crystal Structure Of Hexameric Haemocyanin From Panulirus Interruptus Refined At 3. 2 A Resolution.
J. Mol. Biol. V. 209 249 1989
PubMed-ID: 2585484  |  Reference-DOI: 10.1016/0022-2836(89)90276-3
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ARTHROPODAN HEMOCYANIN
    Chains: A, B, C, D, E, F
    Organism Common: CALIFORNIA SPINY LOBSTER
    Organism Scientific: PANULIRUS INTERRUPTUS
    Organism Taxid: 6735

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 14)

Asymmetric/Biological Unit (3, 14)
No.NameCountTypeFull Name
1CU2Ligand/IonCOPPER (II) ION
2NAG6Ligand/IonN-ACETYL-D-GLUCOSAMINE
3NDG6Ligand/Ion2-(ACETYLAMINO)-2-DEOXY-A-D-GLUCOPYRANOSE

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASN A:167 , GLU A:428 , ARG A:451 , NAG A:659BINDING SITE FOR RESIDUE NDG A 658
02AC2SOFTWAREARG A:451 , NDG A:658BINDING SITE FOR RESIDUE NAG A 659
03AC3SOFTWAREASN B:167 , GLU B:428 , ARG B:451 , NAG B:659BINDING SITE FOR RESIDUE NDG B 658
04AC4SOFTWAREARG B:451 , NDG B:658BINDING SITE FOR RESIDUE NAG B 659
05AC5SOFTWAREASN C:167 , GLU C:428 , ARG C:451 , NAG C:659BINDING SITE FOR RESIDUE NDG C 658
06AC6SOFTWAREARG C:451 , NDG C:658BINDING SITE FOR RESIDUE NAG C 659
07AC7SOFTWAREASN D:167 , GLU D:428 , ARG D:451 , NAG D:659BINDING SITE FOR RESIDUE NDG D 658
08AC8SOFTWAREARG D:451 , NDG D:658BINDING SITE FOR RESIDUE NAG D 659
09AC9SOFTWAREASN E:167 , GLU E:428 , ARG E:451 , NAG E:659BINDING SITE FOR RESIDUE NDG E 658
10BC1SOFTWAREARG E:451 , NDG E:658BINDING SITE FOR RESIDUE NAG E 659
11BC2SOFTWAREASN F:167 , GLU F:428 , ARG F:451 , NAG F:659BINDING SITE FOR RESIDUE NDG F 658
12BC3SOFTWAREARG F:451 , NDG F:658BINDING SITE FOR RESIDUE NAG F 659
13BC4SOFTWAREHIS A:194 , HIS A:198 , HIS A:224 , CU A:666BINDING SITE FOR RESIDUE CU A 665
14BC5SOFTWAREHIS A:344 , HIS A:348 , HIS A:384 , CU A:665BINDING SITE FOR RESIDUE CU A 666

(-) SS Bonds  (18, 18)

Asymmetric/Biological Unit
No.Residues
1A:93 -A:98
2A:483 -A:502
3A:562 -A:609
4B:93 -B:98
5B:483 -B:502
6B:562 -B:609
7C:93 -C:98
8C:483 -C:502
9C:562 -C:609
10D:93 -D:98
11D:483 -D:502
12D:562 -D:609
13E:93 -E:98
14E:483 -E:502
15E:562 -E:609
16F:93 -F:98
17F:483 -F:502
18F:562 -F:609

(-) Cis Peptide Bonds  (6, 6)

Asymmetric/Biological Unit
No.Residues
1Tyr A:624 -Pro A:625
2Tyr B:624 -Pro B:625
3Tyr C:624 -Pro C:625
4Tyr D:624 -Pro D:625
5Tyr E:624 -Pro E:625
6Tyr F:624 -Pro F:625

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1HCY)

(-) PROSITE Motifs  (3, 18)

Asymmetric/Biological Unit (3, 18)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HEMOCYANIN_1PS00209 Arthropod hemocyanins / insect LSPs signature 1.HCYA_PANIN183-202




 		  6A:183-202
B:183-202
C:183-202
D:183-202
E:183-202
F:183-202
2HEMOCYANIN_2PS00210 Arthropod hemocyanins / insect LSPs signature 2.HCYA_PANIN373-381




 		  6A:373-381
B:373-381
C:373-381
D:373-381
E:373-381
F:373-381
3TYROSINASE_2PS00498 Tyrosinase and hemocyanins CuB-binding region signature.HCYA_PANIN377-388




 		  6A:377-388
B:377-388
C:377-388
D:377-388
E:377-388
F:377-388

(-) Exons   (0, 0)

(no "Exon" information available for 1HCY)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:644
 aligned with HCYA_PANIN | P04254 from UniProtKB/Swiss-Prot  Length:657

    Alignment length:653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           HCYA_PANIN     1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKEIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKQGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHKEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPKGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGHNGGHDYGGTHAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
               SCOP domains d1hcya1 A:1-135 Hemocyanin, N-terminal domain                                                                                          d1hcya2 A:136-398 Arthropod hemocyanin                                                                                                                                                                                                                                 d1hcya3 A:399-653 Arthropod hemocyanin, C-terminal domain                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------1hcyA02 A:170-397 Di-copper center containing domain from catechol oxidase                                                                                                                                                          1hcyA03 E set domains         ---------------------------1hcyA03 A:398-427,A:455-532,A:552-653 E set domains                           -------------------1hcyA03 A:398-427,A:455-532,A:552-653 E set d         omains                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhhhhh..............hhhhhhhhhhh.............hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh....ee.............hhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhh.............ee......................ee.........hhhhhhhhhhhhhhhhhheee.....eee....hhhhhhhhhhh............hhhhhhhhhhhh............hhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh....eeeeeeee...eeee..eeehhhhhh............eee..eee...eeeeeee......eeeeeeeeee..............hhhhheeeeeeeeee....eeeeee......ee......hhhhhhhhh..................ee.hhh........eeeeeeeeeeehhhhh...---------.............................hhhhh..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANIN_1        --------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANI-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYROSINASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcy A   1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKDIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKPGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHNEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPSGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGH---------HAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590     |   -     | 610       620       630       640       650
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             596       606


Chain B from PDB  Type:PROTEIN  Length:644
 aligned with HCYA_PANIN | P04254 from UniProtKB/Swiss-Prot  Length:657

    Alignment length:653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           HCYA_PANIN     1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKEIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKQGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHKEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPKGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGHNGGHDYGGTHAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
               SCOP domains d1hcyb1 B:1-135 Hemocyanin, N-terminal domain                                                                                          d1hcyb2 B:136-398 Arthropod hemocyanin                                                                                                                                                                                                                                 d1hcyb3 B:399-653 Arthropod hemocyanin, C-terminal domain                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------1hcyB02 B:170-397 Di-copper center containing domain from catechol oxidase                                                                                                                                                          1hcyB03 E set domains         ---------------------------1hcyB03 B:398-427,B:455-532,B:552-653 E set domains                           -------------------1hcyB03 B:398-427,B:455-532,B:552-653 E set d         omains                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhhhhh..............hhhhhhhhhhh.............hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh....ee.............hhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhh.............ee......................ee.........hhhhhhhhhhhhhhhhhheee.....eee....hhhhhhhhhhh............hhhhhhhhhhhh............hhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh....eeeeeeee...eeee..eeehhhhhh............eee..eee...eeeeeee......eeeeeeeeee..............hhhhheeeeeeeeee....eeeeee......ee......hhhhhhhhh..................ee.hhh........eeeeeeeeeeehhhhh...---------.............................hhhhh..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANIN_1        --------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANI-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYROSINASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcy B   1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKDIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKPGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHNEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPSGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGH---------HAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590     |   -     | 610       620       630       640       650
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             596       606


Chain C from PDB  Type:PROTEIN  Length:644
 aligned with HCYA_PANIN | P04254 from UniProtKB/Swiss-Prot  Length:657

    Alignment length:653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           HCYA_PANIN     1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKEIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKQGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHKEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPKGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGHNGGHDYGGTHAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
               SCOP domains d1hcyc1 C:1-135 Hemocyanin, N-terminal domain                                                                                          d1hcyc2 C:136-398 Arthropod hemocyanin                                                                                                                                                                                                                                 d1hcyc3 C:399-653 Arthropod hemocyanin, C-terminal domain                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------1hcyC02 C:170-397 Di-copper center containing domain from catechol oxidase                                                                                                                                                          1hcyC03 E set domains         ---------------------------1hcyC03 C:398-427,C:455-532,C:552-653 E set domains                           -------------------1hcyC03 C:398-427,C:455-532,C:552-653 E set d         omains                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhhhhh..............hhhhhhhhhhh.............hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh....ee.............hhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhh.............ee......................ee.........hhhhhhhhhhhhhhhhhheee.....eee....hhhhhhhhhhh............hhhhhhhhhhhh............hhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh....eeeeeeee...eeee..eeehhhhhh............eee..eee...eeeeeee......eeeeeeeeee..............hhhhheeeeeeeeee....eeeeee......ee......hhhhhhhhh..................ee.hhh........eeeeeeeeeeehhhhh...---------.............................hhhhh..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANIN_1        --------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANI-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYROSINASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcy C   1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKDIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKPGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHNEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPSGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGH---------HAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590     |   -     | 610       620       630       640       650
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             596       606


Chain D from PDB  Type:PROTEIN  Length:644
 aligned with HCYA_PANIN | P04254 from UniProtKB/Swiss-Prot  Length:657

    Alignment length:653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           HCYA_PANIN     1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKEIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKQGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHKEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPKGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGHNGGHDYGGTHAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
               SCOP domains d1hcyd1 D:1-135 Hemocyanin, N-terminal domain                                                                                          d1hcyd2 D:136-398 Arthropod hemocyanin                                                                                                                                                                                                                                 d1hcyd3 D:399-653 Arthropod hemocyanin, C-terminal domain                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------1hcyD02 D:170-397 Di-copper center containing domain from catechol oxidase                                                                                                                                                          1hcyD03 E set domains         ---------------------------1hcyD03 D:398-427,D:455-532,D:552-653 E set domains                           -------------------1hcyD03 D:398-427,D:455-532,D:552-653 E set d         omains                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhhhhh..............hhhhhhhhhhh.............hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh....ee.............hhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhh.............ee......................ee.........hhhhhhhhhhhhhhhhhheee.....eee....hhhhhhhhhhh............hhhhhhhhhhhh............hhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh....eeeeeeee...eeee..eeehhhhhh............eee..eee...eeeeeee......eeeeeeeeee..............hhhhheeeeeeeeee....eeeeee......ee......hhhhhhhhh..................ee.hhh........eeeeeeeeeeehhhhh...---------.............................hhhhh..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANIN_1        --------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANI-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYROSINASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcy D   1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKDIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKPGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHNEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPSGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGH---------HAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590     |   -     | 610       620       630       640       650
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             596       606


Chain E from PDB  Type:PROTEIN  Length:644
 aligned with HCYA_PANIN | P04254 from UniProtKB/Swiss-Prot  Length:657

    Alignment length:653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           HCYA_PANIN     1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKEIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKQGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHKEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPKGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGHNGGHDYGGTHAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
               SCOP domains d1hcye1 E:1-135 Hemocyanin, N-terminal domain                                                                                          d1hcye2 E:136-398 Arthropod hemocyanin                                                                                                                                                                                                                                 d1hcye3 E:399-653 Arthropod hemocyanin, C-terminal domain                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------1hcyE02 E:170-397 Di-copper center containing domain from catechol oxidase                                                                                                                                                          1hcyE03 E set domains         ---------------------------1hcyE03 E:398-427,E:455-532,E:552-653 E set domains                           -------------------1hcyE03 E:398-427,E:455-532,E:552-653 E set d         omains                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhhhhh..............hhhhhhhhhhh.............hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh....ee.............hhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhh.............ee......................ee.........hhhhhhhhhhhhhhhhhheee.....eee....hhhhhhhhhhh............hhhhhhhhhhhh............hhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh....eeeeeeee...eeee..eeehhhhhh............eee..eee...eeeeeee......eeeeeeeeee..............hhhhheeeeeeeeee....eeeeee......ee......hhhhhhhhh..................ee.hhh........eeeeeeeeeeehhhhh...---------.............................hhhhh..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANIN_1        --------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANI-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYROSINASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcy E   1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKDIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKPGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHNEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPSGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGH---------HAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590     |   -     | 610       620       630       640       650
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             596       606


Chain F from PDB  Type:PROTEIN  Length:644
 aligned with HCYA_PANIN | P04254 from UniProtKB/Swiss-Prot  Length:657

    Alignment length:653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650
           HCYA_PANIN     1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKEIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKQGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHKEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPKGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGHNGGHDYGGTHAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
               SCOP domains d1hcyf1 F:1-135 Hemocyanin, N-terminal domain                                                                                          d1hcyf2 F:136-398 Arthropod hemocyanin                                                                                                                                                                                                                                 d1hcyf3 F:399-653 Arthropod hemocyanin, C-terminal domain                                                                                                                                                                                                       SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------1hcyF02 F:170-397 Di-copper center containing domain from catechol oxidase                                                                                                                                                          1hcyF03 E set domains         ---------------------------1hcyF03 F:398-427,F:455-532,F:552-653 E set domains                           -------------------1hcyF03 F:398-427,F:455-532,F:552-653 E set d         omains                                           CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhhhhh..............hhhhhhhhhhh.............hhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh.hhhhhhhhhhhhhhh....ee.............hhhhhhhhhhhhhhhhhhhhh....hhhhh......hhhhhhhhhhhhhhhhhhhhh.............ee......................ee.........hhhhhhhhhhhhhhhhhheee.....eee....hhhhhhhhhhh............hhhhhhhhhhhh............hhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhh....eeeeeeee...eeee..eeehhhhhh............eee..eee...eeeeeee......eeeeeeeeee..............hhhhheeeeeeeeee....eeeeee......ee......hhhhhhhhh..................ee.hhh........eeeeeeeeeeehhhhh...---------.............................hhhhh..eeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANIN_1        --------------------------------------------------------------------------------------------------------------------------------------------------------------------------HEMOCYANI-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (1)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------TYROSINASE_2------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1hcy F   1 DALGTGNAQKQQDINHLLDKIYEPTKYPDLKDIAENFNPLGDTSIYNDHGAAVETLMKELNDHRLLEQRHWYSLFNTRQRKEALMLFAVLNQCKEWYCFRSNAAYFRERMNEGEFVYALYVSVIHSKLGDGIVLPPLYQITPHMFTNSEVIDKAYSAKMTQKPGTFNVSFTGTKKNREQRVAYFGEDIGMNIHHVTWHMDFPFWWEDSYGYHLDRKGELFFWVHHQLTARFDFERLSNWLDPVDELHWDRIIREGFAPLTSYKYGGEFPVRPDNIHFEDVDGVAHVHDLEITESRIHEAIDHGYITDSDGHTIDIRQPKGIELLGDIIESSKYSSNVQYYGSLHNTAHVMLGRQGDPHGKFNLPPGVMEHFETATRDPSFFRLHKYMDNIFKKHTDSFPPYTHDNLEFSGMVVNGVAIDGELITFFDEFQYSLINAVDSGENIEDVEINARVHRLNHNEFTYKITMSNNNDGERLATFRIFLCPIEDNNGITLTLDEARWFCIELDKFFQKVPSGPETIERSSKDSSVTVPDMPSFQSLKEQADNAVNGGHDLDLSAYERSCGIPDRMLLPKSKPEGMEFNLYVAVTDGDKDTEGH---------HAQCGVHGEAYPDNRPLGYPLERRIPDERVIDGVSNIKHVVVKIVHHL 653
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590     |   -     | 610       620       630       640       650
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                             596       606
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 18)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (2, 12)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)
(-)
Class: Mainly Beta (13760)
(-)
Architecture: Sandwich (5577)
(-)
Topology: Immunoglobulin-like (3897)
(-)
Homologous Superfamily: E set domains (6)
(-)
California spiny lobster (Panulirus interruptus) (2)
2a1hcyA03A:398-427,A:455-532,A:552-653
2b1hcyB03B:398-427,B:455-532,B:552-653
2c1hcyC03C:398-427,C:455-532,C:552-653
2d1hcyD03D:398-427,D:455-532,D:552-653
2e1hcyE03E:398-427,E:455-532,E:552-653
2f1hcyF03F:398-427,F:455-532,F:552-653

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1HCY)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (HCYA_PANIN | P04254)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0005344    oxygen transporter activity    Enables the directed movement of oxygen into, out of or within a cell, or between cells.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0015671    oxygen transport    The directed movement of oxygen (O2) into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005615    extracellular space    That part of a multicellular organism outside the cells proper, usually taken to be outside the plasma membranes, and occupied by fluid.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CU  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NDG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Tyr A:624 - Pro A:625   [ RasMol ]
    Tyr B:624 - Pro B:625   [ RasMol ]
    Tyr C:624 - Pro C:625   [ RasMol ]
    Tyr D:624 - Pro D:625   [ RasMol ]
    Tyr E:624 - Pro E:625   [ RasMol ]
    Tyr F:624 - Pro F:625   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1hcy
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HCYA_PANIN | P04254
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HCYA_PANIN | P04254
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HCYA_PANIN | P04254: 1hc1

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1HCY)
