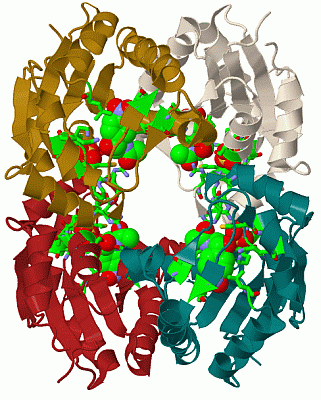

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

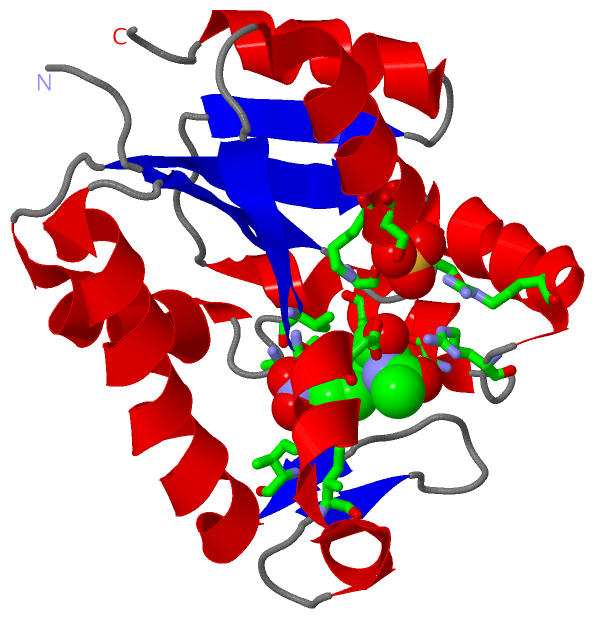

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

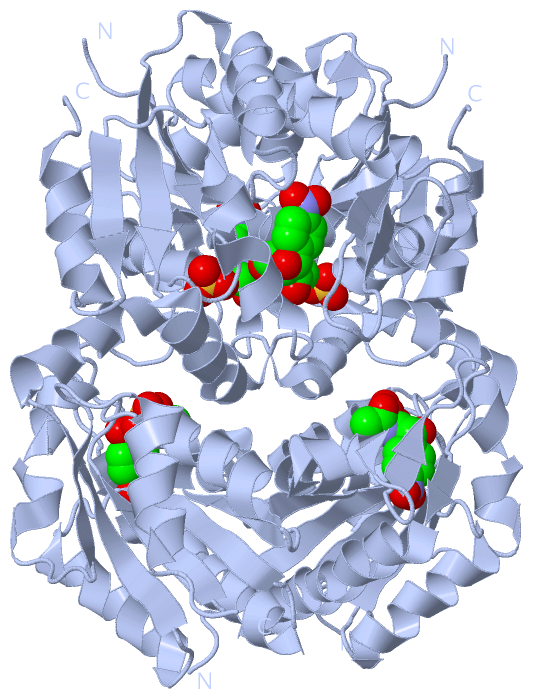

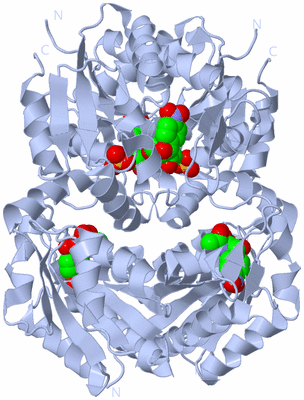

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

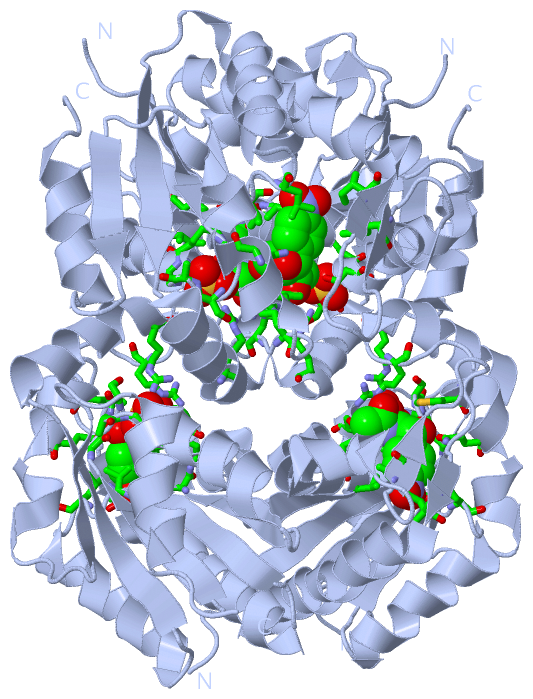

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CHLORAMPHENICOL PHOSPHOTRANSFERASE IN COMPLEX WITH 2-NAC-CHLORAMPHENICOL FROM STREPTOMYCES VENEZUELAE

Authors :  T. Izard
Date :  15 Dec 01  (Deposition) - 04 Jan 02  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.90
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (4x)
Keywords :  Transferase, Kinase, Antibiotic Resistance, Phosphorylation, Mononucleotide Binding Fold (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Izard
Structural Basis For Chloramphenicol Tolerance In Streptomyces Venezuelae By Chloramphenicol Phosphotransferase Activity
Protein Sci. V. 10 1508 2001
PubMed-ID: 11468347  |  Reference-DOI: 10.1110/PS.10.8.1508

(-) Compounds

Molecule 1 - CHLORAMPHENICOL 3-O PHOSPHOTRANSFERASE
    Chains: A
    Organism Scientific: STREPTOMYCES VENEZUELAE
    Organism Taxid: 54571
    Strain: ISP5230
    Synonym: CHLORAMPHENICOL PHOSPHOTRANSFERASE, CPT

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric Unit (2, 2)
No.NameCountTypeFull Name
1CLC1Ligand/IonN-ACETYL-P-NITROPHENYLSERINOL
2SO41Ligand/IonSULFATE ION
Biological Unit 1 (2, 8)
No.NameCountTypeFull Name
1CLC4Ligand/IonN-ACETYL-P-NITROPHENYLSERINOL
2SO44Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:11 , SER A:13 , ALA A:14 , GLY A:15 , LYS A:16 , SER A:17 , ARG A:133BINDING SITE FOR RESIDUE SO4 A 601
2AC2SOFTWAREVAL A:36 , ASP A:37 , ILE A:54 , ILE A:64 , VAL A:94 , LEU A:96 , ARG A:136 , MET A:140 , GLN A:144BINDING SITE FOR RESIDUE CLC A 999

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1GRR)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1GRR)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GRR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1GRR)

(-) Exons   (0, 0)

(no "Exon" information available for 1GRR)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:178
 aligned with CPT_STRVP | Q56148 from UniProtKB/Swiss-Prot  Length:178

    Alignment length:178
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
            CPT_STRVP     1 MTTRMIILNGGSSAGKSGIVRCLQSVLPEPWLAFGVDSLIEAMPLKMQSAEGGIEFDADGGVSIGPEFRALEGAWAEGVVAMARAGARIIIDDVFLGGAAAQERWRSFVGDLDVLWVGVRCDGAVAEGRETARGDRVAGMAAKQAYVVHEGVEYDVEVDTTHKESIECAWAIAAHVVP 178
               SCOP domains d1grra_ A: Chloramphenicol phosphotransferase                                                                                                                                      SCOP domains
               CATH domains 1grrA00 A:1-178 P-loop containing nucleotide triphosphate hydrolases                                                                                                               CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.....hhhhhhhhhhhhh...eeeeehhhhhhhhhhhhhh....ee.......eehhhhhhhhhhhhhhhhhhhhh..eeeeee....hhhhhhhhhhhhh...eeeeeee.hhhhhhhhhhhhh....hhhhhhhhhhhh.....eeee....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1grr A   1 MTTRMIILNGGSSAGKSGIVRCLQSVLPEPWLAFGVDSLIEAMPLKMQSAEGGIEFDADGGVSIGPEFRALEGAWAEGVVAMARAGARIIIDDVFLGGAAAQERWRSFVGDLDVLWVGVRCDGAVAEGRETARGDRVAGMAAKQAYVVHEGVEYDVEVDTTHKESIECAWAIAAHVVP 178
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GRR)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (CPT_STRVP | Q56148)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0046677    response to antibiotic    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an antibiotic stimulus. An antibiotic is a chemical substance produced by a microorganism which has the capacity to inhibit the growth of or to kill other microorganisms.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CLC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1grr)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1grr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CPT_STRVP | Q56148
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CPT_STRVP | Q56148
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CPT_STRVP | Q56148: 1grq 1qhn 1qhs 1qhx 1qhy

(-) Related Entries Specified in the PDB File

1grq CHLORAMPHENICOL PHOSPHOTRANSFERASE IN COMPLEX WITH P-AMINO-CHLORAMPHENICOL FROM STREPTOMYCES VENEZUELAE
1qhn CHLORAMPHENICOL PHOSPHOTRANSFERASE FROM STREPTOMYCES VENEZUELAE
1qhs CHLORAMPHENICOL PHOSPHOTRANSFERASE IN COMPLEX WITH CHLORAMPHENICOL FROM STREPTOMYCES VENEZUELAE
1qhx CHLORAMPHENICOL PHOSPHOTRANSFERASE IN COMPLEX WITH ATP FROM STREPTOMYCES VENEZUELAE
1qhy CHLORAMPHENICOL PHOSPHOTRANSFERASE FROM STREPTOMYCES VENEZUELAE IN COMPLEX WITH ATPGAMMAS AND CHLORAMPHENICOL
