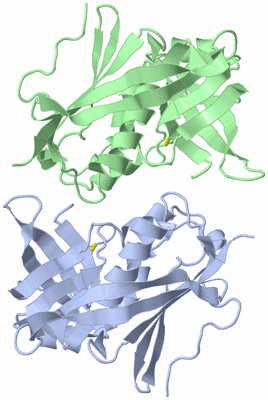

Asymmetric Unit (Jmol Viewer)

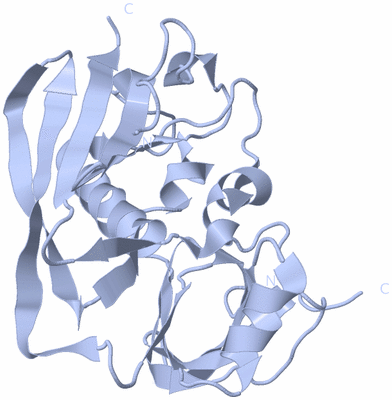

Biological Unit 1 (Jmol Viewer)

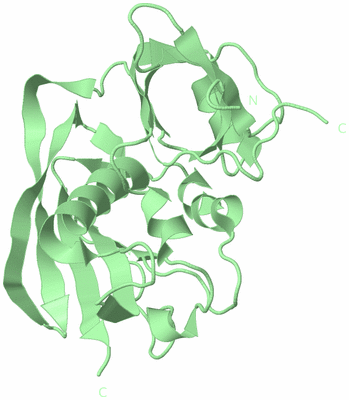

Biological Unit 2 (Jmol Viewer)

Title :   STRUCTURAL BASIS FOR THE ALTERED T-CELL RECEPTOR BINDING SPECIFICTY IN A SUPERANTIGENIC STAPHYLOCOCCUS AUREUS ENTEROTOXIN-B MUTANT

Authors :   M. D. Baker, A. C. Papageorgiou, K. R. Acharya

Date :   29 Oct 01 (Deposition) - 13 Feb 02 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Enterotoxin, Staphylococcal Enterotoxins, Seb, Enterotoxin B (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. D. Baker, A. C. Papageorgiou, R. Titball, J. Miller, S. White, B. Lingard, J. Lee, D. Cavanagh, M. Kehoe, J. Robinson, K. R. Acharya
Structural And Functional Role Of Threonine 112 In A Superantigen Staphylococcus Aureus Enterotoxin B.
J. Biol. Chem. V. 277 2756 2002
PubMed-ID: 11704673 | Reference-DOI: 10.1074/JBC.M109369200

Molecule 1 - ENTEROTOXIN TYPE B
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Mutation	:	YES
	Organism Scientific	:	STAPHYLOCOCCUS AUREUS
	Organism Taxid	:	1280

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 1GOZ)

(no "Site" information available for 1GOZ)

Asymmetric Unit

No.	Residues
1	A:1093	-	A:1113
2	B:2093	-	B:2113

(no "Cis Peptide Bond" information available for 1GOZ)

(no "SAP(SNP)/Variant" information available for 1GOZ)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_1	PS00277	Staphylococcal enterotoxin/Streptococcal pyrogenic exotoxin signature 1.	ETXB_STAAU	142-151	2	A:1115-1124 B:2115-2124
2	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	ETXB_STAAU	179-202	2	A:1152-1175 B:2152-2175

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_1	PS00277	Staphylococcal enterotoxin/Streptococcal pyrogenic exotoxin signature 1.	ETXB_STAAU	142-151	1	A:1115-1124 -
2	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	ETXB_STAAU	179-202	1	A:1152-1175 -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	STAPH_STREP_TOXIN_1	PS00277	Staphylococcal enterotoxin/Streptococcal pyrogenic exotoxin signature 1.	ETXB_STAAU	142-151	1	- B:2115-2124
2	STAPH_STREP_TOXIN_2	PS00278	Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.	ETXB_STAAU	179-202	1	- B:2152-2175

(no "Exon" information available for 1GOZ)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:228
 aligned with ETXB_STAAU | P01552 from UniProtKB/Swiss-Prot  Length:266

    Alignment length:238
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257
          ETXB_STAAU     28 ESQPDPKPDELHKSSKFTGLMENMKVLYDDNHVSAINVKSIDQFLYFDLIYSIKDTKLGNYDNVRVEFKNKDLADKYKDKYVDVFGANYYYQCYFSKKTNDINSHQTDKRKTCMYGGVTEHNGNQLDKYRSITVRVFEDGKNLLSFDVQTNKKKVTAQELDYLTRHYLVKNKKLYEFNNSPYETGYIKFIENENSFWYDMMPAPGDKFDQSKYLMMYNDNKMVDSKDVKIEVYLTTKK  265
               SCOP domains d1goza1 A:1001-1121 Staphylococcal enterotoxin B, SEB                                                                    d1goza2 A:1122-1238 Staphylococcal enterotoxin B, SEB                                                                 SCOP domains
               CATH domains -1gozA02                       1gozA01 A:1032-1121  [code=2.40.50.110, no name defined]                                  ------1gozA02 A:1002-1031,A:1128-1231  [code=3.10.20.120, no name defined]                                    ------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhh....hhhhhh......eeeeee.........eeeeeeee....eeeeeeee..hhhhhhhhh...eeeee...........----------...eeeee..eee....eeeeeeeeeeeeee..eeeeeeeeeeee.eeehhhhhhhhhhhhhhhhh........eeeeeeeeee..eeeeee.........hhhhhhhhhhhh.eee....eeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------STAPH_STRE---------------------------STAPH_STREP_TOXIN_2     --------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1goz A 1001 ESQPDPKPDELHKSSKFTGLMENMKVLYDDNHVSAINVKSIDQFLYFDLIYSIKDTKLGNYDNVRVEFKNKDLADKYKDKYVDVFGANYYYQCYFSK----------DKRKSCMYGGVTEHNGNQLDKYRSITVRVFEDGKNLLSFDVQTNKKKVTAQELDYLTRHYLVKNKKLYEFNNSPYETGYIKFIENENSFWYDMMPAPGDKFDQSKYLMMYNDNKMVDSKDVKIEVYLTTKK 1238
                                  1010      1020      1030      1040      1050      1060      1070      1080      1090      |  -      1110      1120      1130      1140      1150      1160      1170      1180      1190      1200      1210      1220      1230
                                                                                                                         1097       1108

Chain B from PDB  Type:PROTEIN  Length:228
 aligned with ETXB_STAAU | P01552 from UniProtKB/Swiss-Prot  Length:266

    Alignment length:238
                                    37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257
          ETXB_STAAU     28 ESQPDPKPDELHKSSKFTGLMENMKVLYDDNHVSAINVKSIDQFLYFDLIYSIKDTKLGNYDNVRVEFKNKDLADKYKDKYVDVFGANYYYQCYFSKKTNDINSHQTDKRKTCMYGGVTEHNGNQLDKYRSITVRVFEDGKNLLSFDVQTNKKKVTAQELDYLTRHYLVKNKKLYEFNNSPYETGYIKFIENENSFWYDMMPAPGDKFDQSKYLMMYNDNKMVDSKDVKIEVYLTTKK  265
               SCOP domains d1gozb1 B:2001-2121 Staphylococcal enterotoxin B, SEB                                                                    d1gozb2 B:2122-2238 Staphylococcal enterotoxin B, SEB                                                                 SCOP domains
               CATH domains -1gozB02                       1gozB01 B:2032-2121  [code=2.40.50.110, no name defined]                                  ------1gozB02 B:2002-2031,B:2128-2231  [code=3.10.20.120, no name defined]                                    ------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhh....hhhhhh......eeeeee.........eeeeeee......eeeeeee..hhhhhhhhh...eeeee...........----------...eeeee..eee....eeeeeeeeeeeeee..eeeeeeeeeeee.eeehhhhhhhhhhhhhhhhh........eeeeeeeeee...eeeee.........hhhhhhhhhh...eee...eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------STAPH_STRE---------------------------STAPH_STREP_TOXIN_2     --------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1goz B 2001 ESQPDPKPDELHKSSKFTGLMENMKVLYDDNHVSAINVKSIDQFLYFDLIYSIKDTKLGNYDNVRVEFKNKDLADKYKDKYVDVFGANYYYQCYFSK----------DKRKSCMYGGVTEHNGNQLDKYRSITVRVFEDGKNLLSFDVQTNKKKVTAQELDYLTRHYLVKNKKLYEFNNSPYETGYIKFIENENSFWYDMMPAPGDKFDQSKYLMMYNDNKMVDSKDVKIEVYLTTKK 2238
                                  2010      2020      2030      2040      2050      2060      2070      2080      2090      |  -      2110      2120      2130      2140      2150      2160      2170      2180      2190      2200      2210      2220      2230
                                                                                                                         2097       2108

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Ubiquitin-like (UB roll) (674)

Homologous Superfamily: [code=3.10.20.120, no name defined] (91)

Staphylococcus aureus. Organism_taxid: 1280. (14)

1a	1gozA02	A:1002-1031,A:1128-1231
1b	1gozB02	B:2002-2031,B:2128-2231

Class: Mainly Beta (13760)

Architecture: Beta Barrel (4804)

Topology: OB fold (Dihydrolipoamide Acetyltransferase, E2P) (1040)

Homologous Superfamily: [code=2.40.50.110, no name defined] (136)

Staphylococcus aureus. Organism_taxid: 1280. (14)

2a	1gozA01	A:1032-1121
2b	1gozB01	B:2032-2121

(no "Pfam Domain" information available for 1GOZ)

Asymmetric Unit(hide GO term definitions)

Chain A,B (ETXB_STAAU | P01552)

biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1goz)

	Sites
(no "Sites" information available for 1goz)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1goz)

Biological Units

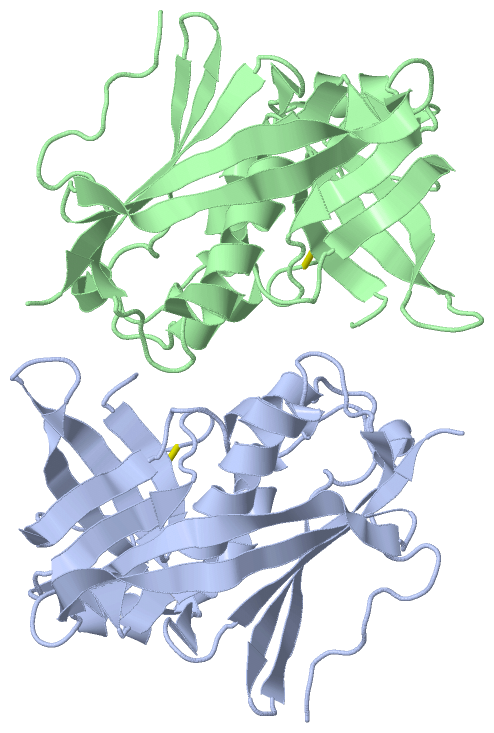

	Complete Structure

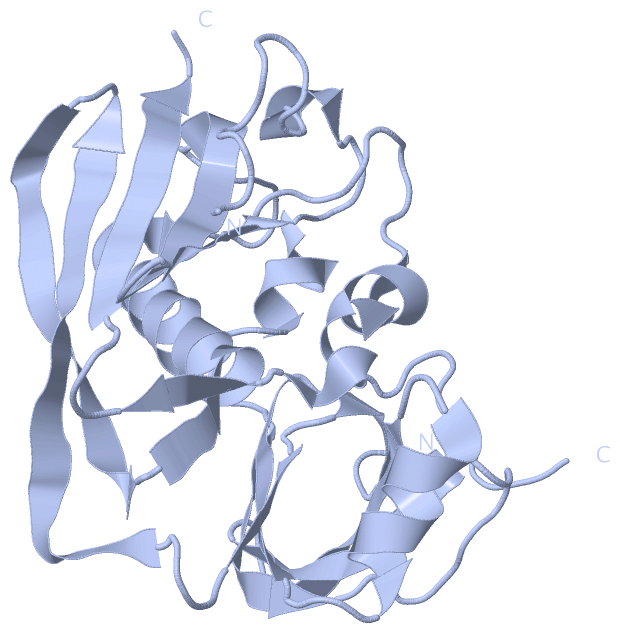

		Biological Unit 1	[ Jena3D ]

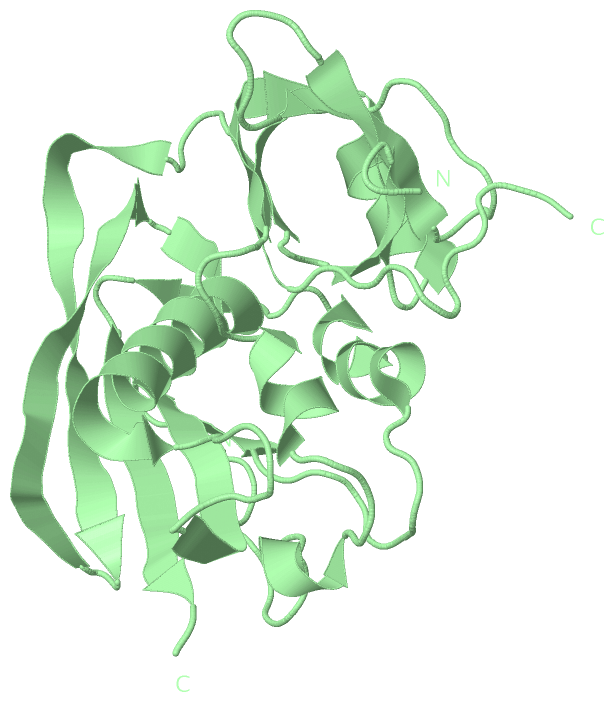

		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1goz
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	ETXB_STAAU \| P01552
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	ETXB_STAAU \| P01552
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

1d5m	X-RAY CRYSTAL STRUCTURE OF HLA-DR4 COMPLEXED WITH PEPTIDE
1d5x	X-RAY CRYSTAL STRUCTURE OF HLA-DR4 COMPLEXED WITH DIPEPTIDE MIMETIC
1d5z	X-RAY CRYSTAL STRUCTURE OF HLA-DR4 COMPLEXED WITH PEPTIDOMIMETIC
1d6e	CRYSTAL STRUCTURE OF HLA-DR4 COMPLEX WITH PEPTIDOMIMETIC AND SEB
1sbb	T-CELL RECEPTOR BETA CHAIN COMPLEXED WITH SUPERANTIGEN SEB
1se3	STAPHYLOCOCCAL ENTEROTOXIN B COMPLEXED WITH GM3 TRISACCHARIDE
1se4	STAPHYLOCOCCAL ENTEROTOXIN B COMPLEXED WITH LACTOSE
1seb	COMPLEX OF THE HUMAN MHC CLASS II GLYCOPROTEIN HLA-DR1 AND THE BACTERIAL SUPERANTIGEN SEB
2seb	X-RAY CRYSTAL STRUCTURE OF HLA-DR4 COMPLEXED WITH A PEPTIDE FROM HUMAN COLLAGEN II
3seb	STAPHYLOCOCCAL ENTEROTOXIN B
