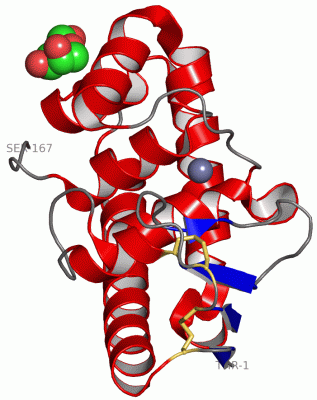

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

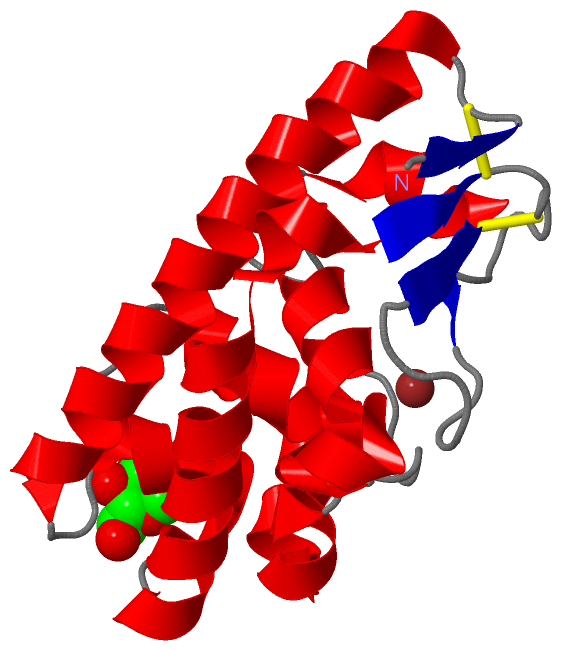

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

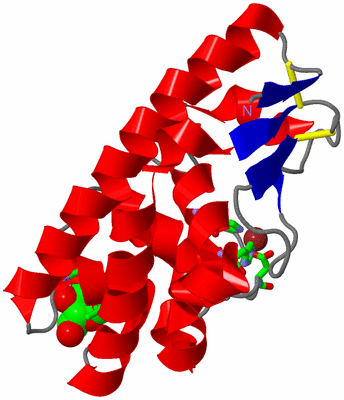

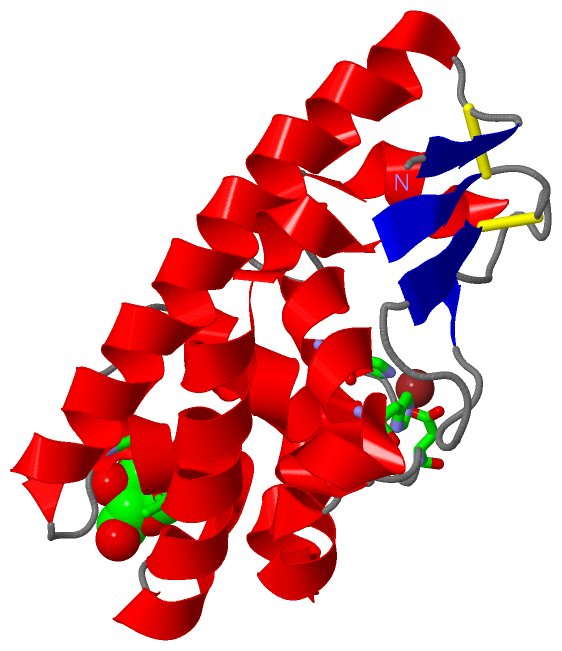

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  ZINC PEPTIDASE FROM GRIFOLA FRONDOSA

Authors :  T. Hori, T. Kumasaka, M. Yamamoto, T. Nonaka, N. Tanaka, Y. Hashimoto, T. Ueki, K. Takio
Date :  11 Oct 00  (Deposition) - 14 Mar 01  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Zinc Coordinate, Metalloprotease, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. Hori, T. Kumasaka, M. Yamamoto, N. Nonaka, N. Tanaka, Y. Hashimoto, U. Ueki, K. Takio
Structure Of A New 'Aspzincin' Metalloendopeptidase From Grifola Frondosa: Implications For The Catalytic Mechanism And Substrate Specificity Based On Several Different Crystal Forms.
Acta Crystallogr. , Sect. D V. 57 361 2001
PubMed-ID: 11223512  |  Reference-DOI: 10.1107/S0907444900019740
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PEPTIDYL-LYS METALLOENDOPEPTIDASE
    Chains: A
    EC Number: 3.4.24.20
    Organism Scientific: GRIFOLA FRONDOSA
    Organism Taxid: 5627
    Tissue: FRUITING BODY

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1MAN1Ligand/IonALPHA-D-MANNOSE
2ZN1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:39 , THR A:42BINDING SITE FOR RESIDUE MAN A 900
2AC2SOFTWAREHIS A:117 , HIS A:121 , ASP A:130 , HOH A:216 , HOH A:324BINDING SITE FOR RESIDUE ZN A 200

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:5 -A:75
2A:77 -A:97

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Asn A:163 -Pro A:164

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1GE5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1GE5)

(-) Exons   (0, 0)

(no "Exon" information available for 1GE5)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:167
 aligned with PLMP_GRIFR | P81054 from UniProtKB/Swiss-Prot  Length:348

    Alignment length:167
                                   191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341
           PLMP_GRIFR   182 TYNGCSSSEQSALAAAASAAQSYVAESLSYLQTHTAATPRYTTWFGSYISSRHSTVLQHYTDMNSNDFSSYSFDCTCTAAGTFAYVYPNRFGTVYLCGAFWKAPTTGTDSQAGTLVHESSHFTRNGGTKDYAYGQAAAKSLATMDPDKAVMNADNHEYFSENNPAQS 348
               SCOP domains d1ge5a_ A: Fungal zinc peptidase                                                                                                                                        SCOP domains
               CATH domains 1ge5A00 A:1-167 Collagenase (Catalytic Domain)                                                                                                                          CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhheee.........ee.......eeeehhhhhhh......hhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhh.hhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ge5 A   1 TYNGCSSSEQSALAAAASAAQSYVAESLSYLQTHTAATPRYTTWFGSYISSRHSTVLQHYTDMNSNDFSSYSFDCTCTAAGTFAYVYPNRFGTVYLCGAFWKAPTTGTDSQAGTLVHESSHFTRNGGTKDYAYGQAAAKSLATMDPDKAVMNADNHEYFSENNPAQS 167
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1GE5)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PLMP_GRIFR | P81054)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004222    metalloendopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008237    metallopeptidase activity    Catalysis of the hydrolysis of peptide bonds by a mechanism in which water acts as a nucleophile, one or two metal ions hold the water molecule in place, and charged amino acid side chains are ligands for the metal ions.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
