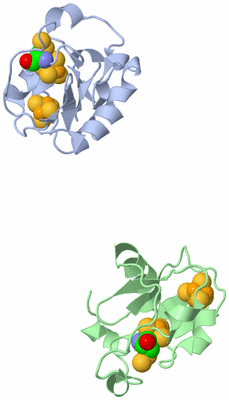

Asymmetric Unit (Jmol Viewer)

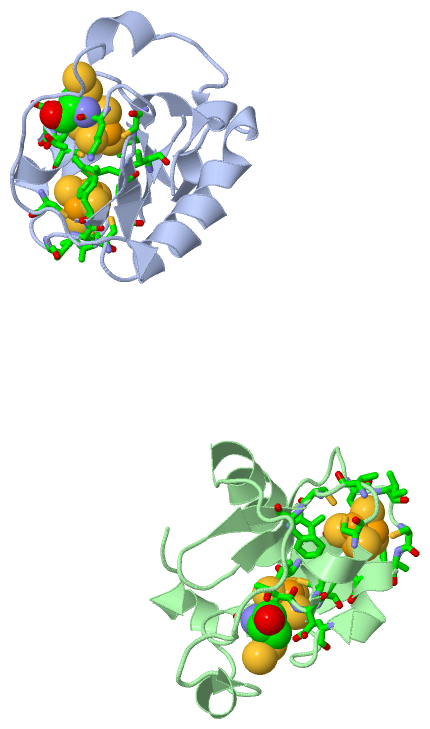

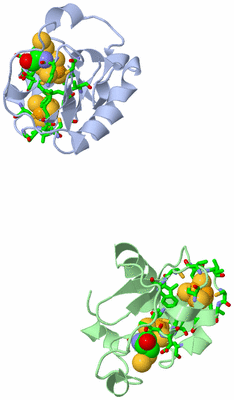

Asym. Unit - sites (Jmol Viewer)

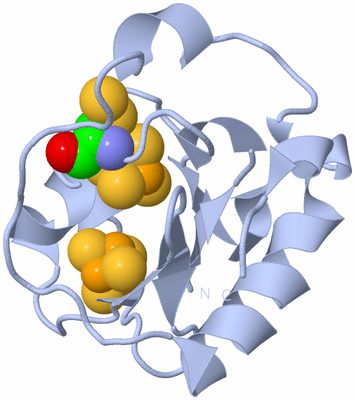

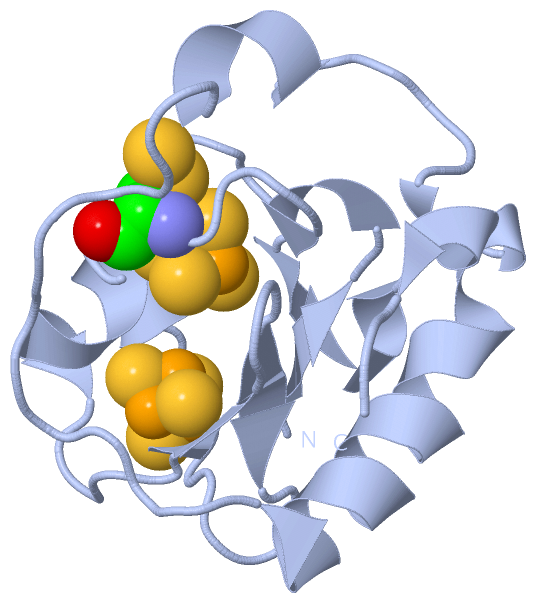

Biological Unit 1 (Jmol Viewer)

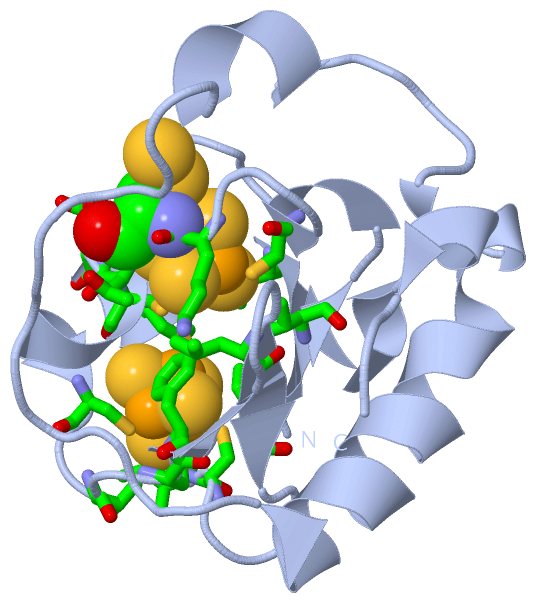

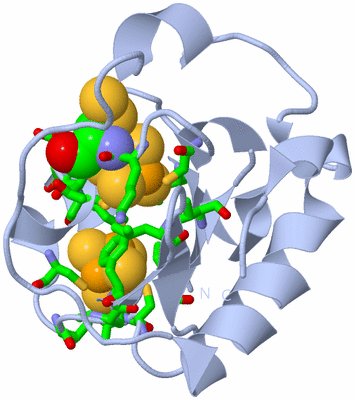

Biol. Unit 1 - sites (Jmol Viewer)

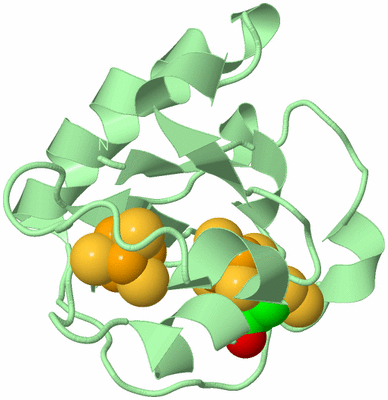

Biological Unit 2 (Jmol Viewer)

Title :   Y13C MUTANT OF AZOTOBACTER VINELANDII FDI

Authors :   M. A. Kemper, S. J. Lloyd, G. S. Prasad, C. D. Stout, S. Fawcett, F. A. Armstrong, B. K. Burgess

Date :   08 Jan 97 (Deposition) - 01 Apr 97 (Release) - 24 Mar 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.35

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Electron Transport, Iron-Sulfur (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. A. Kemper, C. D. Stout, S. J. Lloyd, G. S. Prasad, S. E. Fawcett, F. A. Armstrong, B. Shen, B. K. Burgess
Y13C Azotobacter Vinelandii Ferredoxin I. A Designed [Fe-S] Ligand Motif Contains A Cysteine Persulfide.
J. Biol. Chem. V. 272 15620 1997
PubMed-ID: 9188450 | Reference-DOI: 10.1074/JBC.272.25.15620
(for further references see the PDB file header)

Molecule 1 - FERREDOXIN
	Chains	:	A, B
	Engineered	:	YES
	Expression System	:	AZOTOBACTER VINELANDII
	Expression System Taxid	:	354
	Mutation	:	YES
	Organism Scientific	:	AZOTOBACTER VINELANDII
	Organism Taxid	:	354
	Other Details	:	CYS 13 MODIFIED TO A PERSULFIDE, [3FE-4S] AND [4FE-4S] CLUSTERS AS IN NATIVE PROTEIN
	Strain	:	JG100

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 6)

No.	Name	Count	Type	Full Name
1	CSS	2	Mod. Amino Acid	S-MERCAPTOCYSTEINE
2	F3S	2	Ligand/Ion	FE3-S4 CLUSTER
3	SF4	2	Ligand/Ion	IRON/SULFUR CLUSTER

Biological Unit 1 (3, 3)

No.	Name	Count	Type	Full Name
1	CSS	1	Mod. Amino Acid	S-MERCAPTOCYSTEINE
2	F3S	1	Ligand/Ion	FE3-S4 CLUSTER
3	SF4	1	Ligand/Ion	IRON/SULFUR CLUSTER

Biological Unit 2 (3, 3)

No.	Name	Count	Type	Full Name
1	CSS	1	Mod. Amino Acid	S-MERCAPTOCYSTEINE
2	F3S	1	Ligand/Ion	FE3-S4 CLUSTER
3	SF4	1	Ligand/Ion	IRON/SULFUR CLUSTER

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS A:20 , VAL A:22 , CYS A:24 , PHE A:25 , ILE A:34 , CYS A:39 , ILE A:40 , CYS A:42 , ALA A:43 , CYS A:45	BINDING SITE FOR RESIDUE SF4 A 107
2	AC2	SOFTWARE	VAL A:4 , CYS A:8 , LYS A:12 , CSS A:13 , THR A:14 , ASP A:15 , CYS A:16 , LEU A:32 , CYS A:49 , ILE A:54	BINDING SITE FOR RESIDUE F3S A 108
3	AC3	SOFTWARE	PHE B:2 , CYS B:20 , VAL B:22 , CYS B:24 , PHE B:25 , ILE B:34 , CYS B:39 , ILE B:40 , CYS B:42 , ALA B:43 , CYS B:45	BINDING SITE FOR RESIDUE SF4 B 107
4	AC4	SOFTWARE	VAL B:4 , CYS B:8 , CSS B:13 , THR B:14 , ASP B:15 , CYS B:16 , CYS B:49 , ILE B:54	BINDING SITE FOR RESIDUE F3S B 108

(no "SS Bond" information available for 1FTC)

(no "Cis Peptide Bond" information available for 1FTC)

(no "SAP(SNP)/Variant" information available for 1FTC)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4FE4S_FER_2	PS51379	4Fe-4S ferredoxin-type iron-sulfur binding domain profile.	FER1_AZOVI	31-60 1-30	2	A:30-59 B:30-59 -
2	4FE4S_FER_1	PS00198	4Fe-4S ferredoxin-type iron-sulfur binding region signature.	FER1_AZOVI	40-51	2	A:39-50 B:39-50

Biological Unit 1 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4FE4S_FER_2	PS51379	4Fe-4S ferredoxin-type iron-sulfur binding domain profile.	FER1_AZOVI	31-60 1-30	1	A:30-59 - -
2	4FE4S_FER_1	PS00198	4Fe-4S ferredoxin-type iron-sulfur binding region signature.	FER1_AZOVI	40-51	1	A:39-50 -

Biological Unit 2 (2, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	4FE4S_FER_2	PS51379	4Fe-4S ferredoxin-type iron-sulfur binding domain profile.	FER1_AZOVI	31-60 1-30	1	- B:30-59 -
2	4FE4S_FER_1	PS00198	4Fe-4S ferredoxin-type iron-sulfur binding region signature.	FER1_AZOVI	40-51	1	- B:39-50

(no "Exon" information available for 1FTC)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:106
 aligned with FER1_AZOVI | P00214 from UniProtKB/Swiss-Prot  Length:107

    Alignment length:106
                                    11        21        31        41        51        61        71        81        91       101
           FER1_AZOVI     2 AFVVTDNCIKCKYTDCVEVCPVDCFYEGPNFLVIHPDECIDCALCEPECPAQAIFSEDEVPEDMQEFIQLNAELAEVWPNITEKKDPLPDAEDWDGVKGKLQHLER 107
               SCOP domains d1ftca_ A: Ferredoxin                                                                                      SCOP domains
               CATH domains 1ftcA00 A:1-106  [code=3.30.70.20, no name defined]                                                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.hhh......hhhhh.....eee....eee.........hhhhh.....eeehhh..hhhhhhhhhhhhhhhh.............hhhh.....hhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) 4FE4S_FER_2  PDB: -          4FE4S_FER_2  PDB: A:30-59     ----------------------------------------------- PROSITE (1)
                PROSITE (2) --------------------------------------4FE4S_FER_1 -------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 1ftc A   1 AFVVTDNCIKCKcTDCVEVCPVDCFYEGPNFLVIHPDECIDCALCEPECPAQAIFSEDEVPEDMQEFIQLNAELAEVWPNITEKKDPLPDAEDWDGVKGKLQHLER 106
                                    10  |     20        30        40        50        60        70        80        90       100
                                       13-CSS

Chain B from PDB  Type:PROTEIN  Length:106
 aligned with FER1_AZOVI | P00214 from UniProtKB/Swiss-Prot  Length:107

    Alignment length:106
                                    11        21        31        41        51        61        71        81        91       101
           FER1_AZOVI     2 AFVVTDNCIKCKYTDCVEVCPVDCFYEGPNFLVIHPDECIDCALCEPECPAQAIFSEDEVPEDMQEFIQLNAELAEVWPNITEKKDPLPDAEDWDGVKGKLQHLER 107
               SCOP domains d1ftcb_ B: Ferredoxin                                                                                      SCOP domains
               CATH domains 1ftcB00 B:1-106  [code=3.30.70.20, no name defined]                                                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.hhh......hhhhh.....eee....eee.........hhhhh.....eeehhh..hhhhhhhhhhhhhhhh.............hhhh.....hhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) 4FE4S_FER_2  PDB: -          4FE4S_FER_2  PDB: B:30-59     ----------------------------------------------- PROSITE (1)
                PROSITE (2) --------------------------------------4FE4S_FER_1 -------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 1ftc B   1 AFVVTDNCIKCKcTDCVEVCPVDCFYEGPNFLVIHPDECIDCALCEPECPAQAIFSEDEVPEDMQEFIQLNAELAEVWPNITEKKDPLPDAEDWDGVKGKLQHLER 106
                                    10  |     20        30        40        50        60        70        80        90       100
                                       13-CSS

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: Ferredoxin-like (1795)

Superfamily: 4Fe-4S ferredoxins (143)

Family: 7-Fe ferredoxin (40)

Protein domain: Ferredoxin (37)

Azotobacter vinelandii [TaxId: 354] (32)

1a	d1ftca_	A:
1b	d1ftcb_	B:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: Alpha-Beta Plaits (1688)

Homologous Superfamily: [code=3.30.70.20, no name defined] (120)

Azotobacter vinelandii. Organism_taxid: 354. Strain: jg100. (2)

1a	1ftcA00	A:1-106
1b	1ftcB00	B:1-106

(no "Pfam Domain" information available for 1FTC)

Asymmetric Unit(hide GO term definitions)

Chain A,B (FER1_AZOVI | P00214)

molecular function
	GO:0051538	3 iron, 4 sulfur cluster binding	Interacting selectively and non-covalently with a 3 iron, 4 sulfur (3Fe-4S) cluster; this cluster consists of three iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands. It is essentially a 4Fe-4S cluster with one iron missing.
	GO:0051539	4 iron, 4 sulfur cluster binding	Interacting selectively and non-covalently with a 4 iron, 4 sulfur (4Fe-4S) cluster; this cluster consists of four iron atoms, with the inorganic sulfur atoms found between the irons and acting as bridging ligands.
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0009055	electron carrier activity	Any molecular entity that serves as an electron acceptor and electron donor in an electron transport chain. An electron transport chain is a process in which a series of electron carriers operate together to transfer electrons from donors to any of several different terminal electron acceptors to generate a transmembrane electrochemical gradient.
	GO:0051536	iron-sulfur cluster binding	Interacting selectively and non-covalently with an iron-sulfur cluster, a combination of iron and sulfur atoms.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CSS	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		F3S	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SF4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ftc)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1ftc
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FER1_AZOVI \| P00214
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FER1_AZOVI \| P00214
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
