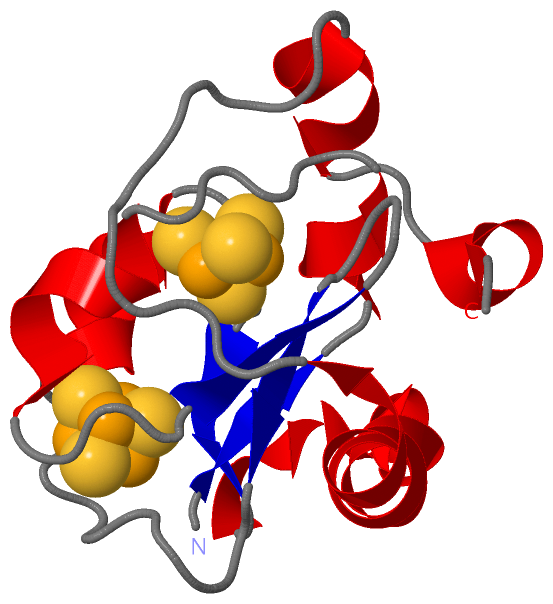

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

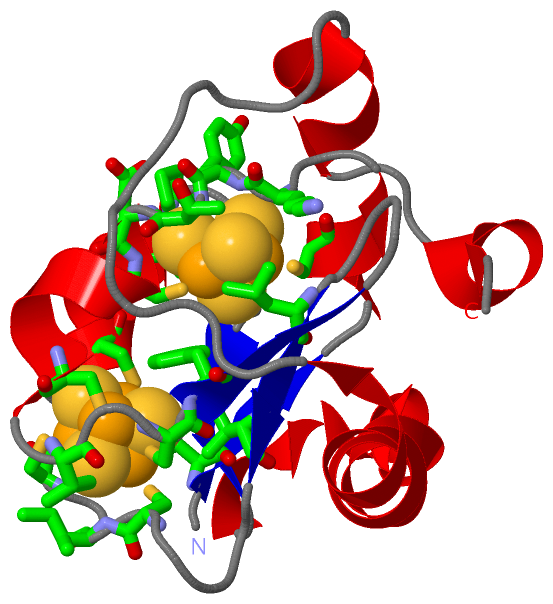

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURES OF OXIDIZED AND REDUCED AZOTOBACTER VINELANDII FERREDOXIN AT PH 8 AND PH 6

Authors :  C. D. Stout
Date :  29 Jun 93  (Deposition) - 31 Oct 93  (Release) - 24 Mar 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Electron Transport(Iron-Sulfur) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. D. Stout
Crystal Structures Of Oxidized And Reduced Azotobacter Vinelandii Ferredoxin At Ph 8 And 6.
J. Biol. Chem. V. 268 25920 1993
PubMed-ID: 8245025
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - FERREDOXIN
    Chains: A
    Engineered: YES
    Organism Scientific: AZOTOBACTER VINELANDII
    Organism Taxid: 354

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1F3S1Ligand/IonFE3-S4 CLUSTER
2SF41Ligand/IonIRON/SULFUR CLUSTER

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE A:2 , CYS A:20 , VAL A:22 , CYS A:24 , PHE A:25 , ILE A:34 , CYS A:39 , ILE A:40 , CYS A:42 , ALA A:43 , CYS A:45BINDING SITE FOR RESIDUE SF4 A 107
2AC2SOFTWARECYS A:8 , LYS A:12 , TYR A:13 , THR A:14 , ASP A:15 , CYS A:16 , LEU A:32 , CYS A:49 , PRO A:50BINDING SITE FOR RESIDUE F3S A 108

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5FD1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5FD1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5FD1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5FD1)

(-) Exons   (0, 0)

(no "Exon" information available for 5FD1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:106

               SCOP domains d5fd1a_ A: Ferredoxin                                                                                      SCOP domains
               CATH domains 5fd1A00 A:1-106  [code=3.30.70.20, no name defined]                                                        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee.hhhh.....hhhhhh....eee....eee.........hhhhhh....eee.hhhhhhhhhhhhhhhhhhhhh...........hhhhhh...hhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 5fd1 A   1 AFVVTDNCIKCKYTDCVEVCPVDCFYEGPNFLVIHPDECIDCALCEPECPAQAIFSEDEVPEDMQEFIQLNAELAEVWPNITEKKDPLPDAEDWDGVKGKLQHLER 106
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5FD1)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
