1FKK - JenaLib

Title :   ATOMIC STRUCTURE OF FKBP12, AN IMMUNOPHILIN BINDING PROTEIN

Authors :   K. P. Wilson, M. D. Sintchak, J. A. Thomson, M. A. Navia

Date :   18 Aug 95 (Deposition) - 07 Dec 95 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.20

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Fk506 Binding Protein, Fkbp12, Cis-Trans Prolyl-Isomerase, Rotamase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   K. P. Wilson, M. M. Yamashita, M. D. Sintchak, S. H. Rotstein, M. A. Murcko, J. Boger, J. A. Thomson, M. J. Fitzgibbon, J. R. Black, M. A. Navia
Comparative X-Ray Structures Of The Major Binding Protein For The Immunosuppressant Fk506 (Tacrolimus) In Unliganded Form And In Complex With Fk506 And Rapamycin.
Acta Crystallogr. , Sect. D V. 51 511 1995
PubMed-ID: 15299838 | Reference-DOI: 10.1107/S0907444994014514
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 1)

Sites (1, 1)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (4, 4)

Asymmetric Unit (4, 4)

	ENSEMBL					UniProtKB			PDB
No.	Transcript ID	Exon	Exon ID	Genome Location	Length	ID	Location	Length	Count	Location	Length
1.1	ENSBTAT00000010928	1	ENSBTAE00000328125	chr13:60576000-60576120	121	FKB1A_BOVIN	1-13	13	1	A:1-12	12
1.2	ENSBTAT00000010928	2	ENSBTAE00000328122	chr13:60576206-60576253	48	FKB1A_BOVIN	13-29	17	1	A:12-28	17
1.3	ENSBTAT00000010928	3	ENSBTAE00000161854	chr13:60595924-60596036	113	FKB1A_BOVIN	29-66	38	1	A:28-65	38
1.4	ENSBTAT00000010928	4	ENSBTAE00000161855	chr13:60600102-60600266	165	FKB1A_BOVIN	67-108	42	1	A:66-107	42
1.5	ENSBTAT00000010928	5	ENSBTAE00000088782	chr13:60602296-60603379	1084	FKB1A_BOVIN	-	0	0	-	-

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:107
 aligned with FKB1A_BOVIN | P18203 from UniProtKB/Swiss-Prot  Length:108

    Alignment length:107
                                    11        21        31        41        51        61        71        81        91       101
          FKB1A_BOVIN     2 GVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNKPFKFVLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPNATLIFDVELLKLE 108
               SCOP domains d1fkka_ A: FK-506 binding protein (FKBP12), an immunophilin                                                 SCOP domains
               CATH domains 1fkkA00 A:1-107  [code=3.10.50.40, no name defined]                                                         CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee............eeeeeeeeee....eeee.......eeee.......hhhhhhhhh.....eeeeee.hhh................eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------FKBP_PPIASE  PDB: A:19-107 UniProt: 20-108                                                PROSITE
           Transcript 1 (1) Exon 1.1    ---------------Exon 1.3  PDB: A:28-65 UniProt: 29-66 Exon 1.4  PDB: A:66-107 UniProt: 67-108    Transcript 1 (1)
           Transcript 1 (2) -----------Exon 1.2         ------------------------------------------------------------------------------- Transcript 1 (2)
                 1fkk A   1 GVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNKPFKFVLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPNATLIFDVELLKLE 107
                                    10        20        30        40        50        60        70        80        90       100

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (10, 10)

Asymmetric Unit(hide GO term definitions)

Chain A (FKB1A_BOVIN | P18203)

molecular function
	GO:0005528	FK506 binding	Interacting selectively and non-covalently with the 23-membered macrolide lactone FK506.
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0003755	peptidyl-prolyl cis-trans isomerase activity	Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
	GO:0042110	T cell activation	The change in morphology and behavior of a mature or immature T cell resulting from exposure to a mitogen, cytokine, chemokine, cellular ligand, or an antigen for which it is specific.
	GO:0061077	chaperone-mediated protein folding	The process of inhibiting aggregation and assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure that is dependent on interaction with a chaperone.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0000413	protein peptidyl-prolyl isomerization	The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005789	endoplasmic reticulum membrane	The lipid bilayer surrounding the endoplasmic reticulum.

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fkk)

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Jmol

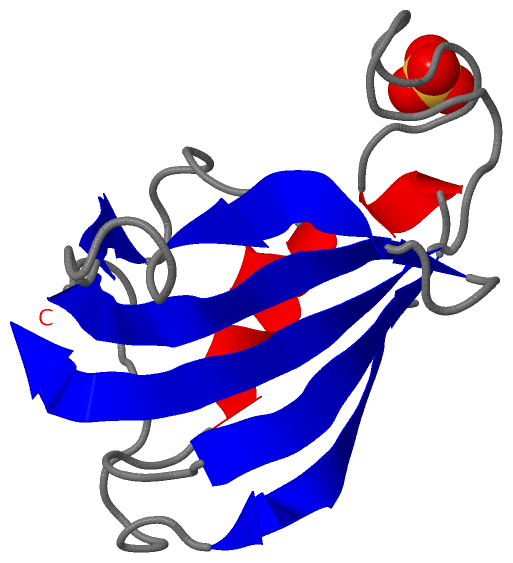

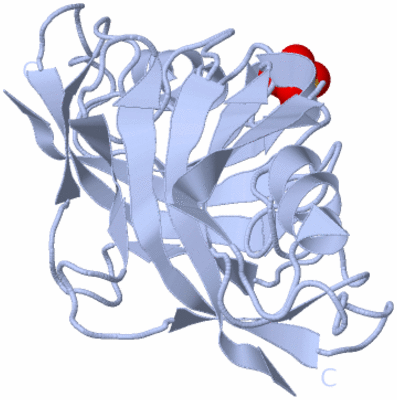

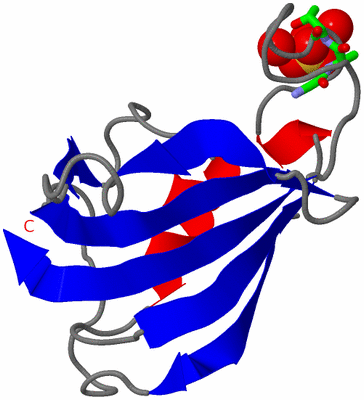

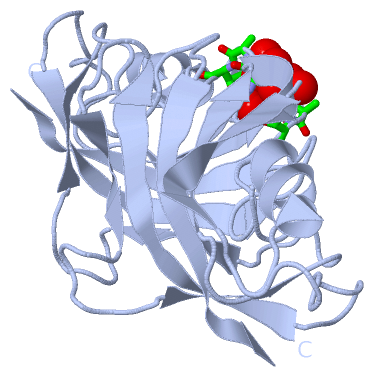

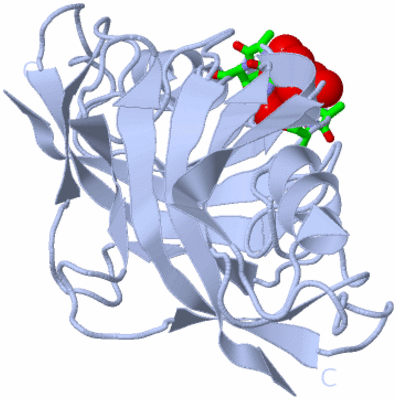

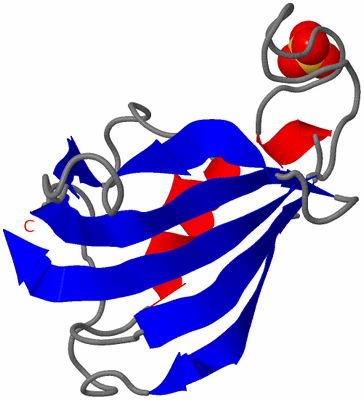

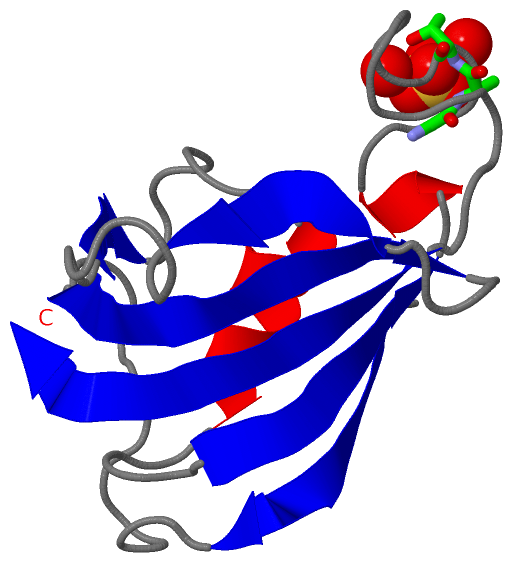

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
