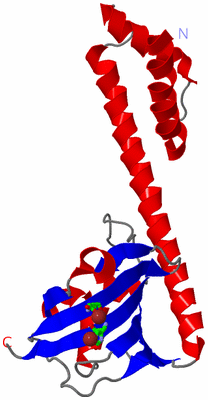

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

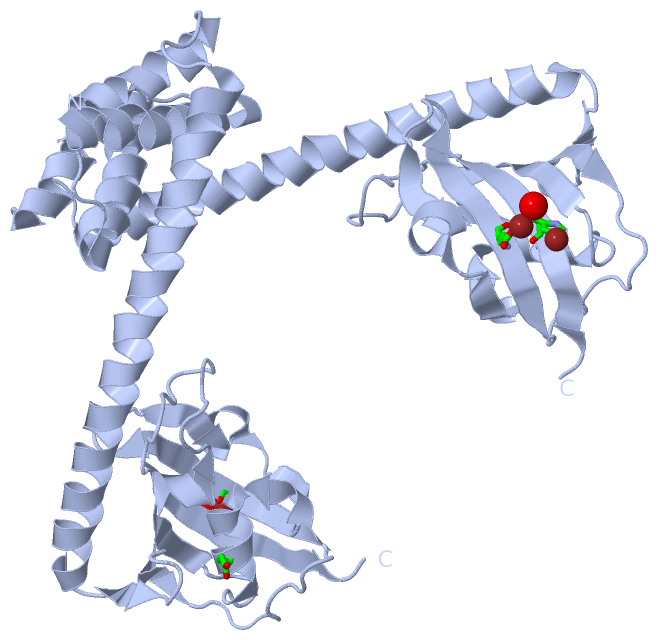

Biol. Unit 1 - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE MACROPHAGE INFECTIVITY POTENTIATOR PROTEIN (MIP) A MAJOR VIRULENCE FACTOR FROM LEGIONELLA PNEUMOPHILA

Authors :   A. Riboldi-Tunnicliffe, S. Jessen, B. Konig, J. Rahfeld, J Hacker, G. R. Hilgenfeld

Date :   20 Jul 00 (Deposition) - 25 Jul 01 (Release) - 13 Jul 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.41

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Fkbp Domain, Long Alpha Helix, Dimerisation Via Helical Interactions, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. Riboldi-Tunnicliffe, B. Konig, S. Jessen, M. S. Weiss, J. Rahfeld, J. Hacker, G. Fischer, R. Hilgenfeld
Crystal Structure Of Mip, A Prolylisomerase From Legionella Pneumophila
Nat. Struct. Biol. V. 8 779 2001
PubMed-ID: 11524681 | Reference-DOI: 10.1038/NSB0901-779
(for further references see the PDB file header)

Molecule 1 - PROTEIN (MACROPHAGE INFECTIVITY POTENTIATOR PROTEIN)
	Chains	:	A
	EC Number	:	5.2.1.8
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PBLL106
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	LEGIONELLA PNEUMOPHILA
	Organism Taxid	:	446
	Synonym	:	MIP, PEPTIDYL-PROLYL CIS-TRANS ISOMERASE, PPIASE, ROTAMASE

		1
Asymmetric Unit	:	A
Biological Unit 1 (2x)	:	A

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	ZN	2	Ligand/Ion	ZINC ION

Biological Unit 1 (0, 0)

No.	Name	Count	Type	Full Name
1	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU A:130 , HOH A:404 , HOH A:405 , HOH A:406	BINDING SITE FOR RESIDUE ZN A 401
2	AC2	SOFTWARE	GLU A:164 , HIS A:205 , HOH A:403 , HOH A:406	BINDING SITE FOR RESIDUE ZN A 402

(no "SS Bond" information available for 1FD9)

(no "Cis Peptide Bond" information available for 1FD9)

(no "SAP(SNP)/Variant" information available for 1FD9)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	MIP_LEGPC	144-230	1	A:124-210
				MIP_LEGPH	144-230	1	A:124-210
				MIP_LEGPN	144-230	1	A:124-210

Biological Unit 1 (1, 6)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FKBP_PPIASE	PS50059	FKBP-type peptidyl-prolyl cis-trans isomerase domain profile.	MIP_LEGPC	144-230	2	A:124-210
				MIP_LEGPH	144-230	2	A:124-210
				MIP_LEGPN	144-230	2	A:124-210

(no "Exon" information available for 1FD9)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:204
 aligned with MIP_LEGPC | A5IGB8 from UniProtKB/Swiss-Prot  Length:233

    Alignment length:204
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228
            MIP_LEGPC    29 TDKDKLSYSIGADLGKNFKNQGIDVNPEAMAKGMQDAMSGAQLALTEQQMKDVLNKFQKDLMAKRTAEFNKKADENKVKGEAFLTENKNKPGVVVLPSGLQYKVINAGNGVKPGKSDTVTVEYTGRLIDGTVFDSTEKTGKPATFQVSQVIPGWTEALQLMPAGSTWEIYVPSGLAYGPRSVGGPIGPNETLIFKIHLISVKKS 232
               SCOP domains d1fd9a_ A: Macrophage infectivity potentiator protein (MIP)                                                                                                                                                  SCOP domains
               CATH domains 1fd9A02 A:9-106 Helix hairpin bin                                                                 1fd9A01 A:107-212  [code=3.10.50.40, no name defined]                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eee.....eeeeee...........eeeeeeeeee....eeeehhhhh..eeee.hhhhhhhhhhhh......eeeeeehhhhh...............eeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE (2)
                PROSITE (3) -------------------------------------------------------------------------------------------------------------------FKBP_PPIASE  PDB: A:124-210 UniProt: 144-230                                           -- PROSITE (3)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1fd9 A   9 TDKDKLSYSIGADLGKNFKNQGIDVNPEAMAKGMQDAMSGAQLALTEQQMKDVLNKFQKDLMAKRTAEFNKKADENKVKGEAFLTENKNKPGVVVLPSGLQYKVINSGNGVKPGKSDTVTVEYTGRLIDGTVFDSTEKTGKPATFQVSQVIPGWTEALQLMPAGSTWEIYVPSGLAYGPRSVGGPIGPNETLIFKIHLISVKKS 212
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208

Chain A from PDB  Type:PROTEIN  Length:204
 aligned with MIP_LEGPH | Q5ZXE0 from UniProtKB/Swiss-Prot  Length:233

    Alignment length:204
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228
            MIP_LEGPH    29 TDKDKLSYSIGADLGKNFKNQGIDVNPEAMAKGMQDAMSGAQLALTEQQMKDVLNKFQKDLMAKRTAEFNKKADENKVKGEAFLTENKNKPGVVVLPSGLQYKVINSGNGVKPGKSDTVTVEYTGRLIDGTVFDSTEKTGKPATFQVSQVIPGWTEALQLMPAGSTWEIYVPSGLAYGPRSVGGPIGPNETLIFKIHLISVKKS 232
               SCOP domains d1fd9a_ A: Macrophage infectivity potentiator protein (MIP)                                                                                                                                                  SCOP domains
               CATH domains 1fd9A02 A:9-106 Helix hairpin bin                                                                 1fd9A01 A:107-212  [code=3.10.50.40, no name defined]                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eee.....eeeeee...........eeeeeeeeee....eeeehhhhh..eeee.hhhhhhhhhhhh......eeeeeehhhhh...............eeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------FKBP_PPIASE  PDB: A:124-210 UniProt: 144-230                                           -- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1fd9 A   9 TDKDKLSYSIGADLGKNFKNQGIDVNPEAMAKGMQDAMSGAQLALTEQQMKDVLNKFQKDLMAKRTAEFNKKADENKVKGEAFLTENKNKPGVVVLPSGLQYKVINSGNGVKPGKSDTVTVEYTGRLIDGTVFDSTEKTGKPATFQVSQVIPGWTEALQLMPAGSTWEIYVPSGLAYGPRSVGGPIGPNETLIFKIHLISVKKS 212
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208

Chain A from PDB  Type:PROTEIN  Length:204
 aligned with MIP_LEGPN | Q70YI1 from UniProtKB/Swiss-Prot  Length:233

    Alignment length:204
                                    38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228
            MIP_LEGPN    29 TDKDKLSYSIGADLGKNFKNQGIDVNPEAMAKGMQDAMSGAQLALTEQQMKDVLNKFQKDLMAKRTAEFNKKADENKVKGEAFLTENKNKPGVVVLPSGLQYKVINAGNGVKPGKSDTVTVEYTGRLIDGTVFDSTEKTGKPATFQVSQVIPGWTEALQLMPAGSTWEIYVPSGLAYGPRSVGGPIGPNETLIFKIHLISVKKS 232
               SCOP domains d1fd9a_ A: Macrophage infectivity potentiator protein (MIP)                                                                                                                                                  SCOP domains
               CATH domains 1fd9A02 A:9-106 Helix hairpin bin                                                                 1fd9A01 A:107-212  [code=3.10.50.40, no name defined]                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eee.....eeeeee...........eeeeeeeeee....eeeehhhhh..eeee.hhhhhhhhhhhh......eeeeeehhhhh...............eeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) -------------------------------------------------------------------------------------------------------------------FKBP_PPIASE  PDB: A:124-210 UniProt: 144-230                                           -- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1fd9 A   9 TDKDKLSYSIGADLGKNFKNQGIDVNPEAMAKGMQDAMSGAQLALTEQQMKDVLNKFQKDLMAKRTAEFNKKADENKVKGEAFLTENKNKPGVVVLPSGLQYKVINSGNGVKPGKSDTVTVEYTGRLIDGTVFDSTEKTGKPATFQVSQVIPGWTEALQLMPAGSTWEIYVPSGLAYGPRSVGGPIGPNETLIFKIHLISVKKS 212
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: FKBP-like (309)

Superfamily: FKBP-like (198)

Family: FKBP immunophilin/proline isomerase (153)

Protein domain: Macrophage infectivity potentiator protein (MIP) (2)

Legionella pneumophila [TaxId: 446] (1)

d1fd9a_

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: Roll (3276)

Topology: Chitinase A; domain 3 (225)

Homologous Superfamily: [code=3.10.50.40, no name defined] (98)

Legionella pneumophila. Organism_taxid: 446. (1)

1fd9A01

A:107-212

Class: Mainly Alpha (13335)

Architecture: Orthogonal Bundle (10391)

Topology: Helix Hairpins (718)

Homologous Superfamily: Helix hairpin bin (1)

Legionella pneumophila. Organism_taxid: 446. (1)

1fd9A02

A:9-106

(no "Pfam Domain" information available for 1FD9)

Asymmetric Unit(hide GO term definitions)

Chain A (MIP_LEGPC | A5IGB8)

molecular function
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0003755	peptidyl-prolyl cis-trans isomerase activity	Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0000413	protein peptidyl-prolyl isomerization	The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
	GO:0009279	cell outer membrane	A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain A (MIP_LEGPH | Q5ZXE0)

molecular function
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0003755	peptidyl-prolyl cis-trans isomerase activity	Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0000413	protein peptidyl-prolyl isomerization	The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
	GO:0009279	cell outer membrane	A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Chain A (MIP_LEGPN | Q70YI1)

molecular function
	GO:0016853	isomerase activity	Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
	GO:0003755	peptidyl-prolyl cis-trans isomerase activity	Catalysis of the reaction: peptidyl-proline (omega=180) = peptidyl-proline (omega=0).
biological process
	GO:0009405	pathogenesis	The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
	GO:0006457	protein folding	The process of assisting in the covalent and noncovalent assembly of single chain polypeptides or multisubunit complexes into the correct tertiary structure.
	GO:0000413	protein peptidyl-prolyl isomerization	The modification of a protein by cis-trans isomerization of a proline residue.
cellular component
	GO:0009279	cell outer membrane	A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

Asymmetric Unit

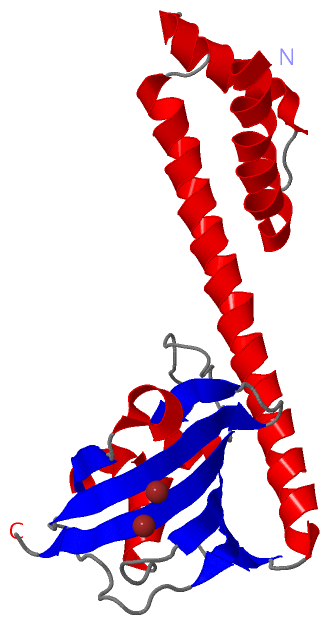

	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

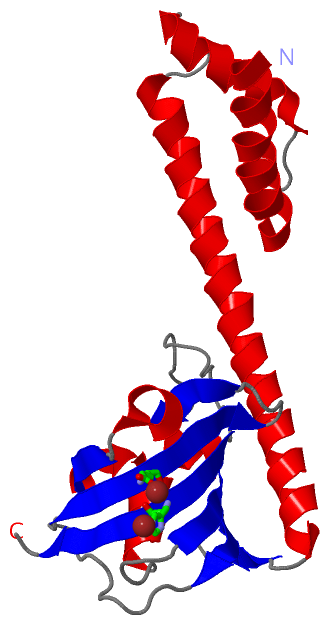

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1fd9)

Biological Unit
	Complete Structure

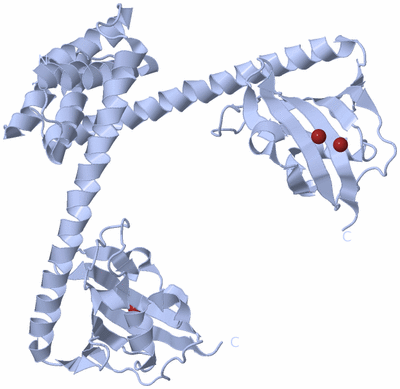

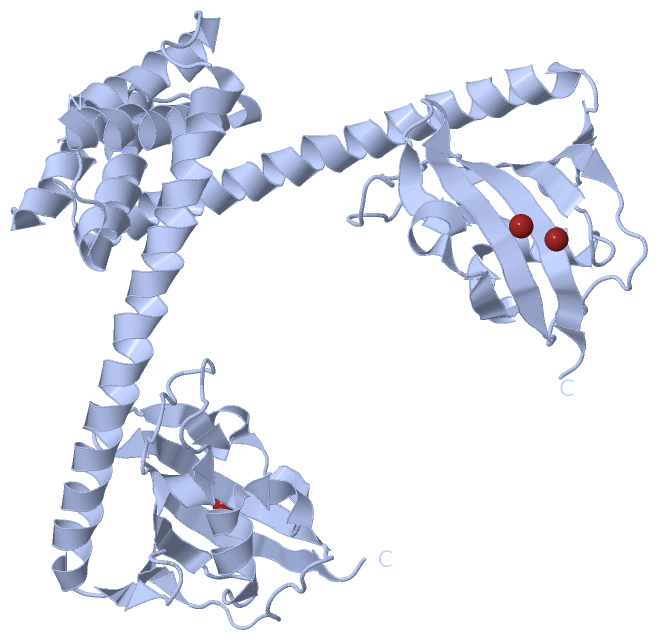

		Biological Unit 1	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
Weblab

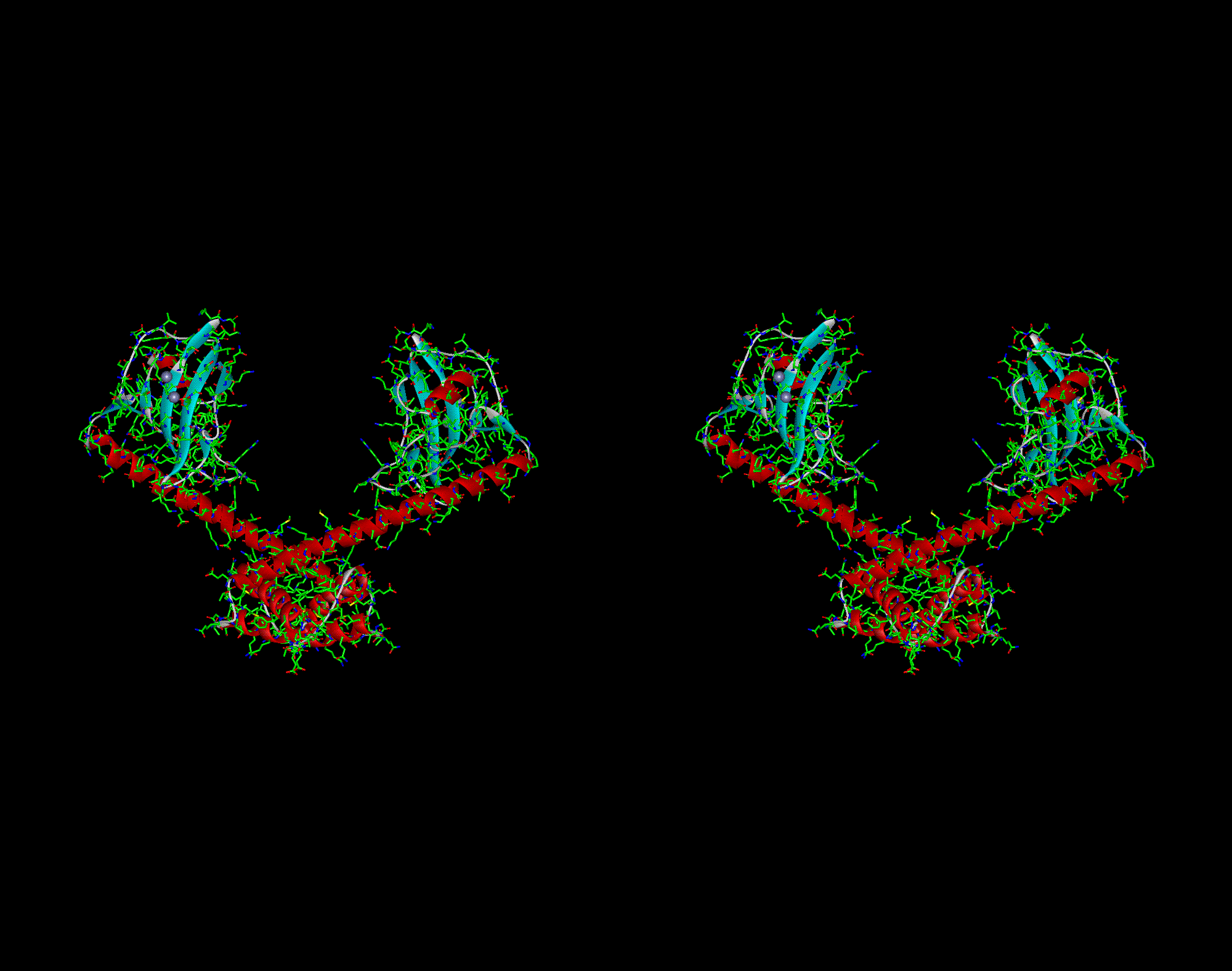

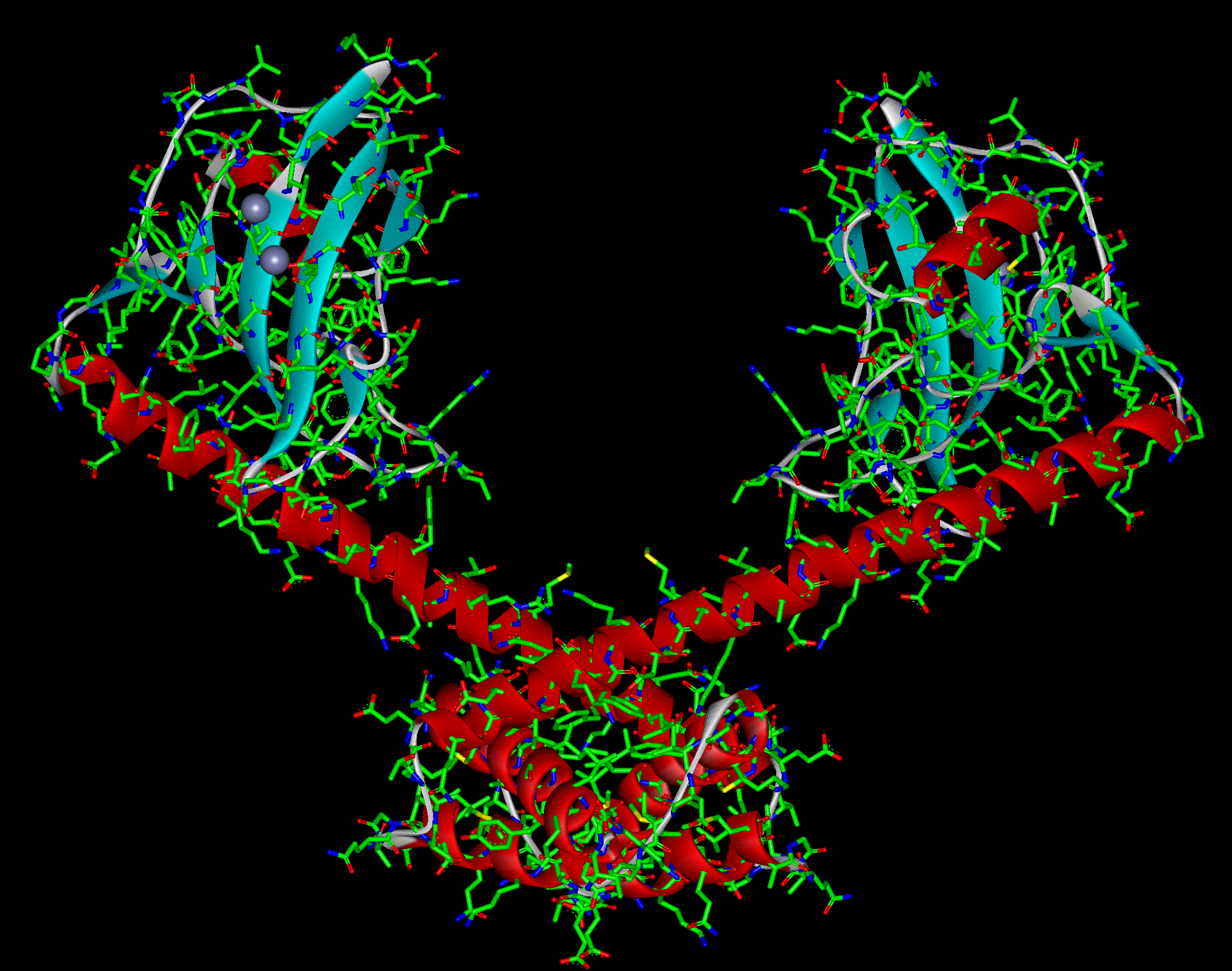

	protein: dimer, ribbon, secondary structure, sticks; Zn: spacefill [ mono GIF format \| stereo GIF format ]
Prepi

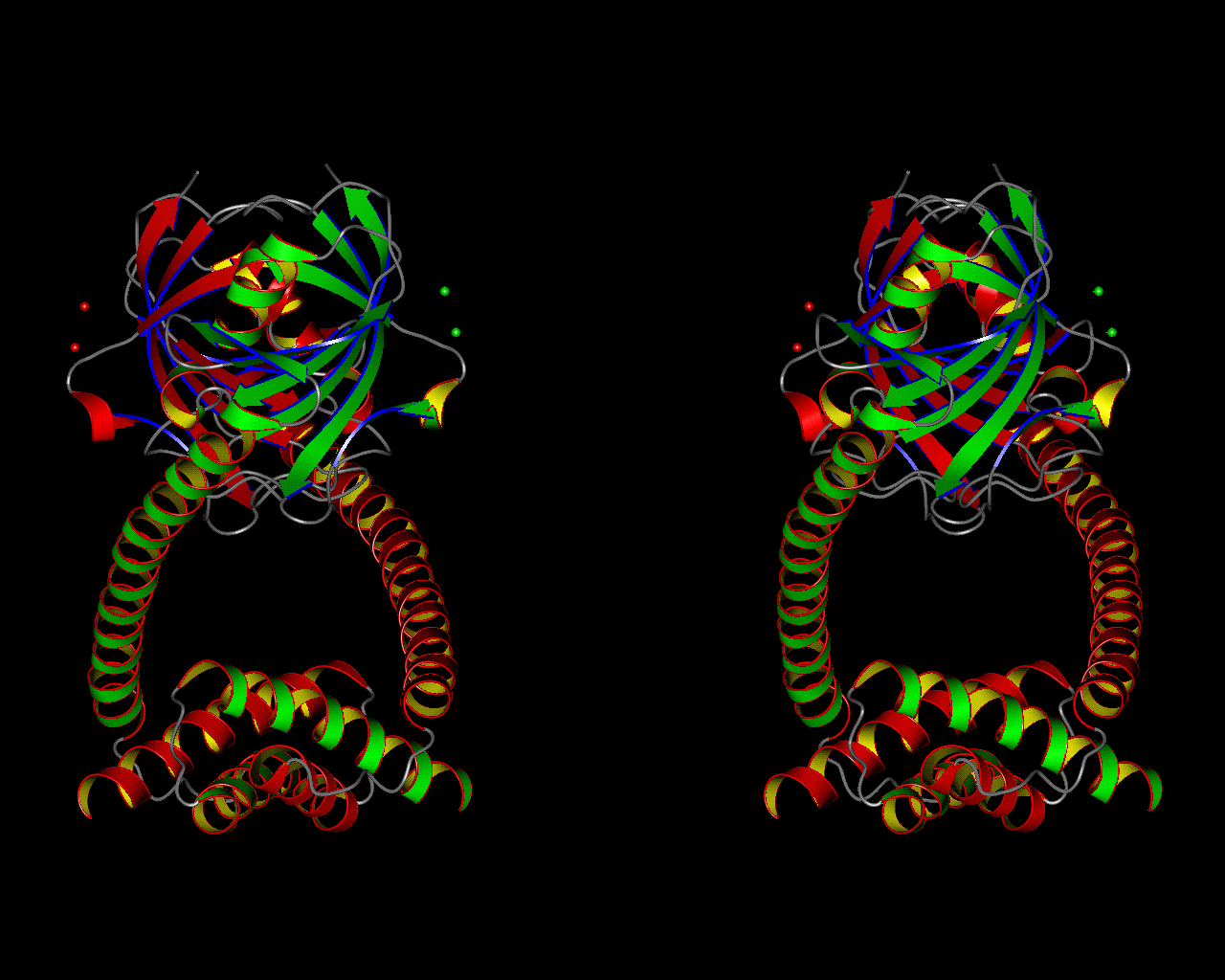

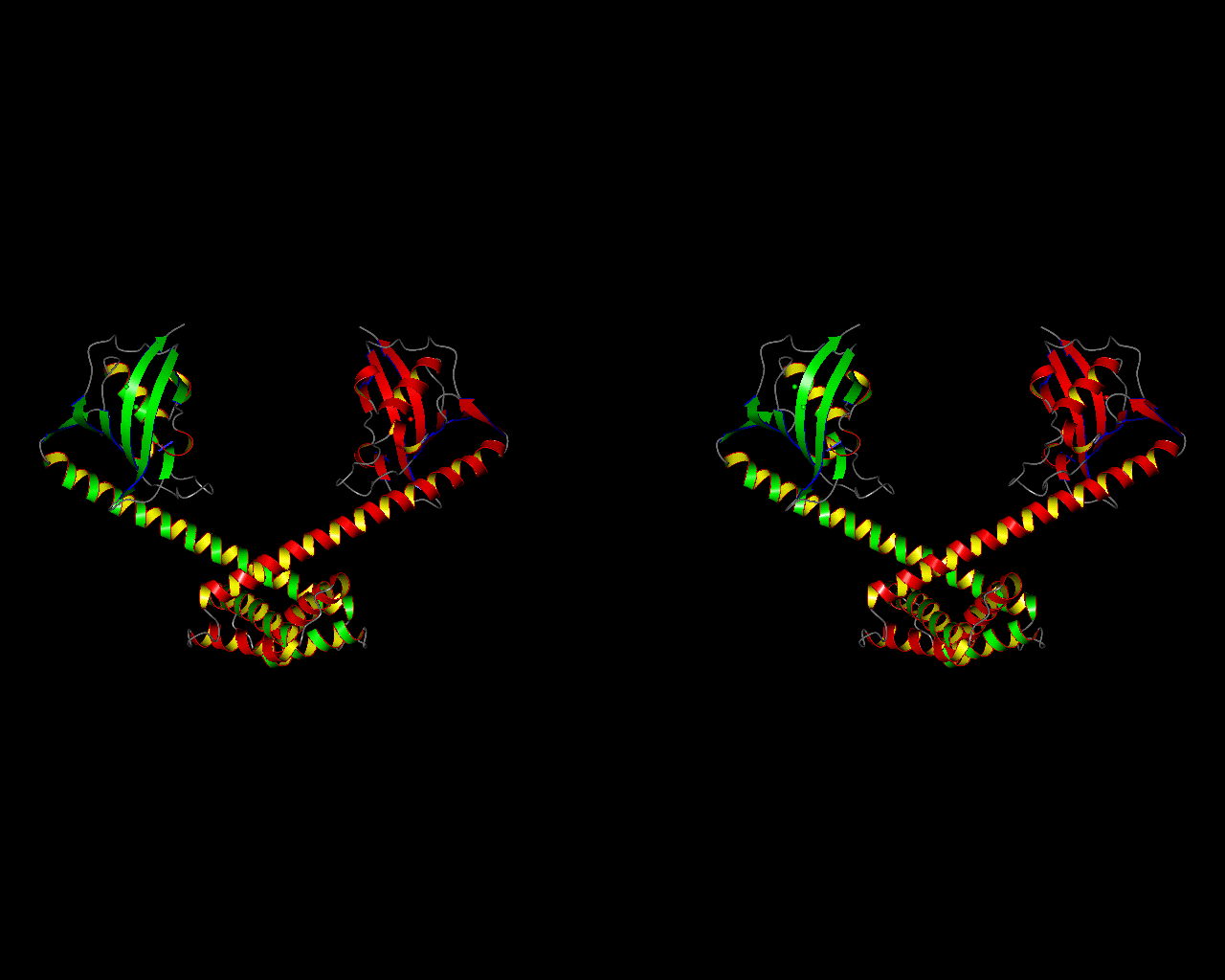

	protein: dimer, ribbon, secondary structure, chain-specific coloring; Zn: spacefill [ mono GIF format \| stereo GIF format ]

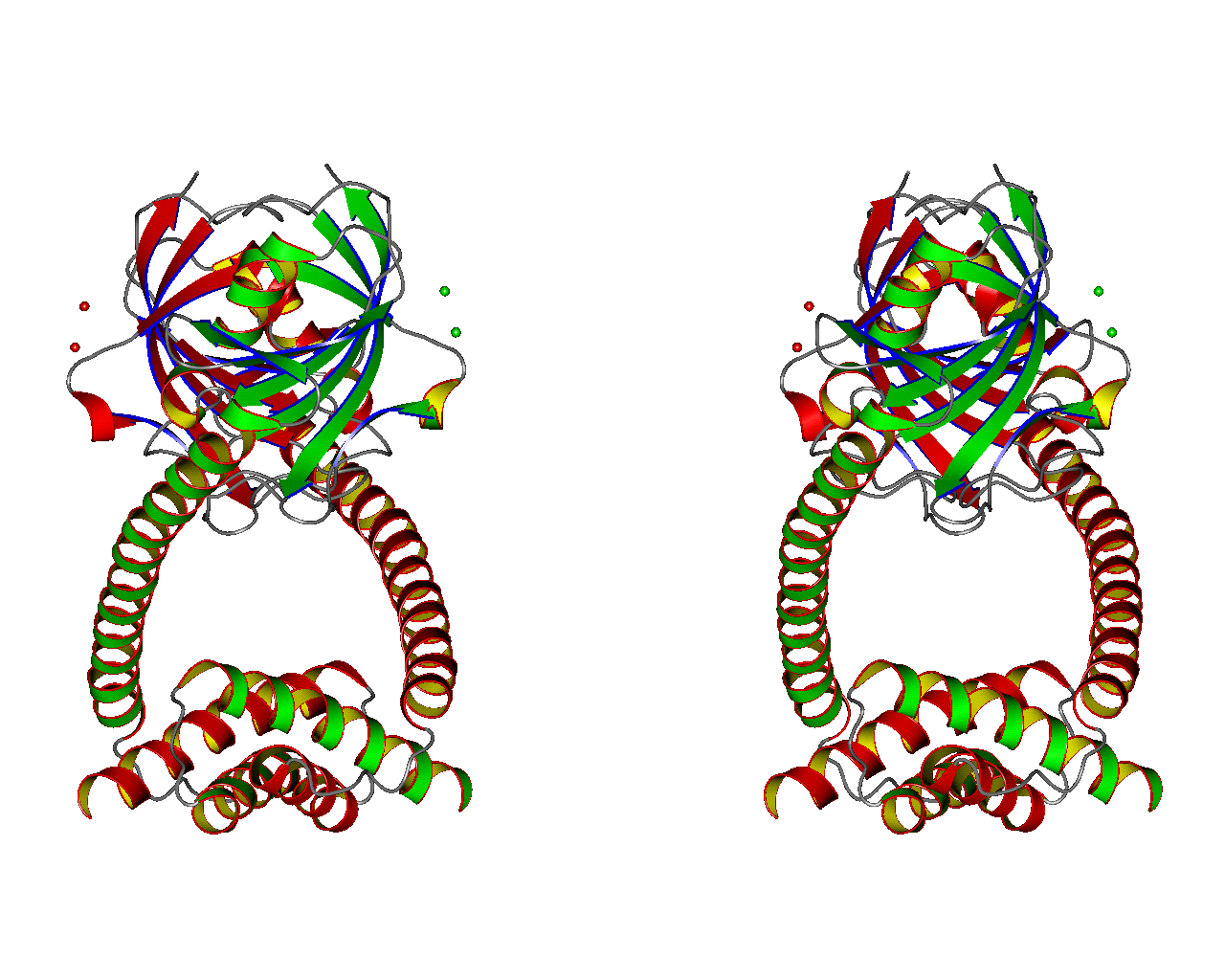

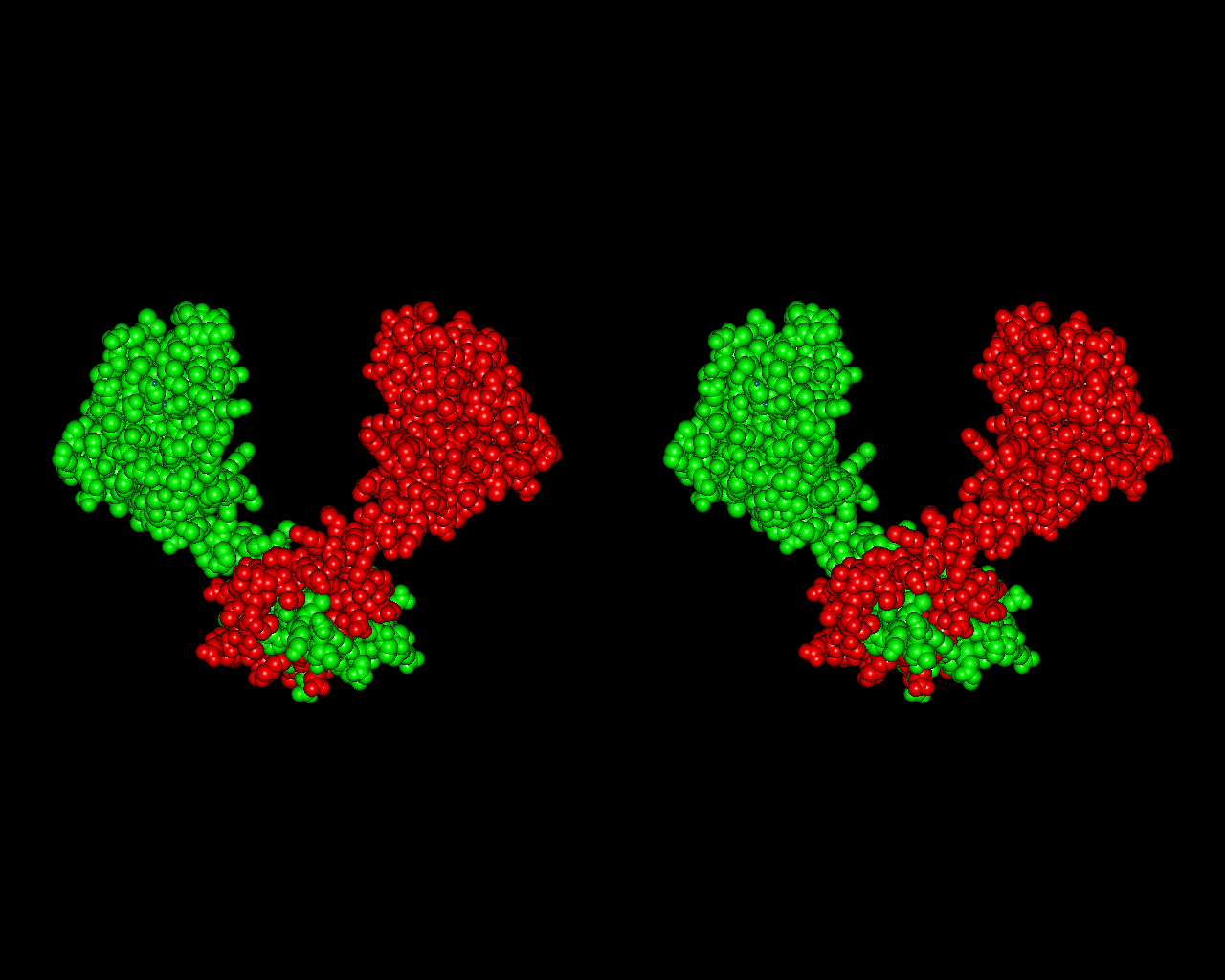

	protein: dimer, ribbon, secondary structure, chain-specific coloring; Zn: spacefill; white background [ mono GIF format \| stereo GIF format ]

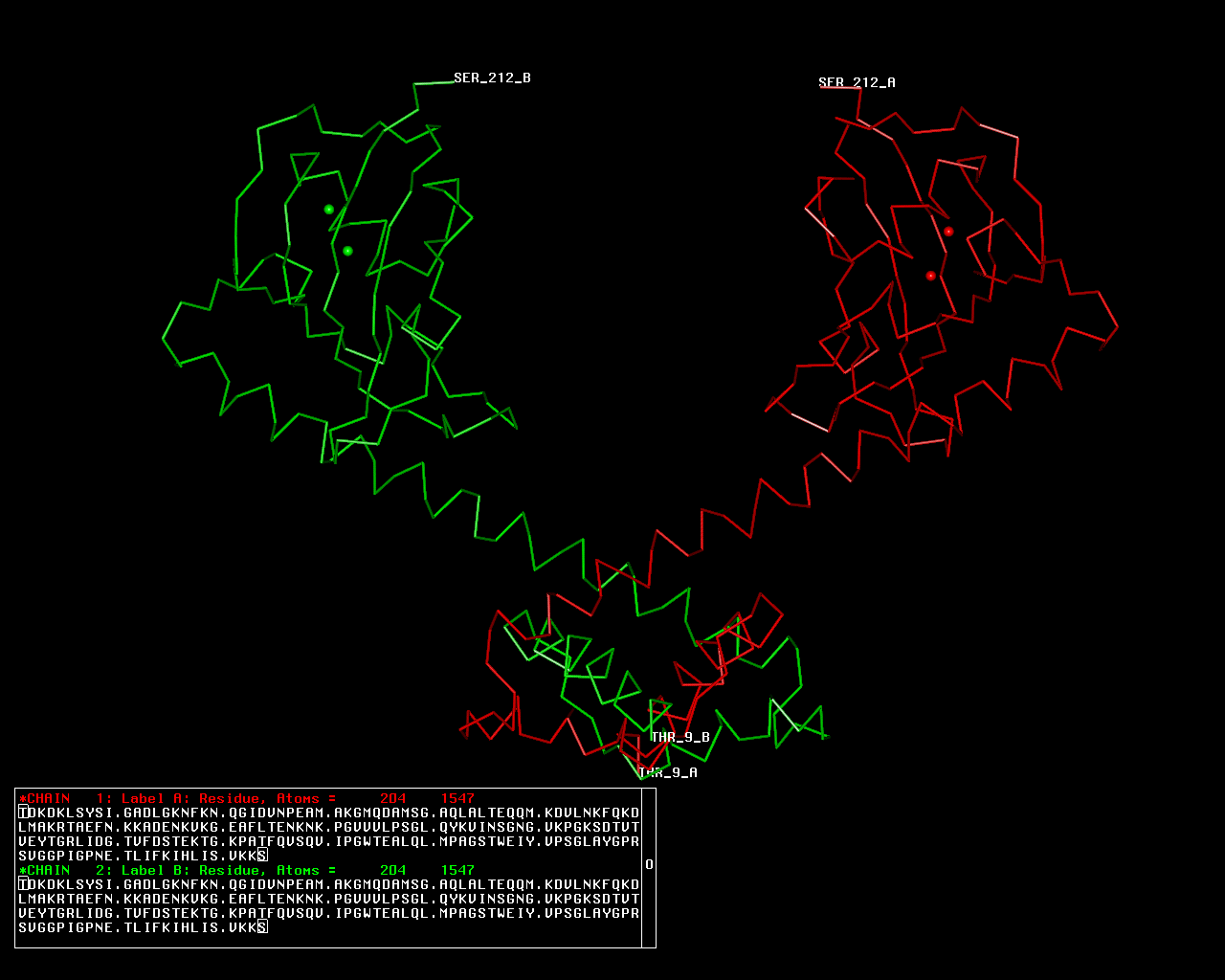

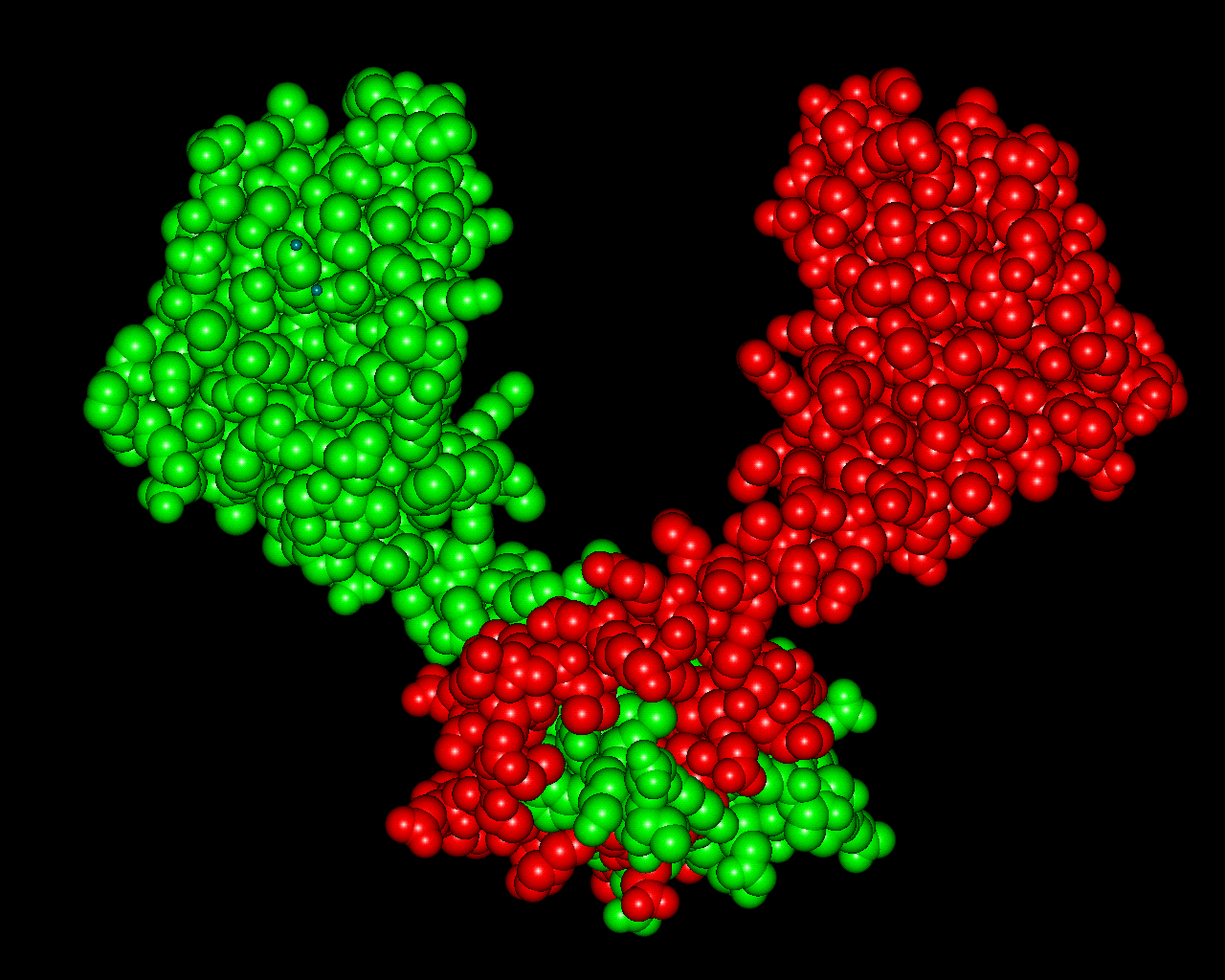

	protein: dimer, C alpha trace, chain-specific coloring, sequence; Zn: spacefill [ mono GIF format \| stereo GIF format ]
	spacefill [ mono GIF format \| stereo GIF format ]

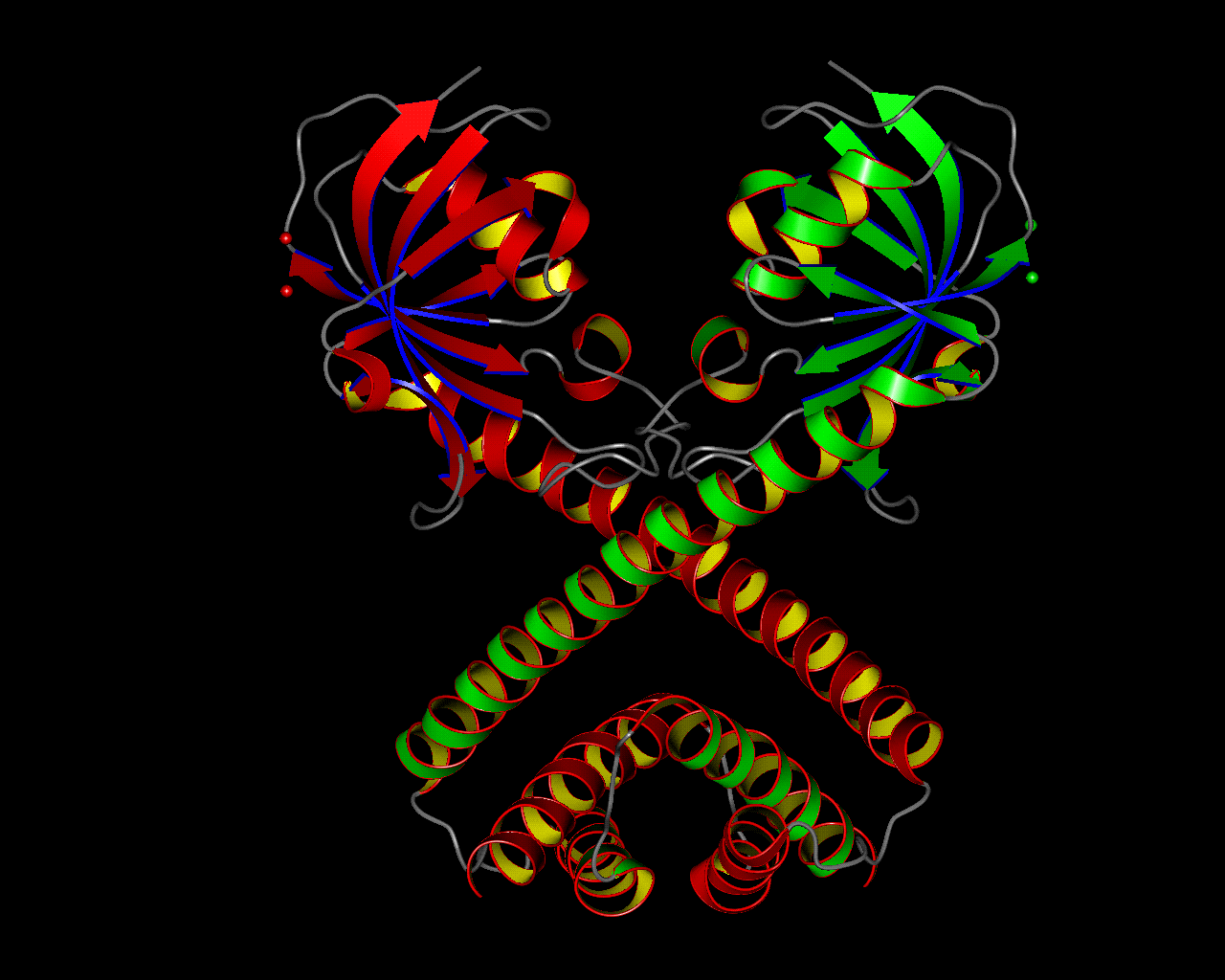

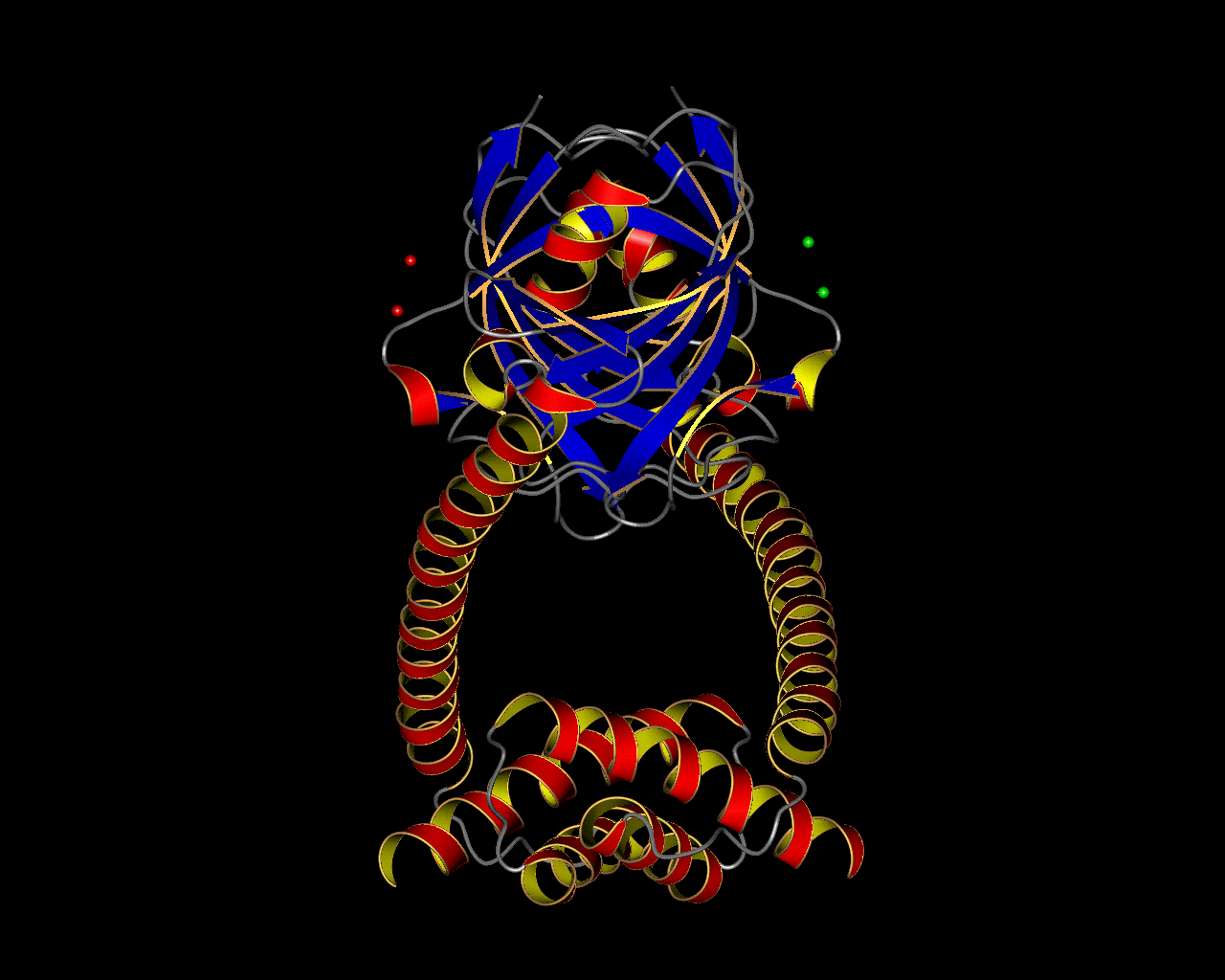

	protein: dimer, ribbon, secondary structure; Zn: spacefill; another view [ mono GIF format \| stereo GIF format ]

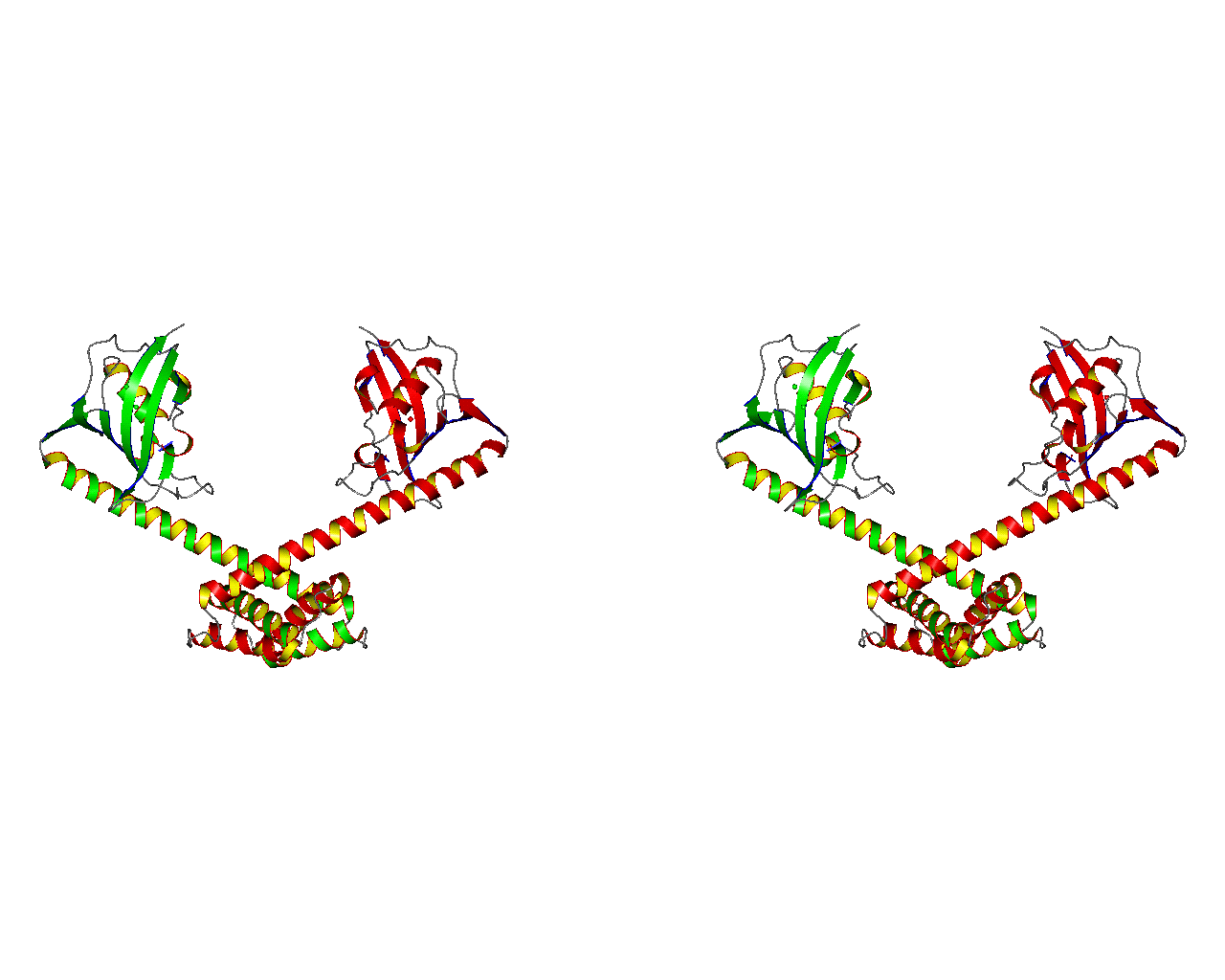

	protein: dimer, ribbon, secondary structure, chain-specific coloring; Zn: spacefill; another view [ mono GIF format \| stereo GIF format ]

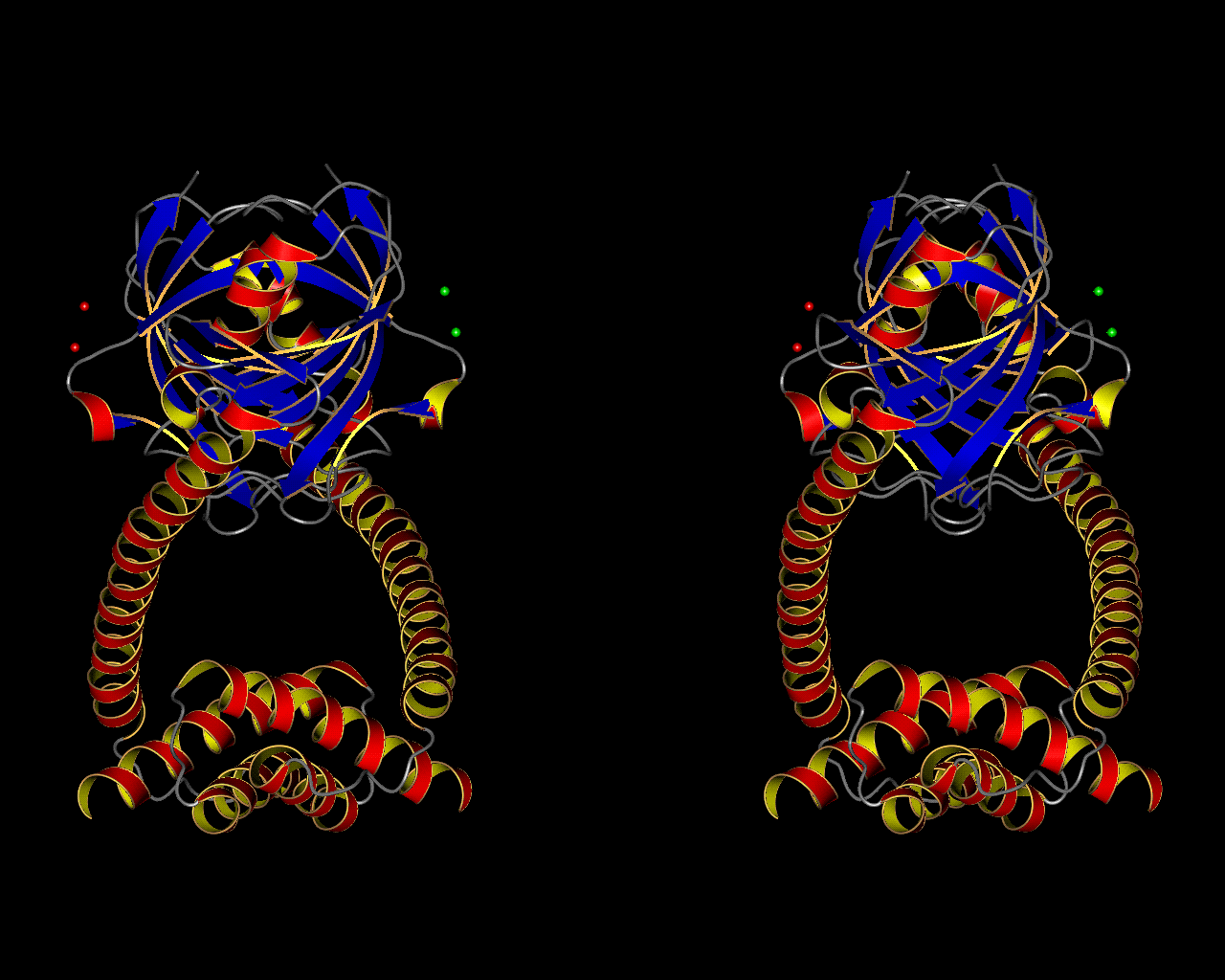

	protein: dimer, ribbon, secondary structure, chain-specific coloring; Zn: spacefill; white background; another view [ mono GIF format \| stereo GIF format ]
	protein: dimer, ribbon, secondary structure; Zn: spacefill; still another view [ mono GIF format \| stereo GIF format ]

Access by PDB/NDB ID
	1fd9
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	MIP_LEGPC \| A5IGB8
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	MIP_LEGPH \| Q5ZXE0
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	MIP_LEGPN \| Q70YI1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	5.2.1.8
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	MIP_LEGPC \| A5IGB8
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	MIP_LEGPH \| Q5ZXE0
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	MIP_LEGPN \| Q70YI1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	MIP_LEGPH \| Q5ZXE0	:	2uz5 2vcd

(no "Related Entries Specified in the PDB File" available for 1FD9)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (2, 2)

Pfam Domains (0, 0)

Gene Ontology (7, 21)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
