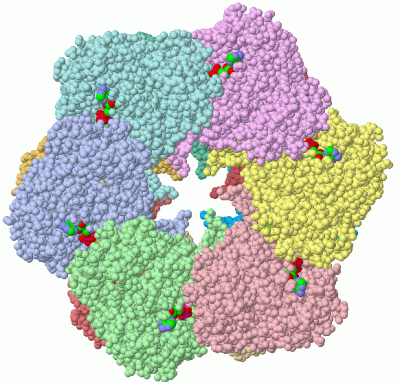

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

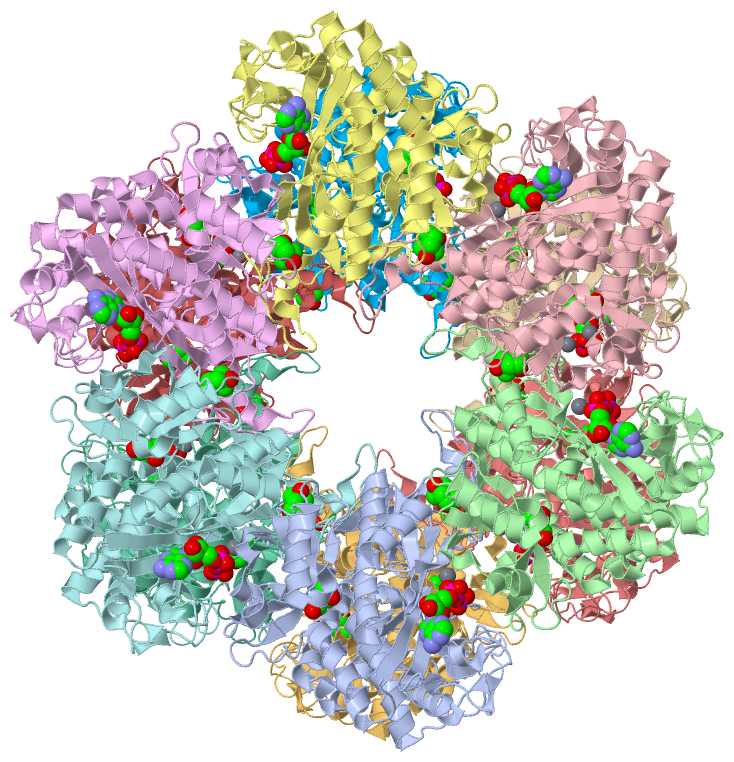

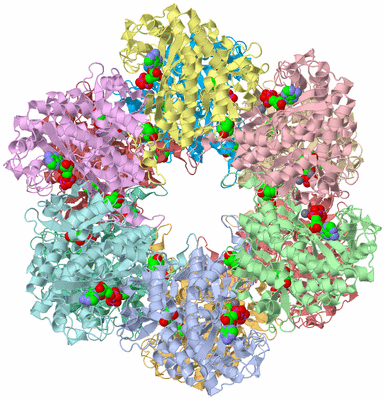

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

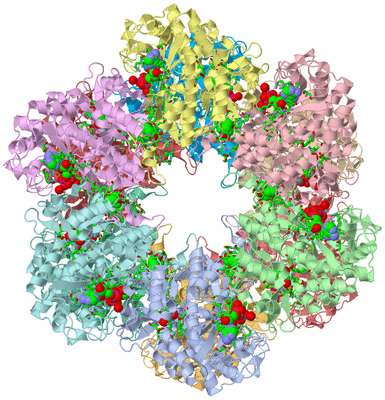

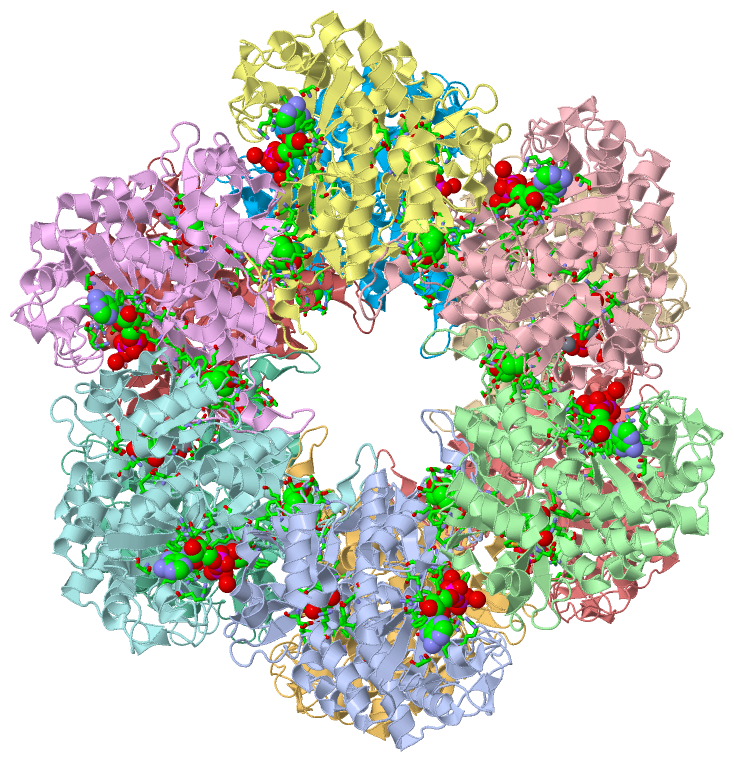

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF GLUTAMINE SYNTHETASE FROM SALMONELLA TYPHIMURIUM CO-CRYSTALLIZED WITH ADP

Authors :  H. S. Gill, G. M. U. Pfluegl, D. Eisenberg
Date :  12 Jun 00  (Deposition) - 28 Jun 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.49
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Keywords :  Glutamine Synthetase, Adp, Mpd, Ligase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. S. Gill, D. Eisenberg
The Crystal Structure Of Phosphinothricin In The Active Site Of Glutamine Synthetase Illuminates The Mechanism Of Enzymatic Inhibition.
Biochemistry V. 40 1903 2001
PubMed-ID: 11329256  |  Reference-DOI: 10.1021/BI002438H
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - GLUTAMINE SYNTHETASE
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    EC Number: 6.3.1.2
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: SALMONELLA TYPHIMURIUM
    Organism Taxid: 602
    Other Details: BACTERIA

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric/Biological Unit : ABCDEFGHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 60)

Asymmetric/Biological Unit (3, 60)
No.NameCountTypeFull Name
1ADP12Ligand/IonADENOSINE-5'-DIPHOSPHATE
2MN24Ligand/IonMANGANESE (II) ION
3MPD24Ligand/Ion(4S)-2-METHYL-2,4-PENTANEDIOL

(-) Sites  (60, 60)

Asymmetric Unit (60, 60)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREGLU A:131 , GLU A:212 , GLU A:220 , HOH A:5729 , HOH A:5732BINDING SITE FOR RESIDUE MN A 469
02AC2SOFTWAREGLU A:129 , HIS A:269 , GLU A:357 , ADP A:4471 , HOH A:5734 , HOH A:5741BINDING SITE FOR RESIDUE MN A 470
03AC3SOFTWAREGLU B:131 , GLU B:212 , GLU B:220 , HOH B:5730 , HOH B:5733BINDING SITE FOR RESIDUE MN B 469
04AC4SOFTWAREGLU B:129 , HIS B:269 , GLU B:357 , ADP B:4472 , HOH B:5735 , HOH B:5742BINDING SITE FOR RESIDUE MN B 470
05AC5SOFTWAREGLU C:131 , GLU C:212 , GLU C:220 , HOH C:5730 , HOH C:5733BINDING SITE FOR RESIDUE MN C 469
06AC6SOFTWAREGLU C:129 , HIS C:269 , GLU C:357 , ADP C:4473 , HOH C:5735 , HOH C:5742BINDING SITE FOR RESIDUE MN C 470
07AC7SOFTWAREGLU D:131 , GLU D:212 , GLU D:220 , HOH D:1148 , HOH D:1151BINDING SITE FOR RESIDUE MN D 469
08AC8SOFTWAREGLU D:129 , HIS D:269 , GLU D:357 , HOH D:1153 , HOH D:1160 , ADP D:4474BINDING SITE FOR RESIDUE MN D 470
09AC9SOFTWAREGLU E:131 , GLU E:212 , GLU E:220 , HOH E:1440 , HOH E:1443BINDING SITE FOR RESIDUE MN E 469
10BC1SOFTWAREGLU E:129 , HIS E:269 , GLU E:357 , HOH E:1445 , HOH E:1452 , ADP E:4475BINDING SITE FOR RESIDUE MN E 470
11BC2SOFTWAREGLU F:131 , GLU F:212 , GLU F:220 , HOH F:5742 , HOH F:5745BINDING SITE FOR RESIDUE MN F 469
12BC3SOFTWAREGLU F:129 , HIS F:269 , GLU F:357 , ADP F:4476 , HOH F:5747 , HOH F:5754BINDING SITE FOR RESIDUE MN F 470
13BC4SOFTWAREGLU G:131 , GLU G:212 , GLU G:220 , HOH G:5740 , HOH G:5743BINDING SITE FOR RESIDUE MN G 469
14BC5SOFTWAREGLU G:129 , HIS G:269 , GLU G:357 , ADP G:4477 , HOH G:5745 , HOH G:5752BINDING SITE FOR RESIDUE MN G 470
15BC6SOFTWAREGLU H:131 , GLU H:212 , GLU H:220 , HOH H:5748 , HOH H:5751BINDING SITE FOR RESIDUE MN H 469
16BC7SOFTWAREGLU H:129 , HIS H:269 , GLU H:357 , ADP H:4478 , HOH H:5753 , HOH H:5760BINDING SITE FOR RESIDUE MN H 470
17BC8SOFTWAREGLU I:131 , GLU I:212 , GLU I:220 , HOH I:5755 , HOH I:5758BINDING SITE FOR RESIDUE MN I 469
18BC9SOFTWAREGLU I:129 , HIS I:269 , GLU I:357 , ADP I:4479 , HOH I:5760 , HOH I:5767BINDING SITE FOR RESIDUE MN I 470
19CC1SOFTWAREGLU J:131 , GLU J:212 , GLU J:220 , HOH J:2900 , HOH J:2903BINDING SITE FOR RESIDUE MN J 469
20CC2SOFTWAREGLU J:129 , HIS J:269 , GLU J:357 , HOH J:2905 , HOH J:2912 , ADP J:4480BINDING SITE FOR RESIDUE MN J 470
21CC3SOFTWAREGLU K:131 , GLU K:212 , GLU K:220 , HOH K:3192 , HOH K:3195BINDING SITE FOR RESIDUE MN K 469
22CC4SOFTWAREGLU K:129 , HIS K:269 , GLU K:357 , HOH K:3197 , HOH K:3204 , ADP K:4481BINDING SITE FOR RESIDUE MN K 470
23CC5SOFTWAREGLU L:131 , GLU L:212 , GLU L:220 , HOH L:3484 , HOH L:3487BINDING SITE FOR RESIDUE MN L 469
24CC6SOFTWAREGLU L:129 , HIS L:269 , GLU L:357 , HOH L:3489 , HOH L:3496 , ADP L:4482BINDING SITE FOR RESIDUE MN L 470
25CC7SOFTWAREGLY A:127 , GLU A:129 , GLU A:207 , THR A:223 , ARG A:224 , PHE A:225 , HIS A:271 , SER A:273 , ARG A:344 , ARG A:355 , GLU A:357 , MN A:470 , HOH A:5727 , HOH A:5734 , HOH A:5741 , HOH A:5753BINDING SITE FOR RESIDUE ADP A 4471
26CC8SOFTWAREGLY B:127 , GLU B:129 , GLU B:207 , THR B:223 , ARG B:224 , PHE B:225 , HIS B:271 , SER B:273 , ARG B:344 , ARG B:355 , GLU B:357 , MN B:470 , HOH B:5728 , HOH B:5735 , HOH B:5742 , HOH B:5756BINDING SITE FOR RESIDUE ADP B 4472
27CC9SOFTWAREGLY C:127 , GLU C:129 , GLU C:207 , THR C:223 , ARG C:224 , PHE C:225 , HIS C:271 , SER C:273 , ARG C:344 , ARG C:355 , GLU C:357 , MN C:470 , HOH C:5728 , HOH C:5735 , HOH C:5742 , HOH C:5756BINDING SITE FOR RESIDUE ADP C 4473
28DC1SOFTWAREGLY D:127 , GLU D:129 , GLU D:207 , THR D:223 , ARG D:224 , PHE D:225 , HIS D:271 , SER D:273 , ARG D:344 , ARG D:355 , GLU D:357 , MN D:470 , HOH D:1146 , HOH D:1153 , HOH D:1160 , HOH D:1372BINDING SITE FOR RESIDUE ADP D 4474
29DC2SOFTWAREGLY E:127 , GLU E:129 , GLU E:207 , THR E:223 , ARG E:224 , PHE E:225 , HIS E:271 , SER E:273 , ARG E:344 , ARG E:355 , GLU E:357 , MN E:470 , HOH E:1438 , HOH E:1445 , HOH E:1452 , HOH E:1664BINDING SITE FOR RESIDUE ADP E 4475
30DC3SOFTWAREGLY F:127 , GLU F:129 , GLU F:207 , THR F:223 , ARG F:224 , PHE F:225 , HIS F:271 , SER F:273 , ARG F:344 , ARG F:355 , GLU F:357 , MN F:470 , HOH F:5487 , HOH F:5740 , HOH F:5747 , HOH F:5754BINDING SITE FOR RESIDUE ADP F 4476
31DC4SOFTWAREGLY G:127 , GLU G:129 , GLU G:207 , THR G:223 , ARG G:224 , PHE G:225 , HIS G:271 , SER G:273 , ARG G:344 , ARG G:355 , GLU G:357 , MN G:470 , HOH G:5738 , HOH G:5745 , HOH G:5752 , HOH G:5772BINDING SITE FOR RESIDUE ADP G 4477
32DC5SOFTWAREGLY H:127 , GLU H:129 , GLU H:207 , THR H:223 , ARG H:224 , PHE H:225 , HIS H:271 , SER H:273 , ARG H:344 , ARG H:355 , GLU H:357 , MN H:470 , HOH H:5504 , HOH H:5746 , HOH H:5753 , HOH H:5760BINDING SITE FOR RESIDUE ADP H 4478
33DC6SOFTWAREGLY I:127 , GLU I:129 , GLU I:207 , THR I:223 , ARG I:224 , PHE I:225 , HIS I:271 , SER I:273 , ARG I:344 , ARG I:355 , GLU I:357 , MN I:470 , HOH I:5506 , HOH I:5753 , HOH I:5760 , HOH I:5767BINDING SITE FOR RESIDUE ADP I 4479
34DC7SOFTWAREGLY J:127 , GLU J:129 , GLU J:207 , THR J:223 , ARG J:224 , PHE J:225 , HIS J:271 , SER J:273 , ARG J:344 , ARG J:355 , GLU J:357 , MN J:470 , HOH J:2540 , HOH J:2898 , HOH J:2905 , HOH J:2912BINDING SITE FOR RESIDUE ADP J 4480
35DC8SOFTWAREGLY K:127 , GLU K:129 , GLU K:207 , THR K:223 , ARG K:224 , PHE K:225 , HIS K:271 , SER K:273 , ARG K:344 , ARG K:355 , GLU K:357 , MN K:470 , HOH K:2832 , HOH K:3190 , HOH K:3197 , HOH K:3204BINDING SITE FOR RESIDUE ADP K 4481
36DC9SOFTWAREGLY L:127 , GLU L:129 , GLU L:207 , THR L:223 , ARG L:224 , PHE L:225 , HIS L:271 , SER L:273 , ARG L:344 , ARG L:355 , GLU L:357 , MN L:470 , HOH L:3124 , HOH L:3482 , HOH L:3489 , HOH L:3496BINDING SITE FOR RESIDUE ADP L 4482
37EC1SOFTWAREGLN A:189 , ASP A:190 , SER A:193 , HIS A:209 , PHE B:16 , PHE B:80 , ALA B:81 , ASP B:82 , THR B:84BINDING SITE FOR RESIDUE MPD B 5471
38EC2SOFTWAREARG A:20 , PHE A:21 , THR A:22 , ARG A:88 , CYS A:89 , ASP A:90 , ASP A:103 , ARG A:105 , ASP A:233 , TYR A:368BINDING SITE FOR RESIDUE MPD A 5472
39EC3SOFTWAREGLN B:189 , ASP B:190 , SER B:193 , HIS B:209 , PHE C:16 , PHE C:80 , ALA C:81 , ASP C:82 , THR C:84BINDING SITE FOR RESIDUE MPD C 5473
40EC4SOFTWAREARG B:20 , PHE B:21 , THR B:22 , ARG B:88 , CYS B:89 , ASP B:90 , ASP B:103 , ARG B:105 , ASP B:233 , TYR B:368BINDING SITE FOR RESIDUE MPD B 5474
41EC5SOFTWAREGLN C:189 , ASP C:190 , SER C:193 , HIS C:209 , PHE D:16 , PHE D:80 , ALA D:81 , ASP D:82 , THR D:84BINDING SITE FOR RESIDUE MPD D 5475
42EC6SOFTWAREARG C:20 , PHE C:21 , THR C:22 , ARG C:88 , CYS C:89 , ASP C:90 , ASP C:103 , ARG C:105 , ASP C:233 , TYR C:368BINDING SITE FOR RESIDUE MPD C 5476
43EC7SOFTWAREGLN D:189 , ASP D:190 , SER D:193 , HIS D:209 , PHE E:16 , PHE E:80 , ALA E:81 , ASP E:82 , THR E:84BINDING SITE FOR RESIDUE MPD E 5477
44EC8SOFTWAREARG D:20 , PHE D:21 , THR D:22 , ARG D:88 , CYS D:89 , ASP D:90 , ASP D:103 , ARG D:105 , ASP D:233 , TYR D:368BINDING SITE FOR RESIDUE MPD D 5478
45EC9SOFTWAREGLN E:189 , ASP E:190 , SER E:193 , HIS E:209 , PHE F:16 , PHE F:80 , ALA F:81 , ASP F:82 , THR F:84BINDING SITE FOR RESIDUE MPD F 5479
46FC1SOFTWAREARG E:20 , PHE E:21 , THR E:22 , ARG E:88 , CYS E:89 , ASP E:90 , ASP E:103 , ARG E:105 , ASP E:233 , TYR E:368BINDING SITE FOR RESIDUE MPD E 5480
47FC2SOFTWAREPHE A:16 , PHE A:80 , ALA A:81 , ASP A:82 , THR A:84 , GLN F:189 , ASP F:190 , SER F:193 , HIS F:209BINDING SITE FOR RESIDUE MPD A 5481
48FC3SOFTWAREARG F:20 , PHE F:21 , THR F:22 , ARG F:88 , CYS F:89 , ASP F:90 , ASP F:103 , ARG F:105 , ASP F:233 , TYR F:368BINDING SITE FOR RESIDUE MPD F 5482
49FC4SOFTWAREGLN G:189 , ASP G:190 , SER G:193 , HIS G:209 , PHE L:16 , PHE L:80 , ALA L:81 , ASP L:82 , THR L:84BINDING SITE FOR RESIDUE MPD L 5483
50FC5SOFTWAREARG G:20 , PHE G:21 , THR G:22 , ARG G:88 , CYS G:89 , ASP G:90 , ASP G:103 , ARG G:105 , ASP G:233 , TYR G:368BINDING SITE FOR RESIDUE MPD G 5484
51FC6SOFTWAREPHE G:16 , PHE G:80 , ALA G:81 , ASP G:82 , THR G:84 , GLN H:189 , ASP H:190 , SER H:193 , HIS H:209BINDING SITE FOR RESIDUE MPD G 5485
52FC7SOFTWAREARG H:20 , PHE H:21 , THR H:22 , ARG H:88 , CYS H:89 , ASP H:90 , ASP H:103 , ARG H:105 , ASP H:233 , TYR H:368BINDING SITE FOR RESIDUE MPD H 5486
53FC8SOFTWAREPHE H:16 , PHE H:80 , ALA H:81 , ASP H:82 , THR H:84 , GLN I:189 , ASP I:190 , SER I:193 , HIS I:209BINDING SITE FOR RESIDUE MPD H 5487
54FC9SOFTWAREARG I:20 , PHE I:21 , THR I:22 , ARG I:88 , CYS I:89 , ASP I:90 , ASP I:103 , ARG I:105 , ASP I:233 , TYR I:368BINDING SITE FOR RESIDUE MPD I 5488
55GC1SOFTWAREPHE I:16 , PHE I:80 , ALA I:81 , ASP I:82 , THR I:84 , GLN J:189 , ASP J:190 , SER J:193 , HIS J:209BINDING SITE FOR RESIDUE MPD I 5489
56GC2SOFTWAREARG J:20 , PHE J:21 , THR J:22 , ARG J:88 , CYS J:89 , ASP J:90 , ASP J:103 , ARG J:105 , ASP J:233 , TYR J:368BINDING SITE FOR RESIDUE MPD J 5490
57GC3SOFTWAREPHE J:16 , PHE J:80 , ALA J:81 , ASP J:82 , THR J:84 , GLN K:189 , ASP K:190 , SER K:193 , HIS K:209BINDING SITE FOR RESIDUE MPD J 5491
58GC4SOFTWAREARG K:20 , PHE K:21 , THR K:22 , ARG K:88 , CYS K:89 , ASP K:90 , ASP K:103 , ARG K:105 , ASP K:233 , TYR K:368BINDING SITE FOR RESIDUE MPD K 5492
59GC5SOFTWAREPHE K:16 , PHE K:80 , ALA K:81 , ASP K:82 , THR K:84 , GLN L:189 , ASP L:190 , SER L:193 , HIS L:209BINDING SITE FOR RESIDUE MPD K 5493
60GC6SOFTWAREARG L:20 , PHE L:21 , THR L:22 , ARG L:88 , CYS L:89 , ASP L:90 , ASP L:103 , ARG L:105 , ASP L:233 , TYR L:368BINDING SITE FOR RESIDUE MPD L 5494

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1F52)

(-) Cis Peptide Bonds  (24, 24)

Asymmetric/Biological Unit
No.Residues
1Pro A:183 -Pro A:184
2Leu A:399 -Pro A:400
3Pro B:183 -Pro B:184
4Leu B:399 -Pro B:400
5Pro C:183 -Pro C:184
6Leu C:399 -Pro C:400
7Pro D:183 -Pro D:184
8Leu D:399 -Pro D:400
9Pro E:183 -Pro E:184
10Leu E:399 -Pro E:400
11Pro F:183 -Pro F:184
12Leu F:399 -Pro F:400
13Pro G:183 -Pro G:184
14Leu G:399 -Pro G:400
15Pro H:183 -Pro H:184
16Leu H:399 -Pro H:400
17Pro I:183 -Pro I:184
18Leu I:399 -Pro I:400
19Pro J:183 -Pro J:184
20Leu J:399 -Pro J:400
21Pro K:183 -Pro K:184
22Leu K:399 -Pro K:400
23Pro L:183 -Pro L:184
24Leu L:399 -Pro L:400

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1F52)

(-) PROSITE Motifs  (3, 36)

Asymmetric/Biological Unit (3, 36)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLNA_1PS00180 Glutamine synthetase signature 1.GLN1B_SALTY50-68










 		  12A:49-67
B:49-67
C:49-67
D:49-67
E:49-67
F:49-67
G:49-67
H:49-67
I:49-67
J:49-67
K:49-67
L:49-67
2GLNA_ATPPS00181 Glutamine synthetase putative ATP-binding region signature.GLN1B_SALTY259-274










 		  12A:258-273
B:258-273
C:258-273
D:258-273
E:258-273
F:258-273
G:258-273
H:258-273
I:258-273
J:258-273
K:258-273
L:258-273
3GLNA_ADENYLATIONPS00182 Glutamine synthetase class-I adenylation site.GLN1B_SALTY386-398










 		  12A:385-397
B:385-397
C:385-397
D:385-397
E:385-397
F:385-397
G:385-397
H:385-397
I:385-397
J:385-397
K:385-397
L:385-397

(-) Exons   (0, 0)

(no "Exon" information available for 1F52)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52a1 A:1-100 Glutamine synthetase, N-terminal domain                                             d1f52a2 A:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52A02 A:1-103  [code=3.10.20.70, no name defined]                                                    1f52A01 A:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: A:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 A   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain B from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52b1 B:1-100 Glutamine synthetase, N-terminal domain                                             d1f52b2 B:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52B02 B:1-103  [code=3.10.20.70, no name defined]                                                    1f52B01 B:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: B:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 B   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain C from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52c1 C:1-100 Glutamine synthetase, N-terminal domain                                             d1f52c2 C:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52C02 C:1-103  [code=3.10.20.70, no name defined]                                                    1f52C01 C:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: C:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 C   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain D from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52d1 D:1-100 Glutamine synthetase, N-terminal domain                                             d1f52d2 D:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52D02 D:1-103  [code=3.10.20.70, no name defined]                                                    1f52D01 D:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: D:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 D   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain E from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52e1 E:1-100 Glutamine synthetase, N-terminal domain                                             d1f52e2 E:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52E02 E:1-103  [code=3.10.20.70, no name defined]                                                    1f52E01 E:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: E:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 E   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain F from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52f1 F:1-100 Glutamine synthetase, N-terminal domain                                             d1f52f2 F:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52F02 F:1-103  [code=3.10.20.70, no name defined]                                                    1f52F01 F:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: F:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 F   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain G from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52g1 G:1-100 Glutamine synthetase, N-terminal domain                                             d1f52g2 G:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52G02 G:1-103  [code=3.10.20.70, no name defined]                                                    1f52G01 G:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: G:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 G   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain H from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52h1 H:1-100 Glutamine synthetase, N-terminal domain                                             d1f52h2 H:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52H02 H:1-103  [code=3.10.20.70, no name defined]                                                    1f52H01 H:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: H:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 H   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain I from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52i1 I:1-100 Glutamine synthetase, N-terminal domain                                             d1f52i2 I:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52I02 I:1-103  [code=3.10.20.70, no name defined]                                                    1f52I01 I:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: I:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 I   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain J from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52j1 J:1-100 Glutamine synthetase, N-terminal domain                                             d1f52j2 J:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52J02 J:1-103  [code=3.10.20.70, no name defined]                                                    1f52J01 J:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: J:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 J   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain K from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52k1 K:1-100 Glutamine synthetase, N-terminal domain                                             d1f52k2 K:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52K02 K:1-103  [code=3.10.20.70, no name defined]                                                    1f52K01 K:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: K:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 K   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460


Chain L from PDB  Type:PROTEIN  Length:468
 aligned with GLN1B_SALTY | P0A1P6 from UniProtKB/Swiss-Prot  Length:469

    Alignment length:468
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461
          GLN1B_SALTY     2 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEAMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 469
               SCOP domains d1f52l1 L:1-100 Glutamine synthetase, N-terminal domain                                             d1f52l2 L:101-468 Glutamine synthetase, C-terminal domain                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains 1f52L02 L:1-103  [code=3.10.20.70, no name defined]                                                    1f52L01 L:104-456 Creatine Kinase; Chain                                                                                                                                                                                                                                                                                                                         ------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhh...eeeeeee.....eeeeeee.hhhhhhhhhhheeee.hhh.........eeeeee.hhhhee.......eeeeeeeee..........hhhhhhhhhhhhhhhh....eeeeeeeeeeeee.eeeeeee..eeeeeee...hhhhhhh.........................hhhhhhhhhhhhhhh...eeeeee......eeeeee..eehhhhhhhhhhhhhhhhhhhhhh..eee.............eeeeeeeee..ee.....hhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh.........eeeee.....eeee.....hhhhh.eee.......hhhhhhhhhhhhhhhhhhh............................hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------GLNA_1  PDB: L:49-6----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GLNA_ATP        ---------------------------------------------------------------------------------------------------------------GLNA_ADENYLAT----------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1f52 L   1 SAEHVLTMLNEHEVKFVDLRFTDTKGKEQHVTIPAHQVNAEFFEEGKMFDGSSIGGWKGINESDMVLMPDASTAVIDPFFADSTLIIRCDILEPGTLQGYDRDPRSIAKRAEDYLRATGIADTVLFGPEPEFFLFDDIRFGASISGSHVAIDDIEGAWNSSTKYEGGNKGHRPGVKGGYFPVPPVDSAQDIRSEMCLVMEQMGLVVEAHHHEVATAGQNEVATRFNTMTKKADEIQIYKYVVHNVAHRFGKTATFMPKPMFGDNGSGMHCHMSLAKNGTNLFSGDKYAGLSEQALYYIGGVIKHAKAINALANPTTNSYKRLVPGYEAPVMLAYSARNRSASIRIPVVASPKARRIEVRFPDPAANPYLCFAALLMAGLDGIKNKIHPGEPMDKNLYDLPPEEAKEIPQVAGSLEEALNALDLDREFLKAGGVFTDEAIDAYIALRREEDDRVRMTPHPVEFELYYSV 468
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 24)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 24)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Architecture: 2-Layer Sandwich (8480)
(-)
Topology: Creatine Kinase; Chain A, domain 2 (27)
(-)
Homologous Superfamily: Creatine Kinase; Chain (27)
(-)
Salmonella typhimurium. Organism_taxid: 602. (2)
1a1f52A01A:104-456
1b1f52B01B:104-456
1c1f52K01K:104-456
1d1f52L01L:104-456
1e1f52C01C:104-456
1f1f52D01D:104-456
1g1f52E01E:104-456
1h1f52F01F:104-456
1i1f52G01G:104-456
1j1f52H01H:104-456
1k1f52I01I:104-456
1l1f52J01J:104-456
(-)
Architecture: Roll (3276)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1F52)

(-) Gene Ontology  (9, 9)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J,K,L   (GLN1B_SALTY | P0A1P6)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004356    glutamate-ammonia ligase activity    Catalysis of the reaction: L-glutamate + ATP + NH(4)(+) = L-glutamine + ADP + 2 H(+) + phosphate.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0006542    glutamine biosynthetic process    The chemical reactions and pathways resulting in the formation of glutamine, 2-amino-4-carbamoylbutanoic acid.
    GO:0006807    nitrogen compound metabolic process    The chemical reactions and pathways involving organic or inorganic compounds that contain nitrogen.
    GO:0009399    nitrogen fixation    The process in which nitrogen is taken from its relatively inert molecular form (N2) in the atmosphere and converted into nitrogen compounds useful for other chemical processes, such as ammonia, nitrate and nitrogen dioxide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ADP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MPD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]
    EC1  [ RasMol ]  +environment [ RasMol ]
    EC2  [ RasMol ]  +environment [ RasMol ]
    EC3  [ RasMol ]  +environment [ RasMol ]
    EC4  [ RasMol ]  +environment [ RasMol ]
    EC5  [ RasMol ]  +environment [ RasMol ]
    EC6  [ RasMol ]  +environment [ RasMol ]
    EC7  [ RasMol ]  +environment [ RasMol ]
    EC8  [ RasMol ]  +environment [ RasMol ]
    EC9  [ RasMol ]  +environment [ RasMol ]
    FC1  [ RasMol ]  +environment [ RasMol ]
    FC2  [ RasMol ]  +environment [ RasMol ]
    FC3  [ RasMol ]  +environment [ RasMol ]
    FC4  [ RasMol ]  +environment [ RasMol ]
    FC5  [ RasMol ]  +environment [ RasMol ]
    FC6  [ RasMol ]  +environment [ RasMol ]
    FC7  [ RasMol ]  +environment [ RasMol ]
    FC8  [ RasMol ]  +environment [ RasMol ]
    FC9  [ RasMol ]  +environment [ RasMol ]
    GC1  [ RasMol ]  +environment [ RasMol ]
    GC2  [ RasMol ]  +environment [ RasMol ]
    GC3  [ RasMol ]  +environment [ RasMol ]
    GC4  [ RasMol ]  +environment [ RasMol ]
    GC5  [ RasMol ]  +environment [ RasMol ]
    GC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Leu A:399 - Pro A:400   [ RasMol ]
    Leu B:399 - Pro B:400   [ RasMol ]
    Leu C:399 - Pro C:400   [ RasMol ]
    Leu D:399 - Pro D:400   [ RasMol ]
    Leu E:399 - Pro E:400   [ RasMol ]
    Leu F:399 - Pro F:400   [ RasMol ]
    Leu G:399 - Pro G:400   [ RasMol ]
    Leu H:399 - Pro H:400   [ RasMol ]
    Leu I:399 - Pro I:400   [ RasMol ]
    Leu J:399 - Pro J:400   [ RasMol ]
    Leu K:399 - Pro K:400   [ RasMol ]
    Leu L:399 - Pro L:400   [ RasMol ]
    Pro A:183 - Pro A:184   [ RasMol ]
    Pro B:183 - Pro B:184   [ RasMol ]
    Pro C:183 - Pro C:184   [ RasMol ]
    Pro D:183 - Pro D:184   [ RasMol ]
    Pro E:183 - Pro E:184   [ RasMol ]
    Pro F:183 - Pro F:184   [ RasMol ]
    Pro G:183 - Pro G:184   [ RasMol ]
    Pro H:183 - Pro H:184   [ RasMol ]
    Pro I:183 - Pro I:184   [ RasMol ]
    Pro J:183 - Pro J:184   [ RasMol ]
    Pro K:183 - Pro K:184   [ RasMol ]
    Pro L:183 - Pro L:184   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1f52
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GLN1B_SALTY | P0A1P6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  6.3.1.2
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GLN1B_SALTY | P0A1P6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GLN1B_SALTY | P0A1P6: 1f1h 1fpy 1lgr 2gls 2lgs

(-) Related Entries Specified in the PDB File

1f1h 1F1H IS A SIMILAR MODEL COMPLEXED WITH THALLIOUS IONS
