Title :   SOLUTION STRUCTURE OF THIS, THE SULFUR CARRIER PROTEIN IN E.COLI THIAMIN BIOSYNTHESIS

Authors :   C. Wang, J. Xi, T. P. Begley, L. K. Nicholson

Date :   17 May 00 (Deposition) - 10 Jan 01 (Release) - 24 Feb 09 (Revision)

Method :   SOLUTION NMR

Resolution :   NOT APPLICABLE

Chains :   NMR Structure  : A  (24x)

Keywords :   Ubiquitin Fold, Transport Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   C. Wang, J. Xi, T. P. Begley, L. K. Nicholson
Solution Structure Of This And Implications For The Evolutionary Roots Of Ubiquitin.
Nat. Struct. Biol. V. 8 47 2001
PubMed-ID: 11135670 | Reference-DOI: 10.1038/83041
(for further references see the PDB file header)

Compounds

Molecule 1 - THIS PROTEIN
	Chains	:	A
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PCLK413
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Other Details	:	SULFUR CARRIER PROTEIN

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (0, 0)

Sites (0, 0)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

NMR Structure

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:66
 aligned with THIS_ECOLI | O32583 from UniProtKB/Swiss-Prot  Length:66

    Alignment length:66
                                    10        20        30        40        50        60
            THIS_ECOLI    1 MQILFNDQAMQCAAGQTVHELLEQLDQRQAGAALAINQQIVPREQWAQHIVQDGDQILLFQVIAGG 66
               SCOP domains d1f0za_ A: Thiamin biosynthesis sulfur carrier protein ThiS        SCOP domains
               CATH domains 1f0zA00 A:1-66  [code=3.10.20.30, no name defined]                 CATH domains
               Pfam domains ------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eee...ee......hhhhhhhhhh.....eeeee..eeehhhhhh.......eee.eee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------ Transcript
                  1f0z A  1 MQILFNDQAMQCAAGQTVHELLEQLDQRQAGAALAINQQIVPREQWAQHIVQDGDQILLFQVIAGG 66
                                    10        20        30        40        50        60

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (3, 3)

NMR Structure(hide GO term definitions)

Chain A (THIS_ECOLI | O32583)

molecular function
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
	GO:0009228	thiamine biosynthetic process	The chemical reactions and pathways resulting in the formation of thiamine (vitamin B1), a water soluble vitamin present in fresh vegetables and meats, especially liver.
	GO:0009229	thiamine diphosphate biosynthetic process	The chemical reactions and pathways resulting in the formation of thiamine diphosphate, a derivative of thiamine (vitamin B1) which acts as a coenzyme in a range of processes including the Krebs cycle.

Visualization

Interactive Views

NMR Structure
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1f0z)

	Sites
(no "Sites" information available for 1f0z)

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1f0z)

Still Images

Jmol

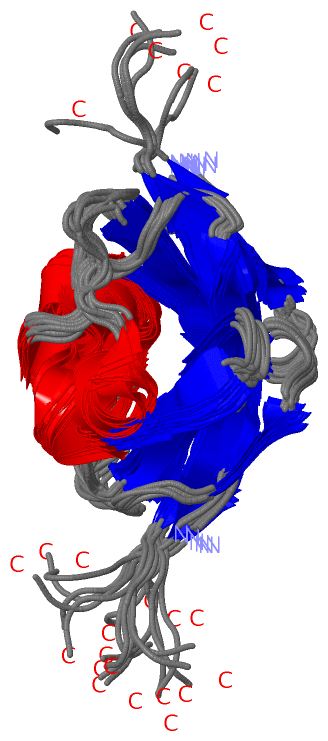

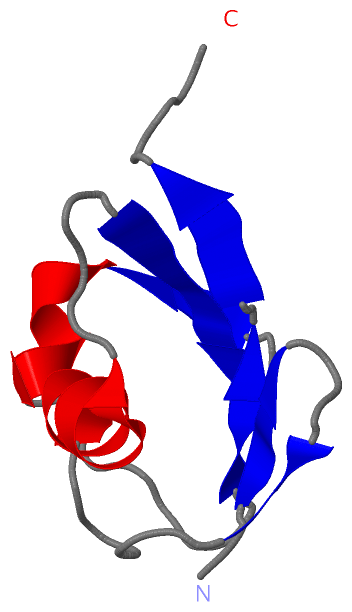

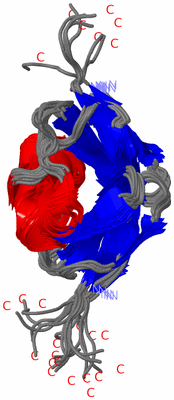

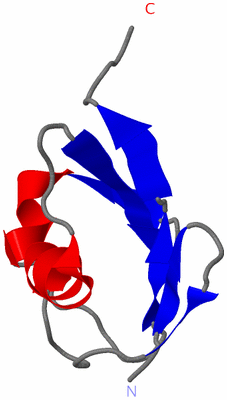

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ NMR Structure - model 1 PNG format \| NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	1f0z
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	THIS_ECOLI \| O32583
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	THIS_ECOLI \| O32583
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
