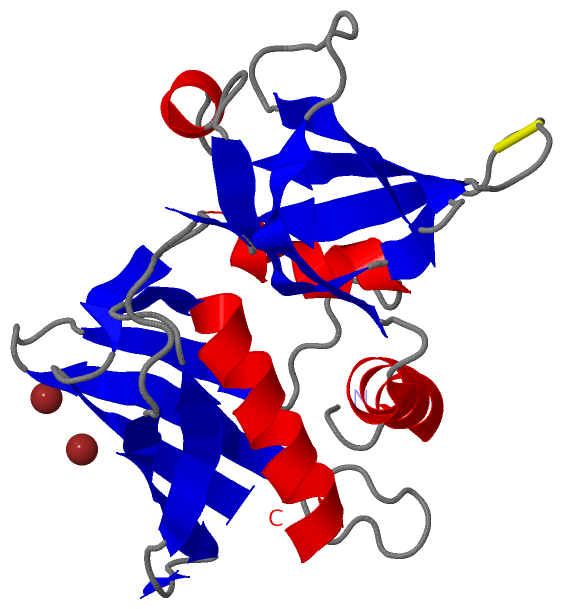

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

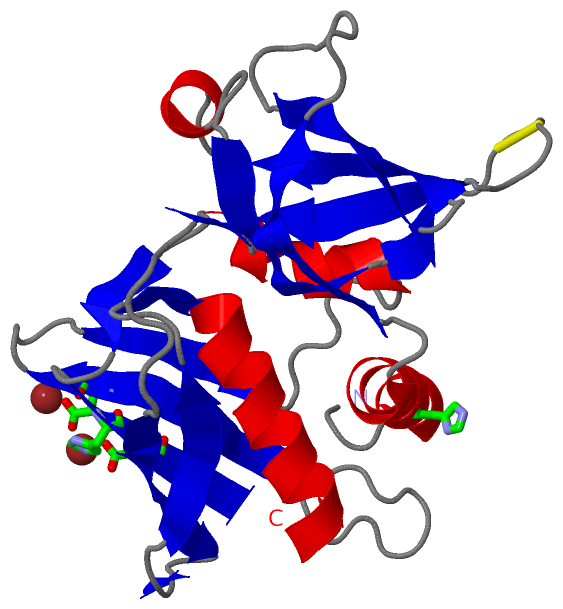

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE SUPERANTIGEN SPE-H (ZINC BOUND) FROM STREPTOCOCCUS PYOGENES

Authors :  V. L. Arcus, T. Proft, J. A. Sigrell, H. M. Baker, J. D. Fraser, E. N. Baker
Date :  13 Apr 00  (Deposition) - 26 Apr 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Grasp, Ob Fold, Superantigen Fold, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. L. Arcus, T. Proft, J. A. Sigrell, H. M. Baker, J. D. Fraser, E. N. Baker
Conservation And Variation In Superantigen Structure And Activity Highlighted By The Three-Dimensional Structures Of Two New Superantigens From Streptococcus Pyogenes.
J. Mol. Biol. V. 299 157 2000
PubMed-ID: 10860729  |  Reference-DOI: 10.1006/JMBI.2000.3725
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SUPERANTIGEN SPE-H
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX-2T
    Expression System Taxid: 562
    Organism Scientific: STREPTOCOCCUS PYOGENES
    Organism Taxid: 1314

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:160 , HIS A:198 , ASP A:200 , HOH A:431BINDING SITE FOR RESIDUE ZN A 400
2AC2SOFTWAREHIS A:9 , ASP A:160 , HOH A:416BINDING SITE FOR RESIDUE ZN A 401

(-) SS Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1A:77 -A:79

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1EU4)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1EU4)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1STAPH_STREP_TOXIN_2PS00278 Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.SPEH_STRPY154-177  1A:122-145

(-) Exons   (0, 0)

(no "Exon" information available for 1EU4)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:204
 aligned with SPEH_STRPY | P0C0I6 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:204
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232
           SPEH_STRPY    33 NSYNTTNRHNLESLYKHDSNLIEADSIKNSPDIVTSHMLKYSVKDKNLSVFFEKDWISQEFKDKEVDIYALSAQEVCECPGKRYEAFGGITLTNSEKKEIKVPVNVWDKSKQQPPMFITVNKPKVTAQEVDIKVRKLLIKKYDIYNNREQKYSKGTVTLDLNSGKDIVFDLYYFGNGDFNSMLKIYSNNERIDSTQFHVDVSIS 236
               SCOP domains d1eu4a1 A:1-95 Streptococcal superantigen Spe-H                                                d1eu4a2 A:96-204 Streptococcal superantigen Spe-H                                                             SCOP domains
               CATH domains 1eu4A02 A:1-92  [code=2.40.50.110, no name defined]                                         1eu4A01 A:93-204  [code=3.10.20.120, no name defined]                                                            CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...eeeeeeee.........eeeeee..eeeeee...hhhhhh....eeeeeee.ee........eeeee..eee.......eeeeeeeee..ee...eeeee...eeehhhhhhhhhhhhhhhhh..........eeeeeeee....eeeee.......hhhhhhhhhh...eee...eeeeeeee Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------STAPH_STREP_TOXIN_2     ----------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1eu4 A   1 NSYNTTNRHNLESLYKHDSNLIEADSIKNSPDIVTSHMLKYSVKDKNLSVFFEKDWISQEFKDKEVDIYALSAQEVCECPGKRYEAFGGITLTNSEKKEIKVPVNVWDKSKQQPPMFITVNKPKVTAQEVDIKVRKLLIKKYDIYNNREQKYSKGTVTLDLNSGKDIVFDLYYFGNGDFNSMLKIYSNNERIDSTQFHVDVSIS 204
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1EU4)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (SPEH_STRPY | P0C0I6)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1eu4)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1eu4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SPEH_STRPY | P0C0I6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SPEH_STRPY | P0C0I6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SPEH_STRPY | P0C0I6: 1et9

(-) Related Entries Specified in the PDB File

1et6 APO-SMEZ-2
1et9 APO-SPE-H
1eu3 ZN-SMEZ-2
