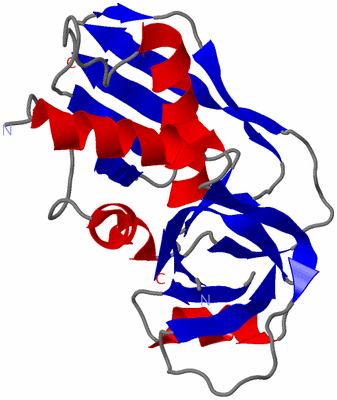

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE SUPERANTIGEN SPE-H FROM STREPTOCOCCUS PYOGENES

Authors :  V. L. Arcus, T. Proft, J. A. Sigrell, H. M. Baker, J. D. Fraser, E. N. Baker
Date :  12 Apr 00  (Deposition) - 26 Apr 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Beta Grasp, Ob Fold, Superantigen Fold, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. L. Arcus, T. Proft, J. A. Sigrell, H. M. Baker, J. D. Fraser, E. N. Baker
Conservation And Variation In Superantigen Structure And Activity Highlighted By The Three-Dimensional Structures Of Two New Superantigens From Streptococcus Pyogenes.
J. Mol. Biol. V. 299 157 2000
PubMed-ID: 10860729  |  Reference-DOI: 10.1006/JMBI.2000.3725
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SUPERANTIGEN SPE-H
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PGEX-2T
    Expression System Taxid: 562
    Organism Scientific: STREPTOCOCCUS PYOGENES
    Organism Taxid: 1314

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1ET9)

(-) Sites  (0, 0)

(no "Site" information available for 1ET9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1ET9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1ET9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1ET9)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1STAPH_STREP_TOXIN_2PS00278 Staphyloccocal enterotoxin/Streptococcal pyrogenic exotoxin signature 2.SPEH_STRPY154-177  1A:122-145

(-) Exons   (0, 0)

(no "Exon" information available for 1ET9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:195
 aligned with SPEH_STRPY | P0C0I6 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:204
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232
           SPEH_STRPY    33 NSYNTTNRHNLESLYKHDSNLIEADSIKNSPDIVTSHMLKYSVKDKNLSVFFEKDWISQEFKDKEVDIYALSAQEVCECPGKRYEAFGGITLTNSEKKEIKVPVNVWDKSKQQPPMFITVNKPKVTAQEVDIKVRKLLIKKYDIYNNREQKYSKGTVTLDLNSGKDIVFDLYYFGNGDFNSMLKIYSNNERIDSTQFHVDVSIS 236
               SCOP domains d1et9a1 A:1-95 Streptococcal superantigen S  pe-H                                              d1et9a2 A:96-204 Streptococcal superantigen Spe-H                                                             SCOP domains
               CATH domains 1et9A02 A:1-92  [code=2.40.50.110, no name   defined]                                       1et9A01 A:93-202  [code=3.10.20.120, no name defined]                                                         -- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh...eeeeeee..........eeeee.--.eeeee...hhhhhhhh...eeeeeeeee.-------.eeee..eee.......eeeeeeeee..ee...eeeee...eeehhhhhhhhhhhhhhhh............eeeeeee...eeeeee.......hhhhhhhhhh...eee...eeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------STAPH_STREP_TOXIN_2     ----------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1et9 A   1 NSYNTTNRHNLESLYKHDSNLIEADSIKNSPDIVTSHMLKYSV--KNLSVFFEKDWISQEFKDKEVDIYALSAQE-------RYEAFGGITLTNSEKKEIKVPVNVWDKSKQQPPMFITVNKPKVTAQEVDIKVRKLLIKKYDIYNNREQKYSKGTVTLDLNSGKDIVFDLYYFGNGDFNSMLKIYSNNERIDSTQFHVDVSIS 204
                                    10        20        30        40  |  |  50        60        70    |    -  |     90       100       110       120       130       140       150       160       170       180       190       200
                                                                     43 46                           75      83
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1ET9)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (SPEH_STRPY | P0C0I6)
biological process
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1et9)

  Sites
(no "Sites" information available for 1et9)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1et9)


(-) Still Images

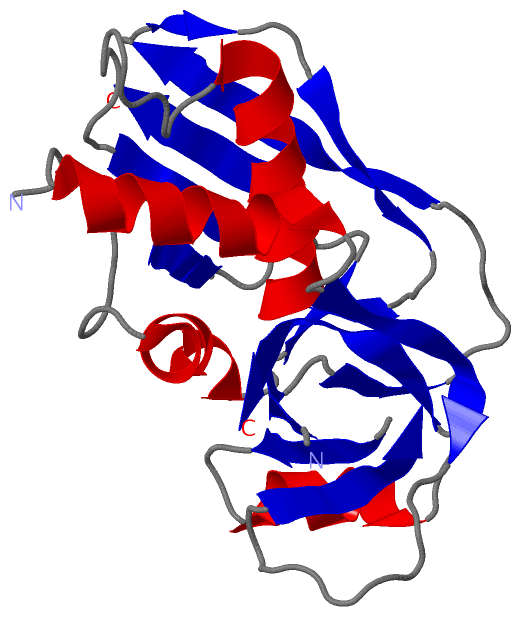

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1et9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SPEH_STRPY | P0C0I6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SPEH_STRPY | P0C0I6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SPEH_STRPY | P0C0I6: 1eu4

(-) Related Entries Specified in the PDB File

1an8 1AN8 IS A RELATED SUPERANTIGEN FROM STREPTOCOCCUS PYOGENES
1et6 APO-SMEZ-2
1eu3 ZN-SMEZ-2
1eu4 ZN-SPE-H
