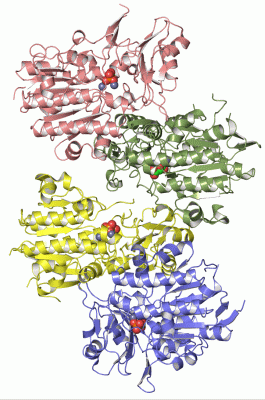

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

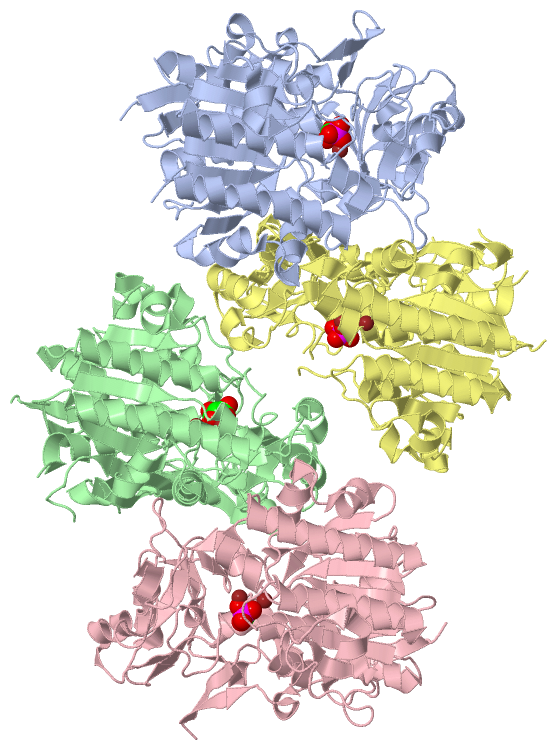

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

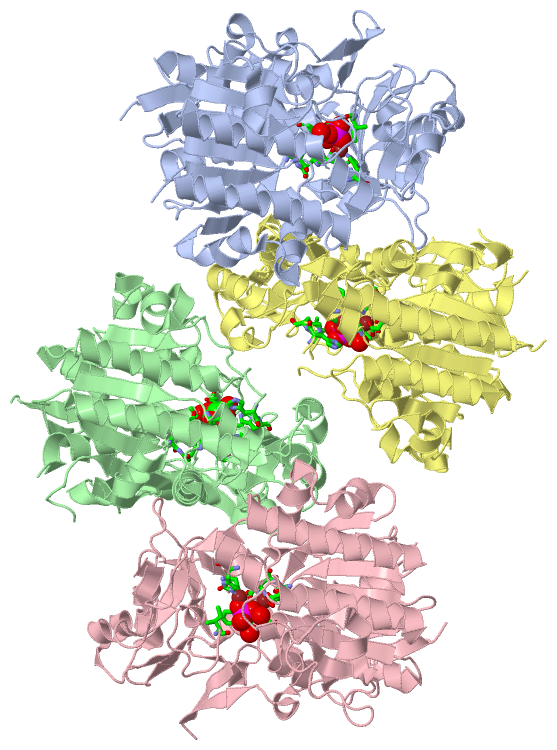

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

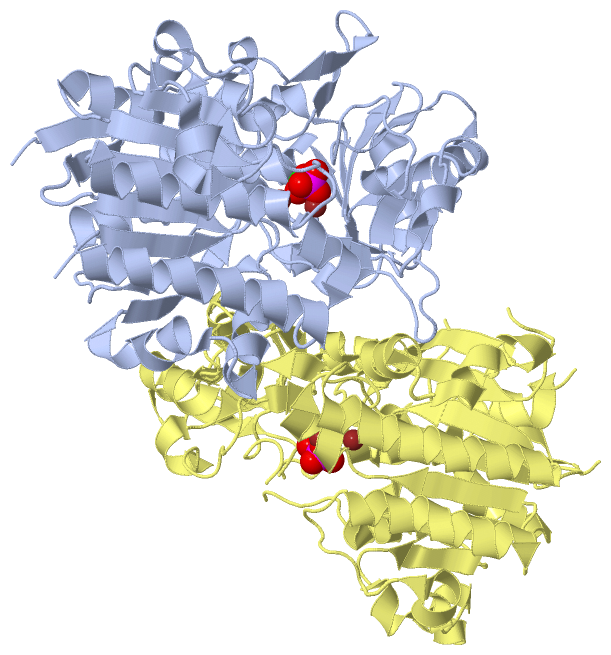

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

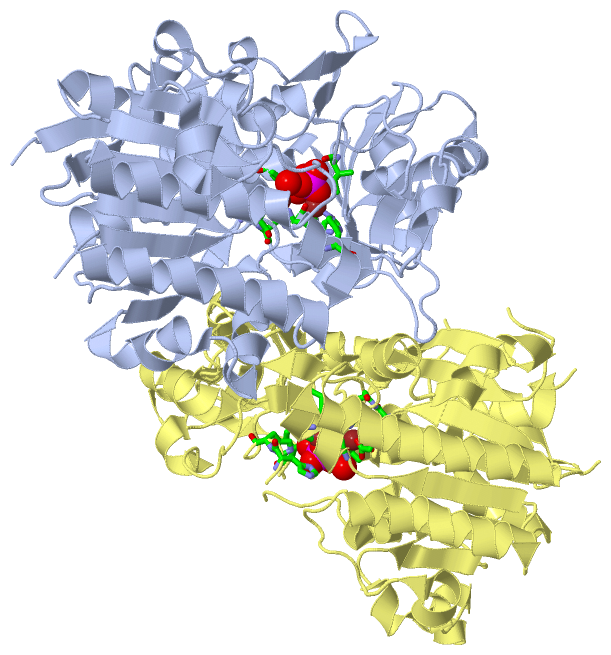

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

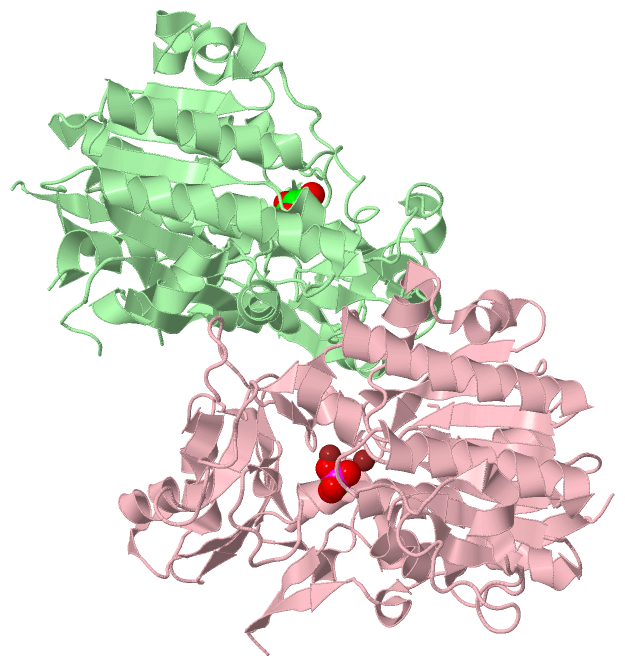

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PHOSPHONOACETATE HYDROLASE COMPLEXED WITH PHOSPHONOFORMATE

Authors :  H. M. Holden, M. M. Benning, D. Dunaway-Mariano, A. D. Kim
Date :  24 Feb 00  (Deposition) - 25 Nov 03  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,D  (1x)
Biol. Unit 2:  B,C  (1x)
Keywords :  Phosphonoacetate, Hydrolase, Zinc, Crystal Structure (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. M. Holden, M. M. Benning, D. Dunaway-Mariano, A. D. Kim
Crystal Structure Of Phosphonoacetate Hydrolase Complexed With Phosphonoformate
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PHOSPHONOACETATE HYDROLASE
    Chains: A, B, C, D
    EC Number: 3.11.1.2
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: PSEUDOMONAS FLUORESCENS
    Organism Taxid: 294
    Strain: 23F

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A  D
Biological Unit 2 (1x):  BC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 12)

Asymmetric Unit (3, 12)
No.NameCountTypeFull Name
1PPF3Ligand/IonPHOSPHONOFORMIC ACID
2TLA1Ligand/IonL(+)-TARTARIC ACID
3ZN8Ligand/IonZINC ION
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1PPF2Ligand/IonPHOSPHONOFORMIC ACID
2TLA-1Ligand/IonL(+)-TARTARIC ACID
3ZN-1Ligand/IonZINC ION
Biological Unit 2 (2, 2)
No.NameCountTypeFull Name
1PPF1Ligand/IonPHOSPHONOFORMIC ACID
2TLA1Ligand/IonL(+)-TARTARIC ACID
3ZN-1Ligand/IonZINC ION

(-) Sites  (12, 12)

Asymmetric Unit (12, 12)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:25 , THR A:64 , ASP A:202 , ASP A:241 , HIS A:242 , PPF A:410BINDING SITE FOR RESIDUE ZN A 408
02AC2SOFTWAREASP A:202 , HIS A:206 , HIS A:368 , PPF A:410BINDING SITE FOR RESIDUE ZN A 409
03AC3SOFTWAREASP B:25 , THR B:64 , ASP B:241 , HIS B:242 , TLA B:411BINDING SITE FOR RESIDUE ZN B 408
04AC4SOFTWAREASP B:202 , HIS B:206 , HIS B:368 , TLA B:411BINDING SITE FOR RESIDUE ZN B 409
05AC5SOFTWAREASP C:25 , THR C:64 , ASP C:241 , HIS C:242 , PPF C:413BINDING SITE FOR RESIDUE ZN C 408
06AC6SOFTWAREASP C:202 , HIS C:206 , HIS C:368 , PPF C:413BINDING SITE FOR RESIDUE ZN C 409
07AC7SOFTWAREASP D:25 , THR D:64 , ASP D:241 , HIS D:242BINDING SITE FOR RESIDUE ZN D 408
08AC8SOFTWAREASP D:202 , HIS D:206 , HIS D:368 , PPF D:412BINDING SITE FOR RESIDUE ZN D 409
09AC9SOFTWAREPHE B:63 , THR B:64 , ASN B:85 , ASP B:202 , HIS B:206 , ILE B:278 , HIS B:285 , HIS B:286 , HIS B:368 , ZN B:408 , ZN B:409 , HOH B:590BINDING SITE FOR RESIDUE TLA B 411
10BC1SOFTWARETHR A:64 , ASP A:202 , HIS A:206 , HIS A:242 , ILE A:278 , HIS A:368 , ZN A:408 , ZN A:409 , HOH A:470BINDING SITE FOR RESIDUE PPF A 410
11BC2SOFTWARETHR D:64 , ASP D:202 , HIS D:206 , ILE D:278 , HIS D:285 , HIS D:286 , HIS D:368 , ZN D:409 , HOH D:703 , HOH D:879BINDING SITE FOR RESIDUE PPF D 412
12BC3SOFTWAREASP C:25 , PHE C:63 , THR C:64 , ASP C:202 , HIS C:206 , HIS C:242 , ILE C:278 , HIS C:368 , ZN C:408 , ZN C:409 , HOH C:808 , HOH C:845BINDING SITE FOR RESIDUE PPF C 413

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1EI6)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Val A:60 -Pro A:61
2Val B:60 -Pro B:61
3Val C:60 -Pro C:61
4Val D:60 -Pro D:61

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1EI6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1EI6)

(-) Exons   (0, 0)

(no "Exon" information available for 1EI6)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:404
 aligned with PHNHY_PSEFL | Q51782 from UniProtKB/Swiss-Prot  Length:407

    Alignment length:406
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401
          PHNHY_PSEFL     2 TQLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQETQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLDSPGRLRNFDIIDLALNHLA 407
               SCOP domains d1ei6a_ A: Phosphonoacetate hydrolase                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1ei6A01 A:2-252,A:364-407 Alkaline Phosphatase, subunit A                                                                                                                                                                                                  1ei6A02 A:253-363 Domain 2, Phosphonoacetate Hydrolase                                                         1ei6A01 A:2-252,A:364-407                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee..eeee.....eeeee....hhhhhhhhhhh..hhhhhhhhhh.eeeeee.....hhhhhhhhhhhh.hhhhhh....eeee....eeee..hhhhh...hhhhhhhhh...eeeee.hhhhhhhhh.....eeee.......hhhhhh..hhhhhhh........hhhhhhhhhhhhhhhhh....eeeee..hhhhhhh...hhhhhhhhhhhhhhhhhhhhh..eeeee.....ee.........eeehhhhhhhhhh...eeee..........hhhh..eeeeee....hhhhhhhhhhh...eeeeeehhhhhhhhh.hhhhh..eeeee....eee.......hhhh....ee..hhhh.eeeeee........--......hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ei6 A   2 TNLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQETQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLD--GRLRNFDIIDLALNHLA 407
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381      |391       401
                                                                                                                                                                                                                                                                                                                                                                                                                            388  |
                                                                                                                                                                                                                                                                                                                                                                                                                               391


Chain B from PDB  Type:PROTEIN  Length:403
 aligned with PHNHY_PSEFL | Q51782 from UniProtKB/Swiss-Prot  Length:407

    Alignment length:406
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401
          PHNHY_PSEFL     2 TQLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQETQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLDSPGRLRNFDIIDLALNHLA 407
               SCOP domains d1ei6b_ B: Phosphonoacetate hydrolase                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1ei6B01 B:2-252,B:364-407 Alkaline Phosphatase, subunit A                                                                                                                                                                                                  1ei6B02 B:253-363 Domain 2, Phosphonoacetate Hydrolase                                                         1ei6B01 B:2-252,B:364-407                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee..eeee.....eeeee....hhhhhhhhhhh..hhhhhhhhhh.eeeeee.....hhhhhhhhhhhh.hhhhhh....eeee..........hhhhh...hhhhhhhhh...eeeee.hhhhhhhhh.....eeee..hhhhhhhhhhh..hhhhhhh........hhhhhhhhhhhhhhhhh....eeeee..hhhhhhh...hhhhhhhhhhhhhhhhhhhhh..eeeee.....ee.........eeehhhhhhhhhh...eeee................eeeeee....hhhhhhhhhhhh..eeeeeehhhhhhhhh.hhhhh..eeeee....eee.hhhhh.........ee..hhhh.eeeeee........---.....hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ei6 B   2 TNLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQETQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLD---RLRNFDIIDLALNHLA 407
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381      |  -|      401
                                                                                                                                                                                                                                                                                                                                                                                                                            388 392


Chain C from PDB  Type:PROTEIN  Length:401
 aligned with PHNHY_PSEFL | Q51782 from UniProtKB/Swiss-Prot  Length:407

    Alignment length:406
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401
          PHNHY_PSEFL     2 TQLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQETQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLDSPGRLRNFDIIDLALNHLA 407
               SCOP domains d1ei6c_ C: Phosphonoacetate hydrolase                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1ei6C01 C:2-252,C:364-407 Alkaline Phosphatase, subunit A                                                                                                                                                                                                  1ei6C02 C:253-363 Domain 2, Phosphonoacetate Hydrolase                                                         1ei6C01 C:2-252,C:364-40    7                CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee..eeee.....eeeee.....hhhhhhhhhh..hhhhhhhh...eeeeee.....hhhhhhhhhhhh.hhhhhh....eeee.-..eeee..hhhhh...hhhhhhhhh...eeeee.hhhhhhhhh.....eeee...............hhhhhhh........hhhhhhhhhhhhhhhhh....eeeee..hhhhhhh...hhhhhhhhhhhhhhhhhhhhh..eeeee.....ee.........eeehhhhhhhhhh...eeee..........hhhh..eeeeee....hhhhhhhhhhh...eeeeeehhhhhhhhh.hhhhh..eeeee....eee...............ee..hhhh.eeeeee.......----.....hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ei6 C   2 TNLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQ-TQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGL----RLRNFDIIDLALNHLA 407
                                    11        21        31        41        51        61        71        81        |-|      101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381     |   -|      401
                                                                                                                   90 |                                                                                                                                                                                                                                                                                                    387  392
                                                                                                                     92


Chain D from PDB  Type:PROTEIN  Length:395
 aligned with PHNHY_PSEFL | Q51782 from UniProtKB/Swiss-Prot  Length:407

    Alignment length:406
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401
          PHNHY_PSEFL     2 TQLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFDQETQEEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPITDPYVVHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLDSPGRLRNFDIIDLALNHLA 407
               SCOP domains d1ei6d_ D: Phosphonoacetate hydrolase                                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains 1ei6D01 D:2-252,D:364-407 Alkaline Phosphatase, subunit A                                                                                                                                                                                                  1ei6D02 D:253-363 Domain 2,     Phosphonoacetate Hydrolase                                                     1ei6D01 D:2-252,D:364-407                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee..eeee.....eeeee....hhhhhhhhhhh..hhhhhhhhhh.eeeeee.....hhhhhhhhhhhh.hhhhhh........----......hhhhh...hhhhhhhhh...eeeee.hhhhhhhhh.....eeee..hhhhhhhhhhh..hhhhhhh........hhhhhhhhhhhhhhhh.....eeeee..hhhhhhh...hhhhhhhhhhhhhhhhhhhhh..eeeee.....ee.........eeehhhhhhhhhh...eeee....----........eeeeee....hhhhhhhhhhh...eeeeeehhhhhhhhh.hhhhh..eeeee....eee.hhhhh.........ee..hhhh.eeeeee........---.....hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1ei6 D   2 TNLISVNSRSYRLSSAPTIVICVDGCEQEYINQAIQAGQAPFLAELTGFGTVLTGDCVVPSFTNPNNLSIVTGAPPSVHGICGNFFFD----EEVLMNDAKYLRAPTILAEMAKAGQLVAVVTAKDKLRNLLGHQLKGICFSAEKADQVNLEEHGVENILARVGMPVPSVYSADLSEFVFAAGLSLLTNERPDFMYLSTTDYVQHKHAPGTPEANAFYAMMDSYFKRYHEQGAIVAITADHGMNAKTDAIGRPNILFLQDLLDAQYGAQRTRVLLPIT----VHHGALGSYATVYLRDAVPQRDAIDFLAGIAGVEAVLTRSQACQRFELPEDRIGDLVVLGERLTVLGSAADKHDLSGLTVPLRSHGGVSEQKVPLIFNRKLVGLD---RLRNFDIIDLALNHLA 407
                                    11        21        31        41        51        61        71        81       | -  |    101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       | -  |    291       301       311       321       331       341       351       361       371       381      |  -|      401
                                                                                                                  89   94                                                                                                                                                                                      279  284                                                                                                     388 392
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (2, 8)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1EI6)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (PHNHY_PSEFL | Q51782)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0047400    phosphonoacetate hydrolase activity    Catalysis of the reaction: H(2)O + phosphonoacetate = acetate + H(+) + phosphate.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0019636    phosphonoacetate metabolic process    The chemical reactions and pathways involving phosphonoacetate, C2H4PO5, a substance composed of an acetate and a phosphonic acid residue.
