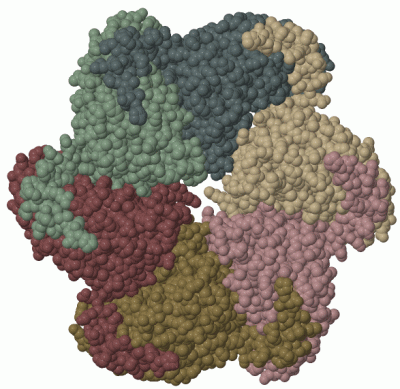

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

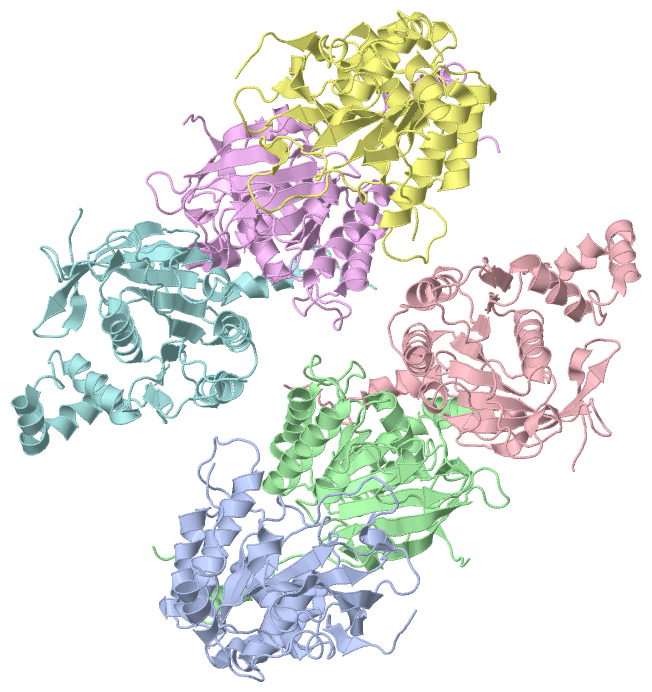

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

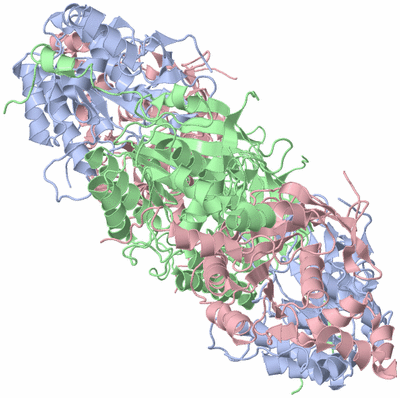

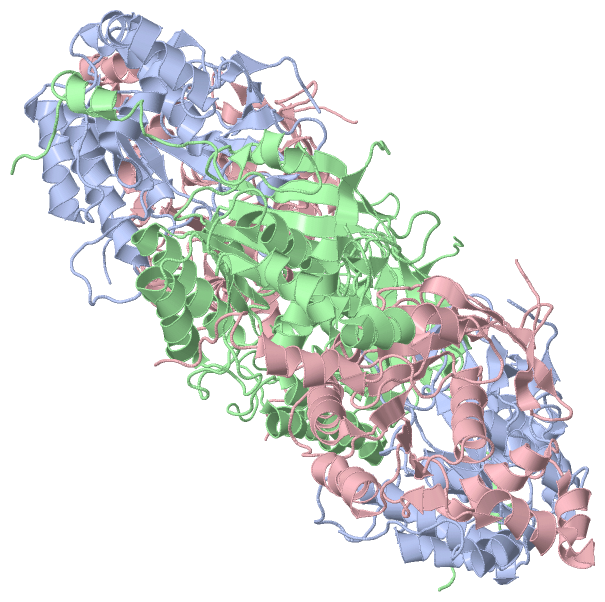

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

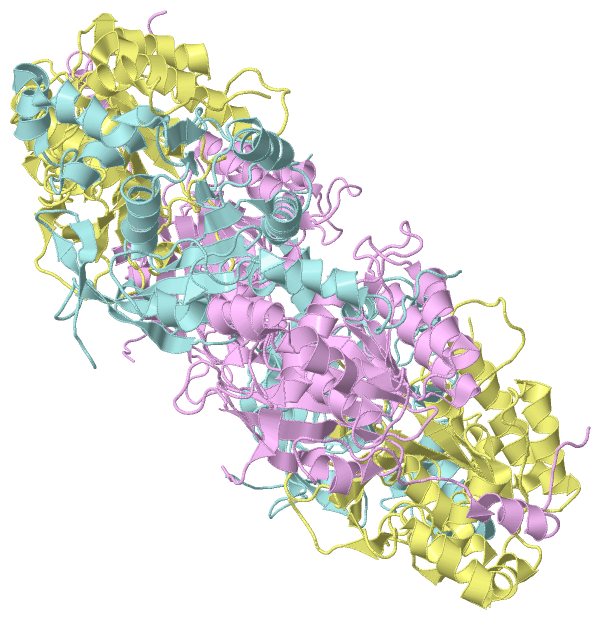

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  GP4D HELICASE FROM PHAGE T7

Authors :  M. R. Singleton, M. R. Sawaya, T. Ellenberger, D. B. Wigley
Date :  30 Mar 00  (Deposition) - 09 Jun 00  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.30
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B,C  (2x)
Biol. Unit 2:  D,E,F  (2x)
Keywords :  Helicase, Atpase, Dna Replication (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. R. Singleton, M. R. Sawaya, T. Ellenberger, D. B. Wigley
Crystal Structure Of T7 Gene 4 Ring Helicase Indicates A Mechanism For Sequential Hydrolysis Of Nucleotides
Cell(Cambridge, Mass. ) V. 101 589 2000
PubMed-ID: 10892646  |  Reference-DOI: 10.1016/S0092-8674(00)80871-5

(-) Compounds

Molecule 1 - DNA HELICASE
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: DOMAIN 4D
    Gene: GENE 4
    Organism Scientific: PHAGE T7
    Organism Taxid: 10760

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (2x): ABC
Biological Unit 2 (2x):    DEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1E0K)

(-) Sites  (0, 0)

(no "Site" information available for 1E0K)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1E0K)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1E0K)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1E0K)

(-) PROSITE Motifs  (1, 6)

Asymmetric Unit (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SF4_HELICASEPS51199 Superfamily 4 helicase domain profile.PRIM_BPT7281-548




 		  6A:281-548
B:281-548
C:281-548
D:281-548
E:281-548
F:281-548
Biological Unit 1 (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SF4_HELICASEPS51199 Superfamily 4 helicase domain profile.PRIM_BPT7281-548




 		  6A:281-548
B:281-548
C:281-548
-
-
-
Biological Unit 2 (1, 6)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SF4_HELICASEPS51199 Superfamily 4 helicase domain profile.PRIM_BPT7281-548




 		  6-
-
-
D:281-548
E:281-548
F:281-548

(-) Exons   (0, 0)

(no "Exon" information available for 1E0K)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:288
 aligned with PRIM_BPT7 | P03692 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:288
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
            PRIM_BPT7   262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
               SCOP domains d1e0ka_ A: Gene 4 protein (g4p, DNA primase), helicase domain                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e0kA00 A:262-549 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhh..........................eeeeee....hhhhhhhhhhhhhh......eeeee...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhh.....eeeee.............hhhhhhhhhhhhhhhhhhhh.eeeee..........hhhhh............hhhhhh.eeeeee.........eeeeeeeee......eeeeeeee......eee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------SF4_HELICASE  PDB: A:281-548 UniProt: 281-548                                                                                                                                                                                                                               - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e0k A 262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541


Chain B from PDB  Type:PROTEIN  Length:288
 aligned with PRIM_BPT7 | P03692 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:288
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
            PRIM_BPT7   262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
               SCOP domains d1e0kb_ B: Gene 4 protein (g4p, DNA primase), helicase domain                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e0kB00 B:262-549 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhh................hhhhhhh......eeeeee....hhhhhhhhhhhhhh......eeeee...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh...eee.......hhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhh.eeeeee.........hhh..............hhhhhh.eeeeee.........eeeeeeeee......eeeeeeee......eee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------SF4_HELICASE  PDB: B:281-548 UniProt: 281-548                                                                                                                                                                                                                               - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e0k B 262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541


Chain C from PDB  Type:PROTEIN  Length:288
 aligned with PRIM_BPT7 | P03692 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:288
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
            PRIM_BPT7   262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
               SCOP domains d1e0kc_ C: Gene 4 protein (g4p, DNA primase), helicase domain                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e0kC00 C:262-549 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhh.............hhhhhhh......eeeeee....hhhhhhhhhhhhhh......eeeee...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh...eee.......hhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhh.eeeeee.........hhh..............hhhhhh.eeeeeee........eeeeeeeee......eeeeeeeee....eeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------SF4_HELICASE  PDB: C:281-548 UniProt: 281-548                                                                                                                                                                                                                               - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e0k C 262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541


Chain D from PDB  Type:PROTEIN  Length:288
 aligned with PRIM_BPT7 | P03692 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:288
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
            PRIM_BPT7   262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
               SCOP domains d1e0kd_ D: Gene 4 protein (g4p, DNA primase), helicase domain                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e0kD00 D:262-549 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhh..........................eeeeee....hhhhhhhhhhhhhh......eeeee...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhh.....eeeee.............hhhhhhhhhhhhhhhhhhhh.eeeeee.........hhh..............hhhhhh.eeeeee.........eeeeeeeee......eeeeeeee......eee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------SF4_HELICASE  PDB: D:281-548 UniProt: 281-548                                                                                                                                                                                                                               - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e0k D 262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541


Chain E from PDB  Type:PROTEIN  Length:288
 aligned with PRIM_BPT7 | P03692 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:288
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
            PRIM_BPT7   262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
               SCOP domains d1e0ke_ E: Gene 4 protein (g4p, DNA primase), helicase domain                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e0kE00 E:262-549 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhh.............hhhhhhh......eeeeee....hhhhhhhhhhhhhh......eeeee...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh...eee.......hhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhh.eeeeee.........hhh..............hhhhhh.eeeeee.........eeeeeeeee......eeeeeeee......eee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------SF4_HELICASE  PDB: E:281-548 UniProt: 281-548                                                                                                                                                                                                                               - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e0k E 262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541


Chain F from PDB  Type:PROTEIN  Length:288
 aligned with PRIM_BPT7 | P03692 from UniProtKB/Swiss-Prot  Length:566

    Alignment length:288
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
            PRIM_BPT7   262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
               SCOP domains d1e0kf_ F: Gene 4 protein (g4p, DNA primase), helicase domain                                                                                                                                                                                                                                    SCOP domains
               CATH domains 1e0kF00 F:262-549 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                                                           CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhh.............hhhhhhh......eeeeee....hhhhhhhhhhhhhh......eeeee...hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh...eee.......hhhhhhhhhhhhhhh....eeeee.............hhhhhhhhhhhhhhhhhhhh.eeeee..........hhh..............hhhhhh.eeeeeee........eeeeeeeee......eeeeeeeee....eeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE -------------------SF4_HELICASE  PDB: F:281-548 UniProt: 281-548                                                                                                                                                                                                                               - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 1e0k F 262 PDGVVSALSLRERIREHLSSEESVGLLFSGCTGINDKTLGARGGEVIMVTSGSGMGKSTFVRQQALQWGTAMGKKVGLAMLEESVEETAEDLIGLHNRVRLRQSDSLKREIIENGKFDQWFDELFGNDTFHLYDSFAEAETDRLLAKLAYMRSGLGCDVIILDHISIVVSASGESDERKMIDNLMTKLKGFAKSTGVVLVVICHLKNPDKGKAHEEGRPVSITDLRGSGALRQLSDTIIALERNQQGDMPNLVLVRILKCRFTGDTGIAGYMEYNKETGWLEPSSYSG 549
                                   271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531       541
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 6)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 6)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1E0K)

(-) Gene Ontology  (16, 16)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (PRIM_BPT7 | P03692)
molecular function
    GO:0043139    5'-3' DNA helicase activity    Catalysis of the unwinding of the DNA helix in the direction 5' to 3'.
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003678    DNA helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA helix.
    GO:0003896    DNA primase activity    Catalysis of the synthesis of a short RNA primer on a DNA template, providing a free 3'-OH that can be extended by DNA-directed DNA polymerases.
    GO:0003899    DNA-directed 5'-3' RNA polymerase activity    Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1). Utilizes a DNA template, i.e. the catalysis of DNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time. Can initiate a chain 'de novo'.
    GO:0004386    helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA or RNA helix.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0003697    single-stranded DNA binding    Interacting selectively and non-covalently with single-stranded DNA.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0032508    DNA duplex unwinding    The process in which interchain hydrogen bonds between two strands of DNA are broken or 'melted', generating a region of unpaired single strands.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0006269    DNA replication, synthesis of RNA primer    The synthesis of a short RNA polymer, usually 4-15 nucleotides long, using one strand of unwound DNA as a template; the RNA then serves as a primer from which DNA polymerases extend synthesis.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1e0k)

  Sites
(no "Sites" information available for 1e0k)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1e0k)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1e0k
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PRIM_BPT7 | P03692
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PRIM_BPT7 | P03692
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PRIM_BPT7 | P03692: 1cr0 1cr1 1cr2 1cr4 1e0j 1nui 1q57 5ikn

(-) Related Entries Specified in the PDB File

1b79 N-TERMINAL DOMAIN OF DNA REPLICATION PROTEIN DNAB
1cr0 T7 HELICASE DOMAIN UNLIGANDED
1cr1 T7 HELICASE DOMAIN: COMPLEX WITH DTTP
1cr2 T7 HELICASE DOMAIN: COMPLEX WITH DATP
1cr4 T7 HELICASE DOMAIN: COMPLEX WITH DTDP
1e0j GP4D HELICASE FROM PHAGE T7 ADPNP COMPLEX
1jwe NMR STRUCTURE OF THE N-TERMINAL DOMAIN OF E. COLI DNAB
