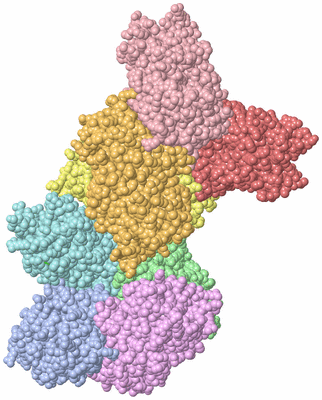

Asymmetric Unit (Jmol Viewer)

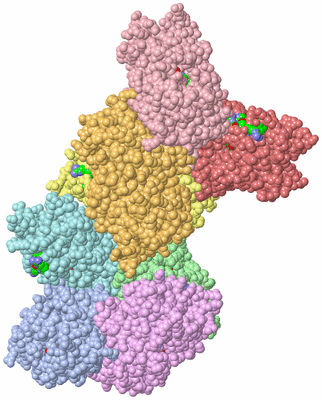

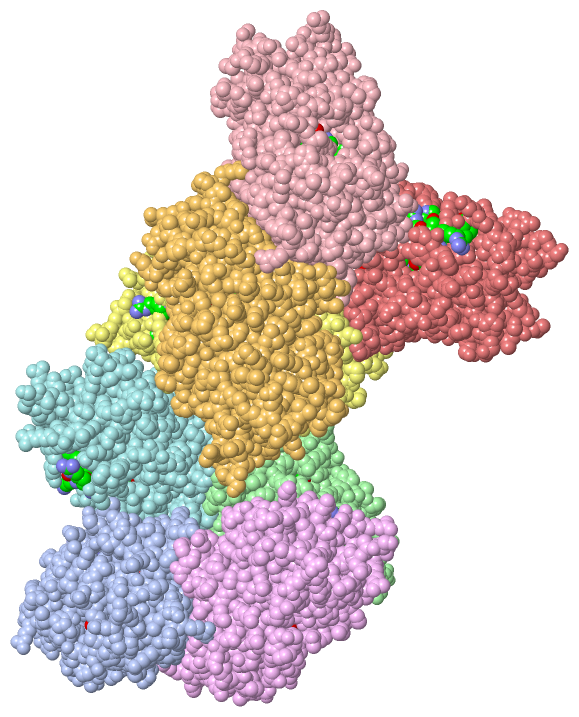

Asym. Unit - sites (Jmol Viewer)

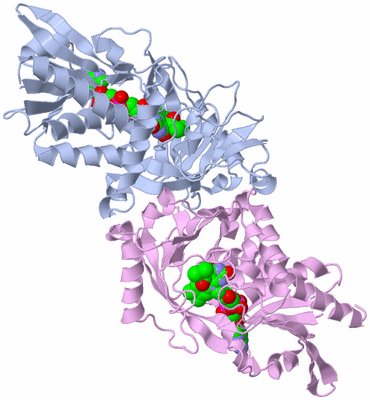

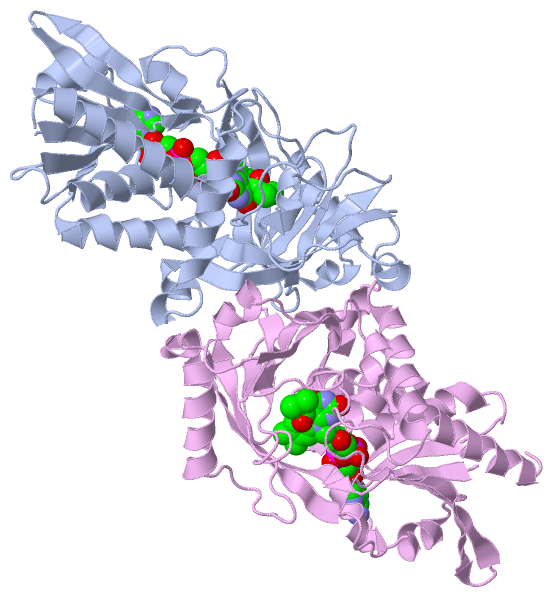

Biological Unit 1 (Jmol Viewer)

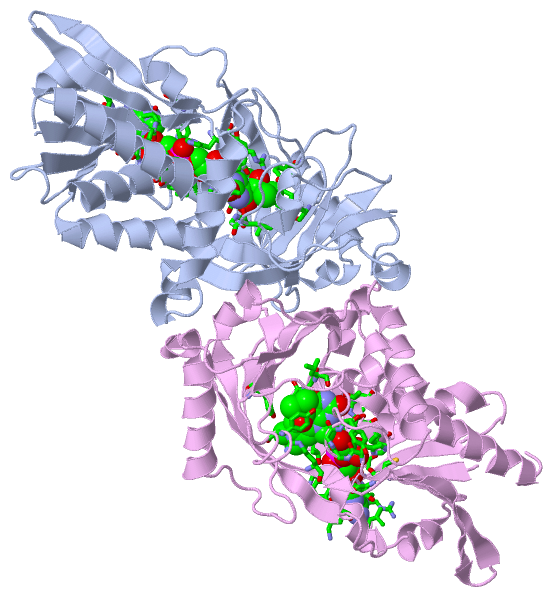

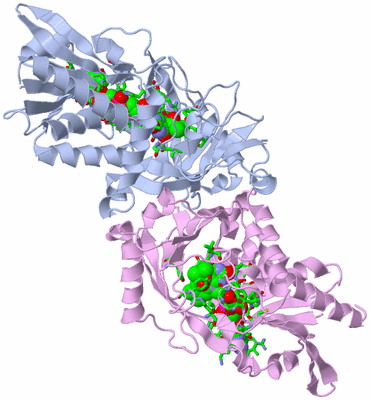

Biol. Unit 1 - sites (Jmol Viewer)

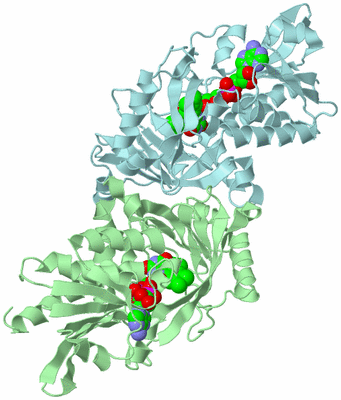

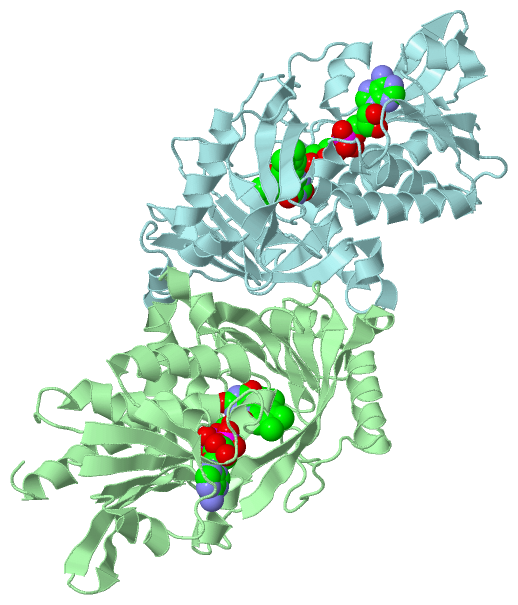

Biological Unit 2 (Jmol Viewer)

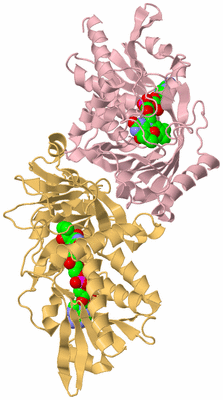

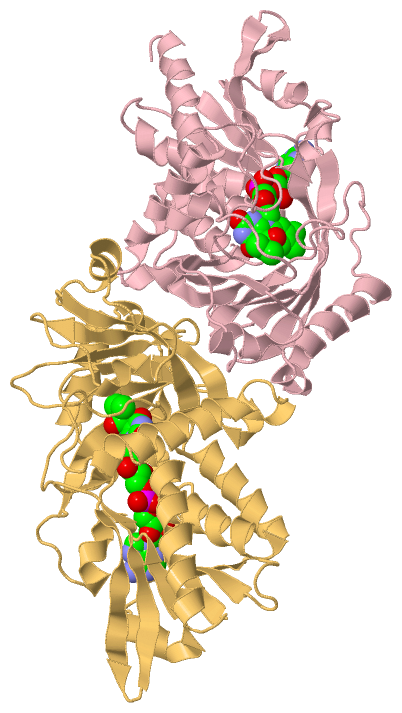

Biological Unit 3 (Jmol Viewer)

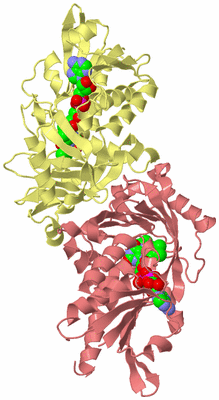

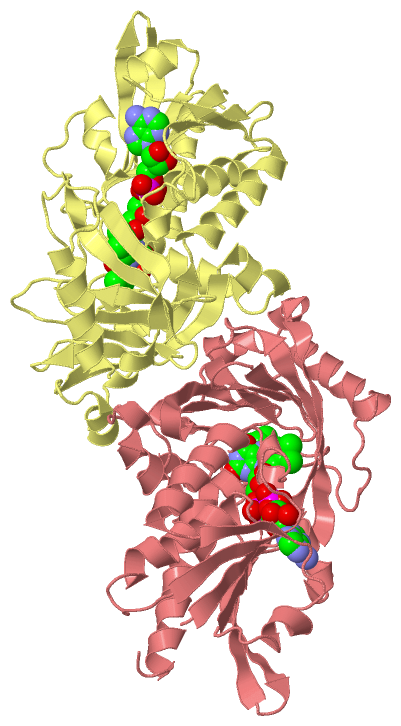

Biological Unit 4 (Jmol Viewer)

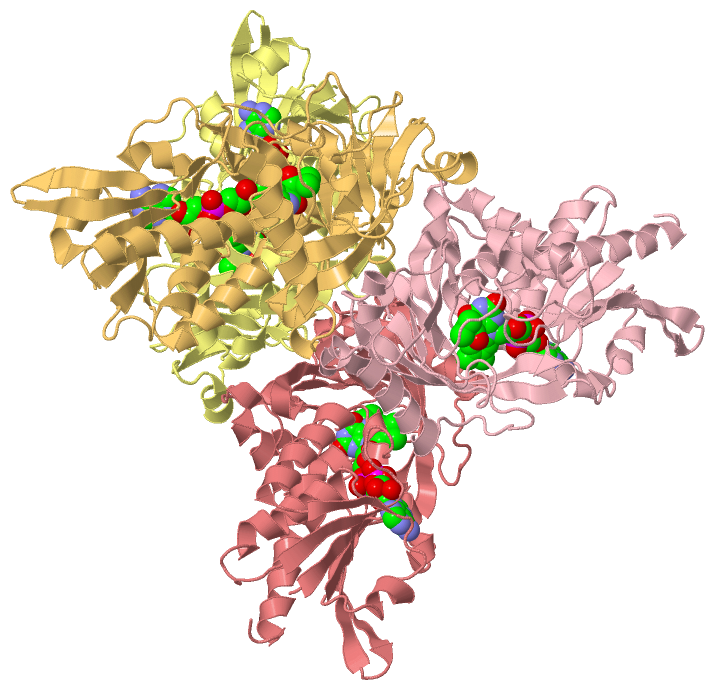

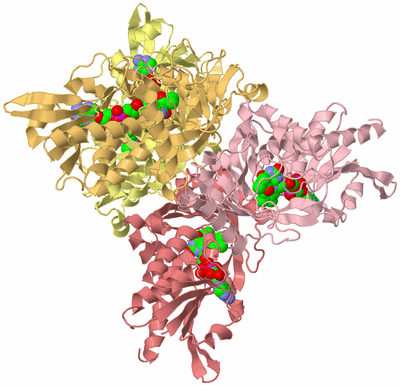

Biological Unit 5 (Jmol Viewer)

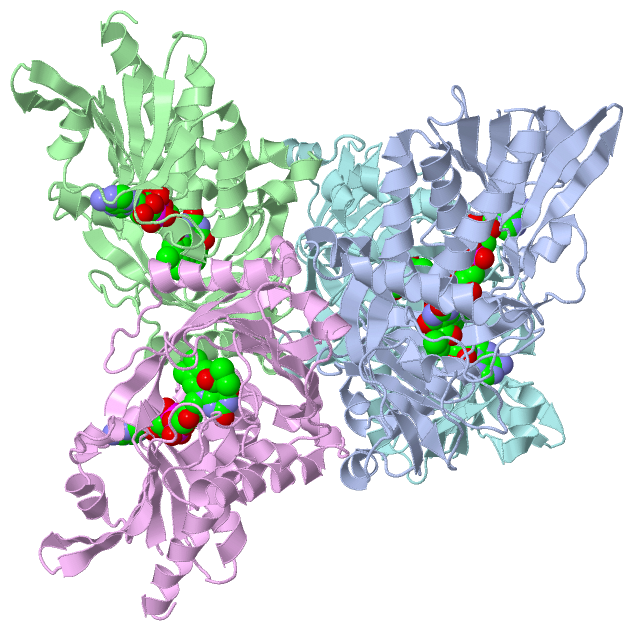

Biological Unit 6 (Jmol Viewer)

Title :   COVALENT ADDUCT OF D-AMINO ACID OXIDASE FROM PIG KIDNEY WITH 3-METHYL-2-OXO-VALERIC ACID

Authors :   F. Todone, A. Mattevi

Date :   16 Jan 97 (Deposition) - 23 Jul 97 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.20

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,E  (1x)
Biol. Unit 2: B,F  (1x)
Biol. Unit 3: C,G  (1x)
Biol. Unit 4: D,H  (1x)
Biol. Unit 5: C,D,G,H  (1x)
Biol. Unit 6: A,B,E,F  (1x)

Keywords :   Flavoenzyme, Fad Cofactor, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Todone, M. A. Vanoni, A. Mozzarelli, M. Bolognesi, A. Coda, B. Curti, A. Mattevi
Active Site Plasticity In D-Amino Acid Oxidase: A Crystallographic Analysis.
Biochemistry V. 36 5853 1997
PubMed-ID: 9153426 | Reference-DOI: 10.1021/BI9630570
(for further references see the PDB file header)

Molecule 1 - D-AMINO ACID OXIDASE
	Chains	:	A, B, C, D, E, F, G, H
	EC Number	:	1.4.3.3
	Organ	:	KIDNEY
	Organelle	:	PEROXISOME
	Organism Common	:	PIG
	Organism Scientific	:	SUS SCROFA
	Organism Taxid	:	9823
	Synonym	:	DAAO

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A				E
Biological Unit 2 (1x)	:		B				F
Biological Unit 3 (1x)	:			C				G
Biological Unit 4 (1x)	:				D				H
Biological Unit 5 (1x)	:			C	D			G	H
Biological Unit 6 (1x)	:	A	B			E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 8)

No.	Name	Count	Type	Full Name
1	FAB	8	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Biological Unit 1 (1, 2)

No.	Name	Count	Type	Full Name
1	FAB	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Biological Unit 2 (1, 2)

No.	Name	Count	Type	Full Name
1	FAB	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Biological Unit 3 (1, 2)

No.	Name	Count	Type	Full Name
1	FAB	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Biological Unit 4 (1, 2)

No.	Name	Count	Type	Full Name
1	FAB	2	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Biological Unit 5 (1, 4)

No.	Name	Count	Type	Full Name
1	FAB	4	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Biological Unit 6 (1, 4)

No.	Name	Count	Type	Full Name
1	FAB	4	Ligand/Ion	FLAVIN-ADENINE DINUCLEOTIDE-N5-ISOBUTYL KETONE

Asymmetric Unit (16, 16)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	GLY A:7 , ALA A:8 , GLY A:9 , VAL A:10 , ILE A:11 , ALA A:36 , ASP A:37 , ARG A:38 , THR A:43 , THR A:44 , THR A:45 , ALA A:48 , ALA A:49 , GLY A:50 , LEU A:51 , ARG A:162 , LYS A:163 , VAL A:164 , CYS A:181 , THR A:182 , TRP A:185 , TYR A:224 , TYR A:228 , ARG A:283 , HIS A:311 , GLY A:312 , GLY A:313 , TYR A:314 , GLY A:315 , LEU A:316 , THR A:317	BINDING SITE FOR RESIDUE FAB A 348
02	AC2	SOFTWARE	GLY B:7 , ALA B:8 , GLY B:9 , VAL B:10 , ILE B:11 , ALA B:36 , ASP B:37 , ARG B:38 , THR B:43 , THR B:44 , THR B:45 , ALA B:48 , ALA B:49 , GLY B:50 , LEU B:51 , ARG B:162 , LYS B:163 , VAL B:164 , CYS B:181 , THR B:182 , TRP B:185 , TYR B:224 , TYR B:228 , ARG B:283 , HIS B:311 , GLY B:312 , GLY B:313 , TYR B:314 , GLY B:315 , LEU B:316 , THR B:317	BINDING SITE FOR RESIDUE FAB B 348
03	AC3	SOFTWARE	GLY C:7 , ALA C:8 , GLY C:9 , VAL C:10 , ILE C:11 , ALA C:36 , ASP C:37 , ARG C:38 , THR C:43 , THR C:44 , THR C:45 , ALA C:48 , ALA C:49 , GLY C:50 , LEU C:51 , ARG C:162 , LYS C:163 , VAL C:164 , CYS C:181 , THR C:182 , TRP C:185 , TYR C:224 , TYR C:228 , ARG C:283 , HIS C:311 , GLY C:312 , GLY C:313 , TYR C:314 , GLY C:315 , LEU C:316 , THR C:317	BINDING SITE FOR RESIDUE FAB C 348
04	AC4	SOFTWARE	GLY D:7 , ALA D:8 , GLY D:9 , VAL D:10 , ILE D:11 , ALA D:36 , ASP D:37 , ARG D:38 , THR D:43 , THR D:44 , THR D:45 , ALA D:48 , ALA D:49 , GLY D:50 , LEU D:51 , ARG D:162 , VAL D:164 , CYS D:181 , THR D:182 , TRP D:185 , TYR D:224 , TYR D:228 , ARG D:283 , HIS D:311 , GLY D:312 , GLY D:313 , TYR D:314 , GLY D:315 , LEU D:316 , THR D:317	BINDING SITE FOR RESIDUE FAB D 348
05	AC5	SOFTWARE	GLY E:7 , ALA E:8 , GLY E:9 , VAL E:10 , ILE E:11 , ALA E:36 , ASP E:37 , ARG E:38 , THR E:43 , THR E:44 , THR E:45 , ALA E:48 , ALA E:49 , GLY E:50 , LEU E:51 , ARG E:162 , LYS E:163 , VAL E:164 , CYS E:181 , THR E:182 , TRP E:185 , TYR E:224 , TYR E:228 , ARG E:283 , HIS E:311 , GLY E:312 , GLY E:313 , TYR E:314 , GLY E:315 , LEU E:316 , THR E:317	BINDING SITE FOR RESIDUE FAB E 348
06	AC6	SOFTWARE	GLY F:7 , ALA F:8 , GLY F:9 , VAL F:10 , ILE F:11 , ALA F:36 , ASP F:37 , ARG F:38 , THR F:43 , THR F:44 , THR F:45 , ALA F:48 , ALA F:49 , GLY F:50 , LEU F:51 , ARG F:162 , LYS F:163 , VAL F:164 , CYS F:181 , THR F:182 , TRP F:185 , TYR F:224 , TYR F:228 , ARG F:283 , HIS F:311 , GLY F:312 , GLY F:313 , TYR F:314 , GLY F:315 , LEU F:316 , THR F:317	BINDING SITE FOR RESIDUE FAB F 348
07	AC7	SOFTWARE	GLY G:7 , ALA G:8 , GLY G:9 , VAL G:10 , ILE G:11 , ALA G:36 , ASP G:37 , ARG G:38 , THR G:43 , THR G:44 , THR G:45 , ALA G:48 , ALA G:49 , GLY G:50 , LEU G:51 , ARG G:162 , LYS G:163 , VAL G:164 , CYS G:181 , THR G:182 , TRP G:185 , TYR G:224 , TYR G:228 , ARG G:283 , HIS G:311 , GLY G:312 , GLY G:313 , TYR G:314 , GLY G:315 , LEU G:316 , THR G:317	BINDING SITE FOR RESIDUE FAB G 348
08	AC8	SOFTWARE	GLY H:7 , ALA H:8 , GLY H:9 , VAL H:10 , ILE H:11 , ALA H:36 , ASP H:37 , ARG H:38 , THR H:43 , THR H:44 , THR H:45 , ALA H:48 , ALA H:49 , GLY H:50 , LEU H:51 , ARG H:162 , VAL H:164 , CYS H:181 , THR H:182 , TRP H:185 , TYR H:224 , TYR H:228 , ARG H:283 , HIS H:311 , GLY H:312 , GLY H:313 , TYR H:314 , GLY H:315 , LEU H:316 , THR H:317	BINDING SITE FOR RESIDUE FAB H 348
09	FAA	UNKNOWN	FAB A:348	COVALENTLY BOUND COFACTOR.
10	FAB	UNKNOWN	FAB B:348	COVALENTLY BOUND COFACTOR.
11	FAC	UNKNOWN	FAB C:348	COVALENTLY BOUND COFACTOR.
12	FAD	UNKNOWN	FAB D:348	COVALENTLY BOUND COFACTOR.
13	FAE	UNKNOWN	FAB E:348	COVALENTLY BOUND COFACTOR.
14	FAF	UNKNOWN	FAB F:348	COVALENTLY BOUND COFACTOR.
15	FAG	UNKNOWN	FAB G:348	COVALENTLY BOUND COFACTOR.
16	FAH	UNKNOWN	FAB H:348	COVALENTLY BOUND COFACTOR.

(no "SS Bond" information available for 1DAO)

Asymmetric Unit

No.	Residues
1	Thr A:40	-	Pro A:41
2	Thr B:40	-	Pro B:41
3	Thr C:40	-	Pro C:41
4	Thr D:40	-	Pro D:41
5	Thr E:40	-	Pro E:41
6	Thr F:40	-	Pro F:41
7	Thr G:40	-	Pro G:41
8	Thr H:40	-	Pro H:41

(no "SAP(SNP)/Variant" information available for 1DAO)

Asymmetric Unit (1, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	8	A:305-323 B:305-323 C:305-323 D:305-323 E:305-323 F:305-323 G:305-323 H:305-323

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	2	A:305-323 - - - E:305-323 - - -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	2	- B:305-323 - - - F:305-323 - -

Biological Unit 3 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	2	- - C:305-323 - - - G:305-323 -

Biological Unit 4 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	2	- - - D:305-323 - - - H:305-323

Biological Unit 5 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	4	- - C:305-323 D:305-323 - - G:305-323 H:305-323

Biological Unit 6 (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	DAO	PS00677	D-amino acid oxidases signature.	OXDA_PIG	305-323	4	A:305-323 B:305-323 - - E:305-323 F:305-323 - -

(no "Exon" information available for 1DAO)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daoa1 A:1-194,A:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daoa2 A:195-287 D-aminoacid oxidase                                                        d1daoa1 A:1-194,A:288-339                            SCOP domains
               CATH domains 1daoA01 A:1-88,A:140-195,A:286-339 NAD(P)-binding Rossmann-like Domain                  1daoA02 A:89-139,A:196-285                         1daoA01 A:1-88,A:140-195,A:286-339                      1daoA02 A:89-139,A:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoA01 A:1-88,A:140-195,A:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh...............hhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhh.....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhhhh...eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: A:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao A   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain B from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daob1 B:1-194,B:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daob2 B:195-287 D-aminoacid oxidase                                                        d1daob1 B:1-194,B:288-339                            SCOP domains
               CATH domains 1daoB01 B:1-88,B:140-195,B:286-339 NAD(P)-binding Rossmann-like Domain                  1daoB02 B:89-139,B:196-285                         1daoB01 B:1-88,B:140-195,B:286-339                      1daoB02 B:89-139,B:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoB01 B:1-88,B:140-195,B:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh...............hhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhhh....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhhhh...eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: B:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao B   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain C from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daoc1 C:1-194,C:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daoc2 C:195-287 D-aminoacid oxidase                                                        d1daoc1 C:1-194,C:288-339                            SCOP domains
               CATH domains 1daoC01 C:1-88,C:140-195,C:286-339 NAD(P)-binding Rossmann-like Domain                  1daoC02 C:89-139,C:196-285                         1daoC01 C:1-88,C:140-195,C:286-339                      1daoC02 C:89-139,C:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoC01 C:1-88,C:140-195,C:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeee........hhhh................hhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhhh....eeeeeeeeee.hhhhhhhhhhhhhhh..eee......hhhhhh....eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: C:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao C   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain D from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daod1 D:1-194,D:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daod2 D:195-287 D-aminoacid oxidase                                                        d1daod1 D:1-194,D:288-339                            SCOP domains
               CATH domains 1daoD01 D:1-88,D:140-195,D:286-339 NAD(P)-binding Rossmann-like Domain                  1daoD02 D:89-139,D:196-285                         1daoD01 D:1-88,D:140-195,D:286-339                      1daoD02 D:89-139,D:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoD01 D:1-88,D:140-195,D:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh..............hhhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhh.....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhhh....eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: D:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao D   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain E from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daoe1 E:1-194,E:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daoe2 E:195-287 D-aminoacid oxidase                                                        d1daoe1 E:1-194,E:288-339                            SCOP domains
               CATH domains 1daoE01 E:1-88,E:140-195,E:286-339 NAD(P)-binding Rossmann-like Domain                  1daoE02 E:89-139,E:196-285                         1daoE01 E:1-88,E:140-195,E:286-339                      1daoE02 E:89-139,E:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoE01 E:1-88,E:140-195,E:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh...............hhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhhh....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhhhh...eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: E:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao E   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain F from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daof1 F:1-194,F:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daof2 F:195-287 D-aminoacid oxidase                                                        d1daof1 F:1-194,F:288-339                            SCOP domains
               CATH domains 1daoF01 F:1-88,F:140-195,F:286-339 NAD(P)-binding Rossmann-like Domain                  1daoF02 F:89-139,F:196-285                         1daoF01 F:1-88,F:140-195,F:286-339                      1daoF02 F:89-139,F:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoF01 F:1-88,F:140-195,F:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh..............hhhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhh.....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhhhhh..eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: F:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao F   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain G from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daog1 G:1-194,G:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daog2 G:195-287 D-aminoacid oxidase                                                        d1daog1 G:1-194,G:288-339                            SCOP domains
               CATH domains 1daoG01 G:1-88,G:140-195,G:286-339 NAD(P)-binding Rossmann-like Domain                  1daoG02 G:89-139,G:196-285                         1daoG01 G:1-88,G:140-195,G:286-339                      1daoG02 G:89-139,G:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoG01 G:1-88,G:140-195,G:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh..............hhhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhh.....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhhhhh..eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: G:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao G   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Chain H from PDB  Type:PROTEIN  Length:339
 aligned with OXDA_PIG | P00371 from UniProtKB/Swiss-Prot  Length:347

    Alignment length:339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330
             OXDA_PIG     1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
               SCOP domains d1daoh1 H:1-194,H:288-339 D-aminoacid oxidase, N-terminal domain                                                                                                                                  d1daoh2 H:195-287 D-aminoacid oxidase                                                        d1daoh1 H:1-194,H:288-339                            SCOP domains
               CATH domains 1daoH01 H:1-88,H:140-195,H:286-339 NAD(P)-binding Rossmann-like Domain                  1daoH02 H:89-139,H:196-285                         1daoH01 H:1-88,H:140-195,H:286-339                      1daoH02 H:89-139,H:196-285 D-Amino Acid Oxidase, subunit A, domain 2                      1daoH01 H:1-88,H:140-195,H:286-339                     CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee...hhhhhhhhhhhhhh.......eeeeee.......hhhh..............hhhhhhhhhhhhhhhhh...hhhhhh.eeeeeeeeee.......hhhh.........hhhhhh.....eeeeeeeeee.hhhhhhhhhhhhhhh..eeee.....hhhhh.....eeee..hhhhhhh......eeeeeeeeeee.....eeeee...........eeee....eeee.............hhhhhhhhhhhhhh.hhhhh.eeeeeeeeeeee....eeeeeeeee..eeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DAO  PDB: H:305-323---------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 1dao H   1 MRVVVIGAGVIGLSTALCIHERYHSVLQPLDVKVYADRFTPFTTTDVAAGLWQPYTSEPSNPQEANWNQQTFNYLLSHIGSPNAANMGLTPVSGYNLFREAVPDPYWKDMVLGFRKLTPRELDMFPDYRYGWFNTSLILEGRKYLQWLTERLTERGVKFFLRKVESFEEVARGGADVIINCTGVWAGVLQPDPLLQPGRGQIIKVDAPWLKNFIITHDLERGIYNSPYIIPGLQAVTLGGTFQVGNWNEINNIQDHNTIWEGCCRLEPTLKDAKIVGEYTGFRPVRPQVRLEREQLRFGSSNTEVIHNYGHGGYGLTIHWGCALEVAKLFGKVLEERNL 339
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a+b) (23004)

Fold: FAD-linked reductases, C-terminal domain (181)

Superfamily: FAD-linked reductases, C-terminal domain (181)

Family: D-aminoacid oxidase-like (29)

Protein domain: D-aminoacid oxidase (10)

Pig (Sus scrofa) [TaxId: 9823] (6)

1a	d1daoa2	A:195-287
1b	d1daob2	B:195-287
1c	d1daoc2	C:195-287
1d	d1daod2	D:195-287
1e	d1daoe2	E:195-287
1f	d1daof2	F:195-287
1g	d1daog2	G:195-287
1h	d1daoh2	H:195-287

Class: Alpha and beta proteins (a/b) (23833)

Fold: Nucleotide-binding domain (33)

Superfamily: Nucleotide-binding domain (33)

Family: D-aminoacid oxidase, N-terminal domain (10)

Protein domain: D-aminoacid oxidase, N-terminal domain (10)

Pig (Sus scrofa) [TaxId: 9823] (6)

2a	d1daoa1	A:1-194,A:288-339
2b	d1daob1	B:1-194,B:288-339
2c	d1daoc1	C:1-194,C:288-339
2d	d1daod1	D:1-194,D:288-339
2e	d1daoe1	E:1-194,E:288-339
2f	d1daof1	F:1-194,F:288-339
2g	d1daog1	G:1-194,G:288-339
2h	d1daoh1	H:1-194,H:288-339

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 2-Layer Sandwich (8480)

Topology: D-Amino Acid Oxidase; Chain A, domain 2 (80)

Homologous Superfamily: D-Amino Acid Oxidase, subunit A, domain 2 (80)

Pig (Sus scrofa) (6)

1a	1daoA02	A:89-139,A:196-285
1b	1daoB02	B:89-139,B:196-285
1c	1daoC02	C:89-139,C:196-285
1d	1daoD02	D:89-139,D:196-285
1e	1daoE02	E:89-139,E:196-285
1f	1daoF02	F:89-139,F:196-285
1g	1daoG02	G:89-139,G:196-285
1h	1daoH02	H:89-139,H:196-285

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: NAD(P)-binding Rossmann-like Domain (1244)

Pig (Sus scrofa) (21)

2a	1daoA01	A:1-88,A:140-195,A:286-339
2b	1daoB01	B:1-88,B:140-195,B:286-339
2c	1daoC01	C:1-88,C:140-195,C:286-339
2d	1daoD01	D:1-88,D:140-195,D:286-339
2e	1daoE01	E:1-88,E:140-195,E:286-339
2f	1daoF01	F:1-88,F:140-195,F:286-339
2g	1daoG01	G:1-88,G:140-195,G:286-339
2h	1daoH01	H:1-88,H:140-195,H:286-339

(no "Pfam Domain" information available for 1DAO)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D,E,F,G,H (OXDA_PIG | P00371)

molecular function
	GO:0003884	D-amino-acid oxidase activity	Catalysis of the reaction: a D-amino acid + H2O + O2 = a 2-oxo acid + NH3 + hydrogen peroxide.
	GO:0071949	FAD binding	Interacting selectively and non-covalently with the oxidized form, FAD, of flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes.
	GO:0048037	cofactor binding	Interacting selectively and non-covalently with a cofactor, a substance that is required for the activity of an enzyme or other protein. Cofactors may be inorganic, such as the metal atoms zinc, iron, and copper in certain forms, or organic, in which case they are referred to as coenzymes. Cofactors may either be bound tightly to active sites or bind loosely with the substrate.
	GO:0016491	oxidoreductase activity	Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
	GO:0046983	protein dimerization activity	The formation of a protein dimer, a macromolecular structure consists of two noncovalently associated identical or nonidentical subunits.
	GO:0005102	receptor binding	Interacting selectively and non-covalently with one or more specific sites on a receptor molecule, a macromolecule that undergoes combination with a hormone, neurotransmitter, drug or intracellular messenger to initiate a change in cell function.
biological process
	GO:0055130	D-alanine catabolic process	The chemical reactions and pathways resulting in the breakdown of D-alanine, the D-enantiomer of the amino acid alanine.
	GO:0046416	D-amino acid metabolic process	The chemical reactions and pathways involving D-amino acids, the D-enantiomers of amino acids.
	GO:0036088	D-serine catabolic process	The chemical reactions and pathways resulting in the breakdown of D-serine, the D-enantiomer of serine, i.e. (2S)-2-amino-3-hydroxypropanoic acid.
	GO:0070178	D-serine metabolic process	The chemical reactions and pathways involving D-serine, the D-enantiomer of serine, i.e. (2R)-2-amino-3-hydroxypropanoic acid.
	GO:0042416	dopamine biosynthetic process	The chemical reactions and pathways resulting in the formation of dopamine, a catecholamine neurotransmitter and a metabolic precursor of noradrenaline and adrenaline.
	GO:0055114	oxidation-reduction process	A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
	GO:0006562	proline catabolic process	The chemical reactions and pathways resulting in the breakdown of proline (pyrrolidine-2-carboxylic acid), a chiral, cyclic, nonessential alpha-amino acid found in peptide linkage in proteins.
cellular component
	GO:0005829	cytosol	The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
	GO:0005741	mitochondrial outer membrane	The outer, i.e. cytoplasm-facing, lipid bilayer of the mitochondrial envelope.
	GO:0005778	peroxisomal membrane	The lipid bilayer surrounding a peroxisome.
	GO:0005777	peroxisome	A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		FAB	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		FAA	[ RasMol ]	+environment [ RasMol ]
		FAB	[ RasMol ]	+environment [ RasMol ]
		FAC	[ RasMol ]	+environment [ RasMol ]
		FAD	[ RasMol ]	+environment [ RasMol ]
		FAE	[ RasMol ]	+environment [ RasMol ]
		FAF	[ RasMol ]	+environment [ RasMol ]
		FAG	[ RasMol ]	+environment [ RasMol ]
		FAH	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Thr A:40 - Pro A:41	[ RasMol ]
		Thr B:40 - Pro B:41	[ RasMol ]
		Thr C:40 - Pro C:41	[ RasMol ]
		Thr D:40 - Pro D:41	[ RasMol ]
		Thr E:40 - Pro E:41	[ RasMol ]
		Thr F:40 - Pro F:41	[ RasMol ]
		Thr G:40 - Pro G:41	[ RasMol ]
		Thr H:40 - Pro H:41	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]
		Biological Unit 5	[ Jena3D ]
		Biological Unit 6	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format \| Biol. Unit 5 PNG format \| Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	1dao
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	OXDA_PIG \| P00371
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	1.4.3.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	OXDA_PIG \| P00371
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	OXDA_PIG \| P00371	:	1an9 1ddo 1evi 1kif 1ve9 3wgt 4yjd 4yjf 4yjg 4yjh

(no "Related Entries Specified in the PDB File" available for 1DAO)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 8)

Sites (16, 16)

SS Bonds (0, 0)

Cis Peptide Bonds (8, 8)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 8)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 16)

CATH Domains (2, 16)

Pfam Domains (0, 0)

Gene Ontology (17, 17)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
