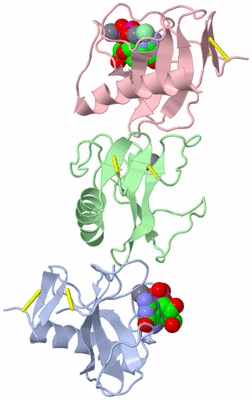

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

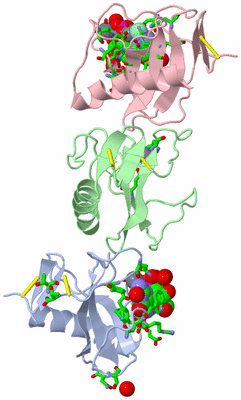

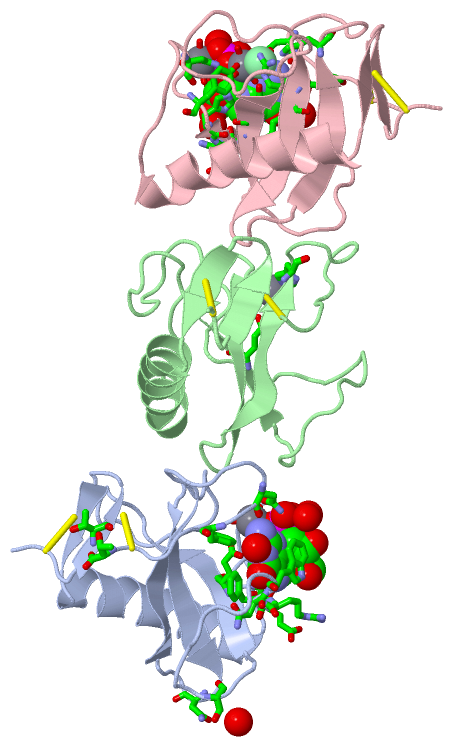

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

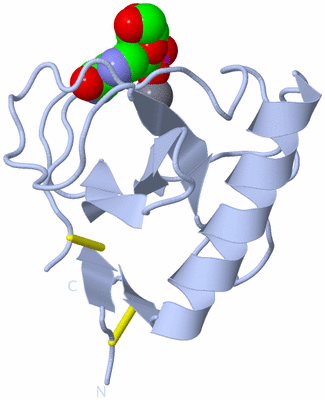

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

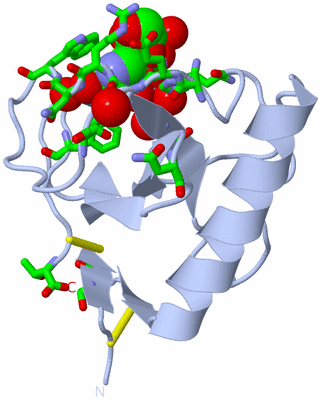

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

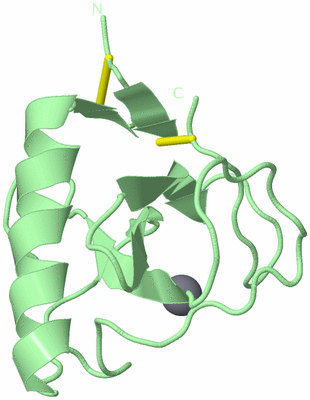

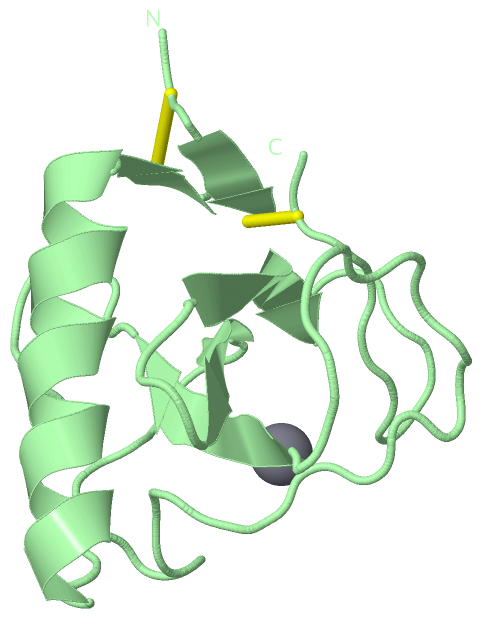

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

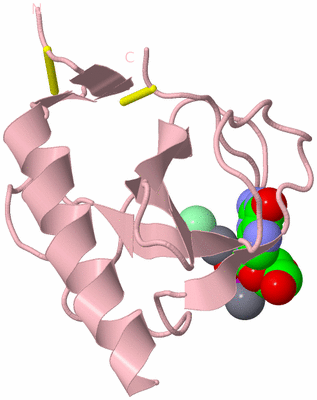

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  RNASE T1 VARIANT WITH ALTERED GUANINE BINDING SEGMENT

Authors :  K. Hoeschler, H. Hoier, P. Orth, B. Hubner, W. Saenger, U. Hahn
Date :  30 Mar 99  (Deposition) - 22 Dec 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Keywords :  Ribonuclease, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Hoschler, H. Hoier, B. Hubner, W. Saenger, P. Orth, U. Hahn
Structural Analysis Of An Rnase T1 Variant With An Altered Guanine Binding Segment.
J. Mol. Biol. V. 294 1231 1999
PubMed-ID: 10600381  |  Reference-DOI: 10.1006/JMBI.1999.3324
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (RIBONUCLEASE T1)
    Chains: A, B, C
    EC Number: 3.1.27.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: PA2T1 (QUAAS EUR. J. BIOCHEM. V.173 PP.617-622)
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: ASPERGILLUS ORYZAE
    Organism Taxid: 5062
    Other Details: SYNTHETIC GENE

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 7)

Asymmetric Unit (3, 7)
No.NameCountTypeFull Name
12GP2Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA4Ligand/IonCALCIUM ION
3CL1Ligand/IonCHLORIDE ION
Biological Unit 1 (1, 1)
No.NameCountTypeFull Name
12GP1Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION
3CL-1Ligand/IonCHLORIDE ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
12GP-1Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION
3CL-1Ligand/IonCHLORIDE ION
Biological Unit 3 (1, 1)
No.NameCountTypeFull Name
12GP1Ligand/IonGUANOSINE-2'-MONOPHOSPHATE
2CA-1Ligand/IonCALCIUM ION
3CL-1Ligand/IonCHLORIDE ION

(-) Sites  (7, 7)

Asymmetric Unit (7, 7)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:58 , 2GP A:105 , HOH A:116 , HOH A:117 , HOH A:118 , HOH A:119 , HOH A:130BINDING SITE FOR RESIDUE CA A 107
2AC2SOFTWAREGLU B:58 , HIS B:92BINDING SITE FOR RESIDUE CA B 108
3AC3SOFTWAREASN C:36 , 2GP C:106 , CL C:111 , HOH C:122 , HOH C:123 , HOH C:124 , HOH C:128BINDING SITE FOR RESIDUE CA C 109
4AC4SOFTWARETHR A:104 , ASN C:36 , 2GP C:106 , HOH C:143 , HOH C:157 , HOH C:158 , HOH C:162BINDING SITE FOR RESIDUE CA C 110
5AC5SOFTWAREASN A:83 , TYR C:38 , GLU C:58 , ARG C:77 , HIS C:92 , CA C:109BINDING SITE FOR RESIDUE CL C 111
6AC6SOFTWAREASN A:36 , HIS A:40 , GLU A:41 , PHE A:42 , ARG A:43 , ASN A:44 , TRP A:45 , ASN A:98 , PHE A:100 , CA A:107 , HOH A:117 , HOH A:119 , HOH A:130 , HOH A:132 , HOH A:133 , HOH A:162BINDING SITE FOR RESIDUE 2GP A 105
7AC7SOFTWARETHR A:5 , SER A:53 , THR A:104 , HOH A:128 , ASN C:36 , HIS C:40 , GLU C:41 , PHE C:42 , ARG C:43 , ASN C:44 , TRP C:45 , ASN C:98 , PHE C:100 , CA C:109 , CA C:110 , HOH C:116 , HOH C:123 , HOH C:124 , HOH C:132 , HOH C:136 , HOH C:138 , HOH C:143 , HOH C:148 , HOH C:158 , HOH C:164BINDING SITE FOR RESIDUE 2GP C 106

(-) SS Bonds  (6, 6)

Asymmetric Unit
No.Residues
1A:2 -A:10
2A:6 -A:103
3B:2 -B:10
4B:6 -B:103
5C:2 -C:10
6C:6 -C:103

(-) Cis Peptide Bonds  (6, 6)

Asymmetric Unit
No.Residues
1Tyr A:38 -Pro A:39
2Ser A:54 -Pro A:55
3Tyr B:38 -Pro B:39
4Ser B:54 -Pro B:55
5Tyr C:38 -Pro C:39
6Ser C:54 -Pro C:55

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1CH0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1CH0)

(-) Exons   (0, 0)

(no "Exon" information available for 1CH0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:104
 aligned with RNT1_ASPOR | P00651 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    36        46        56        66        76        86        96       106       116       126
           RNT1_ASPOR    27 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 130
               SCOP domains d1ch0a_ A: RNase T1                                                                                      SCOP domains
               CATH domains 1ch0A00 A:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee..eee.hhhhhhhhhhhhhhhhh..........................eeeee...............eeeeee....eeeeee............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1ch0 A   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHEFRNWQGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:104
 aligned with RNT1_ASPOR | P00651 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    36        46        56        66        76        86        96       106       116       126
           RNT1_ASPOR    27 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 130
               SCOP domains d1ch0b_ B: RNase T1                                                                                      SCOP domains
               CATH domains 1ch0B00 B:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee..eee.hhhhhhhhhhhhhhhhh..........................eeeee...............eeeeee....eeeeee............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1ch0 B   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHEFRNWQGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100


Chain C from PDB  Type:PROTEIN  Length:104
 aligned with RNT1_ASPOR | P00651 from UniProtKB/Swiss-Prot  Length:130

    Alignment length:104
                                    36        46        56        66        76        86        96       106       116       126
           RNT1_ASPOR    27 ACDYTCGSNCYSSSDVSTAQAAGYQLHEDGETVGSNSYPHKYNNYEGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 130
               SCOP domains d1ch0c_ C: RNase T1                                                                                      SCOP domains
               CATH domains 1ch0C00 C:1-104  [code=3.10.450.30, no name defined]                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee..eee.hhhhhhhhhhhhhhhhh..........eee.............eeeee...............eeeeee....eeeeee............. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1ch0 C   1 ACDYTCGSNCYSSSDVSTAQAAGYKLHEDGETVGSNSYPHEFRNWQGFDFSVSSPYYEWPILSSGDVYSGGSPGADRVVFNENNQLAGVITHTGASGNNFVECT 104
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1CH0)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C   (RNT1_ASPOR | P00651)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0046589    ribonuclease T1 activity    Catalysis of the endonucleolytic cleavage to nucleoside 3'-phosphates and 3'-phosphooligonucleotides ending in Gp with 2',3'-cyclic phosphate intermediates.
    GO:0004540    ribonuclease activity    Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
biological process
    GO:0090501    RNA phosphodiester bond hydrolysis    The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0030428    cell septum    A structure composed of peptidoglycan and often chitin in addition to other materials. It usually forms perpendicular to the long axis of a cell or hypha and grows centripetally from the cell wall to the center of the cell and often functions in the compartmentalization of a cell into two daughter cells.
    GO:0001411    hyphal tip    The end, or tip, of a fungal hypha, where polarized growth occurs during hyphal elongation.
