1CDP - JenaLib

Title :   RESTRAINED LEAST SQUARES REFINEMENT OF NATIVE (CALCIUM) AND CADMIUM-SUBSTITUTED CARP PARVALBUMIN USING X-RAY CRYSTALLOGRAPHIC DATA AT 1.6-ANGSTROMS RESOLUTION

Authors :   A. L. Swain, R. H. Kretsinger, E. L. Amma

Date :   24 Jan 90 (Deposition) - 15 Oct 90 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.60

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Calcium Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   A. L. Swain, R. H. Kretsinger, E. L. Amma
Restrained Least Squares Refinement Of Native (Calcium) And Cadmium-Substituted Carp Parvalbumin Using X-Ray Crystallographic Data At 1. 6-A Resolution.
J. Biol. Chem. V. 264 16620 1989
PubMed-ID: 2777802
(for further references see the PDB file header)

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 3)

Sites (4, 4)

Asymmetric Unit (4, 4)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:90 , ASP A:92 , ASP A:94 , LYS A:96 , GLU A:101 , HOH A:116	BINDING SITE FOR RESIDUE CD A 109
2	AC2	SOFTWARE	ASP A:51 , ASP A:53 , SER A:55 , PHE A:57 , GLU A:59 , GLU A:62	BINDING SITE FOR RESIDUE CD A 110
3	CD	UNKNOWN	ASP A:51 , GLN A:52 , ASP A:53 , LYS A:54 , SER A:55 , GLY A:56 , PHE A:57 , ILE A:58 , GLU A:59 , GLU A:60 , ASP A:61 , GLU A:62	NULL
4	EF	UNKNOWN	ASP A:90 , SER A:91 , ASP A:92 , GLY A:93 , ASP A:94 , GLY A:95 , LYS A:96 , ILE A:97 , GLY A:98 , VAL A:99 , ASP A:100 , GLU A:101	NULL

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 4)

Asymmetric Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	EF_HAND_2	PS50222	EF-hand calcium-binding domain profile.	PRVB_CYPCA	38-73 77-108	2	A:38-73 A:77-108
2	EF_HAND_1	PS00018	EF-hand calcium-binding domain.	PRVB_CYPCA	51-63 90-102	2	A:51-63 A:90-102

Biological Unit 1 (2, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	EF_HAND_2	PS50222	EF-hand calcium-binding domain profile.	PRVB_CYPCA	38-73 77-108	4	A:38-73 A:77-108
2	EF_HAND_1	PS00018	EF-hand calcium-binding domain.	PRVB_CYPCA	51-63 90-102	4	A:51-63 A:90-102

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:109
 aligned with PRVB_CYPCA | P02618 from UniProtKB/Swiss-Prot  Length:108

    Alignment length:109
                             1
                             |       9        19        29        39        49        59        69        79        89        99
           PRVB_CYPCA     - -AFAGVLNDADIAAALEACKAADSFNHKAFFAKVGLTSKSADDVKKAFAIIDQDKSGFIEEDELKLFLQNFKADARALTDGETKTFLKAGDSDGDGKIGVDEFTALVKA 108
               SCOP domains d1cdpa_ A: Parvalbumin                                                                                        SCOP domains
               CATH domains -1cdpA00 A:1-108 EF-hand                                                                                      CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh........hhhhhhhh......hhhhhhhhhhh......eeehhhhhhhhhhh........hhhhhhhhhhh.....eee.hhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) --------------------------------------EF_HAND_2  PDB: A:38-73             ---EF_HAND_2  PDB: A:77-108         PROSITE (1)
                PROSITE (2) ---------------------------------------------------EF_HAND_1    --------------------------EF_HAND_1    ------ PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------- Transcript
                 1cdp A   0 xAFAGVLNDADIAAALEACKAADSFNHKAFFAKVGLTSKSADDVKKAFAIIDQDKSGFIEEDELKLFLQNFKADARALTDGETKTFLKAGDSDGDGKIGVDEFTALVKA 108
                            |        9        19        29        39        49        59        69        79        89        99
                            |
                            0-ACE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (2, 2)

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ACE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		CD	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		CD	[ RasMol ]	+environment [ RasMol ]
		EF	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1cdp)

Biological Unit
	Complete Structure

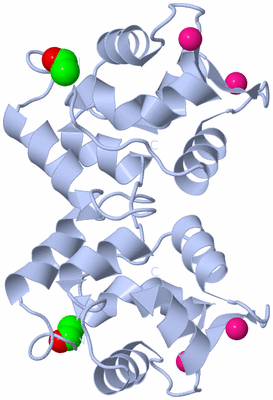

		Biological Unit 1	[ Jena3D ]

Still Images

Jmol

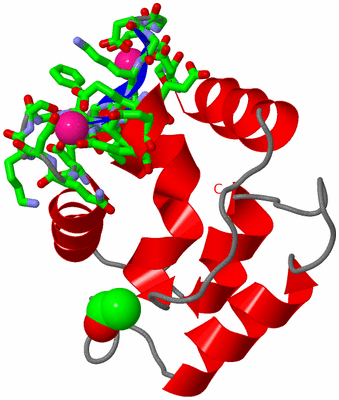

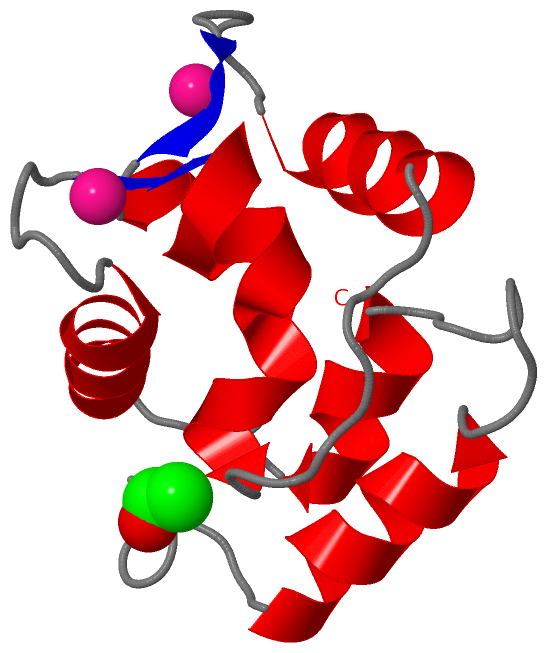

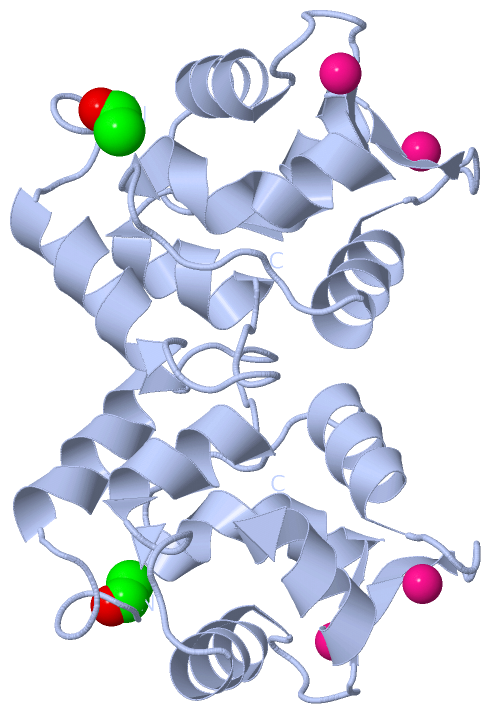

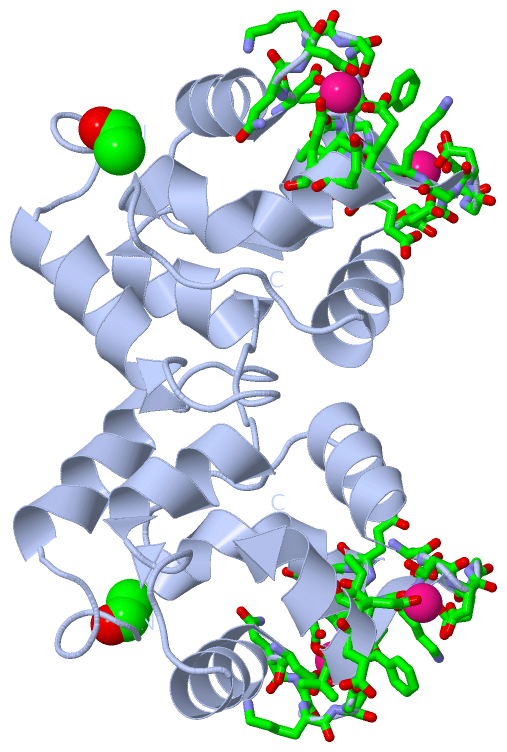

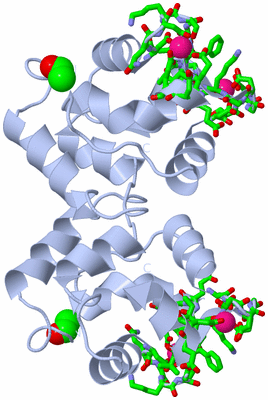

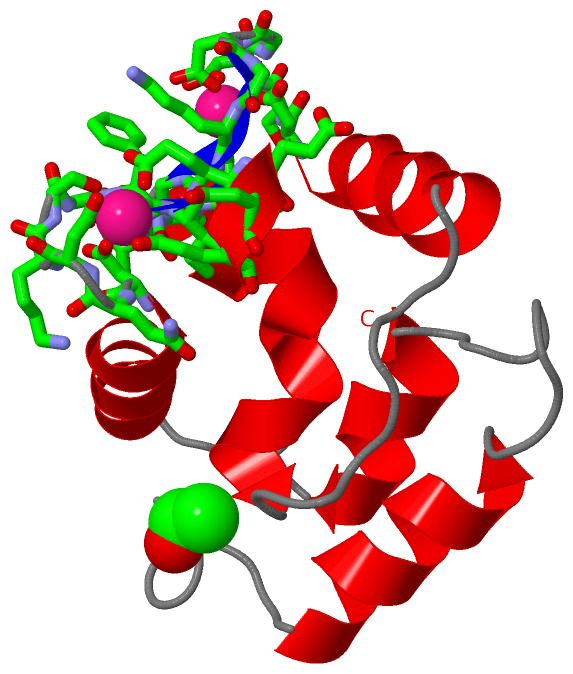

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
