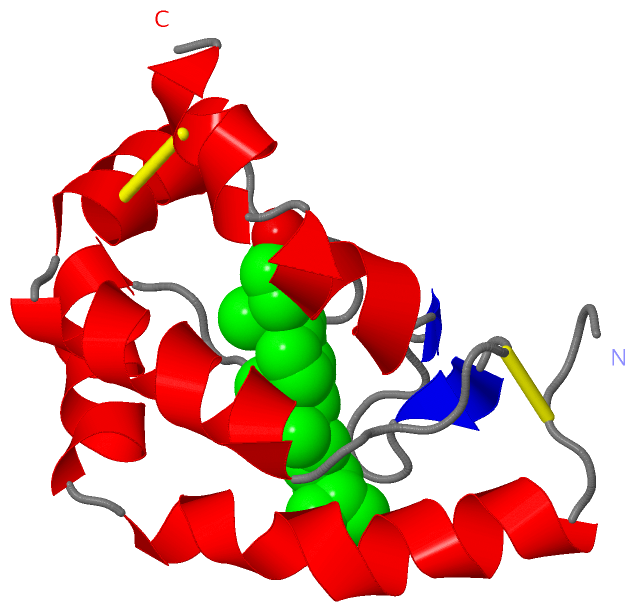

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)
Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  ENGINEERED BETA-CRYPTOGEIN COMPLEXED WITH ERGOSTEROL

Authors :  G. Boissy, S. Brunie
Date :  05 Oct 98  (Deposition) - 15 Jun 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Fungal Toxic Elicitor Mutant, Elicitin, Phytophthora, Sterol, Plant Pathogen (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Boissy, M. O'Donohue, O. Gaudemer, V. Perez, J. C. Pernollet, S. Brunie
The 2. 1 A Structure Of An Elicitin-Ergosterol Complex: A Recent Addition To The Sterol Carrier Protein Family.
Protein Sci. V. 8 1191 1999
PubMed-ID: 10386869
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - BETA-CRYPTOGEIN
    Cell Line: PICHIA PASTORIS
    Chains: A
    Engineered: YES
    Expression System: PICHIA PASTORIS
    Expression System Gene: CRY (MUTATED LYS 13 HIS)
    Expression System Plasmid: PHILS1
    Expression System Taxid: 4922
    Gene: CRY (MUTATED LYS 13 HIS)
    Mutation: YES
    Organism Scientific: PHYTOPHTHORA CRYPTOGEA
    Organism Taxid: 4786
    Other Details: N-TERMINAL ARGININE INCORPORATION NON- BIOLOGICAL SEQUENCE
    Synonym: BETA-ELICITIN OF PHYTOPHTHORA CRYPTOGEA

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1ERG1Ligand/IonERGOSTEROL
Biological Unit 1 (1, 2)
No.NameCountTypeFull Name
1ERG2Ligand/IonERGOSTEROL

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:12 , VAL A:16 , MET A:35 , TYR A:47 , HOH A:142BINDING SITE FOR RESIDUE ERG A 99

(-) SS Bonds  (3, 3)

Asymmetric Unit
No.Residues
1A:3 -A:71
2A:27 -A:56
3A:51 -A:95

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1BXM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1BXM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1BXM)

(-) Exons   (0, 0)

(no "Exon" information available for 1BXM)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:99
 aligned with ELIB_PHYCR | P15570 from UniProtKB/Swiss-Prot  Length:118

    Alignment length:104
                                    24        34        44        54        64        74        84        94       104       114
           ELIB_PHYCR    15 VGSANATACTATQQTAAYKTLVSILSDASFNQCSTDSGYSMLTAKALPTTAQYKLMCASTACNTMIKKIVTLNPPNCDLTVPTSGLVLNVYSYANGFSNKCSSL 118
               SCOP domains d1     bxma_ A: beta-cryptogein                                                                          SCOP domains
               CATH domains 1b     xmA00 A:-1-98 Beta-cryptogein                                                                     CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..-----...hhhhhhhhhhhhhhhh.hhhhhhhhhh............hhhhhhhhh.hhhhhhhhhhhh.......ee......ee.hhhhhh.hhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 1bxm A  -1 RG-----TCTATQQTAAYHTLVSILSDASFNQCSTDSGYSMLTAKALPTTAQYKLMCASTACNTMIKKIVTLNPPNCDLTVPTSGLVLNVYSYANGFSNKCSSL  98
                            ||     | 4        14        24        34        44        54        64        74        84        94
                            ||     2
                           -1|
                             1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1BXM)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A   (ELIB_PHYCR | P15570)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
    GO:0034053    modulation by symbiont of host defense-related programmed cell death    Any process in which an organism modulates the frequency, rate or extent of defense-related programmed cell death in the host organism. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ERG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1bxm)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)

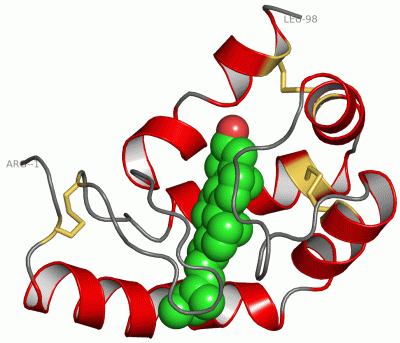

Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1bxm
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ELIB_PHYCR | P15570
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ELIB_PHYCR | P15570
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ELIB_PHYCR | P15570: 1beg 1beo 1lri

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1BXM)
