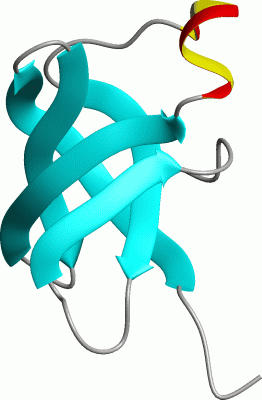

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

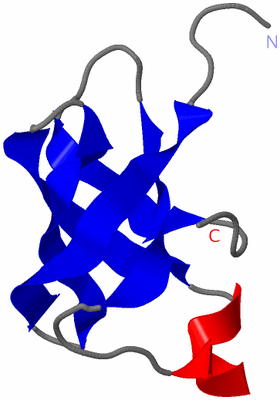

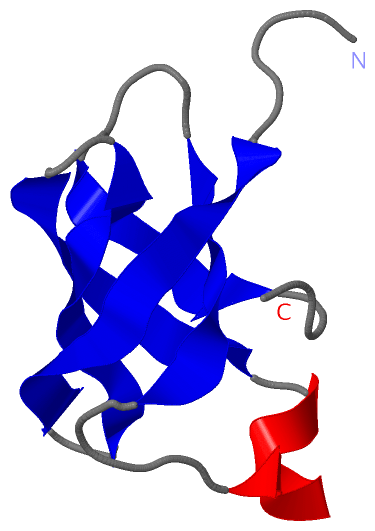

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

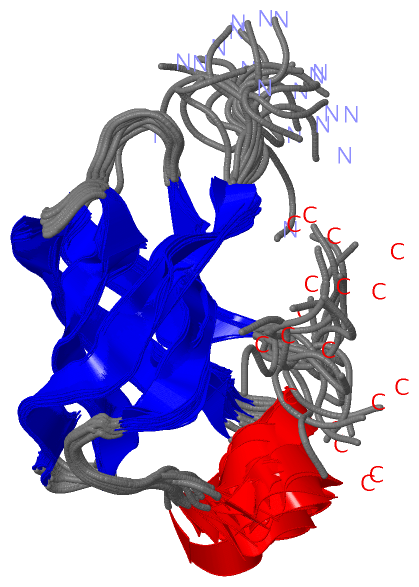

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF THE TRANSLATIONAL INITIATION FACTOR IF1 FROM ESCHERICHIA COLI, NMR, 19 STRUCTURES

Authors :  M. Sette, P. Van Tilborg, R. Spurio, R. Kaptein, M. Paci, C. O. Gualerzi, R. Boelens
Date :  16 Apr 97  (Deposition) - 07 Jul 97  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (19x)
Keywords :  Ribosome Binding, Protein-Rna Interaction, Ob Fold (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Sette, P. Van Tilborg, R. Spurio, R. Kaptein, M. Paci, C. O. Gualerzi, R. Boelens
The Structure Of The Translational Initiation Factor If1 From E. Coli Contains An Oligomer-Binding Motif.
Embo J. V. 16 1436 1997
PubMed-ID: 9135158  |  Reference-DOI: 10.1093/EMBOJ/16.6.1436
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - INITIATION FACTOR 1
    Cellular Location: CYTOPLASM
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PXR201
    Expression System Strain: JM109
    Expression System Taxid: 562
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: IF1

 Structural Features

(-) Chains, Units


NMR Structure (19x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 1AH9)

(-) Sites  (0, 0)

(no "Site" information available for 1AH9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1AH9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1AH9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1AH9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 1AH9)

(-) Exons   (0, 0)

(no "Exon" information available for 1AH9)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:71
 aligned with IF1_ECOLI | P69222 from UniProtKB/Swiss-Prot  Length:72

    Alignment length:71
                                    11        21        31        41        51        61        71
             IF1_ECOLI    2 AKEDNIEMQGTVLETLPNTMFRVELENGHVVTAHISGKMRKNYIRILTGDKVTVELTPYDLSKGRIVFRSR 72
               SCOP domains d1ah9a_ A: Translational initiation factor 1, IF1                       SCOP domains
               CATH domains 1ah9A00 A:1-71 Nucleic acid-binding proteins                            CATH domains
               Pfam domains ----------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeeeee..eeeeeeee..eeeeeeee.hhhhhhh.....eeeeeee.....eeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------- Transcript
                  1ah9 A  1 AKEDNIEMQGTVLETLPNTMFRVELENGHVVTAHISGKMRKNYIRILTGDKVTVELTPYDLSKGRIVFRSR 71
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1AH9)

(-) Gene Ontology  (9, 9)

NMR Structure(hide GO term definitions)
Chain A   (IF1_ECOLI | P69222)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0019843    rRNA binding    Interacting selectively and non-covalently with ribosomal RNA.
    GO:0043022    ribosome binding    Interacting selectively and non-covalently with any part of a ribosome.
    GO:0003743    translation initiation factor activity    Functions in the initiation of ribosome-mediated translation of mRNA into a polypeptide.
biological process
    GO:0006412    translation    The cellular metabolic process in which a protein is formed, using the sequence of a mature mRNA or circRNA molecule to specify the sequence of amino acids in a polypeptide chain. Translation is mediated by the ribosome, and begins with the formation of a ternary complex between aminoacylated initiator methionine tRNA, GTP, and initiation factor 2, which subsequently associates with the small subunit of the ribosome and an mRNA or circRNA. Translation ends with the release of a polypeptide chain from the ribosome.
    GO:0006413    translational initiation    The process preceding formation of the peptide bond between the first two amino acids of a protein. This includes the formation of a complex of the ribosome, mRNA or circRNA, and an initiation complex that contains the first aminoacyl-tRNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 1ah9)

  Sites
(no "Sites" information available for 1ah9)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1ah9)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1ah9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  IF1_ECOLI | P69222
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  IF1_ECOLI | P69222
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        IF1_ECOLI | P69222: 1zo1
