1A6F - JenaLib

Title :   RNASE P PROTEIN FROM BACILLUS SUBTILIS

Authors :   T. Stams, D. W. Christianson

Date :   24 Feb 98 (Deposition) - 23 Mar 99 (Release) - 16 Nov 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.60

Chains :   Asym. Unit : A
Biol. Unit 1: A  (1x)
Biol. Unit 2: A  (2x)

Keywords :   Endonuclease, Rnase, Subunit (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   T. Stams, S. Niranjanakumari, C. A. Fierke, D. W. Christianson
Ribonuclease P Protein Structure: Evolutionary Origins In The Translational Apparatus.
Science V. 280 752 1998
PubMed-ID: 9563955 | Reference-DOI: 10.1126/SCIENCE.280.5364.752

Compounds

Molecule 1 - RIBONUCLEASE P PROTEIN
	Cell Line	:	BL21
	Chains	:	A
	EC Number	:	3.1.26.5
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	BL21
	Expression System Strain	:	BL21 (DE3) PLYSS
	Expression System Taxid	:	562
	Expression System Vector	:	PET
	Mutation	:	YES
	Organism Scientific	:	BACILLUS SUBTILIS
	Organism Taxid	:	1423
	Synonym	:	RNASE P PROTEIN

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 3)

Sites (3, 3)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBONUCLEASE_P	PS00648	Bacterial ribonuclease P protein component signature.	RNPA_BACSU	51-65	1	A:54-68

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBONUCLEASE_P	PS00648	Bacterial ribonuclease P protein component signature.	RNPA_BACSU	51-65	1	A:54-68

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	RIBONUCLEASE_P	PS00648	Bacterial ribonuclease P protein component signature.	RNPA_BACSU	51-65	2	A:54-68

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:113
 aligned with RNPA_BACSU | P25814 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:113
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108
           RNPA_BACSU     - --MKKRNRLKKNEDFQKVFKHGTSVANRQFVLYTLDQPENDELRVGLSVSKKIGNAVMRNRIKRLIRQAFLEEKERLKEKDYIIIARKPASQLTYEETKKSLQHLFRKSSLYK 111
               SCOP domains d1a6fa_ A: RNase P protein                                                                                        SCOP domains
               CATH domains 1a6fA00 A:2-114  [code=3.30.230.10, no name defined]                                                              CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhh....hhhhhhhhhh.eeee...eeeee.........eeeeee......hhhhhhhhhhhhhhhhhh.......eeeeee.hhh....hhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------RIBONUCLEASE_P ---------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------- Transcript
                 1a6f A   2 AHLKKRNRLKKNEDFQKVFKHGTSVANRQFVLYTLDQPENDELRVGLSVSKKIGNAVMRNRIKRLIRQAFLEEKERLKEKDYIIIARKPASQLTYEETKKSLQHLFRKSSLYK 114
                                    11        21        31        41        51        61        71        81        91       101       111

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (1, 1)

Pfam Domains (0, 0)

Gene Ontology (11, 11)

Asymmetric Unit(hide GO term definitions)

Chain A (RNPA_BACSU | P25814)

molecular function
	GO:0003723	RNA binding	Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
	GO:0004519	endonuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0004518	nuclease activity	Catalysis of the hydrolysis of ester linkages within nucleic acids.
	GO:0004526	ribonuclease P activity	Catalysis of the endonucleolytic cleavage of RNA, removing 5' extra nucleotides from tRNA precursor.
	GO:0000049	tRNA binding	Interacting selectively and non-covalently with transfer RNA.
biological process
	GO:0090501	RNA phosphodiester bond hydrolysis	The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
	GO:0090502	RNA phosphodiester bond hydrolysis, endonucleolytic	The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
	GO:0090305	nucleic acid phosphodiester bond hydrolysis	The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
	GO:0001682	tRNA 5'-leader removal	Generation of the mature 5'-end of the tRNA, usually via an endonucleolytic cleavage by RNase P.
	GO:0008033	tRNA processing	The process in which a pre-tRNA molecule is converted to a mature tRNA, ready for addition of an aminoacyl group.

Visualization

Interactive Views

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a6f)

Biological Units
	Complete Structure

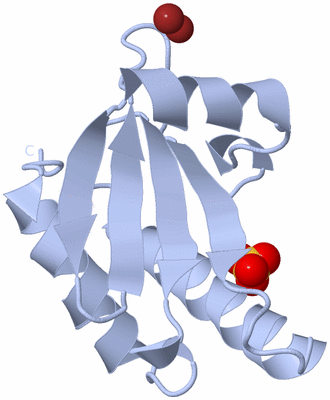

		Biological Unit 1	[ Jena3D ]

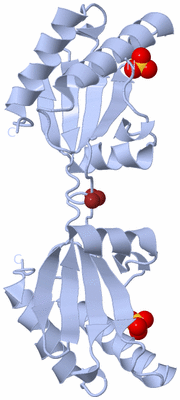

		Biological Unit 2	[ Jena3D ]

Still Images

Jmol

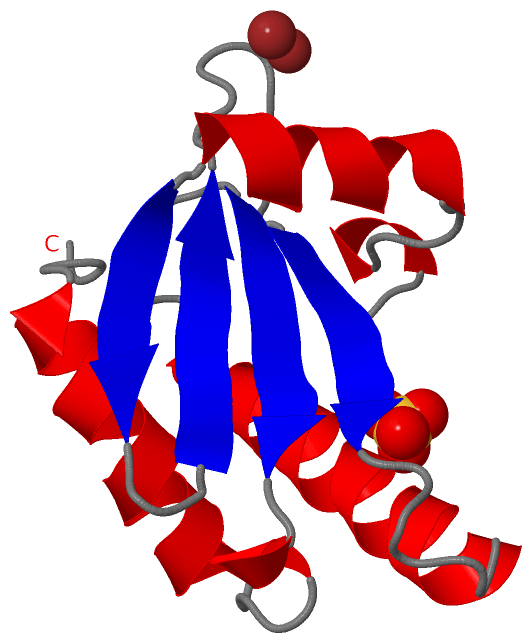

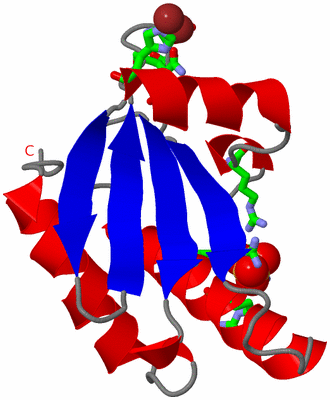

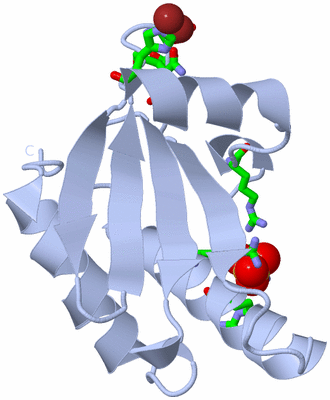

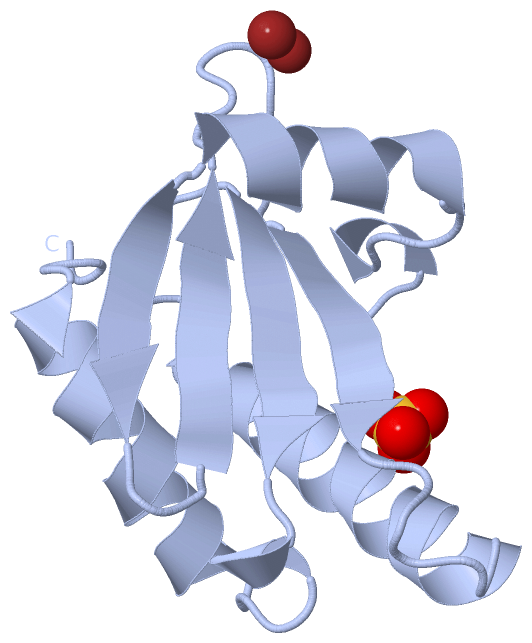

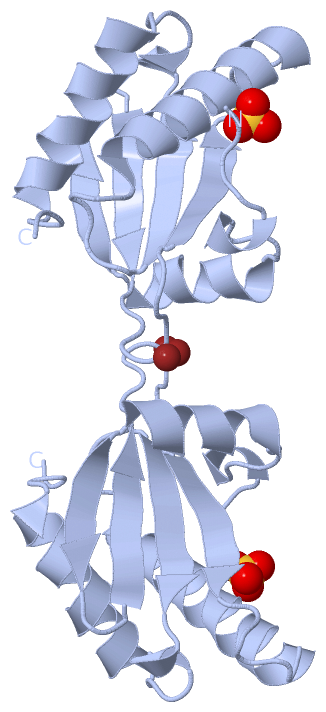

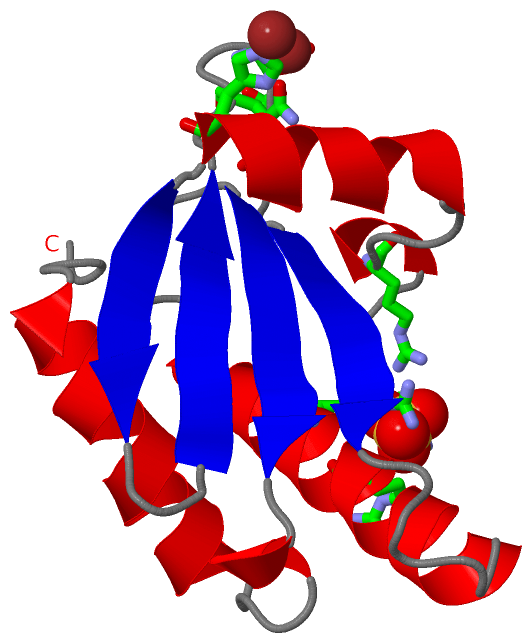

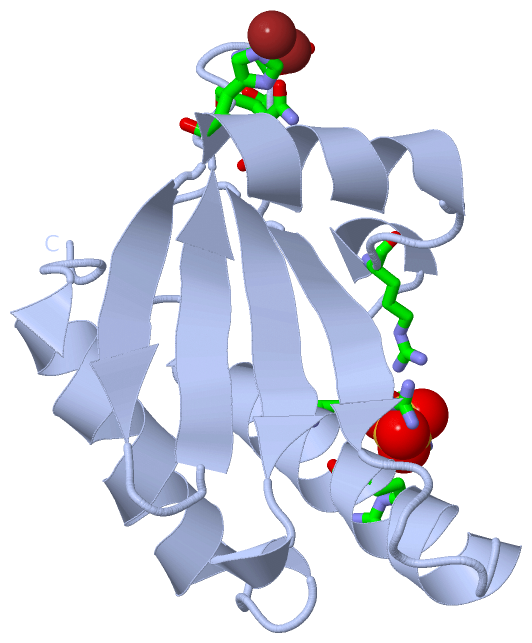

	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)
