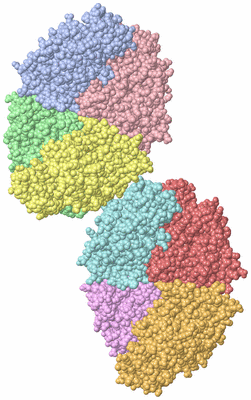

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

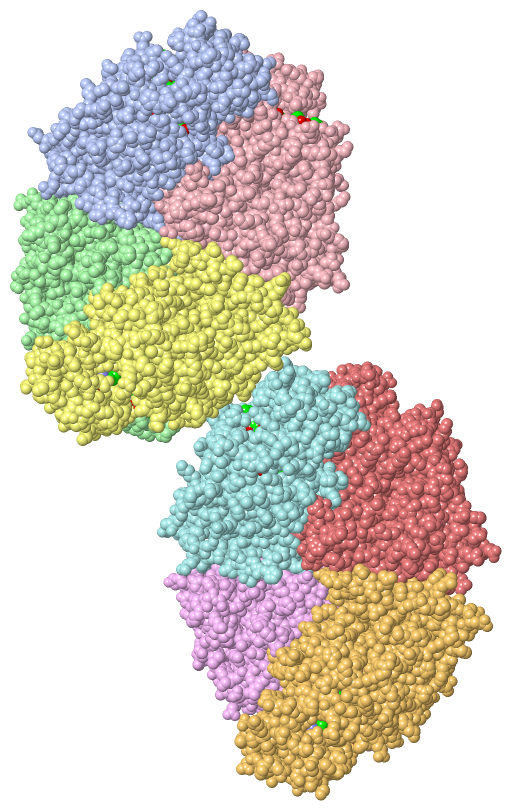

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

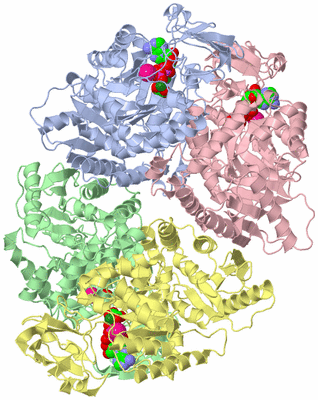

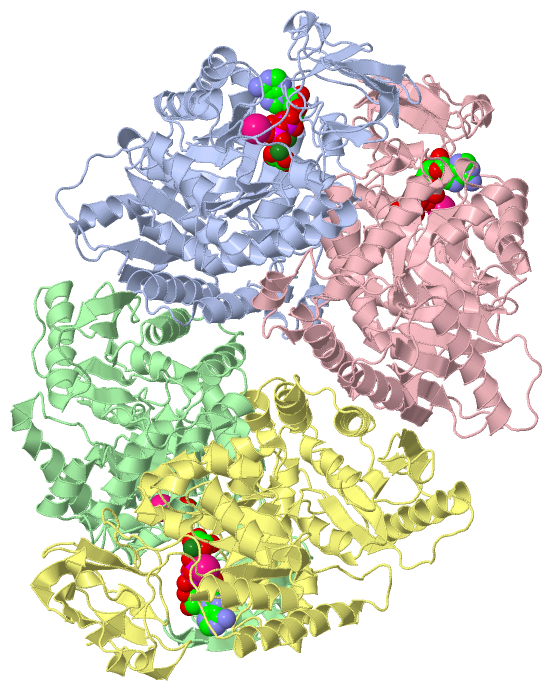

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

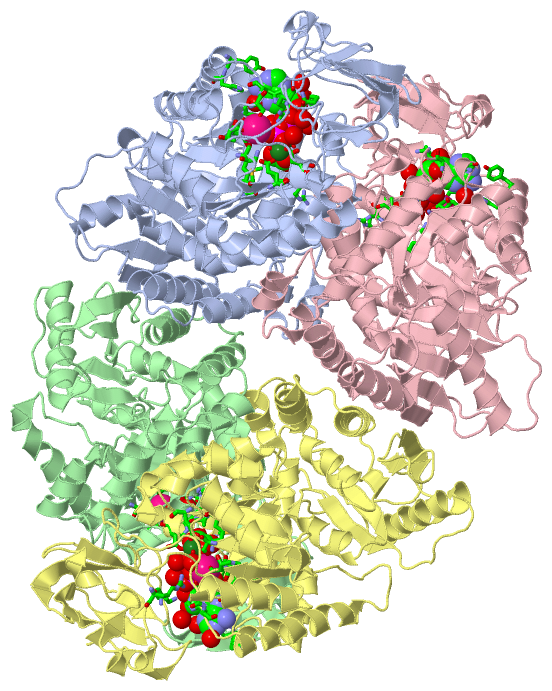

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

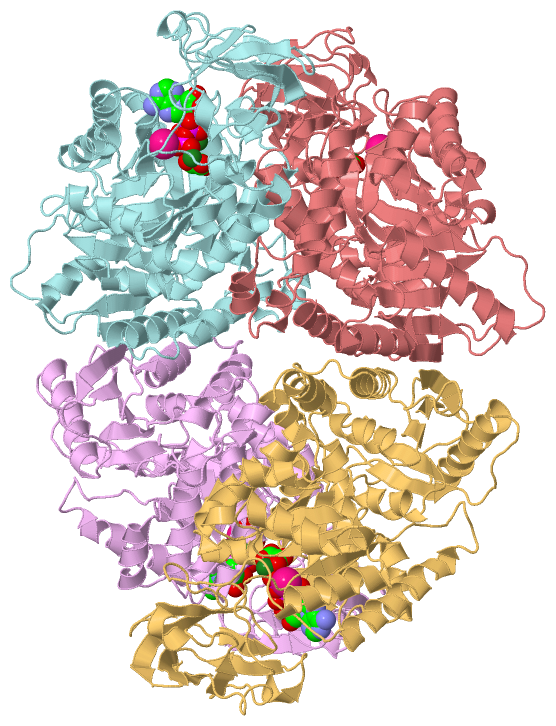

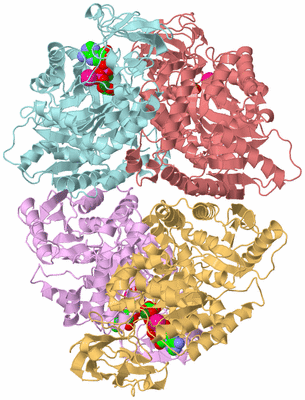

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  BIS MG-ATP-K-OXALATE COMPLEX OF PYRUVATE KINASE

Authors :  T. M. Larsen, M. M. Benning, I. Rayment, G. H. Reed
Date :  12 Feb 98  (Deposition) - 20 Apr 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Keywords :  Transferase, Pyruvate Kinase, Rabbit Muscle, Domain Movement, Potassium Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. M. Larsen, M. M. Benning, I. Rayment, G. H. Reed
Structure Of The Bis(Mg2+)-Atp-Oxalate Complex Of The Rabbit Muscle Pyruvate Kinase At 2. 1 A Resolution: Atp Binding Over A Barrel.
Biochemistry V. 37 6247 1998
PubMed-ID: 9572839  |  Reference-DOI: 10.1021/BI980243S
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PYRUVATE KINASE
    Chains: A, B, C, D, E, F, G, H
    EC Number: 2.7.1.40
    Organism Common: RABBIT
    Organism Scientific: ORYCTOLAGUS CUNICULUS
    Organism Taxid: 9986
    Tissue: MUSCLE

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 36)

Asymmetric Unit (4, 36)
No.NameCountTypeFull Name
1ATP6Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2K8Ligand/IonPOTASSIUM ION
3MG14Ligand/IonMAGNESIUM ION
4OXL8Ligand/IonOXALATE ION
Biological Unit 1 (2, 7)
No.NameCountTypeFull Name
1ATP3Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2K-1Ligand/IonPOTASSIUM ION
3MG-1Ligand/IonMAGNESIUM ION
4OXL4Ligand/IonOXALATE ION
Biological Unit 2 (2, 7)
No.NameCountTypeFull Name
1ATP3Ligand/IonADENOSINE-5'-TRIPHOSPHATE
2K-1Ligand/IonPOTASSIUM ION
3MG-1Ligand/IonMAGNESIUM ION
4OXL4Ligand/IonOXALATE ION

(-) Sites  (36, 36)

Asymmetric Unit (36, 36)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASN A:74 , SER A:76 , ASP A:112 , THR A:113 , SER A:242 , ATP A:535BINDING SITE FOR RESIDUE K A 532
02AC2SOFTWAREARG A:72 , LYS A:269 , GLU A:271 , MET A:290 , ALA A:292 , ARG A:293 , GLY A:294 , ASP A:295 , THR A:327 , MG A:534 , ATP A:535 , HOH A:6763BINDING SITE FOR RESIDUE OXL A 533
03AC3SOFTWAREGLU A:271 , ASP A:295 , OXL A:533 , ATP A:535 , HOH A:6763BINDING SITE FOR RESIDUE MG A 534
04AC4SOFTWAREATP A:535 , HOH A:6079 , HOH A:6469BINDING SITE FOR RESIDUE MG A 536
05AC5SOFTWAREASN B:674 , SER B:676 , ASP B:712 , THR B:713 , HOH B:6141BINDING SITE FOR RESIDUE K B 1132
06AC6SOFTWARELYS B:869 , GLU B:871 , MET B:890 , ALA B:892 , ARG B:893 , GLY B:894 , ASP B:895 , THR B:927 , MG B:1134 , HOH B:6624 , HOH B:7031BINDING SITE FOR RESIDUE OXL B 1133
07AC7SOFTWAREGLU B:871 , ASP B:895 , OXL B:1133 , HOH B:7031BINDING SITE FOR RESIDUE MG B 1134
08AC8SOFTWAREASN C:1274 , SER C:1276 , ASP C:1312 , THR C:1313 , SER C:1442 , ATP C:1735 , HOH C:7921BINDING SITE FOR RESIDUE K C 1732
09AC9SOFTWAREARG C:1272 , LYS C:1469 , GLU C:1471 , ALA C:1492 , ARG C:1493 , GLY C:1494 , ASP C:1495 , THR C:1527 , MG C:1734 , ATP C:1735 , HOH C:6663BINDING SITE FOR RESIDUE OXL C 1733
10BC1SOFTWARELYS C:1469 , GLU C:1471 , ASP C:1495 , OXL C:1733 , ATP C:1735BINDING SITE FOR RESIDUE MG C 1734
11BC2SOFTWAREATP C:1735 , HOH C:6006 , HOH C:6581 , HOH C:6663BINDING SITE FOR RESIDUE MG C 1736
12BC3SOFTWAREASN D:1874 , SER D:1876 , ASP D:1912 , THR D:1913 , SER D:2042 , ATP D:2335 , HOH D:7499BINDING SITE FOR RESIDUE K D 2332
13BC4SOFTWARELYS D:2069 , GLU D:2071 , MET D:2090 , ALA D:2092 , ARG D:2093 , GLY D:2094 , ASP D:2095 , THR D:2127 , MET D:2159 , MG D:2334 , ATP D:2335 , HOH D:6045 , HOH D:6387BINDING SITE FOR RESIDUE OXL D 2333
14BC5SOFTWAREGLU D:2071 , ASP D:2095 , OXL D:2333 , ATP D:2335 , HOH D:6439BINDING SITE FOR RESIDUE MG D 2334
15BC6SOFTWAREATP D:2335 , HOH D:6045 , HOH D:6387 , HOH D:7364BINDING SITE FOR RESIDUE MG D 2336
16BC7SOFTWAREASN E:3074 , SER E:3076 , ASP E:3112 , THR E:3113 , SER E:3242 , ATP E:3535 , HOH E:7785BINDING SITE FOR RESIDUE K E 3532
17BC8SOFTWARELYS E:3269 , GLU E:3271 , ALA E:3292 , ARG E:3293 , GLY E:3294 , ASP E:3295 , THR E:3327 , MG E:3534 , ATP E:3535 , HOH E:6162 , HOH E:6348 , HOH E:6988BINDING SITE FOR RESIDUE OXL E 3533
18BC9SOFTWAREGLU E:3271 , ASP E:3295 , OXL E:3533 , ATP E:3535 , HOH E:6988BINDING SITE FOR RESIDUE MG E 3534
19CC1SOFTWAREATP E:3535 , HOH E:6162 , HOH E:6348 , HOH E:7443BINDING SITE FOR RESIDUE MG E 3536
20CC2SOFTWAREASN F:3674 , SER F:3676 , ASP F:3712 , THR F:3713 , SER F:3842 , ATP F:4135 , HOH F:6491BINDING SITE FOR RESIDUE K F 4132
21CC3SOFTWAREARG F:3672 , LYS F:3869 , GLU F:3871 , MET F:3890 , ALA F:3892 , ARG F:3893 , GLY F:3894 , ASP F:3895 , THR F:3927 , MG F:4134 , ATP F:4135 , HOH F:6300 , HOH F:6460BINDING SITE FOR RESIDUE OXL F 4133
22CC4SOFTWAREGLU F:3871 , ASP F:3895 , OXL F:4133 , ATP F:4135 , HOH F:6460BINDING SITE FOR RESIDUE MG F 4134
23CC5SOFTWAREATP F:4135 , HOH F:6300 , HOH F:7054 , HOH F:7055BINDING SITE FOR RESIDUE MG F 4136
24CC6SOFTWAREASN G:4274 , SER G:4276 , ASP G:4312 , THR G:4313 , SER G:4442 , ATP G:4735 , HOH G:7049BINDING SITE FOR RESIDUE K G 4732
25CC7SOFTWAREARG G:4272 , LYS G:4469 , GLU G:4471 , ALA G:4492 , ARG G:4493 , GLY G:4494 , ASP G:4495 , THR G:4527 , MG G:4734 , ATP G:4735 , HOH G:6349 , HOH G:6671BINDING SITE FOR RESIDUE OXL G 4733
26CC8SOFTWAREGLU G:4471 , ASP G:4495 , OXL G:4733 , ATP G:4735 , HOH G:6671BINDING SITE FOR RESIDUE MG G 4734
27CC9SOFTWAREATP G:4735 , HOH G:6177 , HOH G:6256 , HOH G:6349BINDING SITE FOR RESIDUE MG G 4736
28DC1SOFTWAREASN H:4874 , SER H:4876 , ASP H:4912 , THR H:4913 , HOH H:6838 , HOH H:6965BINDING SITE FOR RESIDUE K H 5332
29DC2SOFTWARELYS H:5069 , GLU H:5071 , MET H:5090 , ALA H:5092 , ARG H:5093 , GLY H:5094 , ASP H:5095 , THR H:5127 , MG H:5334 , HOH H:7293BINDING SITE FOR RESIDUE OXL H 5333
30DC3SOFTWARELYS H:5069 , GLU H:5071 , ASP H:5095 , OXL H:5333 , HOH H:7292 , HOH H:7293BINDING SITE FOR RESIDUE MG H 5334
31DC4SOFTWAREPRO A:52 , ARG A:72 , ASN A:74 , HIS A:77 , TYR A:82 , HIS A:83 , ARG A:119 , LYS A:206 , ASP A:295 , SER A:361 , LYS A:366 , K A:532 , OXL A:533 , MG A:534 , MG A:536 , HOH A:6003 , HOH A:6079 , HOH A:6366 , HOH A:6469 , HOH A:6995 , HOH A:7738 , HOH A:7743BINDING SITE FOR RESIDUE ATP A 535
32DC5SOFTWARETHR C:1249 , PRO C:1252 , ARG C:1272 , ASN C:1274 , HIS C:1277 , TYR C:1282 , HIS C:1283 , ARG C:1319 , LYS C:1406 , ASP C:1495 , SER C:1561 , LYS C:1566 , K C:1732 , OXL C:1733 , MG C:1734 , MG C:1736 , HOH C:6005 , HOH C:6006 , HOH C:6581 , HOH C:6663 , HOH C:6879 , HOH C:7844BINDING SITE FOR RESIDUE ATP C 1735
33DC6SOFTWARETHR D:1849 , PRO D:1852 , ARG D:1872 , ASN D:1874 , HIS D:1877 , TYR D:1882 , ARG D:1919 , LYS D:2006 , ASP D:2095 , SER D:2161 , LYS D:2166 , K D:2332 , OXL D:2333 , MG D:2334 , MG D:2336 , HOH D:6004 , HOH D:6045 , HOH D:6082 , HOH D:6140 , HOH D:6387 , HOH D:6463 , HOH D:6745 , HOH D:7364 , HOH D:7874BINDING SITE FOR RESIDUE ATP D 2335
34DC7SOFTWARETHR E:3049 , PRO E:3052 , ARG E:3072 , ASN E:3074 , HIS E:3077 , TYR E:3082 , HIS E:3083 , ARG E:3119 , LYS E:3206 , ASP E:3295 , SER E:3361 , ALA E:3365 , LYS E:3366 , K E:3532 , OXL E:3533 , MG E:3534 , MG E:3536 , HOH E:6159 , HOH E:6162 , HOH E:6222 , HOH E:6318 , HOH E:6348 , HOH E:6498 , HOH E:7137 , HOH E:7443 , HOH E:7793BINDING SITE FOR RESIDUE ATP E 3535
35DC8SOFTWAREPRO F:3652 , ARG F:3672 , ASN F:3674 , HIS F:3677 , TYR F:3682 , ARG F:3719 , LYS F:3869 , ASP F:3895 , SER F:3961 , LYS F:3966 , K F:4132 , OXL F:4133 , MG F:4134 , MG F:4136 , HOH F:6178 , HOH F:6300 , HOH F:6460 , HOH F:7054 , HOH F:7055 , HOH F:7453 , HOH F:7923BINDING SITE FOR RESIDUE ATP F 4135
36DC9SOFTWARETHR G:4249 , PRO G:4252 , ARG G:4272 , ASN G:4274 , HIS G:4277 , TYR G:4282 , HIS G:4283 , ARG G:4319 , LYS G:4406 , ASP G:4495 , SER G:4561 , GLY G:4562 , ALA G:4565 , K G:4732 , OXL G:4733 , MG G:4734 , MG G:4736 , HOH G:6177 , HOH G:6179 , HOH G:6256 , HOH G:6349 , HOH G:6534 , HOH G:6637 , HOH G:6671 , HOH G:7330 , HOH G:7663 , HOH G:7924BINDING SITE FOR RESIDUE ATP G 4735

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 1A49)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 1A49)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 1A49)

(-) PROSITE Motifs  (1, 8)

Asymmetric Unit (1, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRUVATE_KINASEPS00110 Pyruvate kinase active site signature.KPYM_RABIT265-277






 		  8A:264-276
B:864-876
C:1464-1476
D:2064-2076
E:3264-3276
F:3864-3876
G:4464-4476
H:5064-5076
Biological Unit 1 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRUVATE_KINASEPS00110 Pyruvate kinase active site signature.KPYM_RABIT265-277






 		  4A:264-276
B:864-876
C:1464-1476
D:2064-2076
-
-
-
-
Biological Unit 2 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRUVATE_KINASEPS00110 Pyruvate kinase active site signature.KPYM_RABIT265-277






 		  4-
-
-
-
E:3264-3276
F:3864-3876
G:4464-4476
H:5064-5076

(-) Exons   (0, 0)

(no "Exon" information available for 1A49)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49a2 A:12-115,A:218-395 Pyruvate kinase, N-terminal domain                                           d1a49a1 A:116-217 Pyruvate kinase (PK)                                                                d1a49a2 A:12-115,A:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d1a49a3 A:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 1a49A01 A:12-41,A:385-530     1a49A02 A:42-115,A:219-384 Phosphoenolpyruvate-binding domains            1a49A03 A:116-218 M1 Pyruvate Kinase; Domain 3                                                         1a49A02 A:42-115,A:219-384 Phosphoenolpyruvate-binding domains                                                                                                        1a49A01 A:12-41,A:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhhhhhh.............eeeee..hhh..hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh..........eeeee..........hhh............eeeee..hhh.......eee..............eeee....eeeeeeee...eeeeee.........................hhhhhhhhhhhh....eeee.....hhhhhhhhhhh.hhh...eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh...eeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhh...hhhhhhhhhhhh.....hhhhhhhhhhhhhhhh...eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 A   12 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  530
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521


Chain B from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49b2 B:612-715,B:818-995 Pyruvate kinase, N-terminal domain                                          d1a49b1 B:716-817 Pyruvate kinase (PK)                                                                d1a49b2 B:612-715,B:818-995 Pyruvate kinase, N-terminal domain                                                                                                                    d1a49b3 B:996-1130 Pyruvate kinase, C-terminal domain                                                                                   SCOP domains
               CATH domains 1a49B01 B:612-641,B:985-1130  1a49B02 B:642-715,B:819-984 Phosphoenolpyruvate-binding domains           1a49B03 B:716-818 M1 Pyruvate Kinase; Domain 3                                                         1a49B02 B:642-715,B:819-984 Phosphoenolpyruvate-binding domains                                                                                                       1a49B01 B:612-641,B:985-1130  [code=3.40.1380.20, no name defined]                                                                                 CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhhhhh..............eeeee.......hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhhhhh.......eeeee..........hhh.....eee....eeeee..hhh.......eee.....hhhh.....eeee....eeeee......eeeeeeee.eee...................hhhhhhhhhhhhh...eeee.....hhhhhhhhhhh.hhh...eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh.....hhhhhhhhhhhhhhh..eeeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhh...hhhhhhhhhhhh.....hhhhhhhhhhhhhhh....eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 B  612 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 1130
                                   621       631       641       651       661       671       681       691       701       711       721       731       741       751       761       771       781       791       801       811       821       831       841       851       861       871       881       891       901       911       921       931       941       951       961       971       981       991      1001      1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121


Chain C from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49c2 C:1212-1315,C:1418-1595 Pyruvate kinase, N-terminal domain                                      d1a49c1 C:1316-1417 Pyruvate kinase (PK)                                                              d1a49c2 C:1212-1315,C:1418-1595 Pyruvate kinase, N-terminal domain                                                                                                                d1a49c3 C:1596-1730 Pyruvate kinase, C-terminal domain                                                                                  SCOP domains
               CATH domains 1a49C01                       1a49C02 C:1242-1315,C:1419-1584 Phosphoenolpyruvate-binding domains       1a49C03 C:1316-1418 M1 Pyruvate Kinase; Domain 3                                                       1a49C02 C:1242-1315,C:1419-1584 Phosphoenolpyruvate-binding domains                                                                                                   1a49C01 C:1212-1241,C:1585-1730  [code=3.40.1380.20, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhhhhhh.............eeeee..hhh..hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh..........eeeee..........hhh....eeee....eeeee..hhhh......eee.....hhhh.....eeee....eeeeeeee...eeeeee...eeee..................hhhhhhhhhhhh....eeee.....hhhhhhhhhhh.......eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh..eeeee.....hhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh...hhhhhhhhhhhhhhh....eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhh........eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 C 1212 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 1730
                                  1221      1231      1241      1251      1261      1271      1281      1291      1301      1311      1321      1331      1341      1351      1361      1371      1381      1391      1401      1411      1421      1431      1441      1451      1461      1471      1481      1491      1501      1511      1521      1531      1541      1551      1561      1571      1581      1591      1601      1611      1621      1631      1641      1651      1661      1671      1681      1691      1701      1711      1721


Chain D from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49d2 D:1812-1915,D:2018-2195 Pyruvate kinase, N-terminal domain                                      d1a49d1 D:1916-2017 Pyruvate kinase (PK)                                                              d1a49d2 D:1812-1915,D:2018-2195 Pyruvate kinase, N-terminal domain                                                                                                                d1a49d3 D:2196-2330 Pyruvate kinase, C-terminal domain                                                                                  SCOP domains
               CATH domains 1a49D01                       1a49D02 D:1842-1915,D:2019-2184 Phosphoenolpyruvate-binding domains       1a49D03 D:1916-2018 M1 Pyruvate Kinase; Domain 3                                                       1a49D02 D:1842-1915,D:2019-2184 Phosphoenolpyruvate-binding domains                                                                                                   1a49D01 D:1812-1841,D:2185-2330  [code=3.40.1380.20, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhhhhhh.............eeeee.......hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh..........eeeee..........hhh.....eee....eeeee..hhh.......eee.....hhh......eeee....eeeeeeee...eeeeee...eee...................hhhhhhhhhhhh....eeee.....hhhhhhhhhhh.hhh...eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh..eeeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhh...hhhhhhhhhhhh.....hhhhhhhhhhhhhhh....eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 D 1812 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 2330
                                  1821      1831      1841      1851      1861      1871      1881      1891      1901      1911      1921      1931      1941      1951      1961      1971      1981      1991      2001      2011      2021      2031      2041      2051      2061      2071      2081      2091      2101      2111      2121      2131      2141      2151      2161      2171      2181      2191      2201      2211      2221      2231      2241      2251      2261      2271      2281      2291      2301      2311      2321


Chain E from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49e2 E:3012-3115,E:3218-3395 Pyruvate kinase, N-terminal domain                                      d1a49e1 E:3116-3217 Pyruvate kinase (PK)                                                              d1a49e2 E:3012-3115,E:3218-3395 Pyruvate kinase, N-terminal domain                                                                                                                d1a49e3 E:3396-3530 Pyruvate kinase, C-terminal domain                                                                                  SCOP domains
               CATH domains 1a49E01                       1a49E02 E:3042-3115,E:3219-3384 Phosphoenolpyruvate-binding domains       1a49E03 E:3116-3218 M1 Pyruvate Kinase; Domain 3                                                       1a49E02 E:3042-3115,E:3219-3384 Phosphoenolpyruvate-binding domains                                                                                                   1a49E01 E:3012-3041,E:3385-3530  [code=3.40.1380.20, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhh...hhhhhh..............eeeee.......hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh..........eeeee..........hhh.....eee....eeeee............eee..............eeee....eeeeeeee...eeeeee...eee...................hhhhhhhhhhhh....eeee.....hhhhhhhhhhh.hhh...eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh..eeeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhh...hhhhhhhhhhhh.....hhhhhhhhhhhhhhh....eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhh........eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 E 3012 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 3530
                                  3021      3031      3041      3051      3061      3071      3081      3091      3101      3111      3121      3131      3141      3151      3161      3171      3181      3191      3201      3211      3221      3231      3241      3251      3261      3271      3281      3291      3301      3311      3321      3331      3341      3351      3361      3371      3381      3391      3401      3411      3421      3431      3441      3451      3461      3471      3481      3491      3501      3511      3521


Chain F from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49f2 F:3612-3715,F:3818-3995 Pyruvate kinase, N-terminal domain                                      d1a49f1 F:3716-3817 Pyruvate kinase (PK)                                                              d1a49f2 F:3612-3715,F:3818-3995 Pyruvate kinase, N-terminal domain                                                                                                                d1a49f3 F:3996-4130 Pyruvate kinase, C-terminal domain                                                                                  SCOP domains
               CATH domains 1a49F01                       1a49F02 F:3642-3715,F:3819-3984 Phosphoenolpyruvate-binding domains       1a49F03 F:3716-3818 M1 Pyruvate Kinase; Domain 3                                                       1a49F02 F:3642-3715,F:3819-3984 Phosphoenolpyruvate-binding domains                                                                                                   1a49F01 F:3612-3641,F:3985-4130  [code=3.40.1380.20, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhh...hhhhhh..............eeeee.......hhhhhhhhh....eeeee.....hhhhhhhhhhhhhhhhhh..........eeeee..................eee....eeeee..hhh.......eee.....hhhh.....eeee....eeeee......eeeeeeee.eee...................hhhhhhhhhhhh....eeee.....hhhhhhhhhhh.......eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh..eeeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhh......hhhhhhhhhhhhhhhh...eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 F 3612 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 4130
                                  3621      3631      3641      3651      3661      3671      3681      3691      3701      3711      3721      3731      3741      3751      3761      3771      3781      3791      3801      3811      3821      3831      3841      3851      3861      3871      3881      3891      3901      3911      3921      3931      3941      3951      3961      3971      3981      3991      4001      4011      4021      4031      4041      4051      4061      4071      4081      4091      4101      4111      4121


Chain G from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49g2 G:4212-4315,G:4418-4595 Pyruvate kinase, N-terminal domain                                      d1a49g1 G:4316-4417 Pyruvate kinase (PK)                                                              d1a49g2 G:4212-4315,G:4418-4595 Pyruvate kinase, N-terminal domain                                                                                                                d1a49g3 G:4596-4730 Pyruvate kinase, C-terminal domain                                                                                  SCOP domains
               CATH domains 1a49G01                       1a49G02 G:4242-4315,G:4419-4584 Phosphoenolpyruvate-binding domains       1a49G03 G:4316-4418 M1 Pyruvate Kinase; Domain 3                                                       1a49G02 G:4242-4315,G:4419-4584 Phosphoenolpyruvate-binding domains                                                                                                   1a49G01 G:4212-4241,G:4585-4730  [code=3.40.1380.20, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhhhhhh.............eeeee.......hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhh..........eeeee..........hhh....eeee...eeeeee............eee.....hhhh.....eeee....eeeeeeee...eeeeee...eeee..................hhhhhhhhhhhhh...eeee.....hhhhhhhhhhh.hhh...eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh..eeeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhh...hhhhhhhhhhh......hhhhhhhhhhhhhhh....eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhh........eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 G 4212 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 4730
                                  4221      4231      4241      4251      4261      4271      4281      4291      4301      4311      4321      4331      4341      4351      4361      4371      4381      4391      4401      4411      4421      4431      4441      4451      4461      4471      4481      4491      4501      4511      4521      4531      4541      4551      4561      4571      4581      4591      4601      4611      4621      4631      4641      4651      4661      4671      4681      4691      4701      4711      4721


Chain H from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
          KPYM_RABIT     13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP  531
               SCOP domains d1a49h2 H:4812-4915,H:5018-5195 Pyruvate kinase, N-terminal domain                                      d1a49h1 H:4916-5017 Pyruvate kinase (PK)                                                              d1a49h2 H:4812-4915,H:5018-5195 Pyruvate kinase, N-terminal domain                                                                                                                d1a49h3 H:5196-5330 Pyruvate kinase, C-terminal domain                                                                                  SCOP domains
               CATH domains 1a49H01                       1a49H02 H:4842-4915,H:5019-5184 Phosphoenolpyruvate-binding domains       1a49H03 H:4916-5018 M1 Pyruvate Kinase; Domain 3                                                       1a49H02 H:4842-4915,H:5019-5184 Phosphoenolpyruvate-binding domains                                                                                                   1a49H01 H:4812-4841,H:5185-5330  [code=3.40.1380.20, no name defined]                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......hhh...hhhhhhh.............eeeee.......hhhhhhhhhh...eeeee.....hhhhhhhhhhhhhhhhhhhh........eeeee..................eee....eeeee..hhh.......eee.....hhhh.....eeee....eeeee......eeeeeeee.eee...................hhhhhhhhhhhhh...eeee.....hhhhhhhhhhh.hhh...eeeeee..hhhhh.hhhhhhh..eeeeehhhhhhh..hhhhhhhhhhhhhhhhhh..eeeee....hhhh......hhhhhhhhhhhhh...eeee.hhhh....hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh.....hhhhhhhhhhhhhhhh...eeeee....hhhhhhhhh....eeeeee..hhhhhhhhh...eeeee........hhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                1a49 H 4812 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 5330
                                  4821      4831      4841      4851      4861      4871      4881      4891      4901      4911      4921      4931      4941      4951      4961      4971      4981      4991      5001      5011      5021      5031      5041      5051      5061      5071      5081      5091      5101      5111      5121      5131      5141      5151      5161      5171      5181      5191      5201      5211      5221      5231      5241      5251      5261      5271      5281      5291      5301      5311      5321
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 24)

Asymmetric Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)
(-)
Fold: Pyruvate kinase C-terminal domain-like (59)
(-)
Fold: TIM beta/alpha-barrel (3956)
(-)
Superfamily: Phosphoenolpyruvate/pyruvate domain (92)
(-)
Family: Pyruvate kinase (28)
(-)
Protein domain: Pyruvate kinase, N-terminal domain (28)
(-)
Rabbit (Oryctolagus cuniculus) [TaxId: 9986] (7)
3ad1a49a2A:12-115,A:218-395
3bd1a49c2C:1212-1315,C:1418-1595
3cd1a49d2D:1812-1915,D:2018-2195
3dd1a49e2E:3012-3115,E:3218-3395
3ed1a49f2F:3612-3715,F:3818-3995
3fd1a49g2G:4212-4315,G:4418-4595
3gd1a49h2H:4812-4915,H:5018-5195
3hd1a49b2B:612-715,B:818-995

(-) CATH Domains  (3, 24)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Architecture: 3-Layer(aba) Sandwich (12045)
(-)
Topology: Pyruvate Kinase; Chain: A, domain 1 (36)
(-)
Homologous Superfamily: [code=3.40.1380.20, no name defined] (20)
(-)
Rabbit (Oryctolagus cuniculus) (7)
1a1a49A01A:12-41,A:385-530
1b1a49C01C:1212-1241,C:1585-1730
1c1a49D01D:1812-1841,D:2185-2330
1d1a49E01E:3012-3041,E:3385-3530
1e1a49F01F:3612-3641,F:3985-4130
1f1a49G01G:4212-4241,G:4585-4730
1g1a49H01H:4812-4841,H:5185-5330
1h1a49B01B:612-641,B:985-1130
(-)
Architecture: Alpha-Beta Barrel (2994)
(-)
Topology: TIM Barrel (2806)
(-)
Homologous Superfamily: Phosphoenolpyruvate-binding domains (67)
(-)
Rabbit (Oryctolagus cuniculus) (7)
2a1a49A02A:42-115,A:219-384
2b1a49C02C:1242-1315,C:1419-1584
2c1a49D02D:1842-1915,D:2019-2184
2d1a49E02E:3042-3115,E:3219-3384
2e1a49F02F:3642-3715,F:3819-3984
2f1a49G02G:4242-4315,G:4419-4584
2g1a49H02H:4842-4915,H:5019-5184
2h1a49B02B:642-715,B:819-984
(-)
Class: Mainly Beta (13760)
(-)
Architecture: Beta Barrel (4804)
(-)
Topology: M1 Pyruvate Kinase; Domain 3 (24)
(-)
Homologous Superfamily: M1 Pyruvate Kinase; Domain 3 (20)
(-)
Rabbit (Oryctolagus cuniculus) (7)
3a1a49A03A:116-218
3b1a49C03C:1316-1418
3c1a49D03D:1916-2018
3d1a49E03E:3116-3218
3e1a49F03F:3716-3818
3f1a49G03G:4316-4418
3g1a49H03H:4916-5018
3h1a49B03B:716-818

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 1A49)

(-) Gene Ontology  (15, 15)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (KPYM_RABIT | P11974)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0030955    potassium ion binding    Interacting selectively and non-covalently with potassium (K+) ions.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004743    pyruvate kinase activity    Catalysis of the reaction: ATP + pyruvate = ADP + phosphoenolpyruvate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ATP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    K  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    OXL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 1a49)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  1a49
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KPYM_RABIT | P11974
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.1.40
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KPYM_RABIT | P11974
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KPYM_RABIT | P11974: 1a5u 1aqf 1f3w 1f3x 1pkn 2g50 3n25

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 1A49)
