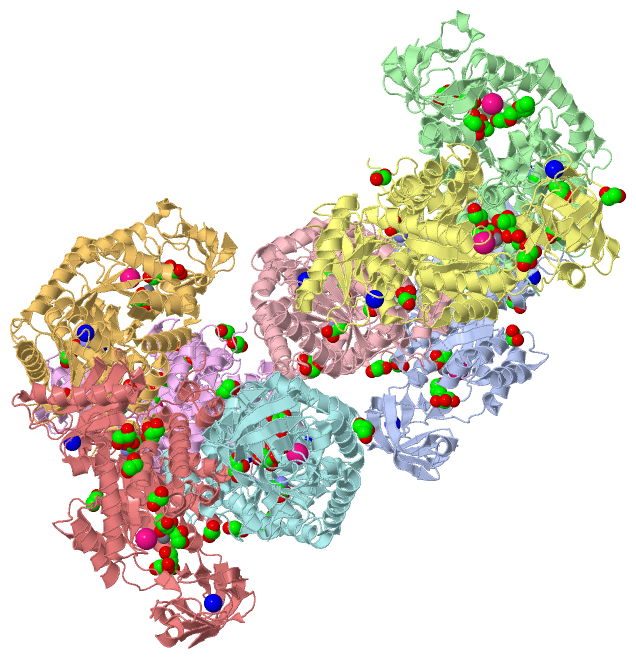

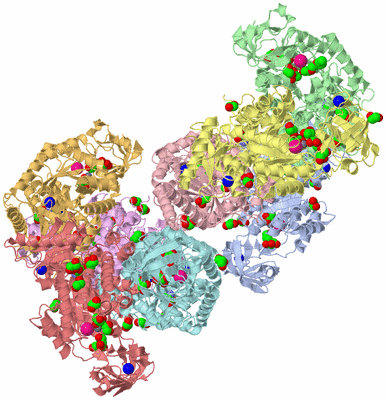

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

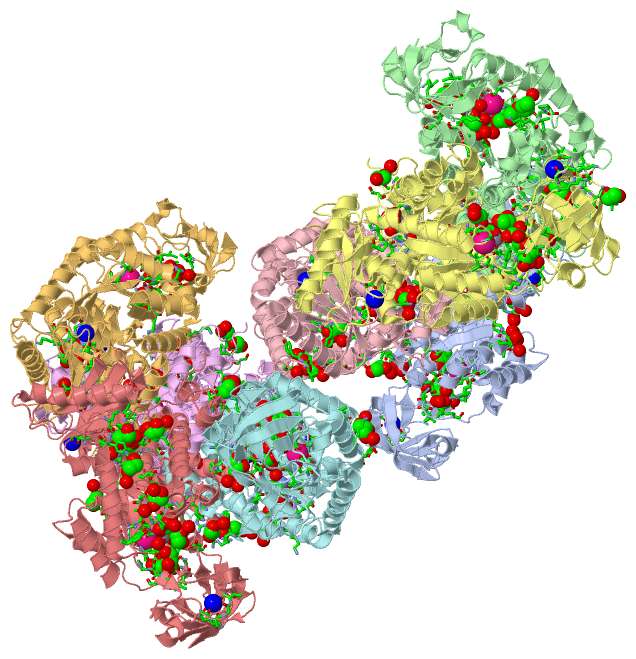

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

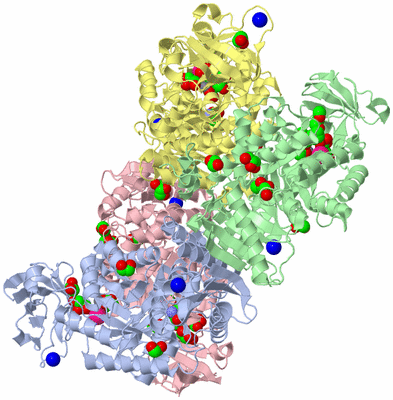

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

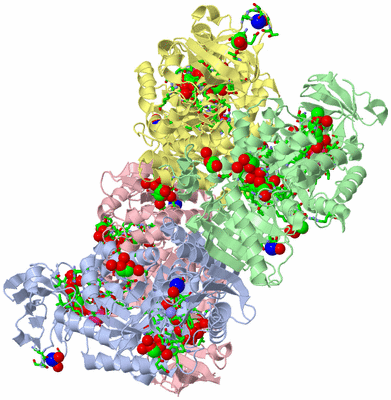

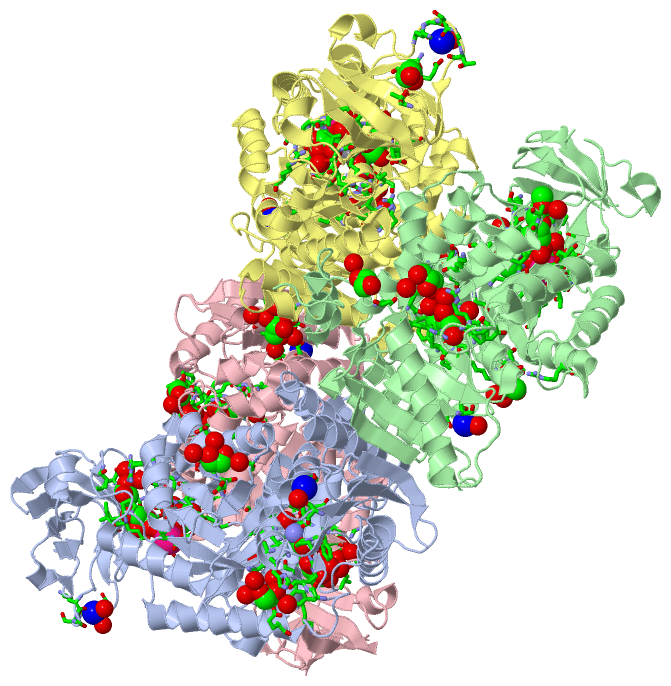

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

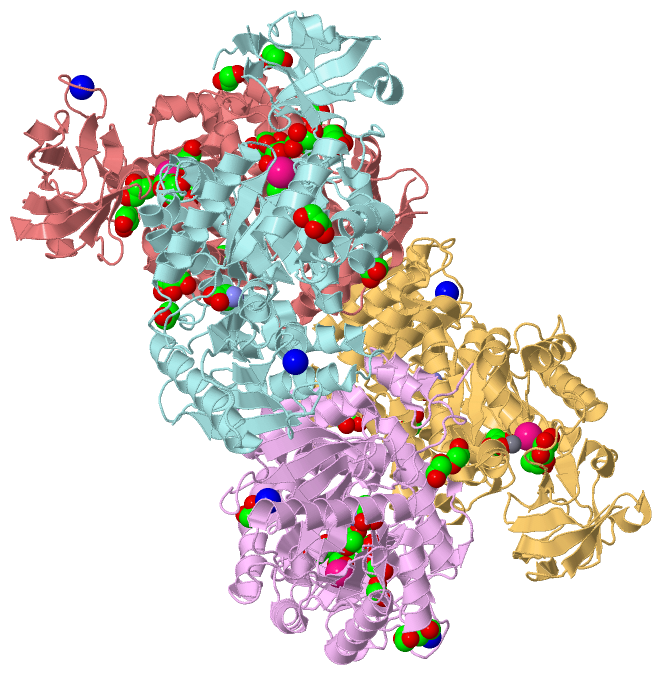

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE LOCATION OF THE ALLOSTERIC AMINO ACID BINDING SITE OF MUSCLE PYRUVATE KINASE.

Authors :  T. Holyoak, R. Williams, A. W. Fenton
Date :  22 Feb 06  (Deposition) - 09 May 06  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.65
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Keywords :  Allostery, Pyruvate Kinase, Glycolysis, Kinase, Phosphoryl Transfer, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Williams, T. Holyoak, G. Mcdonald, C. Gui, A. W. Fenton
Differentiating A Ligand'S Chemical Requirements For Allosteric Interactions From Those For Protein Binding. Phenylalanine Inhibition Of Pyruvate Kinase.
Biochemistry V. 45 5421 2006
PubMed-ID: 16634623  |  Reference-DOI: 10.1021/BI0524262

(-) Compounds

Molecule 1 - PYRUVATE KINASE ISOZYMES M1/M2
    Chains: A, B, C, D, E, F, G, H
    EC Number: 2.7.1.40
    Organism Common: RABBIT
    Organism Scientific: ORYCTOLAGUS CUNICULUS
    Organism Taxid: 9986
    Other Details: MUSCLE ISOZYME
    Synonym: PYRUVATE KINASE MUSCLE ISOZYME

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (8, 102)

Asymmetric Unit (8, 102)
No.NameCountTypeFull Name
1ALA8Mod. Amino AcidALANINE
2EDO29Ligand/Ion1,2-ETHANEDIOL
3ETE1Ligand/Ion2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL
4GOL28Ligand/IonGLYCEROL
5K8Ligand/IonPOTASSIUM ION
6MN8Ligand/IonMANGANESE (II) ION
7NA12Ligand/IonSODIUM ION
8PYR8Ligand/IonPYRUVIC ACID
Biological Unit 1 (5, 34)
No.NameCountTypeFull Name
1ALA4Mod. Amino AcidALANINE
2EDO13Ligand/Ion1,2-ETHANEDIOL
3ETE1Ligand/Ion2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL
4GOL12Ligand/IonGLYCEROL
5K-1Ligand/IonPOTASSIUM ION
6MN-1Ligand/IonMANGANESE (II) ION
7NA-1Ligand/IonSODIUM ION
8PYR4Ligand/IonPYRUVIC ACID
Biological Unit 2 (4, 40)
No.NameCountTypeFull Name
1ALA4Mod. Amino AcidALANINE
2EDO16Ligand/Ion1,2-ETHANEDIOL
3ETE-1Ligand/Ion2-{2-[2-2-(METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL
4GOL16Ligand/IonGLYCEROL
5K-1Ligand/IonPOTASSIUM ION
6MN-1Ligand/IonMANGANESE (II) ION
7NA-1Ligand/IonSODIUM ION
8PYR4Ligand/IonPYRUVIC ACID

(-) Sites  (102, 102)

Asymmetric Unit (102, 102)
No.NameEvidenceResiduesDescription
001AC1SOFTWAREGLU A:271 , ASP A:295 , PYR A:600 , HOH A:6777 , HOH A:6778BINDING SITE FOR RESIDUE MN A 640
002AC2SOFTWAREASN A:74 , SER A:76 , ASP A:112 , THR A:113 , HOH A:6776 , HOH A:6779BINDING SITE FOR RESIDUE K A 6501
003AC3SOFTWAREGLU B:271 , ASP B:295 , PYR B:600 , HOH B:6929 , HOH B:6930BINDING SITE FOR RESIDUE MN B 640
004AC4SOFTWAREASN B:74 , SER B:76 , ASP B:112 , THR B:113 , SER B:242 , HOH B:6928 , HOH B:6931BINDING SITE FOR RESIDUE K B 6502
005AC5SOFTWAREGLU C:271 , ASP C:295 , PYR C:600 , HOH C:6693 , HOH C:6694BINDING SITE FOR RESIDUE MN C 640
006AC6SOFTWAREASN C:74 , SER C:76 , ASP C:112 , THR C:113 , SER C:242 , HOH C:6692 , HOH C:6695BINDING SITE FOR RESIDUE K C 6503
007AC7SOFTWAREGLU D:271 , ASP D:295 , PYR D:600 , HOH D:7070 , HOH D:7073BINDING SITE FOR RESIDUE MN D 640
008AC8SOFTWAREASN D:74 , SER D:76 , ASP D:112 , THR D:113 , SER D:242 , HOH D:7071 , HOH D:7072BINDING SITE FOR RESIDUE K D 6504
009AC9SOFTWAREGLU E:271 , ASP E:295 , PYR E:600 , HOH E:3432 , HOH E:3433BINDING SITE FOR RESIDUE MN E 640
010BC1SOFTWAREASN E:74 , SER E:76 , ASP E:112 , THR E:113 , HOH E:3431 , HOH E:3434BINDING SITE FOR RESIDUE K E 6505
011BC2SOFTWAREGLU F:271 , ASP F:295 , PYR F:600 , HOH F:6523 , HOH F:6825BINDING SITE FOR RESIDUE MN F 640
012BC3SOFTWAREASN F:74 , SER F:76 , ASP F:112 , THR F:113 , SER F:242 , HOH F:6524 , HOH F:6824BINDING SITE FOR RESIDUE K F 6506
013BC4SOFTWAREGLU G:271 , ASP G:295 , PYR G:600 , HOH G:2776 , HOH G:2777BINDING SITE FOR RESIDUE MN G 640
014BC5SOFTWAREASN G:74 , SER G:76 , ASP G:112 , THR G:113 , SER G:242 , HOH G:2775 , HOH G:2778BINDING SITE FOR RESIDUE K G 6507
015BC6SOFTWAREGLU H:271 , ASP H:295 , PYR H:600 , HOH H:6673 , HOH H:6674BINDING SITE FOR RESIDUE MN H 640
016BC7SOFTWAREASN H:74 , SER H:76 , ASP H:112 , THR H:113 , HOH H:6672 , HOH H:6675BINDING SITE FOR RESIDUE K H 6508
017BC8SOFTWARELYS A:124 , GLY A:125 , SER A:126 , GLY A:127 , THR A:128 , HOH A:7006 , HOH A:7007BINDING SITE FOR RESIDUE NA A 6019
018BC9SOFTWARELYS D:124 , GLY D:125 , SER D:126 , GLY D:127 , THR D:128 , HOH D:6753BINDING SITE FOR RESIDUE NA D 6020
019CC1SOFTWARELYS E:124 , GLY E:125 , SER E:126 , GLY E:127 , THR E:128 , HOH E:4539BINDING SITE FOR RESIDUE NA E 6021
020CC2SOFTWARELYS H:124 , GLY H:125 , SER H:126 , GLY H:127 , THR H:128 , HOH H:6510 , HOH H:6745BINDING SITE FOR RESIDUE NA H 6022
021CC3SOFTWARETHR A:431 , SER A:436 , HOH A:6812BINDING SITE FOR RESIDUE NA A 6023
022CC4SOFTWARETHR B:431 , SER B:436 , HOH B:6556BINDING SITE FOR RESIDUE NA B 6024
023CC5SOFTWARETHR C:431 , SER C:436 , HOH C:6628BINDING SITE FOR RESIDUE NA C 6025
024CC6SOFTWARETHR D:431 , SER D:436 , HOH D:6516BINDING SITE FOR RESIDUE NA D 6026
025CC7SOFTWARETHR F:431 , SER F:436 , HOH F:6754BINDING SITE FOR RESIDUE NA F 6027
026CC8SOFTWARETHR G:431 , SER G:436 , HOH G:3003BINDING SITE FOR RESIDUE NA G 6028
027CC9SOFTWARETHR H:431 , SER H:436 , HOH H:6625BINDING SITE FOR RESIDUE NA H 6029
028DC1SOFTWARETHR E:431 , SER E:436 , HOH E:4160BINDING SITE FOR RESIDUE NA E 6030
029DC2SOFTWAREARG A:42 , ASN A:43 , ASN A:69 , ARG A:105 , HIS A:463 , ILE A:468 , PHE A:469 , PRO A:470 , HOH A:6548 , HOH A:6549 , HOH A:7059BINDING SITE FOR RESIDUE ALA A 6101
030DC3SOFTWARELYS A:269 , GLU A:271 , ALA A:292 , ARG A:293 , GLY A:294 , ASP A:295 , THR A:327 , MN A:640 , HOH A:6776 , HOH A:6777 , HOH A:6778BINDING SITE FOR RESIDUE PYR A 600
031DC4SOFTWAREARG B:42 , ASN B:43 , ASN B:69 , HIS B:463 , ILE B:468 , PHE B:469 , PRO B:470 , EDO B:6032 , HOH B:6758 , HOH B:6765 , HOH B:6766BINDING SITE FOR RESIDUE ALA B 6102
032DC5SOFTWARELYS B:269 , GLU B:271 , ALA B:292 , ARG B:293 , GLY B:294 , ASP B:295 , THR B:327 , MN B:640 , HOH B:6928 , HOH B:6929 , HOH B:6930BINDING SITE FOR RESIDUE PYR B 600
033DC6SOFTWAREARG C:42 , ASN C:43 , ASN C:69 , ARG C:105 , HIS C:463 , ILE C:468 , PHE C:469 , PRO C:470 , HOH C:6535 , HOH C:6547 , HOH C:7053BINDING SITE FOR RESIDUE ALA C 6103
034DC7SOFTWARELYS C:269 , GLU C:271 , ALA C:292 , ARG C:293 , GLY C:294 , ASP C:295 , THR C:327 , MN C:640 , HOH C:6692 , HOH C:6693 , HOH C:6694BINDING SITE FOR RESIDUE PYR C 600
035DC8SOFTWAREARG D:42 , ASN D:43 , ASN D:69 , ARG D:105 , HIS D:463 , ILE D:468 , PHE D:469 , PRO D:470 , HOH D:6995 , HOH D:6998 , HOH D:7124BINDING SITE FOR RESIDUE ALA D 6104
036DC9SOFTWARELYS D:269 , GLU D:271 , ALA D:292 , ARG D:293 , GLY D:294 , ASP D:295 , THR D:327 , MN D:640 , EDO D:6033 , HOH D:7070 , HOH D:7072 , HOH D:7073BINDING SITE FOR RESIDUE PYR D 600
037EC1SOFTWAREARG E:42 , ASN E:43 , ASN E:69 , ARG E:105 , HIS E:463 , ILE E:468 , PHE E:469 , PRO E:470 , HOH E:3633 , HOH E:3634 , HOH E:4515 , HOH E:4823BINDING SITE FOR RESIDUE ALA E 6105
038EC2SOFTWARELYS E:269 , GLU E:271 , ALA E:292 , ARG E:293 , GLY E:294 , ASP E:295 , THR E:327 , MN E:640 , HOH E:3431 , HOH E:3432 , HOH E:3433BINDING SITE FOR RESIDUE PYR E 600
039EC3SOFTWAREARG F:42 , ASN F:43 , ASN F:69 , ARG F:105 , HIS F:463 , ILE F:468 , PHE F:469 , PRO F:470 , HOH F:6646 , HOH F:6647 , HOH F:7014BINDING SITE FOR RESIDUE ALA F 6106
040EC4SOFTWARELYS F:269 , GLU F:271 , ALA F:292 , ARG F:293 , GLY F:294 , ASP F:295 , THR F:327 , MN F:640 , GOL F:6057 , HOH F:6523 , HOH F:6524 , HOH F:6825BINDING SITE FOR RESIDUE PYR F 600
041EC5SOFTWAREARG G:42 , ASN G:43 , ASN G:69 , ARG G:105 , HIS G:463 , ILE G:468 , PHE G:469 , PRO G:470 , HOH G:3727 , HOH G:3728 , HOH G:4510BINDING SITE FOR RESIDUE ALA G 6107
042EC6SOFTWARELYS G:269 , GLU G:271 , ALA G:292 , ARG G:293 , GLY G:294 , ASP G:295 , THR G:327 , MN G:640 , HOH G:2775 , HOH G:2776 , HOH G:2777BINDING SITE FOR RESIDUE PYR G 600
043EC7SOFTWAREARG H:42 , ASN H:43 , ASN H:69 , ARG H:105 , HIS H:463 , ILE H:468 , PHE H:469 , PRO H:470 , HOH H:6893 , HOH H:6894 , HOH H:6960BINDING SITE FOR RESIDUE ALA H 6108
044EC8SOFTWARELYS H:269 , GLU H:271 , ALA H:292 , ARG H:293 , GLY H:294 , ASP H:295 , THR H:327 , MN H:640 , EDO H:6041 , HOH H:6672 , HOH H:6673 , HOH H:6674BINDING SITE FOR RESIDUE PYR H 600
045EC9SOFTWAREPRO D:38 , THR D:40 , HOH D:6618BINDING SITE FOR RESIDUE EDO D 6011
046FC1SOFTWAREPRO F:38 , THR F:40 , HOH F:6631 , HOH F:6637BINDING SITE FOR RESIDUE EDO F 6012
047FC2SOFTWAREPRO B:38 , THR B:40 , HOH B:6977BINDING SITE FOR RESIDUE EDO B 6013
048FC3SOFTWAREPRO C:38 , THR C:40 , HOH C:6573BINDING SITE FOR RESIDUE EDO C 6014
049FC4SOFTWAREPRO E:38 , THR E:40 , EDO G:6016BINDING SITE FOR RESIDUE EDO E 6015
050FC5SOFTWAREALA E:37 , EDO E:6015 , LYS G:304 , HOH G:2692BINDING SITE FOR RESIDUE EDO G 6016
051FC6SOFTWAREARG D:72 , ASN D:74 , SER D:361 , GLY D:362 , HOH D:6676 , HOH D:7072BINDING SITE FOR RESIDUE EDO D 6017
052FC7SOFTWARETYR B:104 , ARG B:105 , PRO B:106 , HIS B:463 , PHE B:469 , PRO B:470 , ARG B:499 , ALA B:6102 , HOH B:6755 , HOH B:6758BINDING SITE FOR RESIDUE EDO B 6032
053FC8SOFTWAREASP D:177 , GLY D:294 , PYR D:600BINDING SITE FOR RESIDUE EDO D 6033
054FC9SOFTWAREARG H:72 , ASN H:74 , SER H:361 , HOH H:6667 , HOH H:6668 , HOH H:6772BINDING SITE FOR RESIDUE EDO H 6034
055GC1SOFTWAREARG F:338 , PRO F:339 , ARG F:341 , HOH F:6514 , ASP H:177 , GLN H:328BINDING SITE FOR RESIDUE EDO F 6036
056GC2SOFTWAREGLU H:284 , ALA H:285 , SER H:286 , ASP H:287 , LYS H:321 , HOH H:6709 , HOH H:7085BINDING SITE FOR RESIDUE EDO H 6037
057GC3SOFTWAREARG E:72 , ASN E:74 , SER E:361 , GLY E:362 , HOH E:3429 , EDO E:6046BINDING SITE FOR RESIDUE EDO E 6038
058GC4SOFTWAREASP E:177BINDING SITE FOR RESIDUE EDO E 6039
059GC5SOFTWARETHR D:138 , GLU D:153 , ASN D:154BINDING SITE FOR RESIDUE EDO D 6040
060GC6SOFTWAREASP H:177 , GLY H:294 , ASP H:295 , PYR H:600 , HOH H:6525BINDING SITE FOR RESIDUE EDO H 6041
061GC7SOFTWAREARG F:318 , GLU H:27 , CYS H:30 , HOH H:7076BINDING SITE FOR RESIDUE EDO H 6042
062GC8SOFTWAREGLU A:95 , TYR A:104 , HIS A:456 , ARG A:460 , HOH A:6559 , HOH A:6698 , HOH A:6701 , HOH A:7111BINDING SITE FOR RESIDUE EDO A 6043
063GC9SOFTWAREASP A:177 , GLN A:328 , PRO C:339 , ARG C:341 , HOH C:7078BINDING SITE FOR RESIDUE EDO C 6044
064HC1SOFTWAREARG E:55 , TYR E:82 , HOH E:2717 , HOH E:5069 , GOL E:6031 , HOH H:6567BINDING SITE FOR RESIDUE EDO E 6045
065HC2SOFTWAREILE E:50 , GLY E:51 , ASN E:74 , ALA E:365 , LYS E:366 , HOH E:3458 , EDO E:6038BINDING SITE FOR RESIDUE EDO E 6046
066HC3SOFTWAREARG B:254 , GLU B:284 , ALA B:285 , SER B:286 , ASP B:287 , LYS B:321 , HOH B:6897 , HOH B:7013BINDING SITE FOR RESIDUE EDO B 6047
067HC4SOFTWAREASP B:177 , GLY B:294 , ASP B:295 , GOL B:6302 , HOH B:6922 , HOH B:6924 , HOH B:7001 , HOH B:7009BINDING SITE FOR RESIDUE EDO B 6048
068HC5SOFTWAREGLU E:284 , ALA E:285 , SER E:286 , LYS E:321 , HOH E:3355 , HOH E:4836 , HOH E:4961BINDING SITE FOR RESIDUE EDO E 6049
069HC6SOFTWAREGLU A:284 , ALA A:285 , SER A:286 , ASP A:287 , LYS A:321 , HOH A:7107 , HOH A:7115 , HOH A:7120BINDING SITE FOR RESIDUE EDO A 6050
070HC7SOFTWAREARG A:338 , PRO A:339 , THR A:340 , ARG A:341 , HOH A:7048 , ASP C:177 , LEU C:179 , GLN C:328BINDING SITE FOR RESIDUE EDO A 6051
071HC8SOFTWAREARG G:42 , LYS G:65 , SER G:66 , GLY G:67 , HOH G:3479 , HOH G:3726 , HOH G:3729BINDING SITE FOR RESIDUE EDO G 6052
072HC9SOFTWAREGLU H:58 , LYS H:61 , HOH H:6652BINDING SITE FOR RESIDUE EDO H 6053
073IC1SOFTWAREGOL E:6031 , PRO H:52 , ALA H:53 , SER H:54 , ARG H:55 , SER H:56 , THR H:59 , HOH H:6660BINDING SITE FOR RESIDUE EDO H 6054
074IC2SOFTWARETHR B:49 , ILE B:50 , GLY B:51 , PRO B:52 , ARG B:72 , ASN B:74 , ALA B:365 , LYS B:366 , HOH B:6655 , HOH B:6928 , HOH B:6954 , HOH B:7011BINDING SITE FOR RESIDUE ETE B 6018
075IC3SOFTWAREPRO A:116 , ASN A:209 , LEU A:210 , VAL A:215 , ARG A:245 , GLU A:299 , HOH A:6657 , HOH A:6658BINDING SITE FOR RESIDUE GOL A 6201
076IC4SOFTWAREGLU A:117 , ILE A:118 , GLY A:207 , VAL A:208 , PHE A:243 , ASP A:295 , HOH A:6755 , HOH A:6777BINDING SITE FOR RESIDUE GOL A 6301
077IC5SOFTWAREPRO B:116 , ASN B:209 , LEU B:210 , VAL B:215 , ARG B:245 , GLU B:299 , HOH B:6613 , HOH B:6614 , HOH B:6615BINDING SITE FOR RESIDUE GOL B 6202
078IC6SOFTWAREGLU B:117 , ILE B:118 , GLY B:207 , VAL B:208 , PHE B:243 , ASP B:295 , EDO B:6048 , HOH B:6924 , HOH B:6929BINDING SITE FOR RESIDUE GOL B 6302
079IC7SOFTWAREPRO C:116 , VAL C:208 , ASN C:209 , LEU C:210 , VAL C:215 , ARG C:245 , GLU C:299 , HOH C:6865BINDING SITE FOR RESIDUE GOL C 6203
080IC8SOFTWAREGLU C:117 , ILE C:118 , GLY C:207 , VAL C:208 , PHE C:243 , ASP C:295 , HOH C:6693BINDING SITE FOR RESIDUE GOL C 6303
081IC9SOFTWAREPRO D:116 , ASN D:209 , LEU D:210 , VAL D:215 , ARG D:245 , GLU D:299 , HOH D:6876 , HOH D:7068BINDING SITE FOR RESIDUE GOL D 6204
082JC1SOFTWAREGLU D:117 , ILE D:118 , GLY D:207 , VAL D:208 , PHE D:243 , ASP D:295 , HOH D:6810 , HOH D:7073BINDING SITE FOR RESIDUE GOL D 6304
083JC2SOFTWAREPRO E:116 , ASN E:209 , LEU E:210 , VAL E:215 , ARG E:245 , GLU E:299 , HOH E:3598 , HOH E:3601BINDING SITE FOR RESIDUE GOL E 6205
084JC3SOFTWAREGLU E:117 , ILE E:118 , GLY E:207 , VAL E:208 , PHE E:243 , ASP E:295 , HOH E:3432BINDING SITE FOR RESIDUE GOL E 6305
085JC4SOFTWAREPRO F:116 , VAL F:208 , ASN F:209 , LEU F:210 , VAL F:215 , ARG F:245 , GLU F:299 , HOH F:6927BINDING SITE FOR RESIDUE GOL F 6206
086JC5SOFTWAREGLU F:117 , ILE F:118 , GLY F:207 , VAL F:208 , PHE F:243 , ASP F:295 , GOL F:6057 , HOH F:6523 , HOH F:6679BINDING SITE FOR RESIDUE GOL F 6306
087JC6SOFTWAREPRO G:116 , VAL G:208 , ASN G:209 , LEU G:210 , VAL G:215 , ARG G:245 , GLU G:299 , HOH G:4188 , HOH G:4189 , GOL G:6307BINDING SITE FOR RESIDUE GOL G 6207
088JC7SOFTWAREGLU G:117 , ILE G:118 , GLY G:207 , VAL G:208 , PHE G:243 , ASP G:295 , HOH G:2776 , GOL G:6207BINDING SITE FOR RESIDUE GOL G 6307
089JC8SOFTWAREPRO H:116 , ASN H:209 , LEU H:210 , VAL H:215 , ARG H:245 , GLU H:299 , HOH H:7028 , HOH H:7059 , HOH H:7103BINDING SITE FOR RESIDUE GOL H 6208
090JC9SOFTWAREGLU H:117 , ILE H:118 , GLY H:207 , VAL H:208 , PHE H:243 , ASP H:295 , HOH H:6673BINDING SITE FOR RESIDUE GOL H 6308
091KC1SOFTWARELYS F:229 , GLU F:233 , ILE F:256 , LEU F:257 , LYS F:260 , HOH F:6610 , HOH F:6611BINDING SITE FOR RESIDUE GOL F 6001
092KC2SOFTWAREARG A:42 , LYS A:65 , SER A:66 , GLY A:67 , HIS A:378 , HOH A:6844 , HOH A:7129 , HOH A:7141BINDING SITE FOR RESIDUE GOL A 6002
093KC3SOFTWAREALA G:37 , PRO G:38 , ILE G:39 , THR G:40 , ARG G:382 , HOH G:3521 , HOH G:3733BINDING SITE FOR RESIDUE GOL G 6004
094KC4SOFTWAREARG F:42 , LYS F:65 , SER F:66 , GLY F:67 , HIS F:378 , HOH F:6638 , HOH F:6642 , HOH F:7067 , HOH F:7071BINDING SITE FOR RESIDUE GOL F 6005
095KC5SOFTWAREILE H:64 , PHE H:97 , LEU H:103 , ARG H:105 , ARG H:499 , HOH H:6896 , HOH H:6963BINDING SITE FOR RESIDUE GOL H 6006
096KC6SOFTWAREARG B:42 , LYS B:65 , SER B:66 , GLY B:67 , HIS B:378 , HOH B:6757 , HOH B:6762BINDING SITE FOR RESIDUE GOL B 6007
097KC7SOFTWAREARG H:42 , LYS H:65 , SER H:66 , GLY H:67 , HIS H:378 , HOH H:6551 , HOH H:6895 , HOH H:7069BINDING SITE FOR RESIDUE GOL H 6008
098KC8SOFTWAREASP F:177 , GLN F:328 , HOH F:6677 , HOH F:7070 , ARG H:338 , PRO H:339 , ARG H:341 , HOH H:6777BINDING SITE FOR RESIDUE GOL F 6010
099KC9SOFTWAREPRO E:52 , HOH E:2717 , HOH E:2718 , HOH E:4678 , HOH E:4816 , EDO E:6045 , PRO H:52 , ARG H:55 , TYR H:82 , EDO H:6054 , HOH H:6661BINDING SITE FOR RESIDUE GOL E 6031
100LC1SOFTWAREILE C:64 , PHE C:97 , LEU C:103 , TYR C:104 , ARG C:105 , ARG C:499 , HOH C:6538 , HOH C:6540 , HOH C:6778 , HOH C:6946BINDING SITE FOR RESIDUE GOL C 6055
101LC2SOFTWAREGLU C:417 , TYR C:420 , LYS C:421 , HOH C:6582 , HOH C:6584 , HOH C:7019 , HOH C:7054 , ALA D:398 , HOH D:7028BINDING SITE FOR RESIDUE GOL C 6056
102LC3SOFTWAREASP F:177 , GLY F:294 , ASP F:295 , ILE F:298 , PYR F:600 , GOL F:6306 , HOH F:6523BINDING SITE FOR RESIDUE GOL F 6057

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2G50)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ala B:129 -Glu B:130

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2G50)

(-) PROSITE Motifs  (1, 8)

Asymmetric Unit (1, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRUVATE_KINASEPS00110 Pyruvate kinase active site signature.KPYM_RABIT265-277






 		  8A:264-276
B:264-276
C:264-276
D:264-276
E:264-276
F:264-276
G:264-276
H:264-276
Biological Unit 1 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRUVATE_KINASEPS00110 Pyruvate kinase active site signature.KPYM_RABIT265-277






 		  4A:264-276
B:264-276
C:264-276
D:264-276
-
-
-
-
Biological Unit 2 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRUVATE_KINASEPS00110 Pyruvate kinase active site signature.KPYM_RABIT265-277






 		  4-
-
-
-
E:264-276
F:264-276
G:264-276
H:264-276

(-) Exons   (0, 0)

(no "Exon" information available for 2G50)

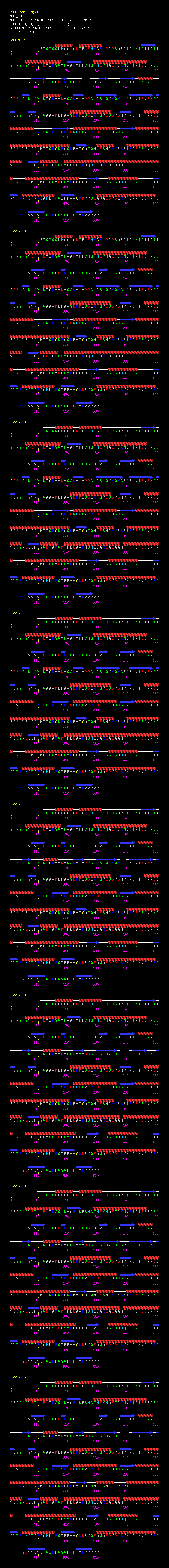

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
           KPYM_RABIT    13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains d2g50a2 A:12-115,A:218-395 Pyruvate kinase, N-terminal domain                                           d2g50a1 A:116-217 Pyruvate kinase (PK)                                                                d2g50a2 A:12-115,A:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50a3 A:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50A01 A:12-41,A:385-530     2g50A02 A:42-115,A:219-384 Phosphoenolpyruvate-binding domains            2g50A03 A:116-218 M1 Pyruvate Kinase; Domain 3                                                         2g50A02 A:42-115,A:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50A01 A:12-41,A:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee...........eee....eeeee.hhhhh......eee....hhhhhh....eeee....eeeeeeeee..eeeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 A  12 IQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521


Chain B from PDB  Type:PROTEIN  Length:511
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:520
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531
           KPYM_RABIT    12 FIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains -d2g50b2 B:12-115,B:218-395 Pyruvate kinase, N-terminal domain                                           d2g50b1       B:116-217 Pyruvate kinase (PK)                                                          d2g50b2 B:12-115,B:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50b3 B:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50B01 B:11-41,B:385-530      2g50B02 B:42-115,B:219-384 Phosphoenolpyruvate-binding domains            2g50B03       B:116-218 M1 Pyruvate Kinase; Domain 3                                                   2g50B02 B:42-115,B:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50B01 B:11-41,B:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee...------..eee....eeeee.hhhhh......eee....hhhhhh....eeee....eeeeeee.---.eeeee...eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh....eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 B  11 FIQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGL------AEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQK---FLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    20        30        40        50        60        70        80        90       100       110       120 |     130       140       150       160       170       180      |  -|      200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530
                                                                                                                                         122    129                                                       187 191


Chain C from PDB  Type:PROTEIN  Length:512
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:519
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522
           KPYM_RABIT    13 IQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains d2g50c2 C:12-115,C:218-395 Pyruvate kinase, N-terminal domain                                           d2g50c1      C:116-217 Pyruvate kinase (PK)                                                           d2g50c2 C:12-115,C:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50c3 C:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50C01 C:12-41,C:385-530     2g50C02 C:42-115,C:219-384 Phosphoenolpyruvate-binding domains            2g50C03      C:116-218 M1 Pyruvate Kinase; Domain 3                                                    2g50C02 C:42-115,C:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50C01 C:12-41,C:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee....-----..eee....eeeee.hhhhh......eee....hhhhh.....eeee....eeeeeee.--.eeeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 C  12 IQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLI-----AEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQK--DFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    21        31        41        51        61        71        81        91       101       111       121 |     131       141       151       161       171       181     | 191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521
                                                                                                                                         123   129                                                       187  |
                                                                                                                                                                                                            190


Chain D from PDB  Type:PROTEIN  Length:521
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:521
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530
           KPYM_RABIT    11 AFIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains --d2g50d2 D:12-115,D:218-395 Pyruvate kinase, N-terminal domain                                           d2g50d1 D:116-217 Pyruvate kinase (PK)                                                                d2g50d2 D:12-115,D:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50d3 D:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50D01 D:10-41,D:385-530       2g50D02 D:42-115,D:219-384 Phosphoenolpyruvate-binding domains            2g50D03 D:116-218 M1 Pyruvate Kinase; Domain 3                                                         2g50D02 D:42-115,D:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50D01 D:10-41,D:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee...........eee....eeeee.hhhhh......eee....hhhhhh....eeee....eeeeeeee...eeeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh....eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 D  10 AFIQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529


Chain E from PDB  Type:PROTEIN  Length:521
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:521
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530
           KPYM_RABIT    11 AFIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains --d2g50e2 E:12-115,E:218-395 Pyruvate kinase, N-terminal domain                                           d2g50e1 E:116-217 Pyruvate kinase (PK)                                                                d2g50e2 E:12-115,E:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50e3 E:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50E01 E:10-41,E:385-530       2g50E02 E:42-115,E:219-384 Phosphoenolpyruvate-binding domains            2g50E03 E:116-218 M1 Pyruvate Kinase; Domain 3                                                         2g50E02 E:42-115,E:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50E01 E:10-41,E:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee...........eee....eeeee.hhhhh......eee....hhhhhh....eeee....eeeeeeee...eeeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 E  10 AFIQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439       449       459       469       479       489       499       509       519       529


Chain F from PDB  Type:PROTEIN  Length:515
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:520
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531
           KPYM_RABIT    12 FIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains -d2g50f2 F:12-115,F:218-395 Pyruvate kinase, N-terminal domain                                           d2g50f1 F   :116-217 Pyruvate kinase (PK)                                                             d2g50f2 F:12-115,F:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50f3 F:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50F01 F:11-41,F:385-530      2g50F02 F:42-115,F:219-384 Phosphoenolpyruvate-binding domains            2g50F03 F   :116-218 M1 Pyruvate Kinase; Domain 3                                                      2g50F02 F:42-115,F:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50F01 F:11-41,F:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee.....---...eee....eeeee.hhhhh......eee....hhhhhh....eeee....eeeeeee.--.eeeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 F  11 FIQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIK---TAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQK--DFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    20        30        40        50        60        70        80        90       100       110       120   |   130       140       150       160       170       180      |190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530
                                                                                                                                           124 128                                                        187  |
                                                                                                                                                                                                             190


Chain G from PDB  Type:PROTEIN  Length:510
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:520
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531
           KPYM_RABIT    12 FIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains -d2g50g2 G:12-115,G:218-395 Pyruvate kinase, N-terminal domain                                           d2g50g1        G:116-217 Pyruvate kinase (PK)                                                         d2g50g2 G:12-115,G:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50g3 G:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50G01 G:11-41,G:385-530      2g50G02 G:42-115,G:219-384 Phosphoenolpyruvate-binding domains            2g50G03        G:116-218 M1 Pyruvate Kinase; Domain 3                                                  2g50G02 G:42-115,G:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50G01 G:11-41,G:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee...-------.eee....eeeee.hhhhh......eee....hhhhh.....eeee....eeeeeee.---.eeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh....eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 G  11 FIQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGL-------EVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQK---FLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    20        30        40        50        60        70        80        90       100       110       120 |     130       140       150       160       170       180      |  -|      200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530
                                                                                                                                         122     130                                                      187 191


Chain H from PDB  Type:PROTEIN  Length:519
 aligned with KPYM_RABIT | P11974 from UniProtKB/Swiss-Prot  Length:531

    Alignment length:520
                                    21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511       521       531
           KPYM_RABIT    12 FIQTQQLHAAMADTFLEHMCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKGPDFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARSSSHSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 531
               SCOP domains -d2g50h2 H:12-115,H:218-395 Pyruvate kinase, N-terminal domain                                           d2g50h1 H:116-217 Pyruvate kinase (PK)                                                                d2g50h2 H:12-115,H:218-395 Pyruvate kinase, N-terminal domain                                                                                                                     d2g50h3 H:396-530 Pyruvate kinase, C-terminal domain                                                                                    SCOP domains
               CATH domains 2g50H01 H:11-41,H:385-530      2g50H02 H:42-115,H:219-384 Phosphoenolpyruvate-binding domains            2g50H03 H:116-218 M1 Pyruvate Kinase; Domain 3                                                         2g50H02 H:42-115,H:219-384 Phosphoenolpyruvate-binding domains                                                                                                        2g50H01 H:11-41,H:385-530  [code=3.40.1380.20, no name defined]                                                                                    CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhh..hhhhhhhh.............eeeee......hhhhhhhhhhhh..eeeee....hhhhhhhhhhhhhhhhhh...........eeeee.....ee...........eee....eeeee.hhhhh......eee....hhhhhh....eeee....eeeeeeee.-.eeeeeeee.eee....eee...........hhhhhhhhhhhhhh...eeee....hhhhhhhhhhhhh......eeeeee.hhhhhhhhhhhhhhh.eeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeee...hhhhhh....hhhhhhhhhhhhhhh..eeeehhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhh.....eeeee.hhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhhhhhh.......eeeeee..........eeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PYRUVATE_KINA-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2g50 H  11 FIQTQQLHAAMADTFLEHKCRLDIDSAPITARNTGIICTIGPASRSVETLKEMIKSGMNVARMNFSHGTHEYHAETIKNVRTATESFASDPILYRPVAVALDTKGPEIRTGLIKGSGTAEVELKKGATLKITLDNAYMEKCDENILWLDYKNICKVVDVGSKVYVDDGLISLQVKQKG-DFLVTEVENGGFLGSKKGVNLPGAAVDLPAVSEKDIQDLKFGVEQDVDMVFASFIRKAADVHEVRKILGEKGKNIKIISKIENHEGVRRFDEILEASDGIMVARGDLGIEIPAEKVFLAQKMIIGRCNRAGKPVICATQMLESMIKKPRPTRAEGSDVANAVLDGADCIMLSGETAKGDYPLEAVRMQHLIAREAEAAMFHRKLFEELARASSQSTDLMEAMAMGSVEASYKCLAAALIVLTESGRSAHQVARYRPRAPIIAVTRNHQTARQAHLYRGIFPVVCKDPVQEAWAEDVDLRVNLAMNVGKARGFFKKGDVVIVLTGWRPGSGFTNTMRVVPVP 530
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530
                                                                                                                                                                                                           188 |
                                                                                                                                                                                                             190
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (3, 24)

Asymmetric Unit
(-)
Class: All beta proteins (24004)
(-)
Class: Alpha and beta proteins (a/b) (23833)
(-)
Fold: Pyruvate kinase C-terminal domain-like (59)
(-)
Fold: TIM beta/alpha-barrel (3956)
(-)
Superfamily: Phosphoenolpyruvate/pyruvate domain (92)
(-)
Family: Pyruvate kinase (28)
(-)
Protein domain: Pyruvate kinase, N-terminal domain (28)
(-)
Rabbit (Oryctolagus cuniculus) [TaxId: 9986] (7)
3ad2g50a2A:12-115,A:218-395
3bd2g50b2B:12-115,B:218-395
3cd2g50c2C:12-115,C:218-395
3dd2g50d2D:12-115,D:218-395
3ed2g50e2E:12-115,E:218-395
3fd2g50f2F:12-115,F:218-395
3gd2g50g2G:12-115,G:218-395
3hd2g50h2H:12-115,H:218-395

(-) CATH Domains  (3, 24)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)
(-)
Architecture: 3-Layer(aba) Sandwich (12045)
(-)
Topology: Pyruvate Kinase; Chain: A, domain 1 (36)
(-)
Homologous Superfamily: [code=3.40.1380.20, no name defined] (20)
(-)
Rabbit (Oryctolagus cuniculus) (7)
1a2g50A01A:12-41,A:385-530
1b2g50C01C:12-41,C:385-530
1c2g50B01B:11-41,B:385-530
1d2g50F01F:11-41,F:385-530
1e2g50G01G:11-41,G:385-530
1f2g50H01H:11-41,H:385-530
1g2g50D01D:10-41,D:385-530
1h2g50E01E:10-41,E:385-530
(-)
Architecture: Alpha-Beta Barrel (2994)
(-)
Topology: TIM Barrel (2806)
(-)
Homologous Superfamily: Phosphoenolpyruvate-binding domains (67)
(-)
Rabbit (Oryctolagus cuniculus) (7)
2a2g50A02A:42-115,A:219-384
2b2g50B02B:42-115,B:219-384
2c2g50C02C:42-115,C:219-384
2d2g50D02D:42-115,D:219-384
2e2g50E02E:42-115,E:219-384
2f2g50F02F:42-115,F:219-384
2g2g50G02G:42-115,G:219-384
2h2g50H02H:42-115,H:219-384
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2G50)

(-) Gene Ontology  (15, 15)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (KPYM_RABIT | P11974)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0030955    potassium ion binding    Interacting selectively and non-covalently with potassium (K+) ions.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004743    pyruvate kinase activity    Catalysis of the reaction: ATP + pyruvate = ADP + phosphoenolpyruvate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ALA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ETE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    K  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PYR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]
    EC1  [ RasMol ]  +environment [ RasMol ]
    EC2  [ RasMol ]  +environment [ RasMol ]
    EC3  [ RasMol ]  +environment [ RasMol ]
    EC4  [ RasMol ]  +environment [ RasMol ]
    EC5  [ RasMol ]  +environment [ RasMol ]
    EC6  [ RasMol ]  +environment [ RasMol ]
    EC7  [ RasMol ]  +environment [ RasMol ]
    EC8  [ RasMol ]  +environment [ RasMol ]
    EC9  [ RasMol ]  +environment [ RasMol ]
    FC1  [ RasMol ]  +environment [ RasMol ]
    FC2  [ RasMol ]  +environment [ RasMol ]
    FC3  [ RasMol ]  +environment [ RasMol ]
    FC4  [ RasMol ]  +environment [ RasMol ]
    FC5  [ RasMol ]  +environment [ RasMol ]
    FC6  [ RasMol ]  +environment [ RasMol ]
    FC7  [ RasMol ]  +environment [ RasMol ]
    FC8  [ RasMol ]  +environment [ RasMol ]
    FC9  [ RasMol ]  +environment [ RasMol ]
    GC1  [ RasMol ]  +environment [ RasMol ]
    GC2  [ RasMol ]  +environment [ RasMol ]
    GC3  [ RasMol ]  +environment [ RasMol ]
    GC4  [ RasMol ]  +environment [ RasMol ]
    GC5  [ RasMol ]  +environment [ RasMol ]
    GC6  [ RasMol ]  +environment [ RasMol ]
    GC7  [ RasMol ]  +environment [ RasMol ]
    GC8  [ RasMol ]  +environment [ RasMol ]
    GC9  [ RasMol ]  +environment [ RasMol ]
    HC1  [ RasMol ]  +environment [ RasMol ]
    HC2  [ RasMol ]  +environment [ RasMol ]
    HC3  [ RasMol ]  +environment [ RasMol ]
    HC4  [ RasMol ]  +environment [ RasMol ]
    HC5  [ RasMol ]  +environment [ RasMol ]
    HC6  [ RasMol ]  +environment [ RasMol ]
    HC7  [ RasMol ]  +environment [ RasMol ]
    HC8  [ RasMol ]  +environment [ RasMol ]
    HC9  [ RasMol ]  +environment [ RasMol ]
    IC1  [ RasMol ]  +environment [ RasMol ]
    IC2  [ RasMol ]  +environment [ RasMol ]
    IC3  [ RasMol ]  +environment [ RasMol ]
    IC4  [ RasMol ]  +environment [ RasMol ]
    IC5  [ RasMol ]  +environment [ RasMol ]
    IC6  [ RasMol ]  +environment [ RasMol ]
    IC7  [ RasMol ]  +environment [ RasMol ]
    IC8  [ RasMol ]  +environment [ RasMol ]
    IC9  [ RasMol ]  +environment [ RasMol ]
    JC1  [ RasMol ]  +environment [ RasMol ]
    JC2  [ RasMol ]  +environment [ RasMol ]
    JC3  [ RasMol ]  +environment [ RasMol ]
    JC4  [ RasMol ]  +environment [ RasMol ]
    JC5  [ RasMol ]  +environment [ RasMol ]
    JC6  [ RasMol ]  +environment [ RasMol ]
    JC7  [ RasMol ]  +environment [ RasMol ]
    JC8  [ RasMol ]  +environment [ RasMol ]
    JC9  [ RasMol ]  +environment [ RasMol ]
    KC1  [ RasMol ]  +environment [ RasMol ]
    KC2  [ RasMol ]  +environment [ RasMol ]
    KC3  [ RasMol ]  +environment [ RasMol ]
    KC4  [ RasMol ]  +environment [ RasMol ]
    KC5  [ RasMol ]  +environment [ RasMol ]
    KC6  [ RasMol ]  +environment [ RasMol ]
    KC7  [ RasMol ]  +environment [ RasMol ]
    KC8  [ RasMol ]  +environment [ RasMol ]
    KC9  [ RasMol ]  +environment [ RasMol ]
    LC1  [ RasMol ]  +environment [ RasMol ]
    LC2  [ RasMol ]  +environment [ RasMol ]
    LC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala B:129 - Glu B:130   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2g50
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  KPYM_RABIT | P11974
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.1.40
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  KPYM_RABIT | P11974
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        KPYM_RABIT | P11974: 1a49 1a5u 1aqf 1f3w 1f3x 1pkn 3n25

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2G50)
