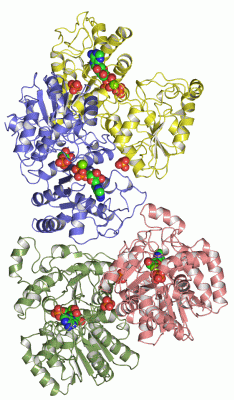

Asym.Unit - manually (Jmol Viewer)

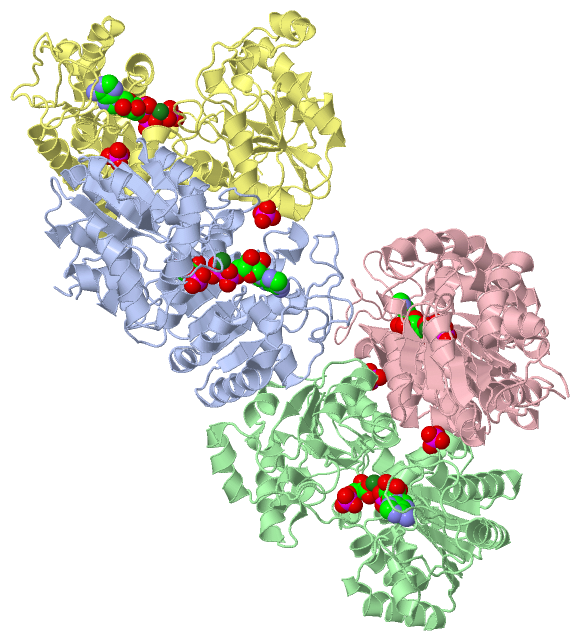

Asymmetric Unit (Jmol Viewer)

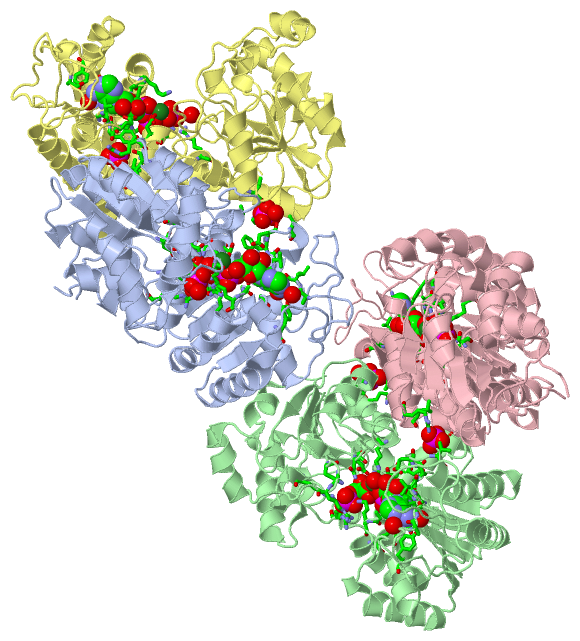

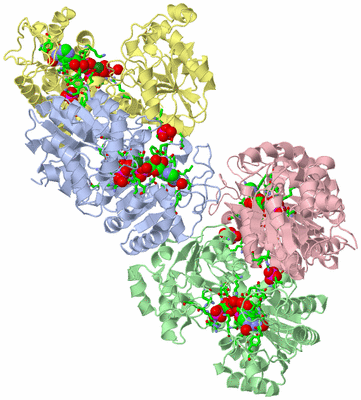

Asym. Unit - sites (Jmol Viewer)

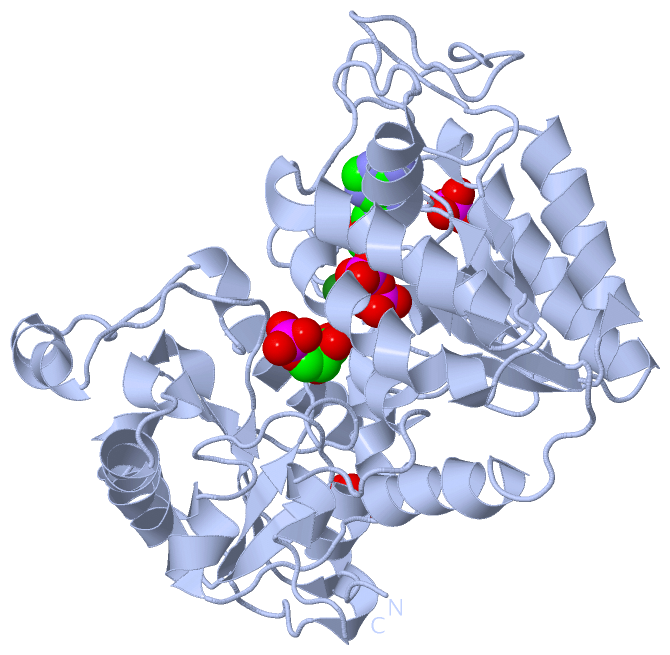

Biological Unit 1 (Jmol Viewer)

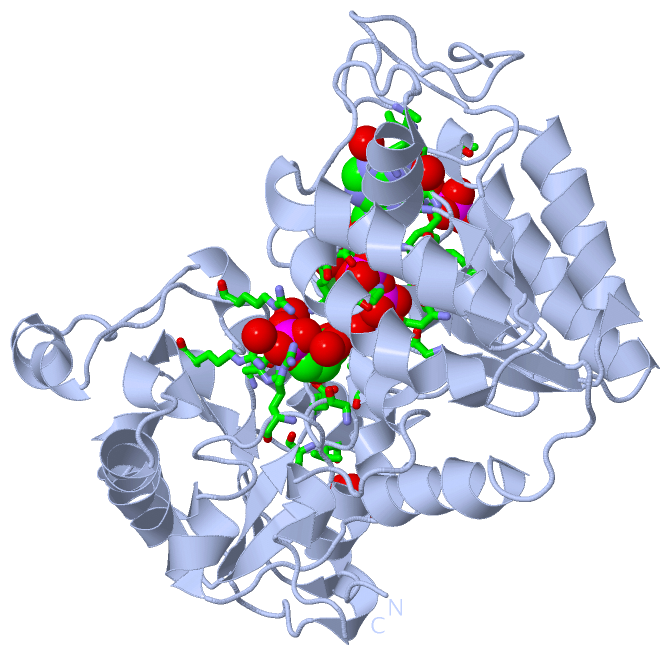

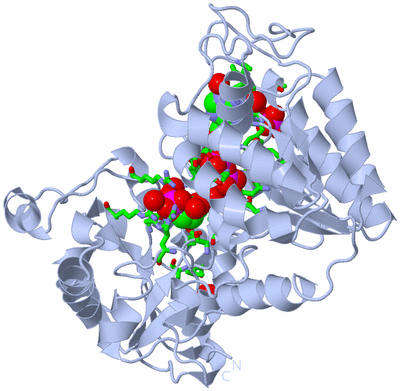

Biol. Unit 1 - sites (Jmol Viewer)

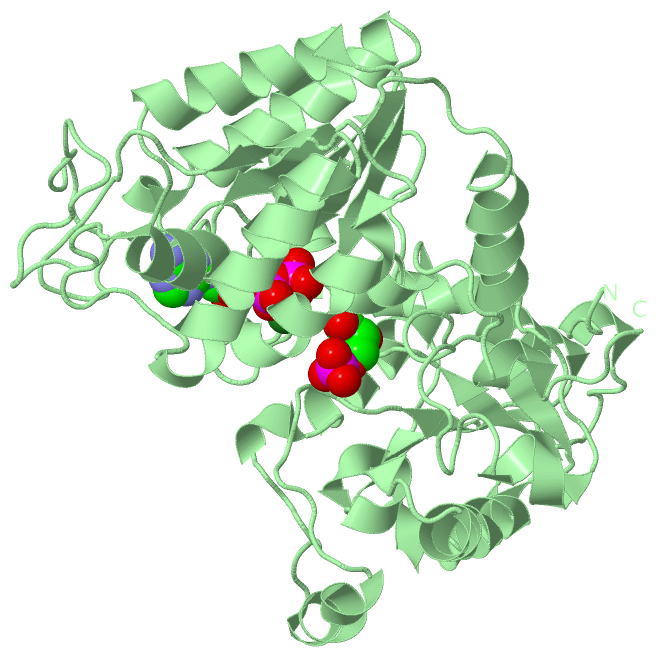

Biological Unit 2 (Jmol Viewer)

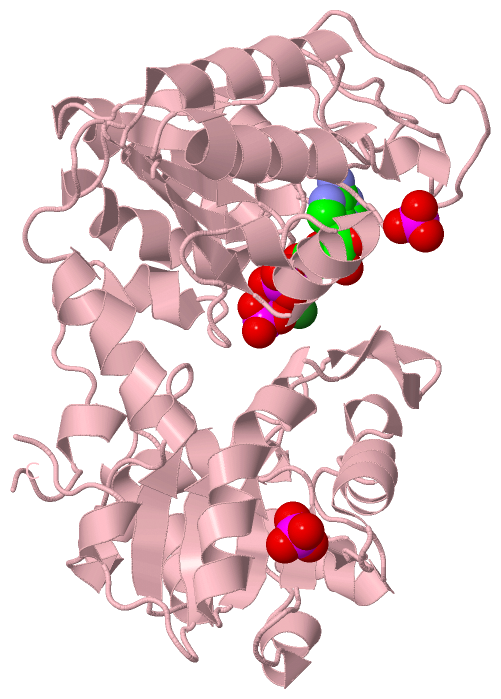

Biological Unit 3 (Jmol Viewer)

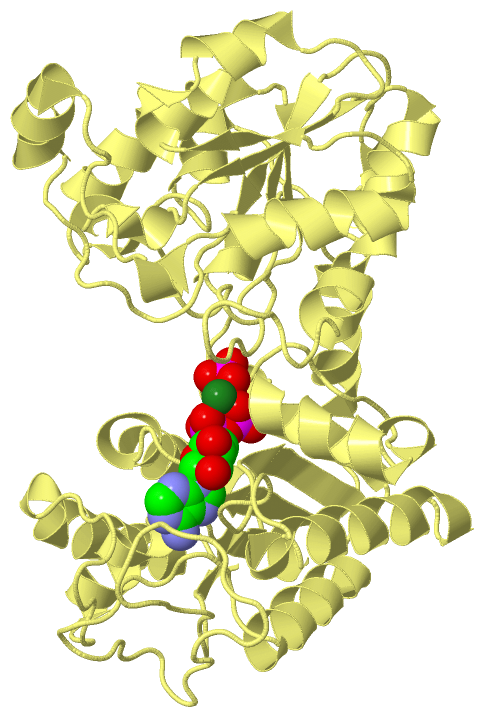

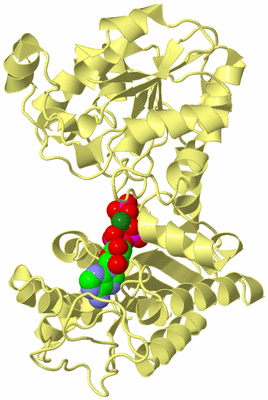

Biological Unit 4 (Jmol Viewer)

Title :   TERNARY COMPLEX OF PHOSPHOGLYCERATE KINASE FROM TRYPANOSOMA BRUCEI

Authors :   B. E. Bernstein, P. A. M. Michels, W. G. J. Hol

Date :   23 Nov 96 (Deposition) - 24 Dec 97 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.50

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Kinase, Phosphoglycerate, Ternary Complex, Glycolysis, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   B. E. Bernstein, P. A. Michels, W. G. Hol
Synergistic Effects Of Substrate-Induced Conformational Changes In Phosphoglycerate Kinase Activation.
Nature V. 385 275 1997
PubMed-ID: 9000079 | Reference-DOI: 10.1038/385275A0
(for further references see the PDB file header)

Molecule 1 - 3-PHOSPHOGLYCERATE KINASE
	Chains	:	A, B, C, D
	EC Number	:	2.7.2.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21
	Expression System Plasmid	:	PET21A
	Expression System Strain	:	BL21
	Expression System Taxid	:	511693
	Expression System Vector Type	:	PLASMID
	Mutation	:	YES
	Organelle	:	GLYCOSOME
	Organism Scientific	:	TRYPANOSOMA BRUCEI
	Organism Taxid	:	5691
	Synonym	:	PGK
	Variant	:	GLYCOSOMAL VERSION

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (4, 16)

No.	Name	Count	Type	Full Name
1	3PG	2	Ligand/Ion	3-PHOSPHOGLYCERIC ACID
2	ADP	4	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
3	MG	4	Ligand/Ion	MAGNESIUM ION
4	PO4	6	Ligand/Ion	PHOSPHATE ION

Biological Unit 1 (3, 4)

No.	Name	Count	Type	Full Name
1	3PG	1	Ligand/Ion	3-PHOSPHOGLYCERIC ACID
2	ADP	1	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	PO4	2	Ligand/Ion	PHOSPHATE ION

Biological Unit 2 (2, 2)

No.	Name	Count	Type	Full Name
1	3PG	1	Ligand/Ion	3-PHOSPHOGLYCERIC ACID
2	ADP	1	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	PO4	-1	Ligand/Ion	PHOSPHATE ION

Biological Unit 3 (2, 4)

No.	Name	Count	Type	Full Name
1	3PG	-1	Ligand/Ion	3-PHOSPHOGLYCERIC ACID
2	ADP	1	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	PO4	3	Ligand/Ion	PHOSPHATE ION

Biological Unit 4 (2, 2)

No.	Name	Count	Type	Full Name
1	3PG	-1	Ligand/Ion	3-PHOSPHOGLYCERIC ACID
2	ADP	1	Ligand/Ion	ADENOSINE-5'-DIPHOSPHATE
3	MG	-1	Ligand/Ion	MAGNESIUM ION
4	PO4	1	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (16, 16)

No.	Name	Evidence	Residues	Description
01	AC1	SOFTWARE	ASP A:377 , ADP A:421	BINDING SITE FOR RESIDUE MG A 422
02	AC2	SOFTWARE	ASP B:377 , ADP B:421	BINDING SITE FOR RESIDUE MG B 422
03	AC3	SOFTWARE	ASP C:377 , ADP C:421 , PO4 C:624	BINDING SITE FOR RESIDUE MG C 422
04	AC4	SOFTWARE	ASP D:377 , ADP D:421 , PO4 D:625	BINDING SITE FOR RESIDUE MG D 422
05	AC5	SOFTWARE	ARG C:39 , LYS C:219 , GLY C:375 , GLY C:376 , GLY C:398 , ADP C:421 , MG C:422 , HOH C:759	BINDING SITE FOR RESIDUE PO4 C 624
06	AC6	SOFTWARE	ARG D:39 , LYS D:219 , GLY D:375 , GLY D:376 , GLY D:398 , ADP D:421 , MG D:422 , HOH D:747	BINDING SITE FOR RESIDUE PO4 D 625
07	AC7	SOFTWARE	LEU A:103 , ARG A:105 , PHE D:344 , GLU D:345 , LEU D:384	BINDING SITE FOR RESIDUE PO4 A 701
08	AC8	SOFTWARE	LYS B:48 , LEU B:103 , PHE C:354 , LEU C:384 , HOH C:789	BINDING SITE FOR RESIDUE PO4 C 702
09	AC9	SOFTWARE	PHE B:344 , VAL B:347 , LEU B:384 , LEU C:103 , ARG C:105	BINDING SITE FOR RESIDUE PO4 C 703
10	BC1	SOFTWARE	PHE A:344 , VAL A:347 , LEU A:384 , HOH A:789 , LYS D:48 , LEU D:103	BINDING SITE FOR RESIDUE PO4 A 704
11	BC2	SOFTWARE	GLY A:217 , ALA A:218 , LYS A:219 , LYS A:223 , GLY A:241 , TYR A:245 , ALA A:314 , LEU A:315 , ASN A:338 , PRO A:340 , GLY A:342 , VAL A:343 , GLU A:345 , GLY A:374 , GLY A:375 , GLY A:376 , ASP A:377 , SER A:378 , MG A:422 , HOH A:716 , HOH A:722 , HOH A:842 , HOH A:861	BINDING SITE FOR RESIDUE ADP A 421
12	BC3	SOFTWARE	ASP A:24 , ASN A:26 , ARG A:39 , HIS A:62 , ARG A:65 , ARG A:135 , GLY A:168 , ARG A:172 , LYS A:219 , HOH A:724 , HOH A:752 , HOH A:842 , HOH A:876	BINDING SITE FOR RESIDUE 3PG A 423
13	BC4	SOFTWARE	GLY B:217 , ALA B:218 , LYS B:219 , LYS B:223 , GLY B:241 , ALA B:242 , TYR B:245 , ALA B:314 , LEU B:315 , ASN B:338 , PRO B:340 , GLY B:342 , VAL B:343 , GLU B:345 , GLY B:375 , GLY B:376 , ASP B:377 , SER B:378 , MG B:422 , HOH B:430 , HOH B:442 , HOH B:556 , HOH B:579	BINDING SITE FOR RESIDUE ADP B 421
14	BC5	SOFTWARE	ASP B:24 , ASN B:26 , ARG B:39 , HIS B:62 , GLY B:64 , ARG B:65 , ARG B:135 , GLY B:168 , ARG B:172 , LYS B:219 , GLY B:398 , HOH B:480 , HOH B:556	BINDING SITE FOR RESIDUE 3PG B 423
15	BC6	SOFTWARE	GLY C:217 , ALA C:218 , LYS C:219 , LYS C:223 , GLY C:241 , ALA C:242 , TYR C:245 , ALA C:314 , ASN C:338 , PRO C:340 , GLY C:342 , VAL C:343 , GLU C:345 , GLY C:375 , GLY C:376 , ASP C:377 , SER C:378 , MG C:422 , PO4 C:624	BINDING SITE FOR RESIDUE ADP C 421
16	BC7	SOFTWARE	GLY D:217 , ALA D:218 , LYS D:219 , LYS D:223 , GLY D:241 , ALA D:242 , TYR D:245 , ALA D:314 , ASN D:338 , GLY D:339 , PRO D:340 , GLY D:342 , VAL D:343 , GLU D:345 , GLY D:375 , GLY D:376 , ASP D:377 , SER D:378 , MG D:422 , PO4 D:625 , HOH D:654	BINDING SITE FOR RESIDUE ADP D 421

(no "SS Bond" information available for 13PK)

Asymmetric Unit

No.	Residues
1	Arg A:209	-	Pro A:210
2	Arg B:209	-	Pro B:210
3	Arg C:209	-	Pro C:210
4	Arg D:209	-	Pro D:210

Asymmetric Unit (1, 4)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_PGKC_TRYBB_001 *	G	75	D	PGKC_TRYBB	---	---	A/B/C/D	G	75	D
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_PGKC_TRYBB_001 *	G	75	D	PGKC_TRYBB	---	---	A	G	75	D
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_PGKC_TRYBB_001 *	G	75	D	PGKC_TRYBB	---	---	B	G	75	D
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 3 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_PGKC_TRYBB_001 *	G	75	D	PGKC_TRYBB	---	---	C	G	75	D
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 4 (1, 1)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_PGKC_TRYBB_001 *	G	75	D	PGKC_TRYBB	---	---	D	G	75	D
	* ID not provided by source

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Asymmetric Unit (1, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PGLYCERATE_KINASE	PS00111	Phosphoglycerate kinase signature.	PGKC_TRYBB	18-28	4	A:18-28 B:18-28 C:18-28 D:18-28

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PGLYCERATE_KINASE	PS00111	Phosphoglycerate kinase signature.	PGKC_TRYBB	18-28	1	A:18-28 - - -

Biological Unit 2 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PGLYCERATE_KINASE	PS00111	Phosphoglycerate kinase signature.	PGKC_TRYBB	18-28	1	- B:18-28 - -

Biological Unit 3 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PGLYCERATE_KINASE	PS00111	Phosphoglycerate kinase signature.	PGKC_TRYBB	18-28	1	- - C:18-28 -

Biological Unit 4 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	PGLYCERATE_KINASE	PS00111	Phosphoglycerate kinase signature.	PGKC_TRYBB	18-28	1	- - - D:18-28

(no "Exon" information available for 13PK)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:415
 aligned with PGKC_TRYBB | P07378 from UniProtKB/Swiss-Prot  Length:440

    Alignment length:415
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414
           PGKC_TRYBB     5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKALSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDEK 419
               SCOP domains d13pka_ A: Phosphoglycerate kinase                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 13pkA01 A:5-192  [code=3.40.50.1260, no name defined]                                                                                                                                       ------13pkA02 A:199-406  [code=3.40.50.1270, no name defined]                                                                                                                                                         ------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhh......eeeee...............hhhhhhhhhhhhhhhh..eeeee..........hhhhhhhhhh.......hhh..hhhhhhhhhhh....eee..hhh.hhhhhh.....eeee..hhh.hhhh...hhhhhhhhhhhhhh..eeee..............hhhhhh......hhhhhhhhhhhhh.......eeeee....hhhhhhhhhhhhh...eeee..hhhhhhhhhh..........hhhhhhhhhhhhhhhh...eee...................................hhhhhhhhhhhhh..eeeee........hhh.hhhhhhhhhhhhhhhh...eeee..hhhhhhhhhh..hhh........hhhhhh......hhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------D-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------PGLYCERATE_------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 13pk A   5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKRLSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDDK 419
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414

Chain B from PDB  Type:PROTEIN  Length:415
 aligned with PGKC_TRYBB | P07378 from UniProtKB/Swiss-Prot  Length:440

    Alignment length:415
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414
           PGKC_TRYBB     5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKALSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDEK 419
               SCOP domains d13pkb_ B: Phosphoglycerate kinase                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 13pkB01 B:5-192  [code=3.40.50.1260, no name defined]                                                                                                                                       ------13pkB02 B:199-406  [code=3.40.50.1270, no name defined]                                                                                                                                                         ------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhh......eeeee...............hhhhhhhhhhhhhhhh..eeeee..........hhhhhhhhhh.......hhh..hhhhhhhhhhh....eee..hhh.hhhhhh.....eeee..hhh.hhhh...hhhhhhhhhhhhhh..eeee..............hhhhhh......hhhhhhhhhhhhh.......eeeee....hhhhhhhhhhhh....eeee..hhhhhhhhhh..........hhhhhhhhhhhhhhhh...eee...................................hhhhhhhhhhhhh..eeeee........hhh.hhhhhhhhhhhhhhhh...eeeee.hhhhhhhhhh..hhh........hhhhhh......hhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------D-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------PGLYCERATE_------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 13pk B   5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKRLSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDDK 419
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414

Chain C from PDB  Type:PROTEIN  Length:415
 aligned with PGKC_TRYBB | P07378 from UniProtKB/Swiss-Prot  Length:440

    Alignment length:415
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414
           PGKC_TRYBB     5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKALSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDEK 419
               SCOP domains d13pkc_ C: Phosphoglycerate kinase                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 13pkC01 C:5-192  [code=3.40.50.1260, no name defined]                                                                                                                                       ------13pkC02 C:199-406  [code=3.40.50.1270, no name defined]                                                                                                                                                         ------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhh......eeeee.....eee..eeee.hhhhhhhhhhhhhhhh..eeeee..........hhhhhhhhhh.......hhh..hhhhhhhhhhh....eee......hhhhhh.....eeee..hhh.hhhh...hhhhhhhhhhhhhh..eeee..........hhhhhhhhhh......hhhhhhhhhhhhh.......eeeee....hhhhhhhhhhhhh...eeee..hhhhhhhhhh..........hhhhhhhhhhhhhhhh...eee...................................hhhhhhhhhhhhh..eeeee........hhh.hhhhhhhhhhhhhhhh...eeeee.hhhhhhhhhh..hhh........hhhhhh......hhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------D-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------PGLYCERATE_------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 13pk C   5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKRLSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDDK 419
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414

Chain D from PDB  Type:PROTEIN  Length:415
 aligned with PGKC_TRYBB | P07378 from UniProtKB/Swiss-Prot  Length:440

    Alignment length:415
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414
           PGKC_TRYBB     5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKALSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDEK 419
               SCOP domains d13pkd_ D: Phosphoglycerate kinase                                                                                                                                                                                                                                                                                                                                                                                              SCOP domains
               CATH domains 13pkD01 D:5-192  [code=3.40.50.1260, no name defined]                                                                                                                                       ------13pkD02 D:199-406  [code=3.40.50.1270, no name defined]                                                                                                                                                         ------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhh......eeeee...............hhhhhhhhhhhhhhhh..eeeee..........hhhhhhhhhh.......hhh..hhhhhhhhhhh....eee..hhh.hhhhhh.....eeee..hhh.hhhh...hhhhhhhhhhhhhh..eeee..............hhhhhh......hhhhhhhhhhhhh.......eeeee....hhhhhhhhhhhhh...eeee..hhhhhhhhhh..........hhhhhhhhhhhhhhhh...eee...................................hhhhhhhhhhhhh..eeeee........hhh.hhhhhhhhhhhhhhhh...eeeee.hhhhhhhhhh..hhh........hhhhhh......hhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------D-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------PGLYCERATE_------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 13pk D   5 EKKSINECDLKGKKVLIRVDFNVPVKNGKITNDYRIRSALPTLKKVLTEGGSCVLMSHLGRPKGIPMAQAGKIRSTGGVPGFQQKATLKPVAKRLSELLLRPVTFAPDCLNAADVVSKMSPGDVVLLENVRFYKEEGSKKAKDREAMAKILASYGDVYISDAFGTAHRDSATMTGIPKILGNGAAGYLMEKEISYFAKVLGNPPRPLVAIVGGAKVSDKIQLLDNMLQRIDYLLIGGAMAYTFLKAQGYSIGKSKCEESKLEFARSLLKKAEDRKVQVILPIDHVCHTEFKAVDSPLITEDQNIPEGHMALDIGPKTIEKYVQTIGKCKSAIWNGPMGVFEMVPYSKGTFAIAKAMGRGTHEHGLMSIIGGGDSASAAELSGEAKRMSHVSTGGGASLELLEGKTLPGVTVLDDK 419
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: Phosphoglycerate kinase (42)

Superfamily: Phosphoglycerate kinase (42)

Family: Phosphoglycerate kinase (39)

Protein domain: Phosphoglycerate kinase (16)

Trypanosome (Trypanosoma brucei) [TaxId: 5691] (2)

1a	d13pka_	A:
1b	d13pkb_	B:
1c	d13pkc_	C:
1d	d13pkd_	D:

Asymmetric Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Alpha Beta (26913)

Architecture: 3-Layer(aba) Sandwich (12045)

Topology: Rossmann fold (7312)

Homologous Superfamily: [code=3.40.50.1260, no name defined] (25)

Trypanosoma brucei. Organism_taxid: 5691. Variant: glycosomal version. (2)

1a	13pkA01	A:5-192
1b	13pkB01	B:5-192
1c	13pkC01	C:5-192
1d	13pkD01	D:5-192

Homologous Superfamily: [code=3.40.50.1270, no name defined] (25)

Trypanosoma brucei. Organism_taxid: 5691. Variant: glycosomal version. (2)

2a	13pkA02	A:199-406
2b	13pkB02	B:199-406
2c	13pkC02	C:199-406
2d	13pkD02	D:199-406

(no "Pfam Domain" information available for 13PK)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (PGKC_TRYBB | P07378)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0016301	kinase activity	Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0004618	phosphoglycerate kinase activity	Catalysis of the reaction: 3-phospho-D-glycerate + ATP = 3-phospho-D-glyceroyl phosphate + ADP + H(+).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
	GO:0006096	glycolytic process	The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
	GO:0020015	glycosome	A membrane-bounded organelle found in organisms from the order Kinetoplastida that houses the enzymes of glycolysis.
	GO:0005777	peroxisome	A small organelle enclosed by a single membrane, and found in most eukaryotic cells. Contains peroxidases and other enzymes involved in a variety of metabolic processes including free radical detoxification, lipid catabolism and biosynthesis, and hydrogen peroxide metabolism.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		3PG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ADP	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]
		BC1	[ RasMol ]	+environment [ RasMol ]
		BC2	[ RasMol ]	+environment [ RasMol ]
		BC3	[ RasMol ]	+environment [ RasMol ]
		BC4	[ RasMol ]	+environment [ RasMol ]
		BC5	[ RasMol ]	+environment [ RasMol ]
		BC6	[ RasMol ]	+environment [ RasMol ]
		BC7	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Arg A:209 - Pro A:210	[ RasMol ]
		Arg B:209 - Pro B:210	[ RasMol ]
		Arg C:209 - Pro C:210	[ RasMol ]
		Arg D:209 - Pro D:210	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	13pk
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	PGKC_TRYBB \| P07378
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	2.7.2.3
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	PGKC_TRYBB \| P07378
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	PGKC_TRYBB \| P07378	:	16pk

(no "Related Entries Specified in the PDB File" available for 13PK)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (4, 16)

Sites (16, 16)

SS Bonds (0, 0)

Cis Peptide Bonds (4, 4)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (1, 4)

PROSITE Motifs (1, 4)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (2, 8)

Pfam Domains (0, 0)

Gene Ontology (9, 9)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
