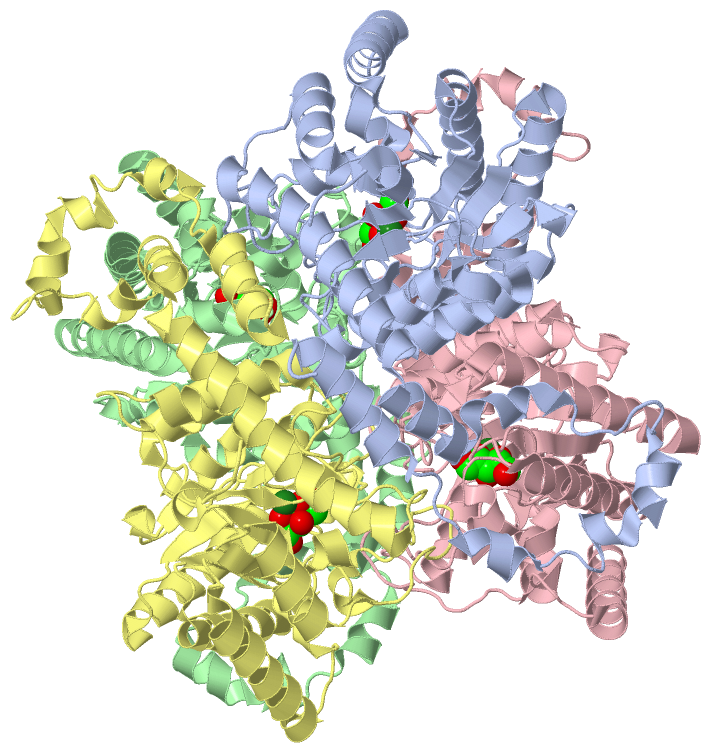

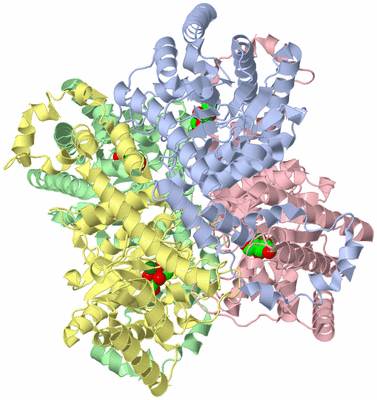

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

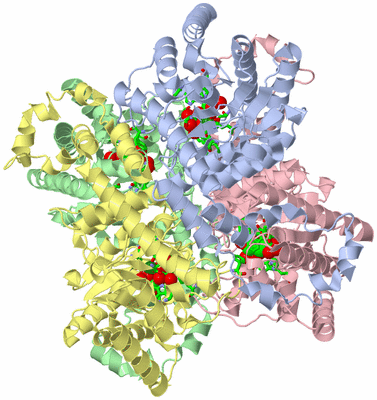

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  PROTEIN ENGINEERING OF XYLOSE (GLUCOSE) ISOMERASE FROM ACTINOPLANES MISSOURIENSIS. 1. CRYSTALLOGRAPHY AND SITE-DIRECTED MUTAGENESIS OF METAL BINDING SITES

Authors :  J. Janin
Date :  01 Apr 92  (Deposition) - 15 Jul 93  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Isomerase(Intramolecular Oxidoreductse) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Jenkins, J. Janin, F. Rey, M. Chiadmi, H. Van Tilbeurgh, I. Lasters, M. De Maeyer, D. Van Belle, S. J. Wodak, M. Lauwereys, P. Stanssens, G. Matthyssens, A. M. Lambeir
Protein Engineering Of Xylose (Glucose) Isomerase From Actinoplanes Missouriensis. 1. Crystallography And Site-Directed Mutagenesis Of Metal Binding Sites.
Biochemistry V. 31 5449 1992
PubMed-ID: 1610791  |  Reference-DOI: 10.1021/BI00139A005
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - D-XYLOSE ISOMERASE
    Chains: A, B, C, D
    EC Number: 5.3.1.5
    Engineered: YES
    Organism Scientific: ACTINOPLANES MISSOURIENSIS
    Organism Taxid: 1866

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 8)

Asymmetric/Biological Unit (2, 8)
No.NameCountTypeFull Name
1MG4Ligand/IonMAGNESIUM ION
2XLS4Ligand/IonD-XYLOSE (LINEAR FORM)

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETRP A:16 , HIS A:54 , TRP A:137 , GLU A:181 , LYS A:183 , GLU A:217 , HIS A:220 , ASP A:245 , ASP A:292 , MG A:395 , HOH A:398 , HOH A:455 , HOH A:456 , HOH A:530 , HOH A:564 , PHE B:26BINDING SITE FOR RESIDUE XLS A 397
2AC2SOFTWAREPHE A:26 , TRP B:16 , HIS B:54 , TRP B:137 , GLU B:181 , LYS B:183 , GLU B:217 , HIS B:220 , ASP B:245 , ASP B:292 , MG B:395 , HOH B:404 , HOH B:458 , HOH B:459 , HOH B:534 , HOH B:561BINDING SITE FOR RESIDUE XLS B 397
3AC3SOFTWARETRP C:16 , HIS C:54 , TRP C:137 , GLU C:181 , LYS C:183 , GLU C:217 , HIS C:220 , ASP C:245 , ASP C:292 , MG C:395 , HOH C:416 , HOH C:470 , HOH C:471 , HOH C:576 , HOH C:581 , PHE D:26BINDING SITE FOR RESIDUE XLS C 397
4AC4SOFTWAREPHE C:26 , TRP D:16 , HIS D:54 , TRP D:137 , GLU D:181 , LYS D:183 , GLU D:217 , HIS D:220 , ASP D:245 , ASP D:292 , MG D:395 , HOH D:429 , HOH D:483 , HOH D:484 , HOH D:553 , HOH D:589BINDING SITE FOR RESIDUE XLS D 397
5AC5SOFTWAREGLU A:181 , GLU A:217 , ASP A:245 , ASP A:292 , XLS A:397BINDING SITE FOR RESIDUE MG A 395
6AC6SOFTWAREGLU B:181 , GLU B:217 , ASP B:245 , ASP B:292 , XLS B:397BINDING SITE FOR RESIDUE MG B 395
7AC7SOFTWAREGLU C:181 , GLU C:217 , ASP C:245 , ASP C:292 , XLS C:397BINDING SITE FOR RESIDUE MG C 395
8AC8SOFTWAREGLU D:181 , GLU D:217 , ASP D:245 , ASP D:292 , XLS D:397BINDING SITE FOR RESIDUE MG D 395

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 8XIM)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Gln A:186 -Pro A:187
2Gln B:186 -Pro B:187
3Gln C:186 -Pro C:187
4Gln D:186 -Pro D:187

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 8XIM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 8XIM)

(-) Exons   (0, 0)

(no "Exon" information available for 8XIM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:392

               SCOP domains d8xima_ A: D-xylose isomerase                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 8ximA00 A:3-394 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhh.eeeehhhhh...............hhhhhhhhhhhhh..eee.hhhhhh....hhhhhhhhhhhhhhhhhhhh....eee.....hhhhh.......hhhhhhhhhhhhhhhhhhhhhh...eeeee....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee........ee...hhhhhhhhhh...hhh.eee..hhhhhhh...hhhhhhhhhhhhh.....ee.................hhhhhhhhhhhhhhhhhhh......eee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh...hhhhhhh...hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 8xim A   3 VQATREDKFSFGLWTVGWQARDAFGDATRTALDPVEAVHKLAEIGAYGITFHDDDLVPFGSDAQTRDGIIAGFKKALDETGLIVPMVTTNLFTHPVFKDGGFTSNDRSVRRYAIRKVLRQMDLGAELGAKTLVLWGGREGAEYDSAKDVSAALDRYREALNLLAQYSEDRGYGLRFAIEPKPNQPRGDILLPTAGHAIAFVQELERPELFGINPETGHEQMSNLNFTQGIAQALWHKKLFHIDLNGQHGPKFDQDLVFGHGDLLNAFSLVDLLENGPDGAPAYDGPRHFDYKPSRTEDYDGVWESAKANIRMYLLLKERAKAFRADPEVQEALAASKVAELKTPTLNPGEGYAELLADRSAFEDYDADAVGAKGFGFVKLNQLAIEHLLGAR 394
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392


Chain B from PDB  Type:PROTEIN  Length:392

               SCOP domains d8ximb_ B: D-xylose isomerase                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 8ximB00 B:3-394 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhh.eeeehhhhh...............hhhhhhhhhhhhh..eee.hhhhhh....hhhhhhhhhhhhhhhhhhhh....eee.....hhhhh.......hhhhhhhhhhhhhhhhhhhhhhh..eeeee....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeee........ee...hhhhhhhhhh...hhh.eee..hhhhhhh...hhhhhhhhhhhhh.....ee.................hhhhhhhhhhhhhh...........eee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh...hhhhhhhh..hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 8xim B   3 VQATREDKFSFGLWTVGWQARDAFGDATRTALDPVEAVHKLAEIGAYGITFHDDDLVPFGSDAQTRDGIIAGFKKALDETGLIVPMVTTNLFTHPVFKDGGFTSNDRSVRRYAIRKVLRQMDLGAELGAKTLVLWGGREGAEYDSAKDVSAALDRYREALNLLAQYSEDRGYGLRFAIEPKPNQPRGDILLPTAGHAIAFVQELERPELFGINPETGHEQMSNLNFTQGIAQALWHKKLFHIDLNGQHGPKFDQDLVFGHGDLLNAFSLVDLLENGPDGAPAYDGPRHFDYKPSRTEDYDGVWESAKANIRMYLLLKERAKAFRADPEVQEALAASKVAELKTPTLNPGEGYAELLADRSAFEDYDADAVGAKGFGFVKLNQLAIEHLLGAR 394
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392


Chain C from PDB  Type:PROTEIN  Length:391

               SCOP domains d8ximc_ C: D-xylose isomerase                                                                                                                                                                                                                                                                                                                                                                           SCOP domains
               CATH domains 8ximC00 C:4-394 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                             CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhh.eeeehhhhh...............hhhhhhhhhhhhh..eee.hhhhhh....hhhhhhhhhhhhhhhhhhhh....eee.....hhhhh.......hhhhhhhhhhhhhhhhhhhhhhh..eeeee....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeee........ee...hhhhhhhhhh...hhh.eee..hhhhhhh...hhhhhhhhhhhh......ee.................hhhhhhhhhhhhhh...........eee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhh...hhhhhhhh..hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 8xim C   4 QATREDKFSFGLWTVGWQARDAFGDATRTALDPVEAVHKLAEIGAYGITFHDDDLVPFGSDAQTRDGIIAGFKKALDETGLIVPMVTTNLFTHPVFKDGGFTSNDRSVRRYAIRKVLRQMDLGAELGAKTLVLWGGREGAEYDSAKDVSAALDRYREALNLLAQYSEDRGYGLRFAIEPKPNQPRGDILLPTAGHAIAFVQELERPELFGINPETGHEQMSNLNFTQGIAQALWHKKLFHIDLNGQHGPKFDQDLVFGHGDLLNAFSLVDLLENGPDGAPAYDGPRHFDYKPSRTEDYDGVWESAKANIRMYLLLKERAKAFRADPEVQEALAASKVAELKTPTLNPGEGYAELLADRSAFEDYDADAVGAKGFGFVKLNQLAIEHLLGAR 394
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393


Chain D from PDB  Type:PROTEIN  Length:392

               SCOP domains d8ximd_ D: D-xylose isomerase                                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains 8ximD00 D:3-394 Divalent-metal-dependent TIM barrel enzymes                                                                                                                                                                                                                                                                                                                                              CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhh.eeeehhhhh...............hhhhhhhhhhhh...eee.hhhhhh....hhhhhhhhhhhhhhhhhhhh....eee.....hhhhh.......hhhhhhhhhhhhhhhhhhhhhhh..eeee.....ee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeee.........ee...hhhhhhhhhh...hhh.eee..hhhhhhh...hhhhhhhhhhhhh.....ee.................hhhhhhhhhhhhhh...........eee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhh.......hhhhhhhhhhhh...hhhhhhh...hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 8xim D   3 VQATREDKFSFGLWTVGWQARDAFGDATRTALDPVEAVHKLAEIGAYGITFHDDDLVPFGSDAQTRDGIIAGFKKALDETGLIVPMVTTNLFTHPVFKDGGFTSNDRSVRRYAIRKVLRQMDLGAELGAKTLVLWGGREGAEYDSAKDVSAALDRYREALNLLAQYSEDRGYGLRFAIEPKPNQPRGDILLPTAGHAIAFVQELERPELFGINPETGHEQMSNLNFTQGIAQALWHKKLFHIDLNGQHGPKFDQDLVFGHGDLLNAFSLVDLLENGPDGAPAYDGPRHFDYKPSRTEDYDGVWESAKANIRMYLLLKERAKAFRADPEVQEALAASKVAELKTPTLNPGEGYAELLADRSAFEDYDADAVGAKGFGFVKLNQLAIEHLLGAR 394
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 8XIM)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    XLS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gln A:186 - Pro A:187   [ RasMol ]
    Gln B:186 - Pro B:187   [ RasMol ]
    Gln C:186 - Pro C:187   [ RasMol ]
    Gln D:186 - Pro D:187   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

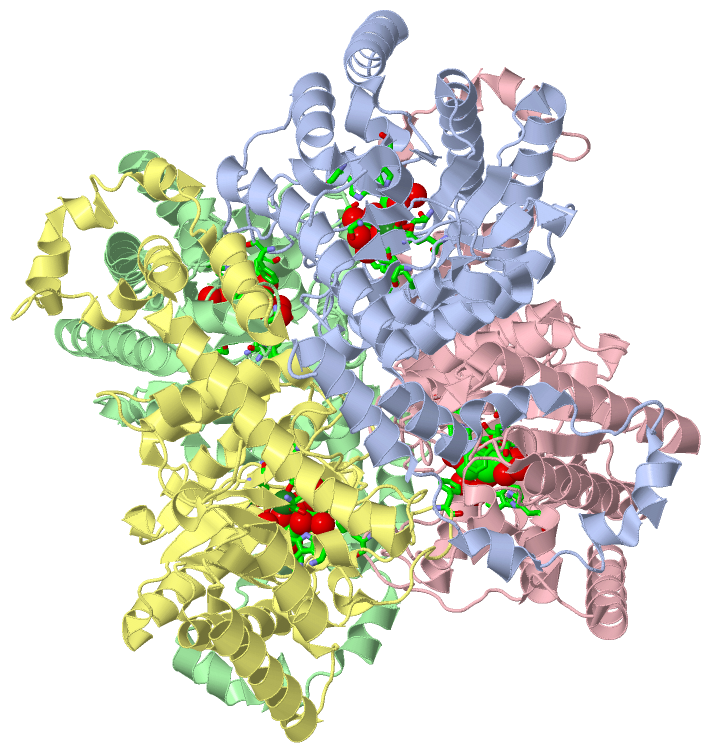

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
