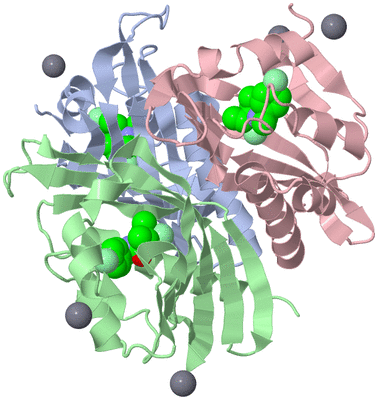

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

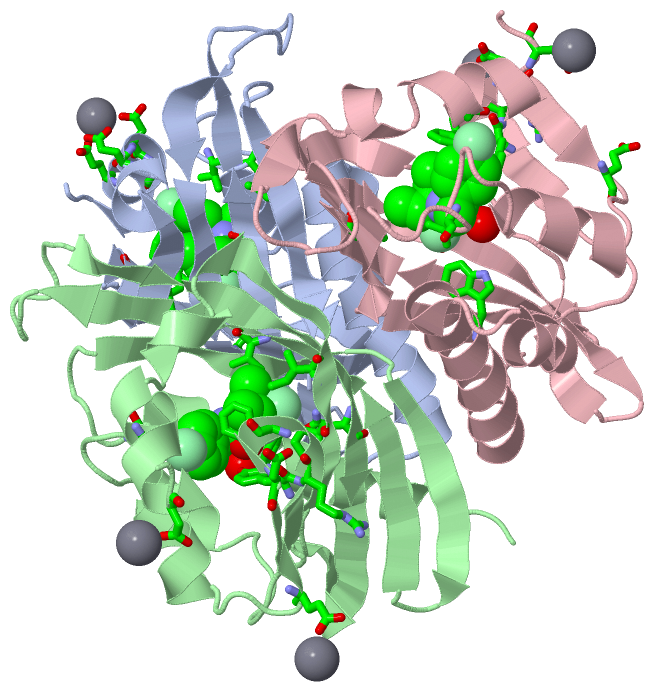

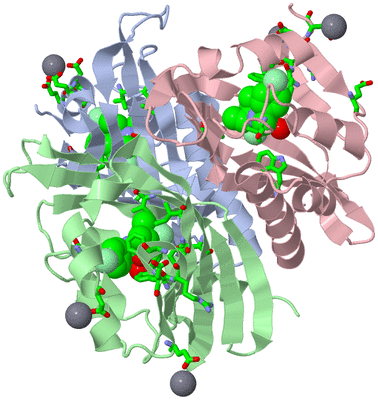

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

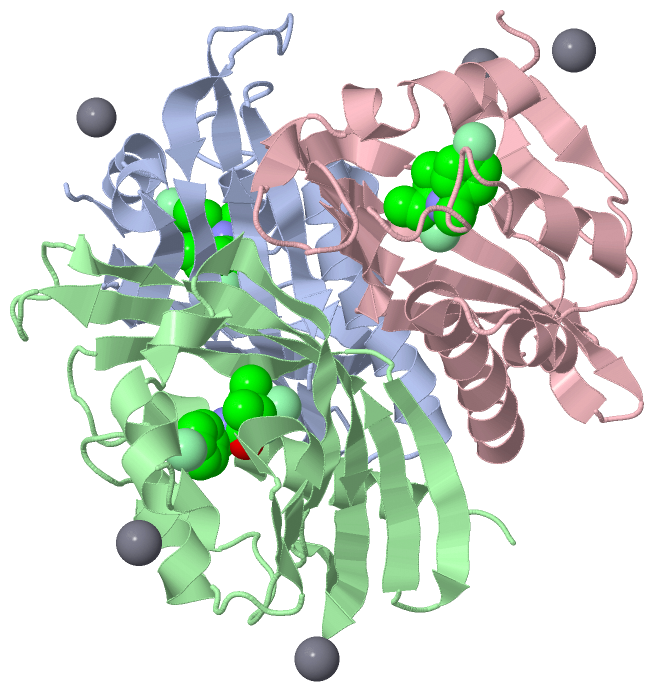

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

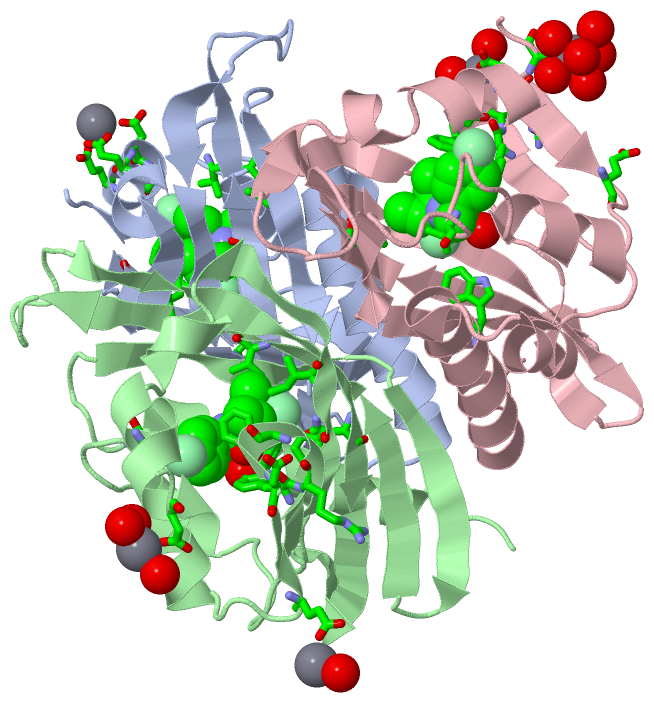

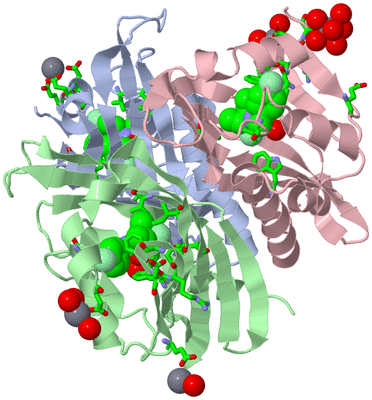

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

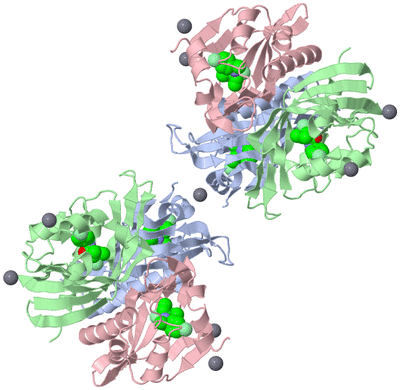

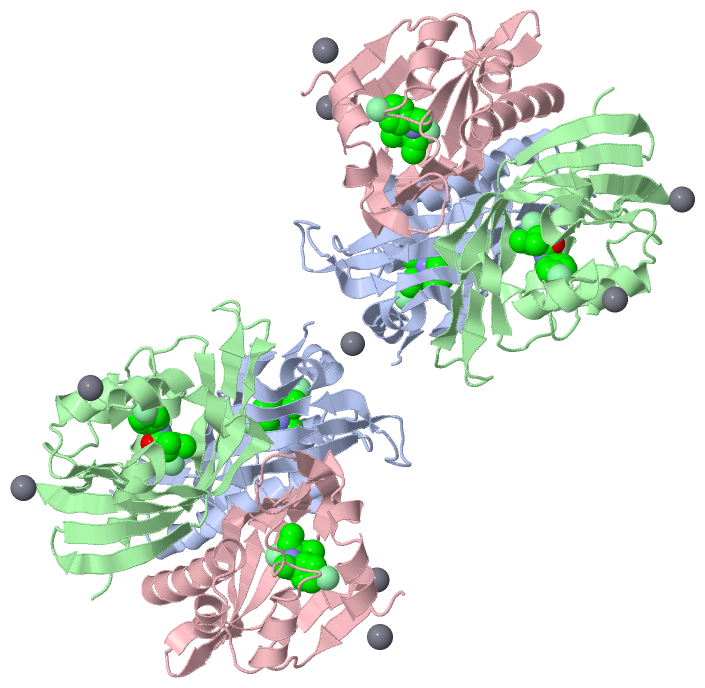

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  SCYTALONE DEHYDRATASE PLUS INHIBITOR 4

Authors :  Z. Wawrzak, T. Sandalova, J. J. Steffens, G. S. Basarab, T. Lundqvist, Y. Lindqvist, D. B. Jordan
Date :  11 Feb 99  (Deposition) - 29 Dec 99  (Release) - 21 Jun 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B,C  (1x)
Biol. Unit 2:  A,B,C  (2x)
Keywords :  Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Wawrzak, T. Sandalova, J. J. Steffens, G. S. Basarab, T. Lundqvist, Y. Lindqvist, D. B. Jordan
High-Resolution Structures Of Scytalone Dehydratase-Inhibitor Complexes Crystallized At Physiological Ph.
Proteins V. 35 425 1999

(-) Compounds

Molecule 1 - SCYTALONE DEHYDRATASE
    Chains: A, B, C
    EC Number: 4.2.1.94
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: MAGNAPORTHE GRISEA
    Organism Taxid: 148305
    Synonym: SDH

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (1x): ABC
Biological Unit 2 (2x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 8)

Asymmetric Unit (2, 8)
No.NameCountTypeFull Name
1CA5Ligand/IonCALCIUM ION
2CRP3Ligand/Ion((1RS,3SR)-2,2-DICHLORO-N-[(R)-1-(4-CHLOROPHENYL)ETHYL]-1-ETHYL-3-METHYLCYCLOPROPANECARBOXAMIDE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CRP3Ligand/Ion((1RS,3SR)-2,2-DICHLORO-N-[(R)-1-(4-CHLOROPHENYL)ETHYL]-1-ETHYL-3-METHYLCYCLOPROPANECARBOXAMIDE
Biological Unit 2 (1, 6)
No.NameCountTypeFull Name
1CA-1Ligand/IonCALCIUM ION
2CRP6Ligand/Ion((1RS,3SR)-2,2-DICHLORO-N-[(R)-1-(4-CHLOROPHENYL)ETHYL]-1-ETHYL-3-METHYLCYCLOPROPANECARBOXAMIDE

(-) Sites  (8, 8)

Asymmetric Unit (8, 8)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:163 , ASP A:164 , GLU A:167BINDING SITE FOR RESIDUE CA A 501
2AC2SOFTWAREARG B:51 , ASP B:55 , GLU B:59 , HOH B:683BINDING SITE FOR RESIDUE CA B 501
3AC3SOFTWAREASP B:171 , HOH B:645 , HOH B:656 , HOH B:680BINDING SITE FOR RESIDUE CA B 502
4AC4SOFTWAREARG C:51 , ASP C:55 , GLU C:59 , HOH C:669 , HOH C:709 , HOH C:744BINDING SITE FOR RESIDUE CA C 501
5AC5SOFTWAREASP C:171 , HOH C:634 , HOH C:648 , HOH C:650 , HOH C:664 , HOH C:708 , HOH C:743BINDING SITE FOR RESIDUE CA C 502
6AC6SOFTWARETYR A:50 , PHE A:53 , VAL A:75 , LEU A:76 , VAL A:108 , ASN A:131 , PRO A:149 , ILE A:151 , GLY A:165 , HOH A:628BINDING SITE FOR RESIDUE CRP A 600
7AC7SOFTWARETRP B:26 , TYR B:50 , PHE B:53 , VAL B:75 , VAL B:108 , ASN B:131 , PRO B:149 , ILE B:151 , GLY B:165 , HOH B:610BINDING SITE FOR RESIDUE CRP B 601
8AC8SOFTWARETRP C:26 , TYR C:50 , PHE C:53 , LEU C:76 , VAL C:108 , ASN C:131 , GLY C:165 , HOH C:613BINDING SITE FOR RESIDUE CRP C 602

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 7STD)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 7STD)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 7STD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 7STD)

(-) Exons   (0, 0)

(no "Exon" information available for 7STD)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:164

               SCOP domains d7stda_ A: Scytalone dehydratase                                                                                                                                     SCOP domains
               CATH domains 7stdA00 A:9-172  [code=3.10.450.50, no name defined]                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..hhhhhhh.....eeeehhhh.eee....hhhhhhhh..........eeeeeee..eeeeeee..eeeeeeeeeeeeeee.......eeeeeeeeeeeeeeeeee..eeee.eee..eeeeee.hhhh.hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 7std A   9 GEITFSDYLGLMTCVYEWADSYDSKDWDRLRKVIAPTLRIDYRSFLDKLWEAMPAEEFVGMVSSKQVLGDPTLRTQHFIGGTRWEKVSEDEVIGYHQLRVPHQRYKDTTMKEVTMKGHAHSANLHWYKKIDGVWKFAGLKPDIRWGEFDFDRIFEDGRETFGDK 172
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168


Chain B from PDB  Type:PROTEIN  Length:164

               SCOP domains d7stdb_ B: Scytalone dehydratase                                                                                                                                     SCOP domains
               CATH domains 7stdB00 B:9-172  [code=3.10.450.50, no name defined]                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..hhhhh........eeehhhh.eee....hhhhhhhh..........eeeeeee..eeeeeee..eeeeeeeeeeeeeee.......eeeeeeeeeeeeeeeeee..eeee..eeeeeeeeee.hhhh.hhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 7std B   9 GEITFSDYLGLMTCVYEWADSYDSKDWDRLRKVIAPTLRIDYRSFLDKLWEAMPAEEFVGMVSSKQVLGDPTLRTQHFIGGTRWEKVSEDEVIGYHQLRVPHQRYKDTTMKEVTMKGHAHSANLHWYKKIDGVWKFAGLKPDIRWGEFDFDRIFEDGRETFGDK 172
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168


Chain C from PDB  Type:PROTEIN  Length:164

               SCOP domains d7stdc_ C: Scytalone dehydratase                                                                                                                                     SCOP domains
               CATH domains 7stdC00 C:9-172  [code=3.10.450.50, no name defined]                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..hhhhhhh......eeehhhh.eee....hhhhhhhh..........eeeeeee..eeeeeee..eeeeeeeeeeeeeee.......eeeeeeeeeeeeeeeeee..eeee......eeeeee.hhhh.hhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 7std C   9 GEITFSDYLGLMTCVYEWADSYDSKDWDRLRKVIAPTLRIDYRSFLDKLWEAMPAEEFVGMVSSKQVLGDPTLRTQHFIGGTRWEKVSEDEVIGYHQLRVPHQRYKDTTMKEVTMKGHAHSANLHWYKKIDGVWKFAGLKPDIRWGEFDFDRIFEDGRETFGDK 172
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 3)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 7STD)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CRP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 7std)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  7std
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SCYD_MAGO7 | P56221
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  4.2.1.94
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SCYD_MAGO7 | P56221
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SCYD_MAGO7 | P56221: 1idp 1std 2std 3std 4std 5std 6std

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 7STD)
