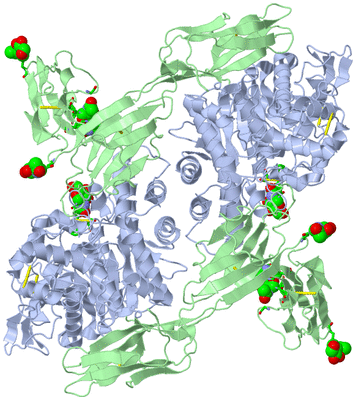

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HUMAN MDGA1 AND HUMAN NEUROLIGIN-2 COMPLEX

Authors :  H. M. Kim, J. A. Kim, D. Kim
Date :  05 Apr 17  (Deposition) - 12 Jul 17  (Release) - 12 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.14
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Immunogloubulin-Like Domain, Cell Adhesion (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. A. Kim, D. Kim, S. Y. Won, K. A. Han, D. Park, E. Cho, N. Yun, H. J. An, J. W. Um, E. Kim, J. O. Lee, J. Ko, H. M. Kim
Structural Insights Into Modulation Of Neurexin-Neuroligin Trans-Synaptic Adhesion By Mdga1/Neuroligin-2 Complex
Neuron V. 94 1121 2017
PubMed-ID: 28641111  |  Reference-DOI: 10.1016/J.NEURON.2017.05.034

(-) Compounds

Molecule 1 - NEUROLIGIN-2
    Chains: A
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Plasmid: PACGP67A
    Expression System Strain: HI5
    Expression System Taxid: 7108
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 42-610
    Gene: NLGN2, KIAA1366
    Mutation: YES
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

Molecule 2 - MAM DOMAIN-CONTAINING GLYCOSYLPHOSPHATIDYLINOSITOL ANCHOR PROTEIN 1
    Chains: B
    Engineered: YES
    Expression System: SPODOPTERA FRUGIPERDA
    Expression System Plasmid: PACGP67A
    Expression System Strain: HI5
    Expression System Taxid: 7108
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 19-330
    Gene: MDGA1, MAMDC3
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: GPI AND MAM PROTEIN,GPIM,GLYCOSYLPHOSPHATIDYLINOSITOL-MAM, MAM DOMAIN-CONTAINING PROTEIN 3

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 5)

Asymmetric Unit (1, 5)
No.NameCountTypeFull Name
1NAG5Ligand/IonN-ACETYL-D-GLUCOSAMINE
Biological Unit 1 (1, 10)
No.NameCountTypeFull Name
1NAG10Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:522 , PHE A:523 , SER A:524binding site for Mono-Saccharide NAG A 701 bound to ASN A 522
2AC2SOFTWAREASN B:235binding site for Mono-Saccharide NAG B 403 bound to ASN B 235
3AC3SOFTWAREASN B:257binding site for Mono-Saccharide NAG B 404 bound to ASN B 257
4AC4SOFTWAREGLY B:278 , TYR B:305 , ASN B:307 , LYS B:319binding site for Poly-Saccharide residues NAG B 401 through NAG B 402 bound to ASN B 307

(-) SS Bonds  (6, 6)

Asymmetric Unit
No.Residues
1A:106 -A:141
2A:317 -A:328
3A:487 -A:521
4B:60 -B:108
5B:157 -B:214
6B:262 -B:308

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5XEQ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5XEQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5XEQ)

(-) Exons   (0, 0)

(no "Exon" information available for 5XEQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:525

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee....eee.eeee.......eeeeeeeee......................eee.....................hhhhhhhhhhhhhhhh.......eeeeee...eeeeeee........hhhhh.hhhhhhhhh.eeeee...hhhhhhh.........hhhhhhhhhhhhhhhhhhhhh.eeeeeeeeeeehhhhhhhhhhhhh........eeeee............hhhhhhhhhhhhh.....hhhhhhhhhh..hhhhhhh.......................hhhhhhhh......eeeeeee...hhhhhh.hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeee...................hhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhh........................eeee....eee...hhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5xeq A  42 PVVNTAYGRVRGVRRELNNEILGPVVQFLGVPYATPPLGARRFQPPEAPASWPGVRQATTLPPACPQNLHGALPAIMLPVWFTDNLEAAATYVQNQSEDCLYLNLYVPGKKPVMLFLHGGSYMEGTGNMFDGSVLAAYGNVIVATLNYRLGVLGFLSTGDQAAKGNYGLLDQIQALRWLSENIAHFGGDPERITIFGSGAGASCVNLLILSHHSEGLFQKAIAQSGTAISSWSVNYQPLKYTRLLAAKVGCDREDSAEAVECLRRKPSRELVDQDVQPARYHIAFGPVVDGDVVPDDPEILMQQGEFLNYDMLIGVNQGEGLKFVEVSASAFDFTVSNFVDNLYGYPEGKDVLRETIKFMYTDWADRDNGEMRRKTLLALFTDHQWVAPAVATAKLHADYQSPVYFYTFYHHCQAEGRPEWADAAHGDELPYVFGVPMVGATDLFPCNFSKNDVMLSAVVMTYWTNFAKTGDPNQPVPNRFEEVVWSKFNSKEKQYLHIGLKPRVRDNYRANKVAFWLELVPHLH 609
                                    51        61        71        81        91       101       111       121       131       141       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326       336       346       356       366       376       386     ||404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       564       574       584       594       604
                                                                                                                                     149|                                                                                                                                                                                                                      392|                                                                                                                                                    552|
                                                                                                                                      175                                                                                                                                                                                                                       401                                                                                                                                                     563


Chain B from PDB  Type:PROTEIN  Length:292

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee...........eeeee....eeeeeeee.....eeeeee............eeee...hhhhh.eeeeeee......eeeeeeeeee.....eeeee............eeeeee.......eeeeee............eeee........eeeeee.........eeeeeee.........eeeeee........eeee....eeee.....eeeeeeeee.....eee.................eeee...hhhhheeeeeeee......eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5xeq B  26 QAQIVHAGQACVVKEDERVYTIREGDTLMLQCLVTGHPRPQVRWTKTAGSAETSVFNETLRIERIARTQGGRYYCKAENGVGVPAIKSIRVDVQYLDEPMLTVHQTVRGNFYQEKTVFLRCTVNSNPPARFIWKRGSDTLSHSQDNGVDIYEPLYTQGETKVLKLKNLRPQDYASYTCQVSVRNVCGIPDKAITFRLTNTTAPPALKLSVNETLVVNPGENVTVQCLLTGGDPLPQLQWSHGPGPLPLGALAQGGTLSIPSVQARDSGYYNCTATNNVGNPAKKTVNLLVRS 328
                                    35     || 48        58        68        78||      93       103       113       123       133     ||146       156       166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326
                                          41|                                79|                                                   139|
                                           45                                 85                                                    143
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5XEQ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5XEQ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5XEQ)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5XEQ)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NAG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5xeq)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5xeq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MDGA1_HUMAN | Q8NFP4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  NLGN2_HUMAN | Q8NFZ4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MDGA1_HUMAN | Q8NFP4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  NLGN2_HUMAN | Q8NFZ4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MDGA1_HUMAN | Q8NFP4: 5v5v 5v5w
