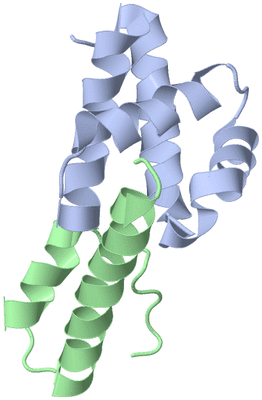

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

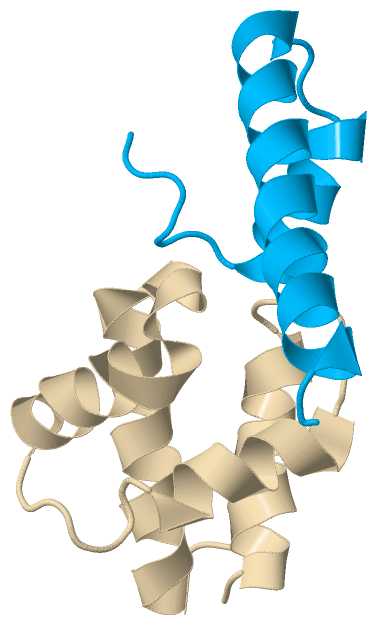

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MYOSIN VI IN COMPLEX WITH GH2 DOMAIN OF GIPC1

Authors :  G. Shang, X. Zhang
Date :  16 Mar 17  (Deposition) - 31 May 17  (Release) - 07 Jun 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.51
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Biol. Unit 5:  I,J  (1x)
Keywords :  Helical Bundle, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Shang, C. A. Brautigam, R. Chen, D. Lu, J. Torres-Vazquez, X. Zhang
Structure Analyses Reveal A Regulated Oligomerization Mechanism Of The Plexind1/Gipc/Myosin Vi Complex.
Elife V. 6 2017
PubMed-ID: 28537552  |  Reference-DOI: 10.7554/ELIFE.27322

(-) Compounds

Molecule 1 - PDZ DOMAIN-CONTAINING PROTEIN GIPC1
    Chains: A, C, E, G, I
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 258-333
    Gene: GIPC1, GIPC, RGS19IP1, SEMCAP1
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: GAIP C-TERMINUS-INTERACTING PROTEIN,RGS-GAIP-INTERACTING PROTEIN,RGS19-INTERACTING PROTEIN 1,SEMAF CYTOPLASMIC DOMAIN- ASSOCIATED PROTEIN 1,SEMCAP-1,SYNECTIN

Molecule 2 - UNCONVENTIONAL MYOSIN-VI
    Chains: B, D, F, H, J
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 1055-1099
    Gene: MYO6, SV
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: UNCONVENTIONAL MYOSIN-6

 Structural Features

(-) Chains, Units

  12345678910
Asymmetric Unit : ABCDEFGHIJ
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH
Biological Unit 5 (1x):         IJ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5V6E)

(-) Sites  (0, 0)

(no "Site" information available for 5V6E)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5V6E)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5V6E)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5V6E)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5V6E)

(-) Exons   (0, 0)

(no "Exon" information available for 5V6E)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:74

               SCOP domains -------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------- Transcript
                5v6e A  260 FEEKAIEKVDDLLESYMGIRDTELAATMVELGKDKRNPDELAEALDERLGDFAFPDEFVFDVWGAIGDAKVGRY  333
                                   269       279       289       299       309       319       329


Chain B from PDB  Type:PROTEIN  Length:47

               SCOP domains ----------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------- PROSITE
                 Transcript ----------------------------------------------- Transcript
                5v6e B 1050 GSHDLSKWKYAELRDTINTSCDIELLAACREEFHRRLKVYHAWKSKN 1096
                                  1059      1069      1079      1089


Chain C from PDB  Type:PROTEIN  Length:74

               SCOP domains -------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------- Transcript
                5v6e C  260 FEEKAIEKVDDLLESYMGIRDTELAATMVELGKDKRNPDELAEALDERLGDFAFPDEFVFDVWGAIGDAKVGRY  333
                                   269       279       289       299       309       319       329


Chain D from PDB  Type:PROTEIN  Length:45

               SCOP domains --------------------------------------------- SCOP domains
               CATH domains --------------------------------------------- CATH domains
               Pfam domains --------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------- PROSITE
                 Transcript --------------------------------------------- Transcript
                5v6e D 1052 HDLSKWKYAELRDTINTSCDIELLAACREEFHRRLKVYHAWKSKN 1096
                                  1061      1071      1081      1091


Chain E from PDB  Type:PROTEIN  Length:74

               SCOP domains -------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------- Transcript
                5v6e E  260 FEEKAIEKVDDLLESYMGIRDTELAATMVELGKDKRNPDELAEALDERLGDFAFPDEFVFDVWGAIGDAKVGRY  333
                                   269       279       289       299       309       319       329


Chain F from PDB  Type:PROTEIN  Length:44

               SCOP domains -------------------------------------------- SCOP domains
               CATH domains -------------------------------------------- CATH domains
               Pfam domains -------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------- PROSITE
                 Transcript -------------------------------------------- Transcript
                5v6e F 1053 DLSKWKYAELRDTINTSCDIELLAACREEFHRRLKVYHAWKSKN 1096
                                  1062      1072      1082      1092


Chain G from PDB  Type:PROTEIN  Length:74

               SCOP domains -------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh......hhhhhhhhhh......hhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------- Transcript
                5v6e G  260 FEEKAIEKVDDLLESYMGIRDTELAATMVELGKDKRNPDELAEALDERLGDFAFPDEFVFDVWGAIGDAKVGRY  333
                                   269       279       289       299       309       319       329


Chain H from PDB  Type:PROTEIN  Length:45

               SCOP domains --------------------------------------------- SCOP domains
               CATH domains --------------------------------------------- CATH domains
               Pfam domains --------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------- PROSITE
                 Transcript --------------------------------------------- Transcript
                5v6e H 1052 HDLSKWKYAELRDTINTSCDIELLAACREEFHRRLKVYHAWKSKN 1096
                                  1061      1071      1081      1091


Chain I from PDB  Type:PROTEIN  Length:74

               SCOP domains -------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhh......hhhhhhhhhh......hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------- Transcript
                5v6e I  260 FEEKAIEKVDDLLESYMGIRDTELAATMVELGKDKRNPDELAEALDERLGDFAFPDEFVFDVWGAIGDAKVGRY  333
                                   269       279       289       299       309       319       329


Chain J from PDB  Type:PROTEIN  Length:45

               SCOP domains --------------------------------------------- SCOP domains
               CATH domains --------------------------------------------- CATH domains
               Pfam domains --------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------- PROSITE
                 Transcript --------------------------------------------- Transcript
                5v6e J 1052 HDLSKWKYAELRDTINTSCDIELLAACREEFHRRLKVYHAWKSKN 1096
                                  1061      1071      1081      1091
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5V6E)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5V6E)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5V6E)

(-) Gene Ontology  (65, 76)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5v6e)

  Sites
(no "Sites" information available for 5v6e)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5v6e)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5v6e
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GIPC1_MOUSE | Q9Z0G0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  MYO6_MOUSE | Q64331
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GIPC1_MOUSE | Q9Z0G0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  MYO6_MOUSE | Q64331
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GIPC1_MOUSE | Q9Z0G0: 5v6b 5v6t
        MYO6_MOUSE | Q64331: 2kia 2ld3 3h8d 5v6h

(-) Related Entries Specified in the PDB File

5v6b 5v6h 5v6r 5v6t
