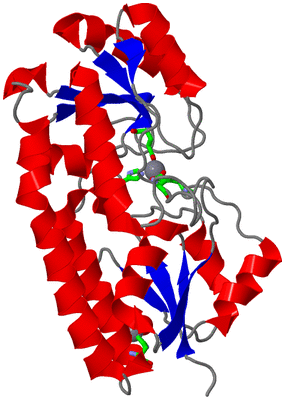

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  YFEA WITH METAL BOUND TO SITE 2 - MN WAVELENGTH

Authors :  C. D. Radka, L. J. Delucas, S. G. Aller
Date :  24 Feb 17  (Deposition) - 12 Jul 17  (Release) - 12 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.99
Chains :  Asym./Biol. Unit :  A
Keywords :  Polyspecific, Transition Metal, Transport, Metal Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. D. Radka, L. J. Delucas, L. S. Wilson, M. B. Lawrenz, R. D. Perry, S. G. Aller
Crystal Structure Of Yersinia Pestis Virulence Factor Yfea Reveals Two Polyspecific Metal-Binding Sites
Acta Crystallogr. , Sect. D V. 73 573 2017
PubMed: search  |  Reference-DOI: 10.1107/S2059798317007045

(-) Compounds

Molecule 1 - PERIPLASMIC CHELATED IRON-BINDING PROTEIN YFEA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: YFEA, YPO2439, Y1897, YP_2227
    Organism Scientific: YERSINIA PESTIS
    Organism Taxid: 632

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1MN2Ligand/IonMANGANESE (II) ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:76 , HIS A:141 , GLU A:207 , ASP A:282binding site for residue MN A 401
2AC2SOFTWAREHIS A:163 , HOH A:627 , HOH A:639 , HOH A:659binding site for residue MN A 402

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5UYH)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Gly A:277 -Val A:278

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5UYH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5UYH)

(-) Exons   (0, 0)

(no "Exon" information available for 5UYH)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:272

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.hhhhhhhhhhhhh..eeeee.............hhhhhhhhhh..eeee.......hhhhhhh......eee.....................hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhh.eeeeee..hhhhhhhh..eeeeee.......hhhhhhhhhhhhhhhhh..ee.......hhhhhhhhhhh..ee.................hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5uyh A  38 TAKKFKVVTTFTIIQDIAQNIAGDVAVVESITKPGAEIHDYQPTPRDIVKAQSADLILWNGMNLERWFEKFFESIKDVPSAVVTAGITPLPIREGPYSGIANPHAWMSPSNALIYIENIRKALVEHDPAHAETYNRNAQAYAEKIKALDAPLRERLSRIPAEQRWLVTSEGAFSYLAKDYGFKEVYLWPINAEQQGIPQQVRHVIDIIRENKIPVVFSESTISDKPAKQVSKETGAQYGGVLYVDSLSGEKGPVPTYISLINMTVDTIAKGF 309
                                    47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5UYH)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5UYH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5UYH)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5UYH)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly A:277 - Val A:278   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5uyh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  YFEA_YERPE | Q56952
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  YFEA_YERPE | Q56952
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        YFEA_YERPE | Q56952: 5uxs 5uxu 5uy0 5uy4 5uy5 5uya 5uyb 5uyc 5uyd 5uye 5uyf 5uyg 5uyv 5uyw

(-) Related Entries Specified in the PDB File

5uyg YFEA WITH METAL BOUND TO SITE 2 - MN
