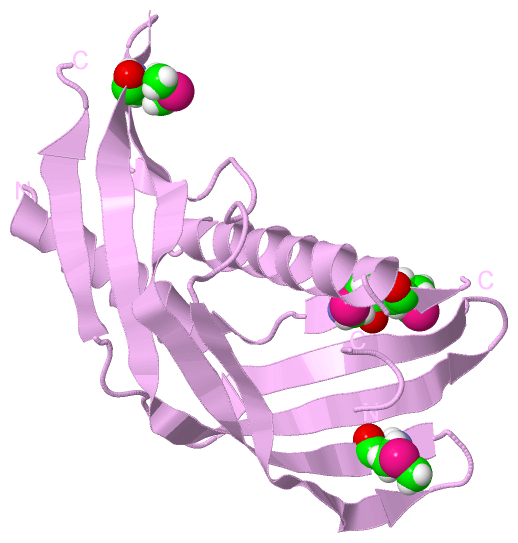

Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)
Image Biological Unit 7
Biological Unit 7  (Jmol Viewer)

(-) Description

Title :  TRANSMEMBRANE PROTEIN 24 SMP DOMAIN

Authors :  J. A. Lees, K. M. Reinisch
Date :  17 Oct 16  (Deposition) - 01 Mar 17  (Release) - 08 Mar 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.96
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  F  (1x)
Biol. Unit 2:  A  (1x)
Biol. Unit 3:  B  (1x)
Biol. Unit 4:  C  (1x)
Biol. Unit 5:  D  (1x)
Biol. Unit 6:  E  (1x)
Biol. Unit 7:  A,B,C,D,E,F  (1x)
Keywords :  Lipid Transfer Protein, Smp, Membrane Contact Sites, Lipid Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. A. Lees, M. Messa, E. W. Sun, H. Wheeler, F. Torta, M. R. Wenk, P. De Camilli, K. M. Reinisch
Lipid Transport By Tmem24 At Er-Plasma Membrane Contacts Regulates Pulsatile Insulin Secretion.
Science V. 355 2017
PubMed-ID: 28209843  |  Reference-DOI: 10.1126/SCIENCE.AAH6171

(-) Compounds

Molecule 1 - TRANSMEMBRANE PROTEIN 24
    Chains: F, A, B, C, D, E
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Gene: C2CD2L, KIAA0285, TMEM24, DLNB23
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: C2 DOMAIN-CONTAINING PROTEIN 2-LIKE

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x):      F
Biological Unit 2 (1x): A
Biological Unit 3 (1x):  B
Biological Unit 4 (1x):   C
Biological Unit 5 (1x):    D
Biological Unit 6 (1x):     E
Biological Unit 7 (1x): ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 24)

Asymmetric Unit (1, 24)
No.NameCountTypeFull Name
1MSE24Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 4 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 5 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 6 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
Biological Unit 7 (1, 24)
No.NameCountTypeFull Name
1MSE24Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 5TOD)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5TOD)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5TOD)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5TOD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5TOD)

(-) Exons   (0, 0)

(no "Exon" information available for 5TOD)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:152

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhh.eee.........eeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeeeee...eeeeeeee......eeeeee...hhhhhhhhhhhhhhh..eeee Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5tod A  89 LASLFAFKSFRENWQRAWVRALNEQACIQIAFEEVPQLPPRASISHVTCVDQSEHTmVLRCQLSAEEVRFPVSVTQQSPAAVSmETYHVTLTLPPTQLEVNLEEIPGEGLLISWAFTDRPDLSLTVLPKLELSTIEELIKDAIVSTQPAmmV 255
                                    98       108      |123       133       143      |153       163       173   |   183       193       203       213       223|      243       253|
                                                    115|                          150-MSE                    177-MSE                                       223|                253-MSE
                                                     121                                                                                                    234                 254-MSE


Chain B from PDB  Type:PROTEIN  Length:152

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhh.eee.........eeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeeeee...eeeeeeee......eeeeee...hhhhhhhhhhhhhhh..eee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5tod B  89 LASLFAFKSFRENWQRAWVRALNEQACIQIAFEEVPQLPPRASISHVTCVDQSEHTmVLRCQLSAEEVRFPVSVTQQSPAAVSmETYHVTLTLPPTQLEVNLEEIPGEGLLISWAFTDRPDLSLTVLPKLELSTIEELIKDAIVSTQPAmmV 255
                                    98       108      |123       133       143      |153       163       173   |   183       193       203       213       223|      243       253|
                                                    115|                          150-MSE                    177-MSE                                       223|                253-MSE
                                                     121                                                                                                    234                 254-MSE


Chain C from PDB  Type:PROTEIN  Length:144

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhh.eee........eeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeeeee...eeeeeeee......eeeeee...hhhhhhhhhhhhhhh..eeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5tod C  97 SFRENWQRAWVRALNEQACQIAFEEVPQLPPRASISHVTCVDQSEHTmVLRCQLSAEEVRFPVSVTQQSPAAVSmETYHVTLTLPPTQLEVNLEEIPGEGLLISWAFTDRPDLSLTVLPKLELSTIEELIKDAIVSTQPAmmVN 256
                                   106       122       132       142       152       162       172    |  182       192       202       212       222||     242       252||
                                            115|                         150-MSE                    177-MSE                                       223|                253-MSE
                                             122                                                                                                   234                 254-MSE


Chain D from PDB  Type:PROTEIN  Length:157

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhhhhhhh..eeeee........eeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeeeee...eeeeeeee......eeeeee...hhhhhhhhhhhhhhh..eeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5tod D  89 LASLFAFKSFRENWQRAWVRALNEQACRNGSIQIAFEEVPQLPPRASISHVTCVDQSEHTmVLRCQLSAEEVRFPVSVTQQSPAAVSmETYHVTLTLPPTQLEVNLEEIPGEGLLISWAFTDRPDLSLTVLPKLELSTIEELIKDAIVSTQPAmmVN 256
                                    98       108       118|      129       139       149|      159       169       179       189       199       209       219   ||  239       249   ||
                                                       118|                           150-MSE                    177-MSE                                       223|                253-MSE
                                                        120                                                                                                     234                 254-MSE


Chain E from PDB  Type:PROTEIN  Length:152

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhh..eee.........eeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeeeee...eeeeeeee......eeeeee...hhhhhhhhhhhhhhh..eeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5tod E  90 ASLFFKSFRENWQRAWVRALNEQACRIQIAFEEVPQLPPRASISHVTCVDQSEHTmVLRCQLSAEEVRFPVSVTQQSPAAVSmETYHVTLTLPPTQLEVNLEEIPGEGLLISWAFTDRPDLSLTVLPKLELSTIEELIKDAIVSTQPAmmVN 256
                               ||  100       110     ||124       134       144     | 154       164       174  |    184       194       204       214       234       244       254
                              93|                  116|                          150-MSE                    177-MSE                                       223|                253-MSE
                               95                   121                                                                                                    234                 254-MSE


Chain F from PDB  Type:PROTEIN  Length:150

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhh.eeee......eeeeeeeeeeee...eeeeeeeeeeeeeeeeeeeeeee..eeeeeeeeeeeeeeeeeeeeeeeee...eeeeeeee........eeee...hhhhhhhhhhhhhhh..eeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5tod F  90 ASLFAFKSFRENWQRAWVRALNEQACIQIAFEEVLPPRASISHVTCVDQSEHTmVLRCQLSAEEVRFPVSVTQQSPAAVSmETYHVTLTLPPTQLEVNLEEIPGEGLLISWAFTDRPDLSLTVLPKLELSTIEELIKDAIVSTQPAmmVN 256
                                    99       109     ||124   ||  136       146   |   156       166       176|      186       196       206       216      |236       246      |256
                                                   115|    128|                150-MSE                    177-MSE                                       223|                253-MSE
                                                    121     131                                                                                          234                 254-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5TOD)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5TOD)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5TOD)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 5tod)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5tod)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format | Biol. Unit 7 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5tod
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  C2C2L_HUMAN | O14523
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  C2C2L_HUMAN | O14523
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 5TOD)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5TOD)
