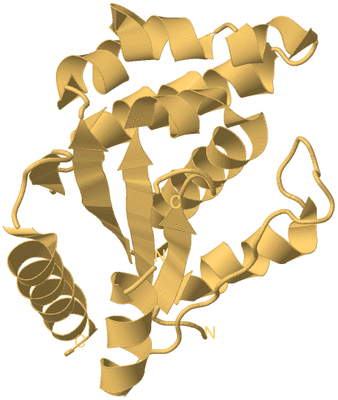

Image Biological Unit 7
Biological Unit 7  (Jmol Viewer)
Image Biological Unit 8
Biological Unit 8  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE TIR DOMAIN FROM THE ARABIDOPSIS THALIANA DISEASE RESISTANCE PROTEIN RPP1

Authors :  A. R. Bentham, X. Zhang, T. Croll, S. Williams, B. Kobe
Date :  20 Sep 16  (Deposition) - 01 Feb 17  (Release) - 22 Mar 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  E  (1x)
Biol. Unit 6:  F  (1x)
Biol. Unit 7:  G  (1x)
Biol. Unit 8:  H  (1x)
Keywords :  Tir Domain, Flavodoxin-Like, Resistance Protein, Signaling Domain, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Zhang, M. Bernoux, A. R. Bentham, T. E. Newman, T. Ve, L. W. Casey, T. M. Raaymakers, J. Hu, T. I. Croll, K. J. Schreiber, B. J. Staskawicz, P. A. Anderson, K. H. Sohn, S. J. Williams, P. N. Dodds, B. Kobe
Multiple Functional Self-Association Interfaces In Plant Ti Domains.
Proc. Natl. Acad. Sci. V. 114 E2046 2017 U. S. A.
PubMed-ID: 28159890  |  Reference-DOI: 10.1073/PNAS.1621248114

(-) Compounds

Molecule 1 - RECOGNITION OF PERONOSPORA PARASITICA 1
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Gene: RPP1
    Organism Common: MOUSE-EAR CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D
Biological Unit 5 (1x):     E
Biological Unit 6 (1x):      F
Biological Unit 7 (1x):       G
Biological Unit 8 (1x):        H

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5TEB)

(-) Sites  (0, 0)

(no "Site" information available for 5TEB)

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:236 -C:236
2B:236 -F:236
3D:236 -G:236
4E:236 -H:236

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5TEB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5TEB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5TEB)

(-) Exons   (0, 0)

(no "Exon" information available for 5TEB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhhh.hhhhhhhhhhhhh...............hhhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh..ee.hhh.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb A  89 AKHDVFPSFHGADVRRTFLSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248


Chain B from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhhh.hhhhhhhhhhhhhh..............hhhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh....ee.hhh.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb B  89 AKHDVFPSFHGADVRRTFLSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248


Chain C from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee...hhhhhhhhhhhhhhhhhhh...............hhhhhhhhhheeeeeeeehhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh...eee....hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb C  89 AKHDVFPSFHGADVRRTFLSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248


Chain D from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhhh.hhhhhhhhhhhhhh...............hhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhhh.eeeeee...hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh...eee.hhh.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb D  89 AKHDVFPSFHGADVRRTFLSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248


Chain E from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.hhhhhh.hhhhhhhhhhhhh................hhhhhhhhhheeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhh.eeeeeee..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...ee.hhh.hhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb E  89 AKHDVFPSFHGADVRRTFLSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248


Chain F from PDB  Type:PROTEIN  Length:166

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee...hhhhhhhhhhhhhhhhhh................hhhhhhhhhheeeeeeee......hhhhhhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhh...eee....hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb F  89 AKHDVFPSFHGADVRRTFLSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248


Chain G from PDB  Type:PROTEIN  Length:159

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee......hhhhhhhhhh...............hhhhhhhhhhh.eeeeeehhhhhhhhhhhhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhh.hhhhh..hhhhhhhhhhhhhhh....eee....hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb G  90 KHDVFPSFHGADSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    99 ||    115       125       135       145       155       165       175       185       195       205       215       225       235       245
                                     101|
                                      108


Chain H from PDB  Type:PROTEIN  Length:160

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee......hhhhhhhhhh...............hhhhhhhhhheeeeeeeehhhhhhhhhhhhhhhhhhhhhhhh..eeeeeee..hhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh....eee....hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5teb H  89 AKHDVFPSFHGADSHILESFRRKGIDTFIDNNIERSKSIGPELKEAIKGSKIAIVLLSRKYASSSWCLDELAEIMICREVLGQIVMTIFYEVDPTDIKKQTGEFGKAFTKTCRGKPKEQVERWRKALEDVATIAGYHSHKWCDEAEMIEKISTDVSNMLD 254
                                    98  ||   114       124       134       144       154       164       174       184       194       204       214       224       234       244       254
                                      101|
                                       108
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5TEB)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5TEB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5TEB)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5teb)

  Sites
(no "Sites" information available for 5teb)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5teb)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]
    Biological Unit 8  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format | Biol. Unit 7 PNG format | Biol. Unit 8 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5teb
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  D9IW02_ARATH | D9IW02
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  D9IW02_ARATH | D9IW02
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 5TEB)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5TEB)
