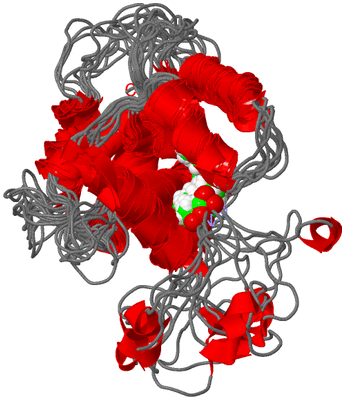

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF CALCIUM FREE, MYRISTOYLATED VISININ-LIKE PROTEIN 3

Authors :  S. Lim, J. B. Ames
Date :  02 Sep 16  (Deposition) - 12 Jul 17  (Release) - 12 Jul 17  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
NMR Structure *:  A  (1x)
Keywords :  Calmodulin, Hippocalcin, Neuronal Calcium Sensor, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Li, S. Lim, J. B. Ames
Solution Structure Of Calcium Free, Myristoylated Visinin-Like Protein 3
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HIPPOCALCIN-LIKE PROTEIN 1
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: HPCAL1, BDR1
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Other Details: MYRISTOYL GROUP IS COVALENTLY ATTACHED TO THE N- TERMINAL
    Synonym: CALCIUM-BINDING PROTEIN BDR-1,HLP2,VISININ-LIKE PROTEIN 3, VILIP-3

 Structural Features

(-) Chains, Units

  1
NMR Structure (10x): A
NMR Structure * (1x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

NMR Structure (1, 1)
No.NameCountTypeFull Name
1MYR1Mod. Amino AcidMYRISTIC ACID
NMR Structure * (1, 1)
No.NameCountTypeFull Name
1MYR1Mod. Amino AcidMYRISTIC ACID

(-) Sites  (0, 0)

(no "Site" information available for 5T7C)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5T7C)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5T7C)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5T7C)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5T7C)

(-) Exons   (0, 0)

(no "Exon" information available for 5T7C)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:186

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhh.........hhhhhhhhhhhhhhhh......hhhhhhhhhh.....hhhhhhhhhhhhh........hhhhhhhhhh....hhhhhhhhhhhh...........hhhhhhhhhhhhhhhh...........hhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5t7c A   1 xGKQNSKLRPEVLQDLRENTEFTDHELQEWYKGFLKDCPTGHLTVDEFKKIYANFFPYGDASKFAEHVFRTFDTNGDGTIDFREFIIALSVTSRGKLEQKLKWAFSMYDLDGNGYISRSEMLEIVQAIYKMVSSVMKMPEDESTPEKRTDKIFRQMDTNNDGKLSLEEFIRGAKSDPSIVRLLQCD 186
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
                            |
                            1-MYR
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5T7C)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5T7C)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5T7C)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 5T7C)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MYR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 5t7c)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5t7c)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
