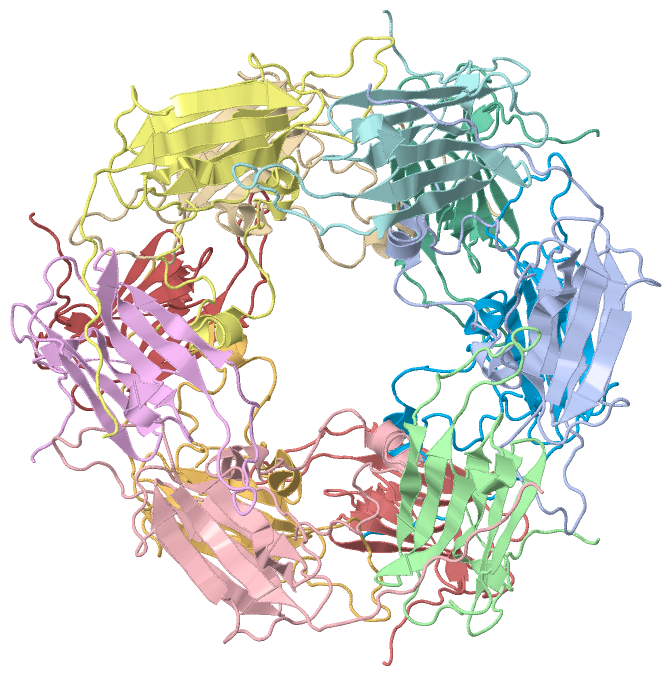

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  HSP21 DODECAMER, STRUCTURAL MODEL BASED ON CRYO-EM AND HOMOLOGY MODELLING

Authors :  G. Rutsdottir, J. Harmark, P. J. B. Koeck, H. Hebert, C. A. G. Soderberg, C. Emanuelsson
Date :  07 Apr 17  (Deposition) - 03 May 17  (Release) - 24 May 17  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  10.00
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Keywords :  Stress Response, Heat Shock Protein, Chaperone, All-Beta Greek Key (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Rutsdottir, J. Harmark, Y. Weide, H. Hebert, M. I. Rasmussen, S. Wernersson, M. Respondek, M. Akke, P. Hjrup, P. J. B. Koeck, C. A. G. Soderberg, C. Emanuelsson
Structural Model Of Dodecameric Heat-Shock Protein Hsp21: Flexible N-Terminal Arms Interact With Client Proteins Whil C-Terminal Tails Maintain The Dodecamer And Chaperone Activity.
J. Biol. Chem. V. 292 8103 2017
PubMed-ID: 28325834  |  Reference-DOI: 10.1074/JBC.M116.766816

(-) Compounds

Molecule 1 - 25.3 KDA HEAT SHOCK PROTEIN, CHLOROPLASTIC
    Chains: A, C, D, G, I, J
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: HSP25.3, AT4G27670, T29A15.160
    Organism Common: MOUSE-EAR CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Synonym: ATHSP25.3

Molecule 2 - 25.3 KDA HEAT SHOCK PROTEIN, CHLOROPLASTIC
    Chains: B, E, F, H, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: HSP25.3, AT4G27670, T29A15.160
    Organism Common: MOUSE-EAR CRESS
    Organism Scientific: ARABIDOPSIS THALIANA
    Organism Taxid: 3702
    Synonym: ATHSP25.3

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric/Biological Unit : ABCDEFGHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5NMS)

(-) Sites  (0, 0)

(no "Site" information available for 5NMS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5NMS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5NMS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5NMS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5NMS)

(-) Exons   (0, 0)

(no "Exon" information available for 5NMS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:143

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................hhhhhhh........hhhhhh...........eeeeeeeee........eeeeee..eeeeee..................eeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nms A  42 LLDPLSPMRTMRQMLDTMDRMFEDTMPVSGRNRGGSGVSEIRAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181


Chain B from PDB  Type:PROTEIN  Length:102

               SCOP domains ------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee....eeeeeeeee....hhh.eeeeee..eeeeeee................eeeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 5nms B  83 RAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    92       102       112       122       132       142       152       162       172       182


Chain C from PDB  Type:PROTEIN  Length:143

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................hhhhhhh........hhhhhh...........eeeeeeeee........eeeeee..eeeeee..................eeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nms C  42 LLDPLSPMRTMRQMLDTMDRMFEDTMPVSGRNRGGSGVSEIRAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181


Chain D from PDB  Type:PROTEIN  Length:143

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................hhhhhhh........hhhhhh...........eeeeeeeee........eeeeee..eeeeee..................eeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nms D  42 LLDPLSPMRTMRQMLDTMDRMFEDTMPVSGRNRGGSGVSEIRAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181


Chain E from PDB  Type:PROTEIN  Length:102

               SCOP domains ------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee....eeeeeeeee....hhh.eeeeee..eeeeeee................eeeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 5nms E  83 RAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    92       102       112       122       132       142       152       162       172       182


Chain F from PDB  Type:PROTEIN  Length:102

               SCOP domains ------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee....eeeeeeeee....hhh.eeeeee..eeeeeee................eeeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 5nms F  83 RAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    92       102       112       122       132       142       152       162       172       182


Chain G from PDB  Type:PROTEIN  Length:143

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................hhhhhhh........hhhhhh...........eeeeeeeee........eeeeee..eeeeee..................eeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nms G  42 LLDPLSPMRTMRQMLDTMDRMFEDTMPVSGRNRGGSGVSEIRAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181


Chain H from PDB  Type:PROTEIN  Length:102

               SCOP domains ------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee....eeeeeeeee....hhh.eeeeee..eeeeeee................eeeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 5nms H  83 RAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    92       102       112       122       132       142       152       162       172       182


Chain I from PDB  Type:PROTEIN  Length:143

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................hhhhhhh........hhhhhh...........eeeeeeeee........eeeeee..eeeeee..................eeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nms I  42 LLDPLSPMRTMRQMLDTMDRMFEDTMPVSGRNRGGSGVSEIRAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181


Chain J from PDB  Type:PROTEIN  Length:143

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................hhhhhhh........hhhhhh...........eeeeeeeee........eeeeee..eeeeee..................eeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5nms J  42 LLDPLSPMRTMRQMLDTMDRMFEDTMPVSGRNRGGSGVSEIRAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    51        61        71        81        91       101       111       121       131       141       151       161       171       181


Chain K from PDB  Type:PROTEIN  Length:102

               SCOP domains ------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee....eeeeeeeee....hhh.eeeeee..eeeeeee................eeeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 5nms K  83 RAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    92       102       112       122       132       142       152       162       172       182


Chain L from PDB  Type:PROTEIN  Length:102

               SCOP domains ------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...ee....eeeeeeeee....hhh.eeeeee..eeeeeee................eeeeee...........eeeee..eeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------ Transcript
                 5nms L  83 RAPWDIKEEEHEIKMRFDMPGLSKEDVKISVEDNVLVIKGEQKKEDSDDSWSGRSVSSYGTRLQLPDNCEKDKIKAELKNGVLFITIPKTKVERKVIDVQIQ 184
                                    92       102       112       122       132       142       152       162       172       182
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5NMS)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5NMS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5NMS)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5nms)

  Sites
(no "Sites" information available for 5nms)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5nms)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5nms
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  HS25P_ARATH | P31170
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  HS25P_ARATH | P31170
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        HS25P_ARATH | P31170: 5mb8

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5NMS)
