(-) Description

Title :  STRUCTURE OF THE A DOMAIN OF CARBOXYLIC ACID REDUCTASE (CAR) FROM NOCARDIA IOWENSIS IN COMPLEX WITH AMP AND BENZOIC ACID

Authors :  M. S. Dunstan, D. Leys
Date :  04 Jan 17  (Deposition) - 05 Jul 17  (Release) - 12 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.71
Chains :  Asym./Biol. Unit :  A
Keywords :  Adenylation Domain, Carboxylic Acid Reductase, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Gahloth, M. S. Dunstan, D. Quaglia, E. Klumbys, M. P. Lockhart-Cairns, A. M. Hill, S. R. Derrington, N. S. Scrutton, N. J. Turner, D. Leys
Structures Of Carboxylic Acid Reductase Reveal Domain Dynamics Underlying Catalysis.
Nat. Chem. Biol. 2017
PubMed: search  |  Reference-DOI: 10.1038/NCHEMBIO.NCHEMBIO.2434

(-) Compounds

Molecule 1 - CARBOXYLIC ACID REDUCTASE
    Chains: A
    EC Number: 1.2.1.-, 1.2.1.30
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: CAR
    Organism Scientific: NOCARDIA IOWENSIS
    Organism Taxid: 204891
    Synonym: CAR,ATP/NADPH-DEPENDENT CARBOXYLIC ACID REDUCTASE,ARYL ALDEHYDE OXIDOREDUCTASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1AMP1Ligand/IonADENOSINE MONOPHOSPHATE
2BEZ1Ligand/IonBENZOIC ACID

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETHR A:255 , HIS A:300 , SER A:395 , ALA A:396 , PRO A:397 , ASP A:416 , GLY A:417 , TYR A:418 , GLY A:419 , THR A:421 , ASP A:495 , TYR A:507 , ARG A:510 , LYS A:616 , BEZ A:1202 , HOH A:1327 , HOH A:1492 , HOH A:1506binding site for residue AMP A 1201
2AC2SOFTWAREHIS A:300 , ILE A:301 , SER A:395 , GLY A:417 , GLY A:419 , SER A:420 , ALA A:425 , AMP A:1201 , HOH A:1492 , HOH A:1776binding site for residue BEZ A 1202

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5MSD)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Arg A:435 -Pro A:436
2Pro A:436 -Pro A:437

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5MSD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5MSD)

(-) Exons   (0, 0)

(no "Exon" information available for 5MSD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:636

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhh...hhhhhhhhhhhhh...eeeeeeeeeeee......eeeeeeeeeeeeehhhhhhhhhhhhhhhhh..........eeeee...hhhhhhhhhhhhhhh.eeeee....hhhhhhhhhhhhh..eeee...hhhhhhhhhhh.....eeee......hhhhhhhhhhhhhhhhhh....eeeehhhhhhhhhh...............eeeeeee.......eeeeeehhhhhhhhhh............eeee.....hhhhhhhhhhhhhh..eeee.......hhhhhhhhhh..eeeehhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.......eeeee....hhhhhhhhhhhhh..eeeeeee...eeeeee..ee....eeeeeee.hhhhh.........eeeeeeee.........hhhhhhhh......eeeeeeeeeee..eeeeeee...eee.....eeehhhhhhhhh....eeeeeee........eeeeeehhhhhh..hhhhhhhhhhhhhhhhhhhh..hhhhh..eeee..................hhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5msd A   4 DSPDERLQRRIAQLFAEDEQVKAARPLEAVSAAVSAPGMRLAQIAATVMAGYADRPAAGQRAFELNTDDATGRTSLRLLPRFETITYRELWQRVGEVAAAWHHDPENPLRAGDFVALLGFTSIDYATLDLADIHLGAVTVPLQASAAVSQLIAILTETSPRLLASTPEHLDAAVECLLAGTTPERLVVFDYHPEDDDQRAAFESARRRLADAGSLVIVETLDAVRARGRDLPAAPLFVPDTDDDPLALLIYTSGSTGTPKGAMYTNRLAATMWQGNSMLQGNSQRVGINLNYMPMSHIAGRISLFGVLARGGTAYFAAKSDMSTLFEDIGLVRPTEIFFVPRVCDMVFQRYQSELDRRSVAGADLDTLDREVKADLRQNYLGGRFLVAVVGSAPLAAEMKTFMESVLDLPLHDGYGSTEAGASVLLDNQIQRPPVLDYKLVDVPELGYFRTDRPHPRGELLLKAETTIPGYYKRPEVTAEIFDEDGFYKTGDIVAELEHDRLVYVDRRNNVLKLSQGEFVTVAHLEAVFASSPLIRQIFIYGSSERSYLLAVIVPTDDALRGRDTATLKSALAESIQRIAKDANLQPYEIPRDFLIETEPFTIANGLLSGIAKLLRPNLKERYGAQLEQMYTDLAT 639
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463       473       483       493       503       513       523       533       543       553       563       573       583       593       603       613       623       633
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5MSD)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5MSD)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5MSD)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    AMP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    BEZ  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Arg A:435 - Pro A:436   [ RasMol ]
    Pro A:436 - Pro A:437   [ RasMol ]

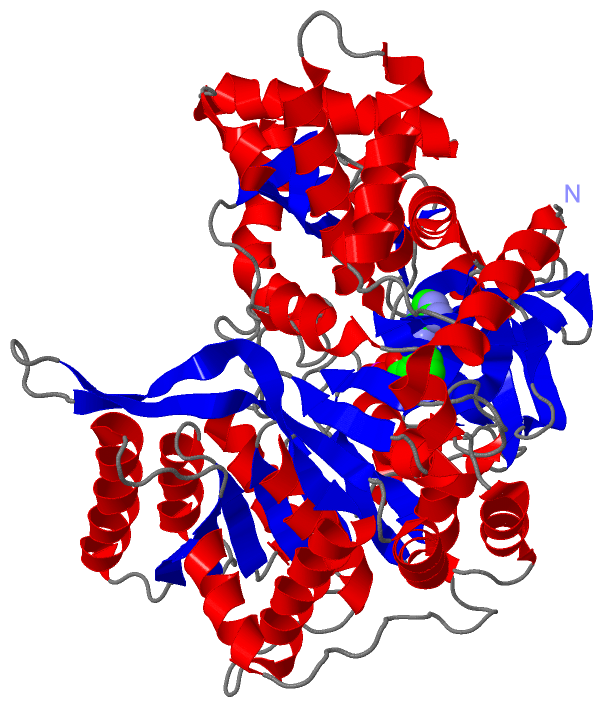

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
