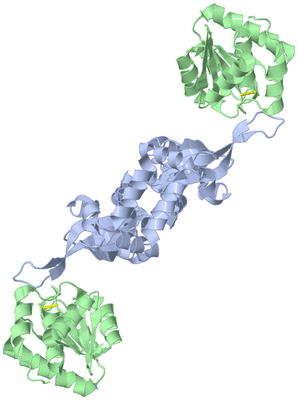

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PRL-1 IN COMPLEX WITH THE BATEMAN DOMAIN OF CNNM2

Authors :  P. Gimenez-Mascarell, I. Oyenarte, S. Hardy, T. Breiderholff, M. Stui E. Konstatin, T. Dierks, A. L. Pey, J. Ereno-Orbea, M. L. Martinez-Cha R. Khalaf-Nazzal, F. Claverie-Martin, D. Muller, M. Tremblay, L. A. M Cruz
Date :  12 Dec 16  (Deposition) - 21 Dec 16  (Release) - 01 Feb 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Cyclin M, Magnesium Transport, Acdp, Metal Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Gimenez-Mascarell, I. Oyenarte, S. Hardy, T. Breiderhoff, M. Stuiver, E. Kostantin, T. Diercks, A. L. Pey, J. Ereno-Orbea, M. L. Martinez-Chantar, R. Khalaf-Nazzal, F. Claverie-Martin, D. Muller, M. L. Tremblay, L. A. Martinez-Cruz
Structural Basis Of The Oncogenic Interaction Of Phosphatas Prl-1 With The Magnesium Transporter Cnnm2.
J. Biol. Chem. V. 292 786 2017
PubMed-ID: 27899452  |  Reference-DOI: 10.1074/JBC.M116.759944

(-) Compounds

Molecule 1 - METAL TRANSPORTER CNNM2
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: CNNM2, ACDP2
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: ANCIENT CONSERVED DOMAIN-CONTAINING PROTEIN 2,MACDP2,CYCLIN- M2

Molecule 2 - PROTEIN TYROSINE PHOSPHATASE TYPE IVA 1
    Chains: B
    EC Number: 3.1.3.48
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: PTP4A1, PRL1
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: PROTEIN-TYROSINE PHOSPHATASE 4A1,PROTEIN-TYROSINE PHOSPHATASE OF REGENERATING LIVER 1,PRL-1

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5MMZ)

(-) Sites  (0, 0)

(no "Site" information available for 5MMZ)

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1B:49 -B:104

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Gly A:555 -Glu A:556

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5MMZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5MMZ)

(-) Exons   (0, 0)

(no "Exon" information available for 5MMZ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:150

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhh...hhhhhhee.hhh..ee...eehhhhhhhhhhhh..eeeee......eeeeee.hhhh..hhhhheehhhhhhhh....eeee...hhhhhhhhhhhh...eeeeeeee.......eeeeeeeeehhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5mmz A 429 MEELNIIQGALELRTKTVEDVMTPLRDCFMITGEAILDFNTMSEIMESGYTRIPVFEGERSNIVDLLFVKDLAFVDPDDCTPLKTITKFYNHPLHFVFNDTKLDAMLEEFKKGKSHLAIVQRVNNEGEGDPFYEVLGIVTLEDVIEEIIK 578
                                   438       448       458       468       478       488       498       508       518       528       538       548       558       568       578


Chain B from PDB  Type:PROTEIN  Length:150

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeee..eeeeee......hhhhhhhhhhhhheeeeee.......hhhhhhh..eeee.........hhhhhhhhhhhhhhhhhhh...eeeee.....hhhhhhhhhhhhhh..hhhhhhhhhhhhh....hhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 5mmz B   8 APVEVTYKNMRFLITHNPTNATLNKFIEELKKYGVTTIVRVCEATYDTTLVEKEGIHVLDWPFDDGAPPSNQIVDDWLSLVKIKFREEPGCCIAVHCVAGLGRAPVLVALALIEGGMKYEDAVQFIRQKRRGAFNSKQLLYLEKYRPKMR 157
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5MMZ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5MMZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5MMZ)

(-) Gene Ontology  (32, 34)

Asymmetric Unit(hide GO term definitions)
