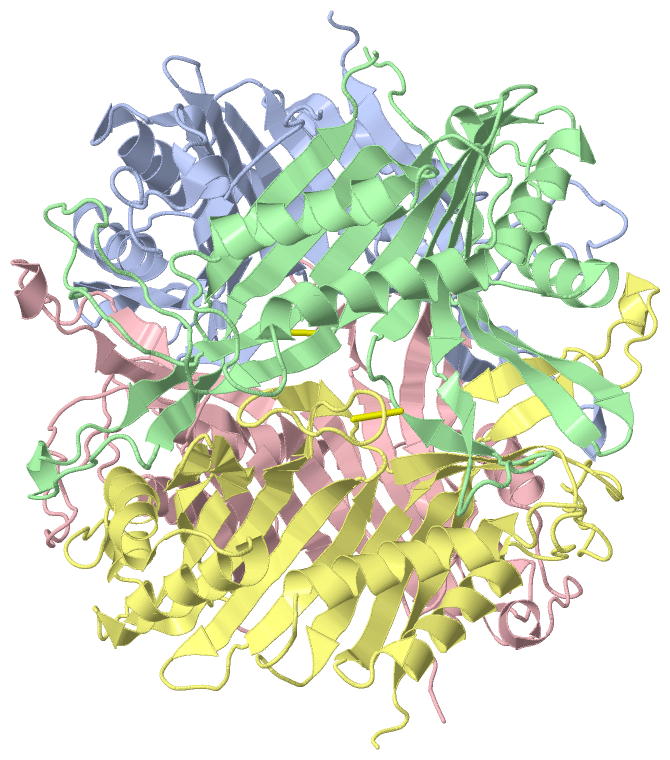

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF URATE OXIDASE FROM ZEBRAFISH

Authors :  G. Zanotti, L. Cendron, R. Percudani, R. Berni
Date :  01 Nov 16  (Deposition) - 21 Dec 16  (Release) - 21 Dec 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Keywords :  Uric Acid, Urate, Purine Metabolism, Uricolytic Activities, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Marchetti, A. Liuzzi, B. Fermi, R. Corsini, C. Folli, V. Speranzini F. Gandolfi, S. Bettati, L. Ronda, L. Cendron, R. Berni, G. Zanotti, R. Percudani
Catalysis And Structure Of Zebrafish Urate Oxidase Provide Insights Into The Origin Of Hyperuricemia In Hominoids.
Sci Rep V. 6 38302 2016
PubMed-ID: 27922051  |  Reference-DOI: 10.1038/SREP38302

(-) Compounds

Molecule 1 - URICASE
    Chains: A, B, C, D, E, F, G, H
    EC Number: 1.7.3.3
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: UOX
    Organism Common: ZEBRAFISH
    Organism Scientific: DANIO RERIO
    Organism Taxid: 7955
    Synonym: URATE OXIDASE

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5M98)

(-) Sites  (0, 0)

(no "Site" information available for 5M98)

(-) SS Bonds  (4, 4)

Asymmetric Unit
No.Residues
1A:129 -C:129
2B:129 -D:129
3E:129 -G:129
4F:129 -H:129

(-) Cis Peptide Bonds  (10, 10)

Asymmetric Unit
No.Residues
1Asn A:281 -Pro A:282
2Asn B:281 -Pro B:282
3Asn C:281 -Pro C:282
4Gly D:218 -Pro D:219
5Asn D:281 -Pro D:282
6Asn E:281 -Pro E:282
7Asn F:281 -Pro F:282
8Asn G:281 -Pro G:282
9Gly H:218 -Pro H:219
10Asn H:281 -Pro H:282

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5M98)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5M98)

(-) Exons   (0, 0)

(no "Exon" information available for 5M98)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeee..eeeeeeeeeeeeeee...hhhhh........hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh....eeeeeeeeee..eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee.eeee...hhh........eeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 A   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain B from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeee..eeeeeeeeeeeeeee...hhhhh........hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh....eeeeeeeeeee.eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee.eeee...hhh........eeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 B   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain C from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeee..eeeeeeeeeeeeeee...hhhh.........hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh....eeeeeeeeeee.eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee..eee...hhh........eee.....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 C   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain D from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeee..eeeeeeeeeeeeeee...hhhhh........hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh....eeeeeeeeeee.eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee.eeee...hhh........eeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 D   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain E from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeee....eeeeeeeeeeeeee...hhhhh........hhhhhhhhhhhhhh.....hhhhhhhhhhhhhh....eeeeeeeeeee.eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee.eeee...hhh........eeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 E   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain F from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeee....eeeeeeeeeeeeee...hhhhh........hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh....eeeeeeeeeee.eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee.eeee...hhh........eeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 F   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain G from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeee..eeeeeeeeeeeeeee...hhhh.........hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh....eeeeeeeeee.......................eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee..eee...hhh........eee.....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 G   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287


Chain H from PDB  Type:PROTEIN  Length:287

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eee..eeeeeeeee..eeeeeeeeeeeeeee...hhhhh........hhhhhhhhhhhhhh.....hhhhhhhhhhhhhh....eeeeeeeeeee.eee...........eee....eeeeeeeee.....eeeeeee.eeeee........................eeeeeeeeeee......hhhhhhhhhhhhhhhhh...........hhhhhhhhhhhhhhh...eeeeeeeeee.eeee...hhh........eeee....eeeeeeee... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5m98 H   8 NVEFVRTGYGKNMVKVLHIRREGNHHHIIELIANVQLTLKTRKDYLTGDNSDIIPTDTVKNTVHALAKLKGIKSIESFALDICEHFLTAFNHVTRVKVNIDEVPWKRLEKNGVEHNHAFIHCPEALRFCEAEQYLSKTPVVHSGLKDMKVLKTTQTGFEGFLRDRFTTLTDAKDRFFCTSVYARWRYNTINVAFDAAWKAVKDTVIQKFAGPYDRGEYSPSVQKTLYDTQLLVLDRIPEVEEIEIIMPNQHYFVIDMTKIGLSNKDEVYLPLDNPSGNITGTVCRKP 294
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5M98)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5M98)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5M98)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5m98)

  Sites
(no "Sites" information available for 5m98)

  Cis Peptide Bonds
    Asn A:281 - Pro A:282   [ RasMol ]
    Asn B:281 - Pro B:282   [ RasMol ]
    Asn C:281 - Pro C:282   [ RasMol ]
    Asn D:281 - Pro D:282   [ RasMol ]
    Asn E:281 - Pro E:282   [ RasMol ]
    Asn F:281 - Pro F:282   [ RasMol ]
    Asn G:281 - Pro G:282   [ RasMol ]
    Asn H:281 - Pro H:282   [ RasMol ]
    Gly D:218 - Pro D:219   [ RasMol ]
    Gly H:218 - Pro H:219   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5m98
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  URIC_DANRE | Q6DG85
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.7.3.3
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  URIC_DANRE | Q6DG85
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        URIC_DANRE | Q6DG85: 5ll1

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5M98)
