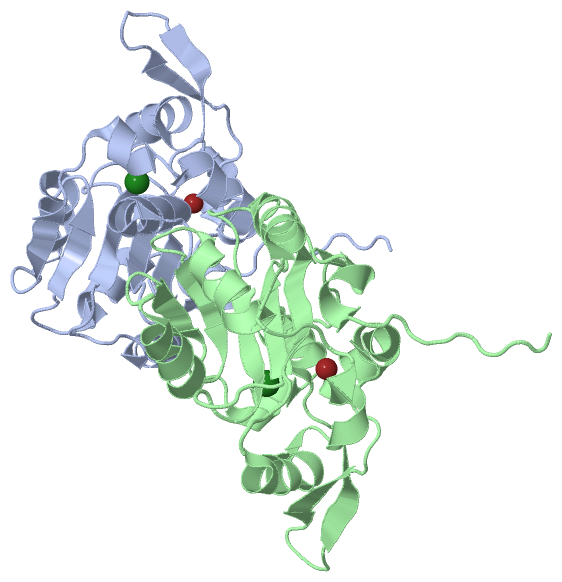

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  MOPEIA VIRUS EXONUCLEASE DOMAIN COMPLEXED WITH MAGNESIUM

Authors :  E. L. Yekwa, J. Khourieh, B. Canard, F. Ferron
Date :  19 Aug 16  (Deposition) - 05 Jul 17  (Release) - 05 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.94
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Mopeia Virus, Exonuclease Magnesium, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. L. Yekwa, J. Khourieh, B. Canard, N. Papageorgiou, F. Ferron
Activity Inhibition And Crystal Polymorphism Induced By Active-Site Metal Swapping
Acta Crystallogr. , Sect. D 2017
PubMed: search

(-) Compounds

Molecule 1 - NUCLEOPROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: EXONUCLEASE DOMAIN, UNP RESIDUES 365-570
    Gene: NP
    Organism Scientific: MOPEIA VIRUS AN20410
    Organism Taxid: 300175
    Synonym: NUCLEOCAPSID PROTEIN

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 4)

Asymmetric/Biological Unit (2, 4)
No.NameCountTypeFull Name
1MG2Ligand/IonMAGNESIUM ION
2ZN2Ligand/IonZINC ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:400 , CYS A:507 , HIS A:510 , CYS A:530binding site for residue ZN A 601
2AC2SOFTWAREASP A:390 , GLU A:392 , ASP A:534 , HOH A:719binding site for residue MG A 602
3AC3SOFTWAREGLU B:400 , CYS B:507 , HIS B:510 , CYS B:530binding site for residue ZN B 601
4AC4SOFTWAREASP B:390 , ILE B:391 , GLU B:392 , ASP B:534 , HOH B:790binding site for residue MG B 602

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5LRP)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5LRP)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5LRP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5LRP)

(-) Exons   (0, 0)

(no "Exon" information available for 5LRP)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:206

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh.......eeeeee.......eeeee.....eeeeee....hhhhhhhhhhhh...hhhhhh....hhhhhhhhhh....eeee..hhhhhhhhhhh.....eeee...hhhhhh.hhhhhhhhhhhhh......eeee.....eeee...hhhhhhhhhhhhhhh.......ee..hhhhhh......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5lrp A 365 GLTYSQTMELKDSMLQLDPNAKTWIDIEGRPEDPVEIAIYQPNNGQYIHFYREPTDIKQFKQDSKHSHGIDIQDLFSVQPGLTSAVIESLPKNMVLSCQGADDIRKLLDSQNRRDIKLIDVSMQKDDARKFEDKIWDEYKHLCRMHTGIVTQKKKRGGKEEVTPHCALLDCLMFEAAVIGSPQIPTPRPVLSRDLVFRTGPPRVVL 570
                                   374       384       394       404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       554       564


Chain B from PDB  Type:PROTEIN  Length:206

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhh........eeeee.......eeeee.....eeeeee....hhhhhhhhhhhh...hhhhhh....hhhhhhhhhh....eeee..hhhhhhhhhhh.....eeee...hhhhhh.hhhhhhhhhhhhh......eeee.....eeee...hhhhhhhhhhhhhhh.......ee..hhhhhh......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5lrp B 365 GLTYSQTMELKDSMLQLDPNAKTWIDIEGRPEDPVEIAIYQPNNGQYIHFYREPTDIKQFKQDSKHSHGIDIQDLFSVQPGLTSAVIESLPKNMVLSCQGADDIRKLLDSQNRRDIKLIDVSMQKDDARKFEDKIWDEYKHLCRMHTGIVTQKKKRGGKEEVTPHCALLDCLMFEAAVIGSPQIPTPRPVLSRDLVFRTGPPRVVL 570
                                   374       384       394       404       414       424       434       444       454       464       474       484       494       504       514       524       534       544       554       564
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5LRP)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5LRP)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5LRP)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5lrp)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5lrp
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q5S581_MOPEI | Q5S581
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q5S581_MOPEI | Q5S581
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Q5S581_MOPEI | Q5S581: 5ls4

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5LRP)
