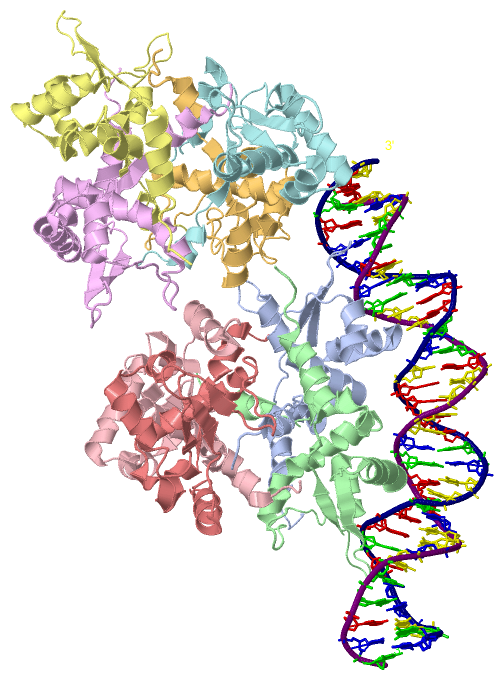

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

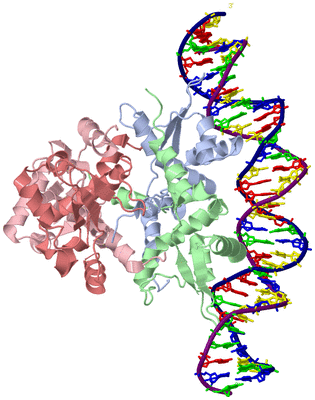

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

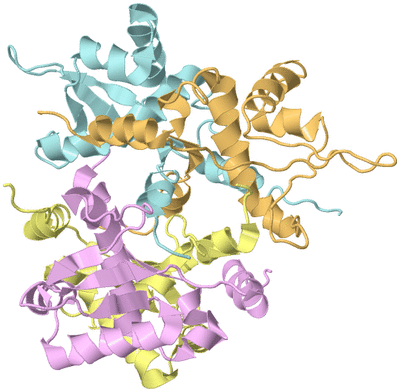

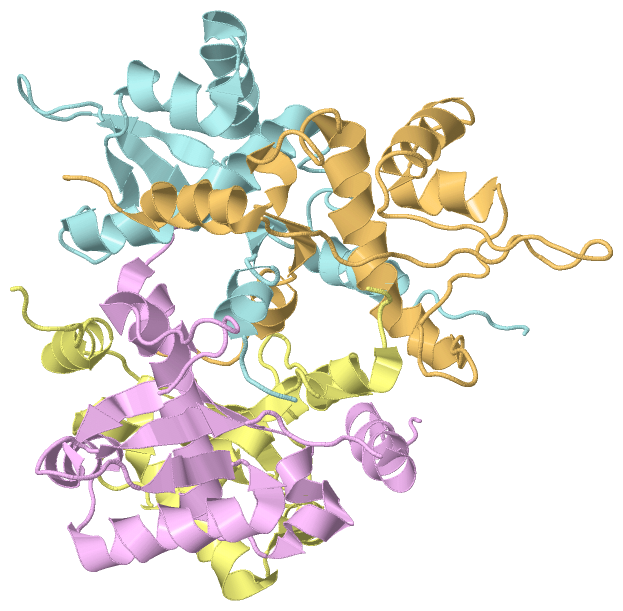

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF REP-DNA COMPLEX

Authors :  M. Schumacher
Date :  03 Jun 16  (Deposition) - 29 Jun 16  (Release) - 29 Jun 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.09
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,R,W
Biol. Unit 1:  A,B,C,H,R,W  (1x)
Biol. Unit 2:  D,E,F,G  (1x)
Keywords :  Replication Initiation, Rep Protein, S. Aureus, Transcription-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. A. Schumacher, N. K. Tonthat, S. M. Kwong, N. B. Chinnam, M. A. Liu, R. A. Skurray, N. Firth
Mechanism Of Staphylococcal Multiresistance Plasmid Replication Origin Assembly By The Repa Protein.
Proc. Natl. Acad. Sci. V. 111 9121 2014 U. S. A.
PubMed-ID: 24927575  |  Reference-DOI: 10.1073/PNAS.1406065111

(-) Compounds

Molecule 1 - REPLICATION INITIATOR A, N-TERMINAL
    Chains: A, B, C, H, D, E, F, G
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 2-133
    Gene: SAP042A_013, SAP058A_012, SAP071A_014
    Organism Scientific: STAPHYLOCOCCUS AUREUS
    Organism Taxid: 1280

Molecule 2 - DNA (32-MER)
    Chains: R
    Engineered: YES
    Organism Scientific: SYNTHETIC CONSTRUCT
    Organism Taxid: 32630
    Synthetic: YES

Molecule 3 - DNA (32-MER)
    Chains: W
    Engineered: YES
    Organism Scientific: SYNTHETIC CONSTRUCT
    Organism Taxid: 32630
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12345678910
Asymmetric Unit : ABCDEFGHRW
Biological Unit 1 (1x): ABC    HRW
Biological Unit 2 (1x):    DEFG

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5KBJ)

(-) Sites  (0, 0)

(no "Site" information available for 5KBJ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5KBJ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5KBJ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5KBJ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5KBJ)

(-) Exons   (0, 0)

(no "Exon" information available for 5KBJ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:130

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh.......hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhh..hhhhhhhhhhhhhh...eeee........eeee.....hhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj A   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDVEPY 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133


Chain B from PDB  Type:PROTEIN  Length:130

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhh......hhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh.............hhhhhhhhh..hhhhhhhhhhhhhhh..eeee........eeee.....hhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj B   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDVEPY 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133


Chain C from PDB  Type:PROTEIN  Length:125

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhh.eeeeehhhhhh......hhhhhhhhhhhhhhhhhhhhh.........eee.hhhhhhhhhh.hhhhhhhhhhhhhhh..eee....eeee.....hhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj C   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRPNILYLMKPIVTERDIYKIEKEENDVEPY 133
                                    13        23        33        43        53        63        73        83        93     ||108       118       128
                                                                                                                          99|
                                                                                                                          105


Chain D from PDB  Type:PROTEIN  Length:130

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh...eeeeehhhhhh......hhhhhhhhhhhh.hhhhhhhh.............hhhhhhhhhh.hhhhhhhhhhhhhhh..eeee........eeee.....hhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj D   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDVEPY 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133


Chain E from PDB  Type:PROTEIN  Length:130

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhh.eeeee.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh..........eeehhhhhhhhh..hhhhhhhhhhhhhhhh.eeee.......eeeee.....hhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj E   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDVEPY 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133


Chain F from PDB  Type:PROTEIN  Length:130

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhh...eeeee............hhhhhhhhhhhhhhhhhhhhh.........ee..hhhhhhhhhh.hhhhhhhhhhhhhhh..eeee........eeee.....hhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj F   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDVEPY 133
                                    13        23        33        43        53        63        73        83        93       103       113       123       133


Chain G from PDB  Type:PROTEIN  Length:129

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhh...eeeee.hhh........hhhhhhhhhhhhhhhhhhhhh...............hhhhhhh....hhhhhhhhhh..........................hhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj G   2 QNQYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDV 130
                                    11        21        31        41        51        61        71        81        91       101       111       121


Chain H from PDB  Type:PROTEIN  Length:127

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhh.eeeee.hhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...........ee..hhhhhhhhh..hhhhhhhhhh.......eeee........eeee.....hhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5kbj H   4 QYFTVQENYKERFYQIPKVFFTSENYKNLTNDMKIAYAILRDRLNLSIKNSWVDEDGNIYFVYSNEKLMEILNCKKEKLTKIKKGLENDGLLIQKRRGLNKPNILYLMKPIVTERDIYKIEKEENDV 130
                                    13        23        33        43        53        63        73        83        93       103       113       123


Chain R from PDB  Type:DNA  Length:32

                 5kbj R   2 CGTCCAGAAGTTCGAAAATCGAACGTCCAGAT  33
                                    11        21        31


Chain W from PDB  Type:DNA  Length:32

                 5kbj W   3 ATCTGGACGTTCGATTTTCGAACTTCTGGACG  34
                                    12        22        32
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
