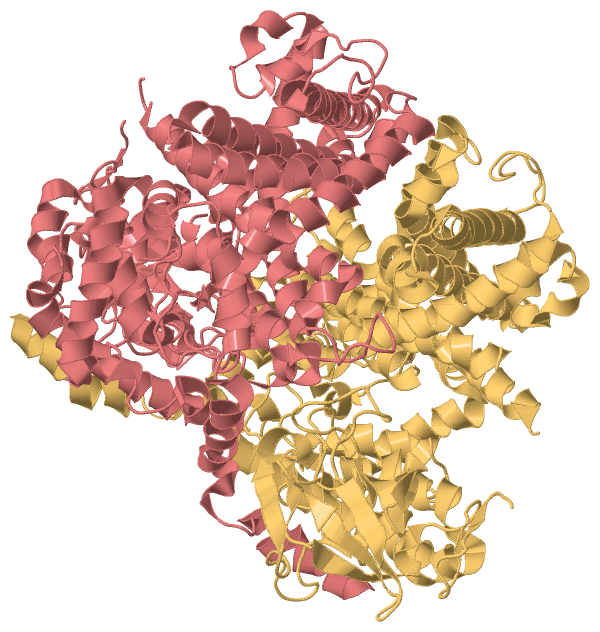

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTALS STRUCTURE OF ACYL-COA OXIDASE-1 IN CAENORHABDITIS ELEGANS, APO FORM-II

Authors :  X. Zhang, K. Li, R. A. Jones, S. D. Bruner, R. A. Butcher
Date :  19 May 16  (Deposition) - 24 Aug 16  (Release) - 14 Sep 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.48
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Biol. Unit 4:  G,H  (1x)
Keywords :  Dauer Pheromone, Ascarosides, B-Oxidation, Atp, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Zhang, K. Li, R. A. Jones, S. D. Bruner, R. A. Butcher
Structural Characterization Of Acyl-Coa Oxidases Reveals A Direct Link Between Pheromone Biosynthesis And Metabolic State In Caenorhabditis Elegans.
Proc. Natl. Acad. Sci. Usa V. 113 10055 2016
PubMed-ID: 27551084  |  Reference-DOI: 10.1073/PNAS.1608262113

(-) Compounds

Molecule 1 - ACYL-COENZYME A OXIDASE
    Chains: A, B, C, D, E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET16B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: ACOX-1, CELE_F08A8.1, F08A8.1
    Organism Scientific: CAENORHABDITIS ELEGANS
    Organism Taxid: 6239

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit : ABCDEFGH
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF
Biological Unit 4 (1x):       GH

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5K3H)

(-) Sites  (0, 0)

(no "Site" information available for 5K3H)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5K3H)

(-) Cis Peptide Bonds  (5, 5)

Asymmetric Unit
No.Residues
1Lys G:280 -Pro G:281
2Ala H:381 -Asp H:382
3Pro H:484 -Asn H:485
4Asn H:485 -Gly H:486
5Gly H:486 -Gly H:487

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5K3H)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5K3H)

(-) Exons   (0, 0)

(no "Exon" information available for 5K3H)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:634

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee........hhhhh..eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h A   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPYMLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLDLHALTSGLKSVVTHQTGEGIEARMACGGHGYSMASYISEIYGVAIGGNMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      306       316       326       336       346       356       366  ||   388       398    || 409       419       429||     445       455       465       475       485       495       505       515       525       535       545       555       565       575       585       595       605       615       625       635       645       655       665
                                                                                                                                                                                                                                                                                                                 281|                                                                     369|                  403|                      430|
                                                                                                                                                                                                                                                                                                                  297                                                                      382                   405                       437


Chain B from PDB  Type:PROTEIN  Length:635

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee........hhhhh..eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h B   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLADLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGGENMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     389       399       409       419       429|      444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604       614       624       634       644       654       664
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                             429|
                                                                                                                                                                                                                                                                                                                  299                                                                    381                                              435


Chain C from PDB  Type:PROTEIN  Length:633

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee........hhhhh..eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhh..hhhhhhhhhhhhhhhhhhhh.hhhhh...hhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h C   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLADLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGNMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     389       399       409       419       429|      446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       606       616       626       636       646       656       666
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                             429|
                                                                                                                                                                                                                                                                                                                  299                                                                    381                                              437


Chain D from PDB  Type:PROTEIN  Length:634

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee...............eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhh...hhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h D   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLADLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGENMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     389       399       409       419       429|      445       455       465       475       485       495       505       515       525       535       545       555       565       575       585       595       605       615       625       635       645       655       665
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                             429|
                                                                                                                                                                                                                                                                                                                  299                                                                    381                                              436


Chain E from PDB  Type:PROTEIN  Length:635

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee........hhhhh..eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h E   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLADLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGGENMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     389       399       409       419       429|      444       454       464       474       484       494       504       514       524       534       544       554       564       574       584       594       604       614       624       634       644       654       664
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                             429|
                                                                                                                                                                                                                                                                                                                  299                                                                    381                                              435


Chain F from PDB  Type:PROTEIN  Length:633

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee...............eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhh...hhhhhh...............hhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh.hhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h F   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLDLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGENMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     390       400       410       420       436       446       456       466       476       486       496       506       516       526       536       546       556       566       576       586       596       606       616       626       636       646       656       666
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                            429|
                                                                                                                                                                                                                                                                                                                  299                                                                    382                                             436


Chain G from PDB  Type:PROTEIN  Length:634

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee...............eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h G   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLADLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGENMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     389       399       409       419       429|      445       455       465       475       485       495       505       515       525       535       545       555       565       575       585       595       605       615       625       635       645       655       665
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                             429|
                                                                                                                                                                                                                                                                                                                  299                                                                    381                                              436


Chain H from PDB  Type:PROTEIN  Length:634

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee........hhhhh..eeeee....eeeee..hhhhhee..........eeeeeeeeee..eeeeeeeeeee............eeeee............eeeee..eeee.hhh.....ee.....ee...hhhhhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.hhhhh...hhhhhh..............hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh........hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5k3h H   2 VHLNKTIQEGDNPDLTAERLTATFDTHAMAAQIYGGEMRARRRREITAKLAEIPELHDSMPLPYMTREEKIMESARKLTVLTQRMSEIIDPTDAGELYHLNNEVLGIEGNPMALHGVMFIPALNAQASDEQQAKWLIRALRREIIGTYAQTEMGHGTNLQNLETTATYDIGTQEFVLHTPKITALKWWPGNLGKSSNYAVVVAHMYIKGKNFGPHTFMVPLRDEKTHKPLPGITIGDIGPKMAYNIVDNGFLGFNNYRIPRTNLLMRHTKVEADGTYIKPLTGQAIMLSYALNIATRYSAVRRQGQIDKNEPEVKVLEYQTQQHRLFPFIARAYAFQFAGAETVKLYERVLADLHALTSGLKSVVTHQTGEGIEQARMACGGHGYSMASYISEIYGVAIGENMVMLLQLARYLVKSAALVKSGKASQLGPLVAYLGARSEPTSLIDRVPNGGITEYIKTFQHIAKRQTLKAANKFFGLMENGEKREIAWNKSSVELNRASRLHTRLFIVEAFARRVNEIGDITIKEALSDLLHLHVNYELLDVATYALEDGFMSSTQLDYVRDQLYFYLQKIRPNAVSLLDSWEFSDRELRSVLGRRDGHVYENLFKWAKESPLNKTDVLPSVDTYLKPMMEKA 669
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281|      308       318       328       338       348       358       368||     389       399       409       419       429|      445       455       465       475       485       495       505       515       525       535       545       555       565       575       585       595       605       615       625       635       645       655       665
                                                                                                                                                                                                                                                                                                                 281|                                                                   369|                                             429|
                                                                                                                                                                                                                                                                                                                  299                                                                    381                                              436
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5K3H)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5K3H)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5K3H)

(-) Gene Ontology  (16, 16)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5k3h)

  Sites
(no "Sites" information available for 5k3h)

  Cis Peptide Bonds
    Ala H:381 - Asp H:382   [ RasMol ]
    Asn H:485 - Gly H:486   [ RasMol ]
    Gly H:486 - Gly H:487   [ RasMol ]
    Lys G:280 - Pro G:281   [ RasMol ]
    Pro H:484 - Asn H:485   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5k3h
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O62140_CAEEL | O62140
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O62140_CAEEL | O62140
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O62140_CAEEL | O62140: 5k3g 5k3i

(-) Related Entries Specified in the PDB File

5k3g 5k3i 5k3j
