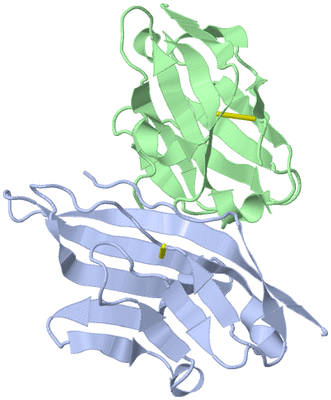

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  NANOBODY TARGETING MOUSE VSIG4 IN SPACEGROUP P3221

Authors :  Y. Wen, F. Zheng
Date :  06 Mar 16  (Deposition) - 11 Jan 17  (Release) - 05 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Nanobody, Complement Receptor, Vsig4 Crig, Immune System (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Wen, Z. Ouyang, S. Schoonooghe, S. Luo, P. De Baetselier, W. Lu, S. Muyldermans, G. Raes, F. Zheng
Structural Evaluation Of A Nanobody Targeting Complement Receptor Vsig4 And Its Cross Reactivity
Immunobiology V. 222 807 2017
PubMed-ID: 27889311  |  Reference-DOI: 10.1016/J.IMBIO.2016.11.008

(-) Compounds

Molecule 1 - NANOBODY
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: CAMELIDAE
    Organism Taxid: 9835

Molecule 2 - PROTEIN VSIG4
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: IGV DOMAIN, UNP RESIDUES 19-139
    Gene: VSIG4
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5IMO)

(-) Sites  (0, 0)

(no "Site" information available for 5IMO)

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:22 -A:94
2B:21 -B:95

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Gly A:0 -His A:1

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5IMO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5IMO)

(-) Exons   (0, 0)

(no "Exon" information available for 5IMO)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:119

               SCOP domains ----------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeee....eee..........eeeeeeeeeee..eeeeeeeee..eeee.hhhhh..eee.........eee...hhhhheeeeeeeeee.....eeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 5imo A   0 GHPTLKTPESVTGTWKGDVKIQCIYDPLRGYRQVLVKWLVRHGSDSVTIFLRDSTGDHIQQAKYRGRLKVSHKVPGDVSLQINTLQMDDRNHYTCEVTWQTPDGNQVIRDKIIELRVRK 118
                                     9        19        29        39        49        59        69        79        89        99       109


Chain B from PDB  Type:PROTEIN  Length:125

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..eeee....eeeeeee...hhhhheeeeeee......eeeeee......eee........eeeee....eeeeee...hhhhheeeeeeee........hhhhh.ee...eeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------- Transcript
                 5imo B   0 QVQLVESGGGLVQAGGSLRLSCAASGRTFSSYGMGWFRQAPGKEREFVAAIRWNGGSTYYADSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCAAGRWDKYGSSFQDEYDYWGQGTQVTVSS 124
                                     9        19        29        39        49        59        69        79        89        99       109       119
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5IMO)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5IMO)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5IMO)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5imo)

  Sites
(no "Sites" information available for 5imo)

  Cis Peptide Bonds
    Gly A:0 - His A:1   [ RasMol ]
