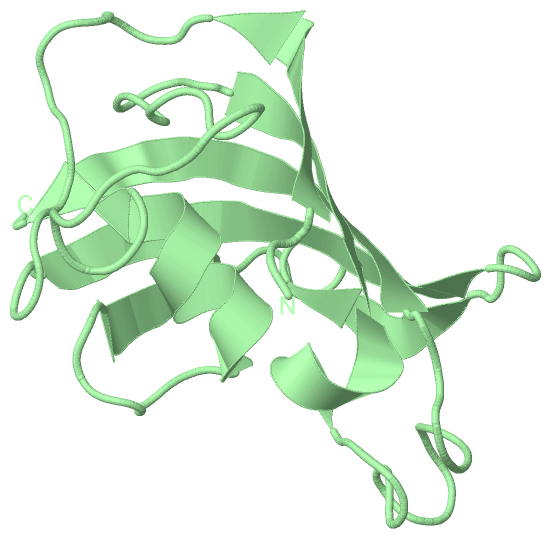

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF APO FKBP12(P104G) FROM C. ALBICANS

Authors :  M. A. Schumacher
Date :  19 Feb 16  (Deposition) - 14 Sep 16  (Release) - 14 Sep 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Fkbp12, Self-Catalysis, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. K. Tonthat, P. R. Juvvadi, H. Zhang, S. C. Lee, R. Venters, L. Spicer, W. J. Steinbach, J. Heitman, M. A. Schumacher
Structures Of Pathogenic Fungal Fkbp12S Reveal Possible Self-Catalysis Function.
Mbio V. 7 00492 2016
PubMed-ID: 27118592  |  Reference-DOI: 10.1128/MBIO.00492-16

(-) Compounds

Molecule 1 - FK506-BINDING PROTEIN 1
    Chains: A, B
    EC Number: 5.2.1.8
    Engineered: YES
    Expression System: ESCHERICHIA
    Expression System Taxid: 562
    Gene: RBP1, RBP11, CAO19.11186, CAO19.3702, RBP2, RBP12, CAJ7.0299, CAO19.13810, CAO19.6452
    Mutation: YES
    Organism Common: YEAST
    Organism Scientific: CANDIDA ALBICANS (STRAIN SC5314 / ATCC MYA- 2876)
    Organism Taxid: 237561
    Strain: SC5314 / ATCC MYA-2876
    Synonym: FKBP,PEPTIDYL-PROLYL CIS-TRANS ISOMERASE,PPIASE,RAPAMYCIN- BINDING PROTEIN

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5I98)

(-) Sites  (0, 0)

(no "Site" information available for 5I98)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5I98)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5I98)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5I98)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5I98)

(-) Exons   (0, 0)

(no "Exon" information available for 5I98)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120

               SCOP domains ------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ....eeeeee............eeeeeeeeee....eeee.......eeee......hhhhhhhhh.................eeeeeehhhhh...............eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 5i98 A   3 EELPQIEIVQEGDNTTFAKPGDTVTIHYDGKLTNGKEFDSSRKRGKPFTCTVGVGQVIKGWDISLTNNYGKGGANLPKISKGTKAILTIPPNLAYGPRGIPGIIGPNETLVFEVELLGVN 122
                                    12        22        32        42        52        62        72        82        92       102       112       122


Chain B from PDB  Type:PROTEIN  Length:119

               SCOP domains ----------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeee............eeeeeeeeee....eeee.......eeee......hhhhhhhhh.................eeeeeehhhhh...............eeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 5i98 B   4 ELPQIEIVQEGDNTTFAKPGDTVTIHYDGKLTNGKEFDSSRKRGKPFTCTVGVGQVIKGWDISLTNNYGKGGANLPKISKGTKAILTIPPNLAYGPRGIPGIIGPNETLVFEVELLGVN 122
                                    13        23        33        43        53        63        73        83        93       103       113
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5I98)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5I98)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5I98)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5i98)

  Sites
(no "Sites" information available for 5i98)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5i98)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5i98
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  FKBP_CANAL | P28870
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  5.2.1.8
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  FKBP_CANAL | P28870
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        FKBP_CANAL | P28870: 5htg 5hw6 5hw7 5hw8

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 5I98)
