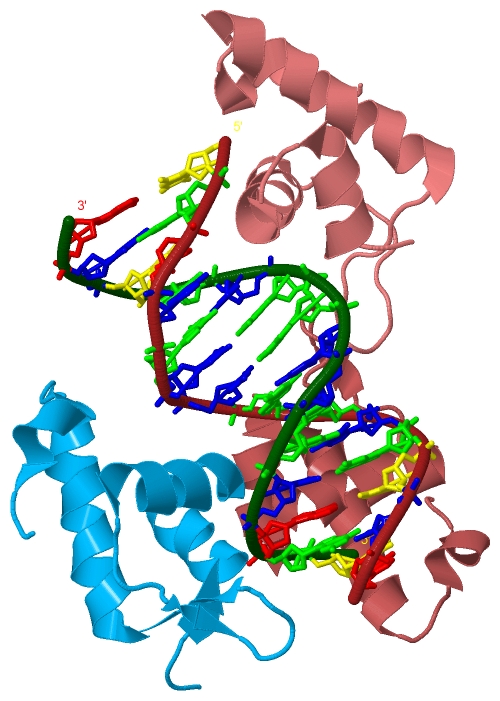

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF RACA-DNA COMPLEX; P21 FORM

Authors :  M. A. Schumacher
Date :  11 Feb 16  (Deposition) - 04 May 16  (Release) - 29 Jun 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.62
Chains :  Asym. Unit :  A,B,D,E,F,G,H,I,J,K,P,R,T,U,W,Z
Biol. Unit 1:  A,B,D,E,U,W  (1x)
Biol. Unit 2:  F,G,I,P,R  (1x)
Biol. Unit 3:  H,J,K,T,Z  (1x)
Biol. Unit 4:  A (1x),B (1x),D (1x),E (1x),F (1x),G (1x),H (1x),I (1x),J (1x),K (1x),P (1x),R (1x),T (1x),U (1x),W (1x),Z (1x)
Keywords :  Raca, B. Subtilis, Axial Filament, Sporulation, Dna Segregation, Dna Binding Protein-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. A. Schumacher, J. Lee, W. Zeng
Molecular Insights Into Dna Binding And Anchoring By The Bacillus Subtilis Sporulation Kinetochore-Like Raca Protein
Nucleic Acids Res. V. 44 5438 2016
PubMed-ID: 27085804  |  Reference-DOI: 10.1093/NAR/GKW248

(-) Compounds

Molecule 1 - CHROMOSOME-ANCHORING PROTEIN RACA
    Chains: B, A, D, E, G, F, H, I, J, K
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: RACA, YWKC, BSU37030
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 224308
    Strain: 168

Molecule 2 - DNA (5'-D(*TP*GP*AP*CP*GP*CP*CP*GP*GP*CP*GP*TP*CP*A)-3')
    Chains: U, T, Z, R, P, W
    Engineered: YES
    Organism Scientific: SYNTHETIC CONSTRUCT
    Organism Taxid: 32630
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12345678910111213141516
Asymmetric Unit : ABDEFGHIJKPRTUWZ
Biological Unit 1 (1x): ABDE         UW
Biological Unit 2 (1x):     FG I  PR
Biological Unit 3 (1x):       H JK  T  Z
Biological Unit 4 (1x): A (1x)B (1x)D (1x)E (1x)F (1x)G (1x)H (1x)I (1x)J (1x)K (1x)P (1x)R (1x)T (1x)U (1x)W (1x)Z (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5I44)

(-) Sites  (0, 0)

(no "Site" information available for 5I44)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5I44)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5I44)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5I44)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5I44)

(-) Exons   (0, 0)

(no "Exon" information available for 5I44)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:67

               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eehhhhhhhhh.hhhhhhhhhhhhh...ee.....eee..hhhhhhhhhhhhhh...hhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  5i44 A  2 GSHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHL 68
                                    11        21        31        41        51        61


Chain B from PDB  Type:PROTEIN  Length:68

               SCOP domains -------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeehhhhhhhhh.hhhhhhhhhhhhh...ee.....eeeehhhhhhhhhhhhhhhh..hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------- Transcript
                  5i44 B  2 GSHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHLP 69
                                    11        21        31        41        51        61


Chain D from PDB  Type:PROTEIN  Length:67

               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeehhhhhhhhh.hhhhhhhhhhhh....ee.....eeeehhhhhhhhhhhhhhh...hhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  5i44 D  2 GSHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHL 68
                                    11        21        31        41        51        61


Chain E from PDB  Type:PROTEIN  Length:68

               SCOP domains -------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhh.hhhhhhhhhhhh....ee.....ee.hhhhhhhhhhhhhhhhh..hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------- Transcript
                  5i44 E  2 GSHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHLP 69
                                    11        21        31        41        51        61


Chain F from PDB  Type:PROTEIN  Length:68

               SCOP domains -------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhh..hhhhhhhhhhhh....ee.....ee.hhhhhhhhhhhhhhhhh..hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------- Transcript
                  5i44 F  2 GSHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHLP 69
                                    11        21        31        41        51        61


Chain G from PDB  Type:PROTEIN  Length:68

               SCOP domains -------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eehhhhhhhhh.hhhhhhhhhhhh....ee.....eeehhhhhhhhhhhhhhhhh..hhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------- Transcript
                  5i44 G  1 SHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHLPK 68
                                    10        20        30        40        50        60


Chain H from PDB  Type:PROTEIN  Length:64

               SCOP domains ---------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhh..hhhhhhhhhhhh..............hhhhhhhhhhhhhhhhhh.hhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------- Transcript
                  5i44 H  1 MNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHL 64
                                    10        20        30        40        50        60


Chain I from PDB  Type:PROTEIN  Length:65

               SCOP domains ----------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhh.hhhhhhhhhhhh....ee.....ee...hhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------- Transcript
                  5i44 I  1 MNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHLP 65
                                    10        20        30        40        50        60


Chain J from PDB  Type:PROTEIN  Length:67

               SCOP domains ------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eehhhhhhhhh.hhhhhhhhhhhh....ee.....eeehhhhhhhhhhhhhhhhh..hhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------- Transcript
                  5i44 J  2 GSHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHL 68
                                    11        21        31        41        51        61


Chain K from PDB  Type:PROTEIN  Length:66

               SCOP domains ------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eehhhhhhhhh.hhhhhhhhhhhhh...ee.....eeehhhhhhhhhhhhhhhh...hhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------ Transcript
                  5i44 K  1 SHMNTNMVASELGVSAKTVQRWVKQLNLPAERNELGHYSFTAEDVKVLKSVKKQISEGTAIQDIHL 66
                                    10        20        30        40        50        60


Chain P from PDB  Type:DNA  Length:14

                  5i44 P  1 TGACGCCGGCGTCA 14
                                    10


Chain R from PDB  Type:DNA  Length:14

                  5i44 R  1 TGACGCCGGCGTCA 14
                                    10


Chain T from PDB  Type:DNA  Length:14

                  5i44 T  1 TGACGCCGGCGTCA 14
                                    10


Chain U from PDB  Type:DNA  Length:14

                  5i44 U  1 TGACGCCGGCGTCA 14
                                    10


Chain W from PDB  Type:DNA  Length:14

                  5i44 W  1 TGACGCCGGCGTCA 14
                                    10


Chain Z from PDB  Type:DNA  Length:14

                  5i44 Z  1 TGACGCCGGCGTCA 14
                                    10
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5I44)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5I44)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5I44)

(-) Gene Ontology  (11, 11)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5i44)

  Sites
(no "Sites" information available for 5i44)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5i44)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5i44
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RACA_BACSU | P45870
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RACA_BACSU | P45870
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RACA_BACSU | P45870: 5i41

(-) Related Entries Specified in the PDB File

5i41
