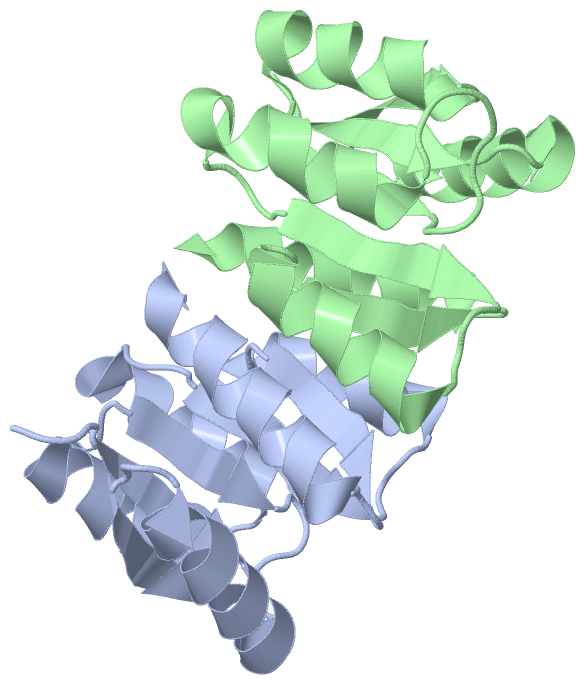

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

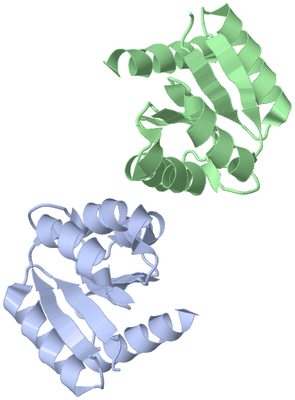

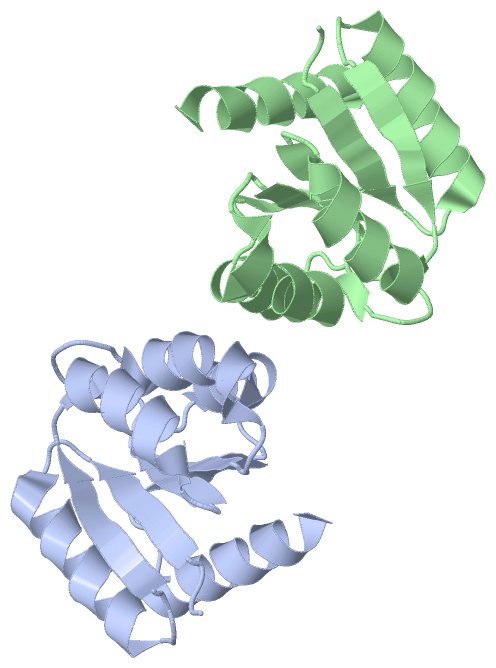

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  N-TERMINAL DOMAIN OF BFMR FROM ACINETOBACTER BAUMANNII

Authors :  B. R. Roth, C. Davies
Date :  15 Jan 16  (Deposition) - 18 Jan 17  (Release) - 18 Jan 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  A (1x),B (1x)
Keywords :  Response Regulator, Biofilm, Two-Component System, A. Baumannii, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. A. Feldmann, B. G. Bobay, B. M. Roth, A. L. Olson, G. L. Draughn, L. Actis, R. J. Thompson, C. Davies, C. Cavanagh
The Structure Of The Biofilm-Controlling Response-Regulator Bfmr From Acinetobacter Baumannii Reveals Details Of Its Dna-Binding Mechanism
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - BFMR
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: N-TERMINAL DOMAIN (UNP RESIDUES 1-130)
    Gene: BFMR, RSTA
    Organism Scientific: ACINETOBACTER BAUMANNII
    Organism Taxid: 470
    Synonym: CHEMOTAXIS PROTEIN CHEY,TRANSCRIPTIONAL REGULATORY PROTEIN RSTA,TRANSCRIPTIONAL REGULATORY PROTEIN RSTA,TRANSCRIPTIONAL REGULATORY,C TERMINAL FAMILY PROTEIN,TWO-COMPONENT REGULATORY SYSTEM RESPONSE REGULATOR,TWO-COMPONENT SYSTEM RESPONSE REGULATOR,TWO- COMPONENT SYSTEM RESPONSE REGULATOR PROTEIN

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): AB
Biological Unit 2 (1x): A (1x)B (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5HM6)

(-) Sites  (0, 0)

(no "Site" information available for 5HM6)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5HM6)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Lys A:107 -Pro A:108
2Lys B:107 -Pro B:108

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5HM6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5HM6)

(-) Exons   (0, 0)

(no "Exon" information available for 5HM6)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:119

               SCOP domains ----------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee..hhhhhhhhhhhhhh...eeeee.hhhhhhhhhhhhh..eeee.......hhhhhhhhhhhhh...eeeee...hhhhhhhhhhhh..eeee...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 5hm6 A   6 KLPKILIVEDDERLARLTQEYLIRNGLEVGVETDGNRAIRRIISEQPDLVVLDVMLPGADGLTVCREVRPHYHQPILMLTARTEDMDQVLGLEMGADDYVAKPVQPRVLLARIRALLRR 124
                                    15        25        35        45        55        65        75        85        95       105       115


Chain B from PDB  Type:PROTEIN  Length:119

               SCOP domains ----------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee..hhhhhhhhhhhhhh...eeeee.hhhhhhhhhhhhh..eeee.......hhhhhhhhhhhhh...eeeee...hhhhhhhhhhh...eeee...hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------- Transcript
                 5hm6 B   6 KLPKILIVEDDERLARLTQEYLIRNGLEVGVETDGNRAIRRIISEQPDLVVLDVMLPGADGLTVCREVRPHYHQPILMLTARTEDMDQVLGLEMGADDYVAKPVQPRVLLARIRALLRR 124
                                    15        25        35        45        55        65        75        85        95       105       115
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5HM6)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5HM6)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5HM6)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5hm6)

  Sites
(no "Sites" information available for 5hm6)

  Cis Peptide Bonds
    Lys A:107 - Pro A:108   [ RasMol ]
    Lys B:107 - Pro B:108   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5hm6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q2VSW6_ACIBA | Q2VSW6
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q2VSW6_ACIBA | Q2VSW6
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 5HM6)

(-) Related Entries Specified in the PDB File

2naz C-TERMINAL EFFECTOR DOMAIN OF BFMR FROM ACINETOBACTER BAUMANNII
