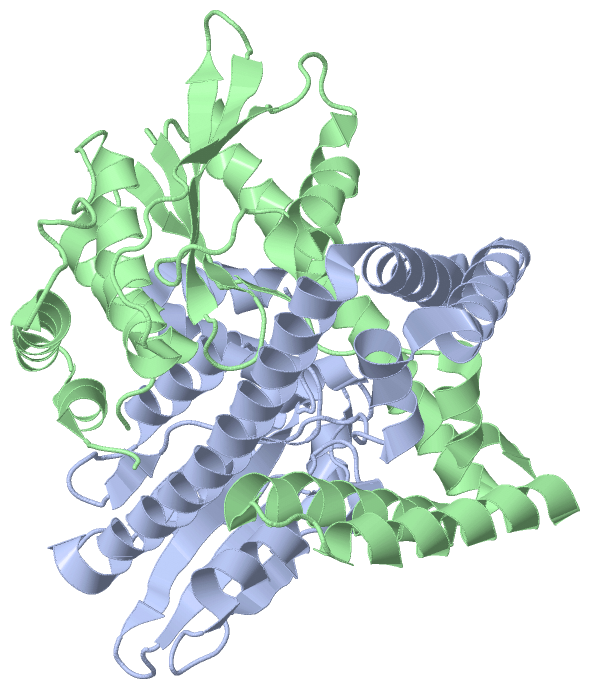

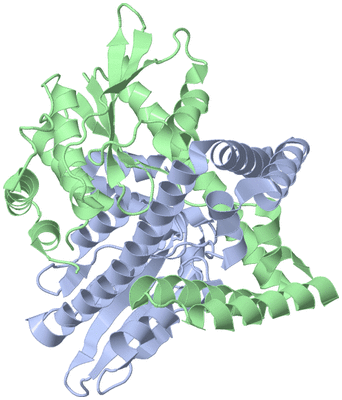

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

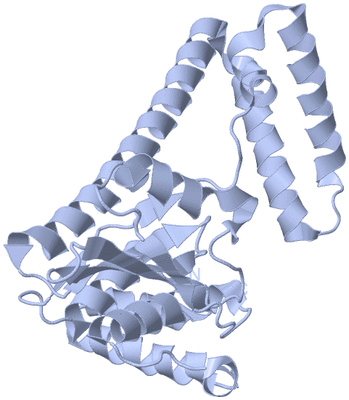

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

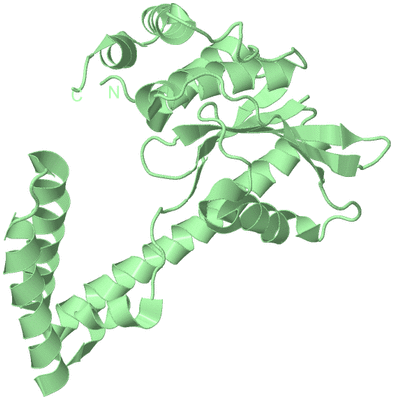

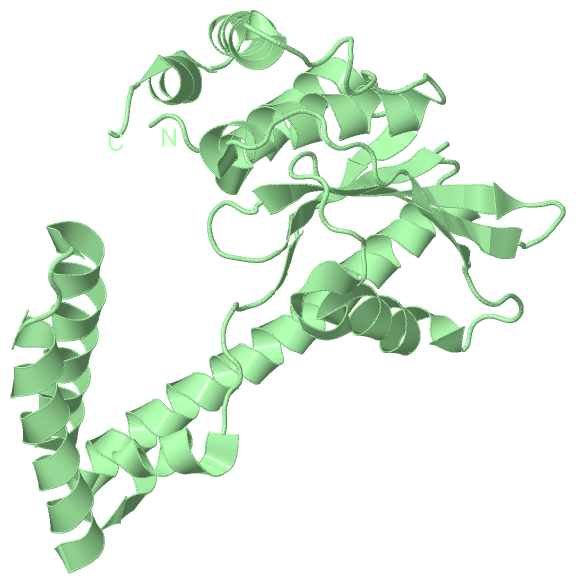

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF RICKETTSIA BELLII EFFECTOR PROTEIN RICKCE

Authors :  J. N. Pruneda, D. Komander
Date :  30 Dec 15  (Deposition) - 27 Jul 16  (Release) - 12 Oct 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Enzyme, Ce Clan, Deubiquitinase, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. N. Pruneda, C. H. Durkin, P. P. Geurink, H. Ovaa, B. Santhanam, D. W. Holden, D. Komander
The Molecular Basis For Ubiquitin And Ubiquitin-Like Specificities In Bacterial Effector Proteases.
Mol. Cell V. 63 261 2016
PubMed-ID: 27425412  |  Reference-DOI: 10.1016/J.MOLCEL.2016.06.015

(-) Compounds

Molecule 1 - RICKCE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 420-691
    Gene: RBE_0198
    Organism Scientific: RICKETTSIA BELLII
    Organism Taxid: 33990

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5HAM)

(-) Sites  (0, 0)

(no "Site" information available for 5HAM)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5HAM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5HAM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5HAM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5HAM)

(-) Exons   (0, 0)

(no "Exon" information available for 5HAM)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:260

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhh.....eee...ee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeee.....eeeeeeeee....eeeeeee.......hhhhhhhhhhhhhhhh......eeee.......hhhhhhhhhhhhhhhhhh.....hhhhhh.hhhhhhhhhhhhhhhh.hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ham A 423 DYWYTENEITHLLTAQLDEKKFSVQPAITFRNTALTEEMLKDYTAKGEEKNKILAEVQETIKIANLIPDKEERALMLGDAKKREEILKLSDAEREKLKNDLLRGGEAQQQINEDILNRATKDIKDNGKEAAVIPIEMGYGHWTVLVAKYDKKDNQIILTFNDSLGNSINYDGQKLPKLIDKTLGNLPNKPIIIDEQTKQQTDQSACGVFTVDNGIKIAKGQAILSTEESKGEKGLRLREHHAQILTDAMFKQDAQWIRQQ 682
                                   432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       582       592       602       612       622       632       642       652       662       672       682


Chain B from PDB  Type:PROTEIN  Length:260

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhh....eee...ee......hhhhhhhhhh.hhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeee.....eeeeeeeee....eeeeeee.......hhhhhhhhhhhhhhhh......eeee.......hhhhhhhhhhhhhhhhhh............hhhhhhhhhhhhhhhh.hhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5ham B 423 DYWYTENEITHLLTAQLDEKKFSVQPAITFRNTALTEEMLKDYTAKGEEKNKILAEVQETIKIANLIPDKEERALMLGDAKKREEILKLSDAEREKLKNDLLRGGEAQQQINEDILNRATKDIKDNGKEAAVIPIEMGYGHWTVLVAKYDKKDNQIILTFNDSLGNSINYDGQKLPKLIDKTLGNLPNKPIIIDEQTKQQTDQSACGVFTVDNGIKIAKGQAILSTEESKGEKGLRLREHHAQILTDAMFKQDAQWIRQQ 682
                                   432       442       452       462       472       482       492       502       512       522       532       542       552       562       572       582       592       602       612       622       632       642       652       662       672       682
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5HAM)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5HAM)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5HAM)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 5HAM)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5ham)

  Sites
(no "Sites" information available for 5ham)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5ham)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
