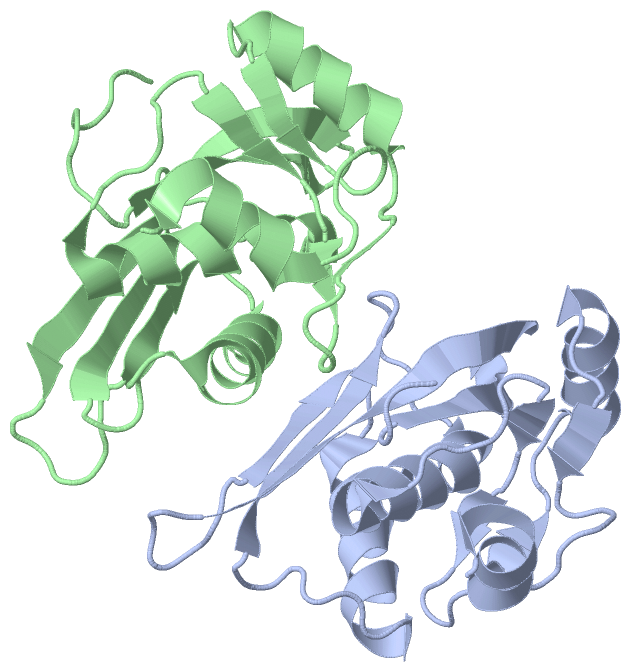

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

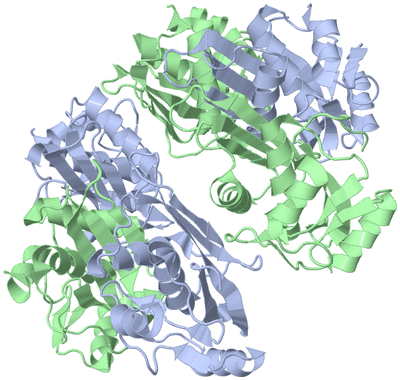

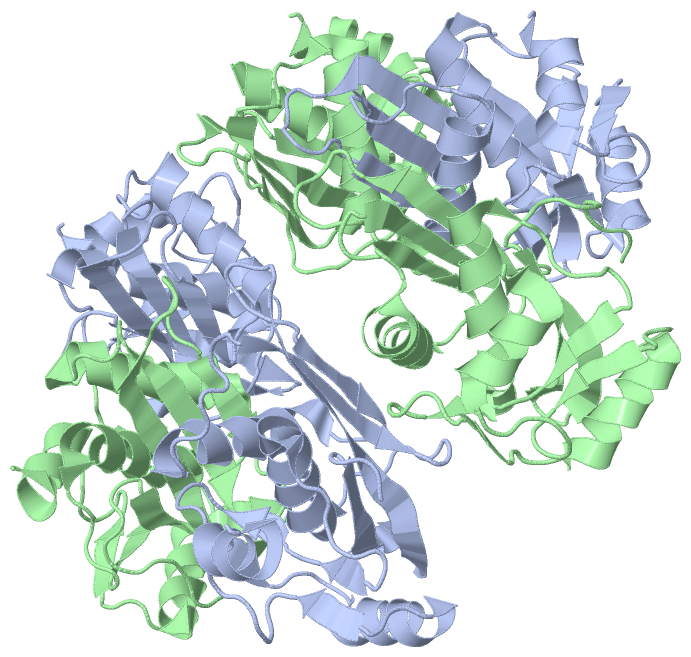

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE C-TERMINAL LON PROTEASE-LIKE DOMAIN OF THERMUS THERMOPHILUS RADA/SMS

Authors :  M. Inoue, K. Fukui, Y. Fujii, N. Nakagawa, T. Yano, S. Kuramitsu, R. Masu
Date :  30 Oct 16  (Deposition) - 03 May 17  (Release) - 21 Jun 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (3x)
Keywords :  Ribosomal Protein S5 Domain 2-Like Fold, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Inoue, K. Fukui, Y. Fujii, N. Nakagawa, T. Yano, S. Kuramitsu, R. Masui
The Lon Protease-Like Domain In The Bacterial Reca Paralog Rada Is Required For Dna Binding And Repair.
J. Biol. Chem. V. 292 9801 2017
PubMed-ID: 28432121  |  Reference-DOI: 10.1074/JBC.M116.770180

(-) Compounds

Molecule 1 - DNA REPAIR PROTEIN RADA
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-HISTEV
    Expression System Strain: ROSETTA 2(DE3)
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 262-423
    Gene: RADA, TTHA0541
    Organism Scientific: THERMUS THERMOPHILUS (STRAIN HB8 / ATCC 27634 / DSM 579)
    Organism Taxid: 300852
    Strain: HB8 / ATCC 27634 / DSM 579

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5H45)

(-) Sites  (0, 0)

(no "Site" information available for 5H45)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5H45)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5H45)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5H45)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5H45)

(-) Exons   (0, 0)

(no "Exon" information available for 5H45)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:152

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeee..eeeeeeeeeeeee.......eeee..hhhhhhhhhhhhhhh.......eeeeeee.......hhhhhhhhhhhhhhhhhh......eee..ee.....ee...hhhhhhhhhhhh...eee......hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5h45 A 272 GVPGSAVALALAGERALALEVQALAAKTPFPAPRRVVQGLDGRRVDVVLAVLERRLGLPLANLDVYVNLAGGLKVQDPGLDLAVALAVYSAVVGRPLPADLALVGEVGLAGEVRRVAGLERRLREGERAGFGRFLHPGNLKRLQEAVEAYLA 423
                                   281       291       301       311       321       331       341       351       361       371       381       391       401       411       421


Chain B from PDB  Type:PROTEIN  Length:157

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeeeeee..eeeeeeeeeeeee.......eeee..hhhhhhhhhhhhhhhhh.....eeeeeee.......hhhhhhhhhhhhhhhhhh......eee..ee.....ee...hhhhhhhhhhhh...eee......hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5h45 B 267 KERPLGVPGSAVALALAGERALALEVQALAAKTPFPAPRRVVQGLDGRRVDVVLAVLERRLGLPLANLDVYVNLAGGLKVQDPGLDLAVALAVYSAVVGRPLPADLALVGEVGLAGEVRRVAGLERRLREGERAGFGRFLHPGNLKRLQEAVEAYLA 423
                                   276       286       296       306       316       326       336       346       356       366       376       386       396       406       416
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5H45)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5H45)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5H45)

(-) Gene Ontology  (8, 8)

Asymmetric Unit(hide GO term definitions)
