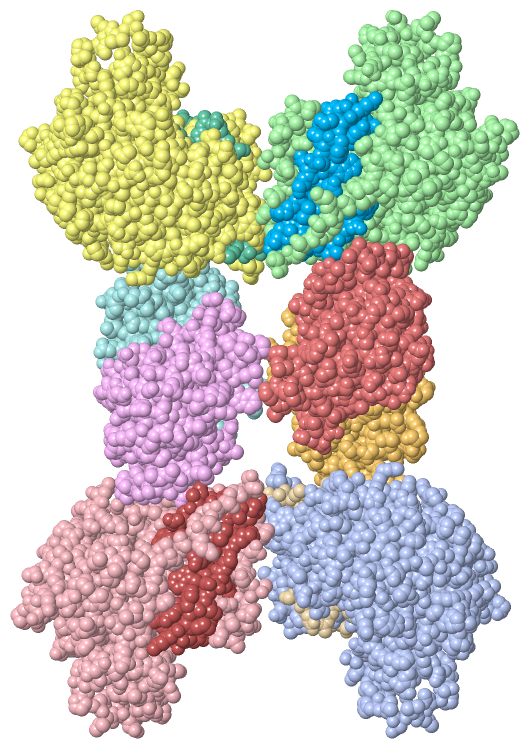

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  COMPLEX STRUCTURE OF THE FISSION YEAST SREBP-SCAP BINDING DOMAINS

Authors :  X. Gong, H. W. Qian, J. P. Wu, N. Yan
Date :  12 Aug 16  (Deposition) - 14 Dec 16  (Release) - 14 Dec 16  (Revision)
Method :  ELECTRON MICROSCOPY
Resolution :  5.40
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Keywords :  Protein Complex, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Gong, H. W. Qian, W. Shao, J. Li, J. P. Wu, J. J. Liu, W. Li, H. W. Wang, P. Espenshade, N. Yan
Complex Structure Of The Fission Yeast Srebp-Scap Binding Domains Reveals An Oligomeric Organization
Cell Res. V. 26 1197 2016
PubMed-ID: 27811944  |  Reference-DOI: 10.1038/CR.2016.123

(-) Compounds

Molecule 1 - STEROL REGULATORY ELEMENT-BINDING PROTEIN CLEAVAGE- ACTIVATING PROTEIN
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 567-961
    Gene: SCP1, SPBC3B9.15C
    Mutation: YES
    Organism Common: FISSION YEAST
    Organism Scientific: SCHIZOSACCHAROMYCES POMBE (STRAIN 972 / ATCC 24843)
    Organism Taxid: 284812
    Strain: 972 / ATCC 24843
    Synonym: SREBP CLEAVAGE-ACTIVATING PROTEIN

Molecule 2 - STEROL REGULATORY ELEMENT-BINDING PROTEIN CLEAVAGE- ACTIVATING PROTEIN
    Chains: I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 986-1085
    Gene: SCP1, SPBC3B9.15C
    Mutation: YES
    Organism Common: FISSION YEAST
    Organism Scientific: SCHIZOSACCHAROMYCES POMBE (STRAIN 972 / ATCC 24843)
    Organism Taxid: 284812
    Strain: 972 / ATCC 24843
    Synonym: SREBP CLEAVAGE-ACTIVATING PROTEIN

Molecule 3 - STEROL REGULATORY ELEMENT-BINDING PROTEIN 1
    Chains: E, F, G, H
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 628-896
    Gene: SRE1, SPBC19C2.09
    Mutation: YES
    Organism Common: FISSION YEAST
    Organism Scientific: SCHIZOSACCHAROMYCES POMBE (STRAIN 972 / ATCC 24843)
    Organism Taxid: 284812
    Strain: 972 / ATCC 24843

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric/Biological Unit : ABCDEFGHIJKL

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5GRS)

(-) Sites  (0, 0)

(no "Site" information available for 5GRS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5GRS)

(-) Cis Peptide Bonds  (19, 19)

Asymmetric/Biological Unit
No.Residues
1Pro A:682 -Asn A:683
2Asp A:697 -Asp A:698
3Glu A:872 -Ser A:873
4Gly I:1025 -Pro I:1026
5Pro B:682 -Asn B:683
6Asp B:697 -Asp B:698
7Glu B:872 -Ser B:873
8Gly J:1025 -Pro J:1026
9Pro C:682 -Asn C:683
10Asp C:697 -Asp C:698
11Glu C:872 -Ser C:873
12Gly K:1025 -Pro K:1026
13Pro D:682 -Asn D:683
14Asp D:697 -Asp D:698
15Glu D:872 -Ser D:873
16Gly L:1025 -Pro L:1026
17Gln F:871 -Asp F:872
18Ile G:870 -Gln G:871
19Gln H:871 -Asp H:872

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5GRS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5GRS)

(-) Exons   (0, 0)

(no "Exon" information available for 5GRS)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:375

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhh.eee.........eeeeee.....eeeeee....eeeee.....eeeeehhhhh.....eeee.....eeeee...eeeeee.......eeee........eeee...........eeeeeeeee...eeeeeeeee.......eeeeeee.......eeeee....eeeeee.....eeeeeee..eeeeee...hhhhh......eeee....eeee......eee.....................eeeee...hhhhh....eeeeeee......eeeeee........................hhhhhh...hhhhh...........eeee......eeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs A  567 GWSDHDELSTDTTLHEEKFRIEPVPVHHQLDILKIAVSENYKTFASVGLDRCLVVWDLRQWCTKLVLSKEQMPRTLKAIALDPQGNYVSLFSKDTLFILNVESPSLMLQHSYHCKPNSKLNVFWMPGTHKDDEWKNFELVVVESSGEIQVFSLTIEIEGADIALVEKFQLSSPIIKSISIVSPTANRIACLTESGEVTVYSKKGPVWSPKILSQNKNYLTETKKDIYGIAMADILFLARDSGVDMIDLKNDELLHSFTLPPIKVNTFSVGVSNSRFVNGQFRVSSISFCFTHAVTEKVLYYYYGNESNESYIILNKWDQQPNLVDVHDPDNSLASLTFDELQENIHEVEDASESVMSSDGLYIFGMRRKSSSGIS  941
                                   576       586       596       606       616       626       636       646       656       666       676       686       696       706       716       726       736       746       756       766       776       786       796       806       816       826       836       846       856       866       876       886       896       906       916       926       936


Chain B from PDB  Type:PROTEIN  Length:375

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhh.eee.........eeeeee.....eeeeee....eeeee.....eeeeehhhhh.....eeee.....eeeee...eeeeee.......eeee........eeee...........eeeeeeeee...eeeeeeeee.......eeeeeee.......eeeee....eeeeee.....eeeeeee..eeeeee...hhhhh......eeee....eeee......eee.....................eeeee...hhhhh....eeeeeee......eeeeee........................hhhhhh...hhhhh...........eeee......eeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs B  567 GWSDHDELSTDTTLHEEKFRIEPVPVHHQLDILKIAVSENYKTFASVGLDRCLVVWDLRQWCTKLVLSKEQMPRTLKAIALDPQGNYVSLFSKDTLFILNVESPSLMLQHSYHCKPNSKLNVFWMPGTHKDDEWKNFELVVVESSGEIQVFSLTIEIEGADIALVEKFQLSSPIIKSISIVSPTANRIACLTESGEVTVYSKKGPVWSPKILSQNKNYLTETKKDIYGIAMADILFLARDSGVDMIDLKNDELLHSFTLPPIKVNTFSVGVSNSRFVNGQFRVSSISFCFTHAVTEKVLYYYYGNESNESYIILNKWDQQPNLVDVHDPDNSLASLTFDELQENIHEVEDASESVMSSDGLYIFGMRRKSSSGIS  941
                                   576       586       596       606       616       626       636       646       656       666       676       686       696       706       716       726       736       746       756       766       776       786       796       806       816       826       836       846       856       866       876       886       896       906       916       926       936


Chain C from PDB  Type:PROTEIN  Length:375

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhh.eee.........eeeeee.....eeeeee....eeeee.....eeeeehhhhh.....eeee.....eeeee...eeeeee.......eeee........eeee...........eeeeeeeee...eeeeeeeee.......eeeeeee.......eeeee....eeeeee.....eeeeeee..eeeeee...hhhhh......eeee....eeee......eee.....................eeeee...hhhhh....eeeeeee......eeeeee........................hhhhhh...hhhhh...........eeee......eeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs C  567 GWSDHDELSTDTTLHEEKFRIEPVPVHHQLDILKIAVSENYKTFASVGLDRCLVVWDLRQWCTKLVLSKEQMPRTLKAIALDPQGNYVSLFSKDTLFILNVESPSLMLQHSYHCKPNSKLNVFWMPGTHKDDEWKNFELVVVESSGEIQVFSLTIEIEGADIALVEKFQLSSPIIKSISIVSPTANRIACLTESGEVTVYSKKGPVWSPKILSQNKNYLTETKKDIYGIAMADILFLARDSGVDMIDLKNDELLHSFTLPPIKVNTFSVGVSNSRFVNGQFRVSSISFCFTHAVTEKVLYYYYGNESNESYIILNKWDQQPNLVDVHDPDNSLASLTFDELQENIHEVEDASESVMSSDGLYIFGMRRKSSSGIS  941
                                   576       586       596       606       616       626       636       646       656       666       676       686       696       706       716       726       736       746       756       766       776       786       796       806       816       826       836       846       856       866       876       886       896       906       916       926       936


Chain D from PDB  Type:PROTEIN  Length:375

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ............hhhhhh.eee.........eeeeee.....eeeeee....eeeee.....eeeeehhhhh.....eeee.....eeeee...eeeeee.......eeee........eeee...........eeeeeeeee...eeeeeeeee.......eeeeeee.......eeeee....eeeeee.....eeeeeee..eeeeee...hhhhh......eeee....eeee......eee.....................eeeee...hhhhh....eeeeeee......eeeeee........................hhhhhh...hhhhh...........eeee......eeeeeeeeee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs D  567 GWSDHDELSTDTTLHEEKFRIEPVPVHHQLDILKIAVSENYKTFASVGLDRCLVVWDLRQWCTKLVLSKEQMPRTLKAIALDPQGNYVSLFSKDTLFILNVESPSLMLQHSYHCKPNSKLNVFWMPGTHKDDEWKNFELVVVESSGEIQVFSLTIEIEGADIALVEKFQLSSPIIKSISIVSPTANRIACLTESGEVTVYSKKGPVWSPKILSQNKNYLTETKKDIYGIAMADILFLARDSGVDMIDLKNDELLHSFTLPPIKVNTFSVGVSNSRFVNGQFRVSSISFCFTHAVTEKVLYYYYGNESNESYIILNKWDQQPNLVDVHDPDNSLASLTFDELQENIHEVEDASESVMSSDGLYIFGMRRKSSSGIS  941
                                   576       586       596       606       616       626       636       646       656       666       676       686       696       706       716       726       736       746       756       766       776       786       796       806       816       826       836       846       856       866       876       886       896       906       916       926       936


Chain E from PDB  Type:PROTEIN  Length:189

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh..hhhhhhhhhhh..........hhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs E  694 SPLEVLASWYAADLLDALLMESLSRKVEISEIEEIISLCPKNSSIIRHALLAKLVLFPENTADSLNEVLAAYKNTLDLCSQDSVLKINLSKLFTLHSCLSLALQRLGYGDVSKRMYQEIFVPDSDADITPLSFIISWTALNTFAPICTSENDVVEKMAMYVRTAIGTLKIQDLKLSRKLINSCIDIGSR  889
                                   703       713       723       733       743       753       763       773 ||    788       798       808       818       828       838       850       860       870       880
                                                                                                           775|                                                               847|
                                                                                                            781                                                                850


Chain F from PDB  Type:PROTEIN  Length:191

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...hhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs F  692 VLSPLEVLASWYAADLLDALLMESLSRKVEISEIEEIISLCPKNSSIIRHALLAKLVLFPENTADSLNEVLAAYKNTLDLCSQVLKINLSKLFTLHSCLSLALQRLGYGDVSKRMYQEIFVPDSDADITPLSFIISWTALNTFAPICTSPKENDVVEKMAMYVRTAIGTLKIQDLKLSRKLINSCIDIGSR  889
                                   701       711       721       731       741       751       761       771  ||   788       798       808       818       828       838       848       858       868       878       888
                                                                                                            774|
                                                                                                             782


Chain G from PDB  Type:PROTEIN  Length:187

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh..hhhhhhhhhhh..........hhhhhhhhhhhhhhhh......hhhhhhhhhhhhh........hhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs G  695 PLEVLASWYAADLLDALLMESLSRKVEISEIEEIISLCPKNSSIIRHALLAKLVLFPENTADSLNEVLAAYKNTLDLCSQDSVLKINLSKLFTLHSCLSLALQRLGYGDVSKRMYQEIFVPDSDADITPLSFIISWTALNTFAPICTSENDVVEKMAMYVRTAIGTLKIQDLKLSRKLINSCIDIGS  888
                                   704       714       724       734       744       754       764       774||     789       799       809       819       829       839       851       861       871       881
                                                                                                          775|                                                               847|
                                                                                                           781                                                                850


Chain H from PDB  Type:PROTEIN  Length:191

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh...hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhh...hhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5grs H  692 VLSPLEVLASWYAADLLDALLMESLSRKVEISEIEEIISLCPKNSSIIRHALLAKLVLFPENTADSLNEVLAAYKNTLDLCSQVLKINLSKLFTLHSCLSLALQRLGYGDVSKRMYQEIFVPDSDADITPLSFIISWTALNTFAPICTSPKENDVVEKMAMYVRTAIGTLKIQDLKLSRKLINSCIDIGSR  889
                                   701       711       721       731       741       751       761       771  ||   788       798       808       818       828       838       848       858       868       878       888
                                                                                                            774|
                                                                                                             782


Chain I from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeee....eeeeeeee............eee....eeeeee..eeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                5grs I  992 ETQVWEVWMYSQSEKKHRSKSLKMYNSLIIADPGPSLAVSDRCVAIVLGNYVALVGYGSEIF 1053
                                  1001      1011      1021      1031      1041      1051


Chain J from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeee....eeeeeeee............eee....eeeeee..eeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                5grs J  992 ETQVWEVWMYSQSEKKHRSKSLKMYNSLIIADPGPSLAVSDRCVAIVLGNYVALVGYGSEIF 1053
                                  1001      1011      1021      1031      1041      1051


Chain K from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeee....eeeeeeee............eee....eeeeee..eeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                5grs K  992 ETQVWEVWMYSQSEKKHRSKSLKMYNSLIIADPGPSLAVSDRCVAIVLGNYVALVGYGSEIF 1053
                                  1001      1011      1021      1031      1041      1051


Chain L from PDB  Type:PROTEIN  Length:62

               SCOP domains -------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeeee....eeeeeeee............eee....eeeeee..eeeeee...... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------- Transcript
                5grs L  992 ETQVWEVWMYSQSEKKHRSKSLKMYNSLIIADPGPSLAVSDRCVAIVLGNYVALVGYGSEIF 1053
                                  1001      1011      1021      1031      1041      1051
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5GRS)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5GRS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5GRS)

(-) Gene Ontology  (36, 45)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5grs)

  Sites
(no "Sites" information available for 5grs)

  Cis Peptide Bonds
    Asp A:697 - Asp A:698   [ RasMol ]
    Asp B:697 - Asp B:698   [ RasMol ]
    Asp C:697 - Asp C:698   [ RasMol ]
    Asp D:697 - Asp D:698   [ RasMol ]
    Gln F:871 - Asp F:872   [ RasMol ]
    Gln H:871 - Asp H:872   [ RasMol ]
    Glu A:872 - Ser A:873   [ RasMol ]
    Glu B:872 - Ser B:873   [ RasMol ]
    Glu C:872 - Ser C:873   [ RasMol ]
    Glu D:872 - Ser D:873   [ RasMol ]
    Gly I:1025 - Pro I:1026   [ RasMol ]
    Gly J:1025 - Pro J:1026   [ RasMol ]
    Gly K:1025 - Pro K:1026   [ RasMol ]
    Gly L:1025 - Pro L:1026   [ RasMol ]
    Ile G:870 - Gln G:871   [ RasMol ]
    Pro A:682 - Asn A:683   [ RasMol ]
    Pro B:682 - Asn B:683   [ RasMol ]
    Pro C:682 - Asn C:683   [ RasMol ]
    Pro D:682 - Asn D:683   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5grs
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SCAP_SCHPO | O43043
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  SREBP_SCHPO | Q9UUD1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SCAP_SCHPO | O43043
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SREBP_SCHPO | Q9UUD1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SCAP_SCHPO | O43043: 4yhc
        SREBP_SCHPO | Q9UUD1: 5gpd

(-) Related Entries Specified in the PDB File

4yhc THE CRYSTAL STRUCTURE OF SCP1-WD40
5gpd THE CRYSTAL STRUCTURE OF SRE1-CTD RELATED ID: EMD-9537 RELATED DB: EMDB COMPLEX STRUCTURE OF THE FISSION YEAST SREBP-SCAP BINDING DOMAINS
