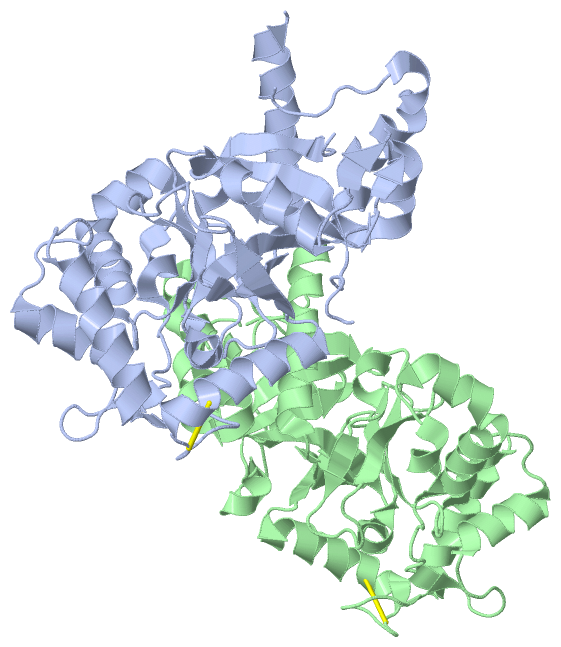

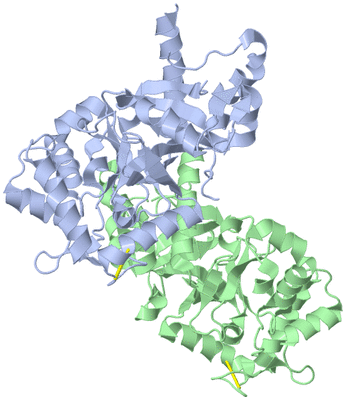

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE P.FALCIPARUM CYTOSOLIC LEUCYL-TRNA SYNTHETASE EDITING DOMAIN (SPACE GROUP P1)

Authors :  A. Palencia, E. Sonoiki, D. Guo, V. Ahyong, C. Dong, X. Li, V. S. Hernande J. Legac, R. Cooper, M. R. K. Alley, Y. R. Freund, J. Derisi, S. Cusack, P. J. Rosenthal
Date :  18 Nov 15  (Deposition) - 22 Jun 16  (Release) - 10 Aug 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Ligase, P. Falciparum, Leucine-Trna Ligase (Leurs) Activity, Atp + L- Leucine + Trna(Leucine) Gives Amp + Diphosphate + L-Leucyl- Trna(Leucine), Aminoacyl-Trna Synthetase, Protein Biosynthesis, Novel Boron Inhibitors Of Leurs (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Sonoiki, A. Palencia, D. Guo, V. Ahyong, C. Dong, X. Li, V. S. Hernandez, Y. K. Zhang, W. Choi, J. Gut, J. Legac, R. Cooper, M. R. Alley, Y. R. Freund, J. Derisi, S. Cusack, P. J. Rosenthal
Anti-Malarial Benzoxaboroles Target P. Falciparum Leucyl- Trna Synthetase.
Antimicrob. Agents Chemother. V. 60 4886 2016
PubMed-ID: 27270277  |  Reference-DOI: 10.1128/AAC.00820-16

(-) Compounds

Molecule 1 - LEUCYL TRNA SYNTHASE
    Chains: A, B
    EC Number: 6.1.1.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI K-12
    Expression System Plasmid: PETM-11
    Expression System Taxid: 83333
    Expression System Variant: DE3 RIL
    Expression System Vector Type: PLASMID
    Fragment: EDITING DOMAIN, UNP RESIDUES 272-687
    Gene: PFF1095W
    Mutation: YES
    Organism Scientific: PLASMODIUM FALCIPARUM
    Organism Taxid: 5833
    Other Details: DELETION OF RESIDUES 475-519, C273S SUBSTITUTION TO PREVENT DISULFIDE BONDS, GAM INSERTED AT N- TERM (EXPRESSION VECTOR)
    Strain: ISOLATE 3D7

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5FO4)

(-) Sites  (0, 0)

(no "Site" information available for 5FO4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5FO4)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Asp A:658 -Pro A:659
2Asp B:658 -Pro B:659

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5FO4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5FO4)

(-) Exons   (0, 0)

(no "Exon" information available for 5FO4)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:302

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeee.hhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhh..eeeeeeee.hhhhhhhh.eeee....eeeeeee..........eehhhhhhhhh.eeeeehhhhhhhhhhh....ee....eeeeee.hhhh..eee........eeeee...........eeee....hhhhhhhhhhhhhhhhhhhhhh..hhhhhh......ee......hhhhhhhhhh........hhhhhhhhhhhhhhhhhee........hhhhhhhhhhhhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fo4 A 273 SQEYTLIKIFVSNVKDFYSIFMNSIRSSQSVLNTFFTDFEKGEEDLKNKIWNEDFFVKDKKVIFLGSTLKPETAYGQNYTFINPNEYYYLTLGFDKQNLHVNNIMTKEEIINSCPNIYVCSENSLYNLAYQGIIPLLKDVFILNKIKGEHFVGLETYTNISKIKNLYILPMTTIKMNISTGIVPCVSSDSTDDYACLEDIRKKKNYYCEKYNLKEEQLKNNSESCIELPEIGNNTGKYYYEKEKVSSYKDVKLQKIKEVLYKKQYFEGIMTVDPYKGMKTFNCRKLAKQNIIRNLDGFLYSE 687
                                   282       292       302  ||   367       377       387       397       407       417       427|      443       453       463       525       535       545       555       565       575       585       595       605       615       625       635       645       655       665       675       685
                                                          305|                                                               427|                                  471|
                                                           361                                                                434                                   524


Chain B from PDB  Type:PROTEIN  Length:317

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeee.hhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhhhhh..eeeeeeee.hhhhhhhh.eeee....eeeeeee...hhhhhh.......eehhhhhhhhh.eeeee..hhhhhhhhh....ee.............eeee.hhhh..eee........eeeee...........eeee....hhhhhhhhhhhhhhhhhhhhhh..hhhhhh......ee......hhhhhhhhhh........hhhhhhhhhhhhhhhhhee........hhhhhhhhhhhhhhhh..eeeee. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5fo4 B 273 SQEYTLIKIFVSNVKDFYSIFMNSIRSSQSVLNACTFFTDFEKGEEDLKNKIWNEDFFVKDKKVIFLGSTLKPETAYGQNYTFINPNEYYYLTLGFDKQNLHYGDKSYVNNIMTKEEIINSCPNIYVCSENSLYNLAYQGIIPLLKNKNGNLDDVFILNKIKGEHFVGLETYTNISKIKNLYILPMTTIKMNISTGIVPCVSSDSTDDYACLEDIRKKKNYYCEKYNLKEEQLKNNSESCIELPEIGNNTGKYYYEKEKVSSYKDVKLQKIKEVLYKKQYFEGIMTVDPYKGMKTFNCRKLAKQNIIRNLDGFLYSE 687
                                   282       292       302    || 365       375       385       395       405       415       425       435       445       455       465       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680
                                                            307|                                                                                                              474|
                                                             361                                                                                                               520
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5FO4)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5FO4)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5FO4)

(-) Gene Ontology  (12, 12)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5fo4)

  Sites
(no "Sites" information available for 5fo4)

  Cis Peptide Bonds
    Asp A:658 - Pro A:659   [ RasMol ]
    Asp B:658 - Pro B:659   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  5fo4
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  C6KT64_PLAF7 | C6KT64
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  6.1.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  C6KT64_PLAF7 | C6KT64
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        C6KT64_PLAF7 | C6KT64: 5foc 5fod

(-) Related Entries Specified in the PDB File

5foc CRYSTAL STRUCTURE OF THE P.FALCIPARUM CYTOSOLIC LEUCYL- TRNA SYNTHETASE EDITING DOMAIN (SPACE GROUP P21)
5fod CRYSTAL STRUCTURE OF THE P.FALCIPARUM CYTOSOLIC LEUCYL- TRNA SYNTHETASE EDITING DOMAIN (SPACE GROUP P1) CONTAINING DELETIONS OF INSERTIONS 1 AND 3
5fof CRYSTAL STRUCTURE OF THE P.KNOWLESI CYTOSOLIC LEUCYL- TRNA SYNTHETASE EDITING DOMAIN
5fog CRYSTAL STRUCTURE OF HTE CRYPTOSPORIDIUM MURIS CYTOSOLIC LEUCYL-TRNA SYNTHETASE EDITING DOMAIN COMPLEX WITH A POST-TRANSFER EDITING ANALOGUE OF NORVALINE (NV2AA)
5fol CRYSTAL STRUCTURE OF THE CRYPTOSPORIDIUM MURIS CYTOSOLIC LEUCYL-TRNA SYNTHETASE EDITING DOMAIN COMPLEX WITH A POST-TRANSFER EDITING ANALOGUE OF ISOEUCINE (ILE2AA)
5fom CRYSTAL STRUCTURE OF THE CRYPTOSPORIDIUM MURIS CYTOSOLIC LEUCYL-TRNA SYNTHETASE EDITING DOMAIN COMPLEX WITH THE ADDUCT AMP-AN6426
5fon CRYSTAL STRUCTURE OF THE CRYPTOSPORIDIUM MURIS CYTOSOLIC LEUCYL-TRNA SYNTHETASE EDITING DOMAIN (APO STRUCTURE)
