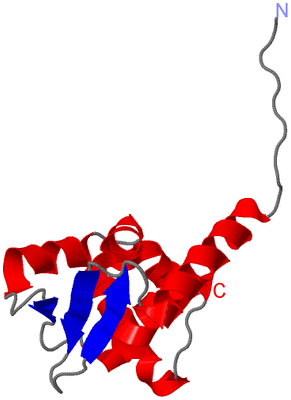

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE DROSOPHILA MELANOGASTER CP190 BTB DOMAIN

Authors :  K. M. Plevock, B. J. Galletta, K. C. Slep, N. M. Rusan
Date :  19 Nov 15  (Deposition) - 23 Dec 15  (Release) - 27 Jul 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Btb Domain Cp190 Chromatin Insulator Centrosome, Structural Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. M. Plevock, B. J. Galletta, K. C. Slep, N. M. Rusan
Newly Characterized Region Of Cp190 Associates With Microtubules And Mediates Proper Spindle Morphology In Drosophila Stem Cells.
Plos One V. 10 44174 2015
PubMed-ID: 26649574  |  Reference-DOI: 10.1371/JOURNAL.PONE.0144174

(-) Compounds

Molecule 1 - CENTROSOME-ASSOCIATED ZINC FINGER PROTEIN CP190
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(E3) PLYSS
    Expression System Taxid: 469008
    Fragment: UNP RESIDUES 1-135
    Gene: CP190, E(MOD)4-1, CG6384
    Organism Common: FRUIT FLY
    Organism Scientific: DROSOPHILA MELANOGASTER
    Organism Taxid: 7227
    Other Details: N-TERMINAL RESIDUES: GSH ARE A CLONING ARTIFACT FROM PLACING THE CONSTRUCT INTO PET28. THROMBIN WAS USED TO REMOVE THE N- TERMINAL HIS TAG, LEAVING THE N-TERMINAL RESIDUES:GSH.
    Synonym: PROTEIN ENHANCER OF MOD(MDG4)4-1,DMAP190

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5EUP)

(-) Sites  (0, 0)

(no "Site" information available for 5EUP)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5EUP)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5EUP)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5EUP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5EUP)

(-) Exons   (0, 0)

(no "Exon" information available for 5EUP)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:120

               SCOP domains ------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .........hhhhhhhhhhhhhhhh.....eeee.....eeeehhhhhhh..hhhhhhhhhh.....eee.....hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------ Transcript
                 5eup A   2 GEVKSVKVDNWGVFFLQKLQNFFNKTDYCDLTLQFRDNSQLKVHRLVLSACTDYFNVLEQTCEIVDDALIMPNEFQADVVVPIVNFMYTGTLEFELKMYGKLLRTAKEMNMTVLLKLLEA 121
                                    11        21        31        41        51        61        71        81        91       101       111       121
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5EUP)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5EUP)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5EUP)

(-) Gene Ontology  (24, 24)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5eup)

  Sites
(no "Sites" information available for 5eup)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5eup)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
