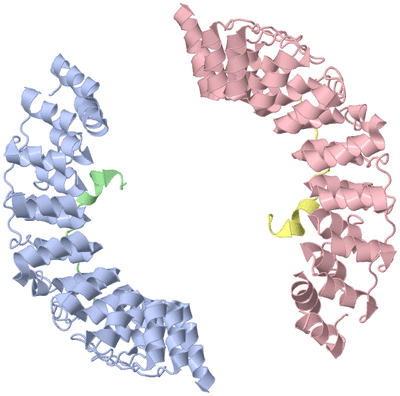

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MYO3B-ARB2 IN COMPLEX WITH ESPIN1-AR

Authors :  H. Liu, J. Li, W. Liu, M. Zhang
Date :  17 Nov 15  (Deposition) - 03 Feb 16  (Release) - 03 Feb 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Unconventional Myosin, Protein Binding, Signaling, Protein Binding- Motor Protein Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Liu, J. Li, M. H. Raval, N. Yao, X. Deng, Q. Lu, S. Nie, W. Feng, J. Wan, C. M. Yengo, W. Liu, M. Zhang
Myosin Iii-Mediated Cross-Linking And Stimulation Of Actin Bundling Activity Of Espin
Elife V. 5 2016
PubMed-ID: 26785147  |  Reference-DOI: 10.7554/ELIFE.12856

(-) Compounds

Molecule 1 - ESPIN
    Chains: A, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 1-352
    Gene: ESPN
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: ECTOPLASMIC SPECIALIZATION PROTEIN

Molecule 2 - MYOSIN-IIIB
    Chains: B, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: UNP RESIDUES 1252-1305
    Gene: MYO3B
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5ET0)

(-) Sites  (0, 0)

(no "Site" information available for 5ET0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5ET0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5ET0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5ET0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5ET0)

(-) Exons   (0, 0)

(no "Exon" information available for 5ET0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:327

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhh.hhhhhhhhhhh.............hhhhhhhhh.hhhhhhhhhh..............hhhhhhhhh.hhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhh.hhhhhhhhhhhh............hhhhhhhhh.hhhhhhhhhhh...........hhhhhhhhh.hhhhhhhhhhh............hhhhhhhhh.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5et0 A    0 SMALEQALQAARRGDLDVLRSLHAAGLLDSLDALPVHHAARSGKLHCLRYLVEEVALPAVSRARNGATPAHDAAATGYLSCLQWLLTQGGCRVQEKDNSGATVLHLAARFGHPDVVKWLLYQGGANSAITTDTGALPIHYAAAKGDLPSLKLLVGHYPEGVNAQTNNGATPLYLACQEGHLEVTKYLVQECSADPHLRAQDGMTPLHAAAQMGHNPVLVWLVSFADVSFSEQDHDGATAMHFAASRGHTKVLSWLLLHGAEISQDLWGGTPLHDAAENGELECCQILAVNGAGLDVRDHDGYTAADLAEFNGHTHCSRYLRTVQTLS  331
                                     9        19       |34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324
                                                      27|
                                                       33


Chain B from PDB  Type:PROTEIN  Length:20

               SCOP domains -------------------- SCOP domains
               CATH domains -------------------- CATH domains
               Pfam domains -------------------- Pfam domains
         Sec.struct. author ............hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------- SAPs(SNPs)
                    PROSITE -------------------- PROSITE
                 Transcript -------------------- Transcript
                5et0 B 1288 GQIKVLDGEDQYYKCLSPGA 1307
                                  1297      1307


Chain C from PDB  Type:PROTEIN  Length:326

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhh.hhhhhhhhh...........hhhhhhhhh.hhhhhhhhhh..............hhhhhhhhh.hhhhhhhhhh..............hhhhhhhhh.hhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhh............hhhhhhhhh.hhhhhhhhhhh...........hhhhhhhhh.hhhhhhhhhhh............hhhhhhhhh.hhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                5et0 C    1 MALEQALQAARLDVLRSLHAAGLLSLRDSLDALPVHHAARSGKLHCLRYLVEEVALPAVSRARNGATPAHDAAATGYLSCLQWLLTQGGCRVQEKDNSGATVLHLAARFGHPDVVKWLLYQGGANSAITTDTGALPIHYAAAKGDLPSLKLLVGHYPEGVNAQTNNGATPLYLACQEGHLEVTKYLVQECSADPHLRAQDGMTPLHAAAQMGHNPVLVWLVSFADVSFSEQDHDGATAMHFAASRGHTKVLSWLLLHGAEISQDLWGGTPLHDAAENGELECCQILAVNGAGLDVRDHDGYTAADLAEFNGHTHCSRYLRTVQTLS  331
                                    10||      23   ||   35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325
                                     11|          27|
                                      15           30


Chain D from PDB  Type:PROTEIN  Length:20

               SCOP domains -------------------- SCOP domains
               CATH domains -------------------- CATH domains
               Pfam domains -------------------- Pfam domains
         Sec.struct. author ............hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------- SAPs(SNPs)
                    PROSITE -------------------- PROSITE
                 Transcript -------------------- Transcript
                5et0 D 1288 GQIKVLDGEDQYYKCLSPGA 1307
                                  1297      1307
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
