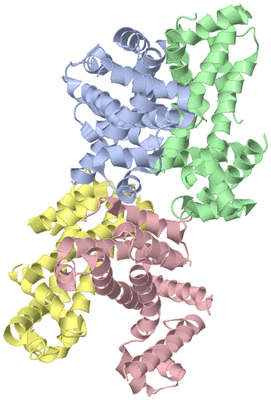

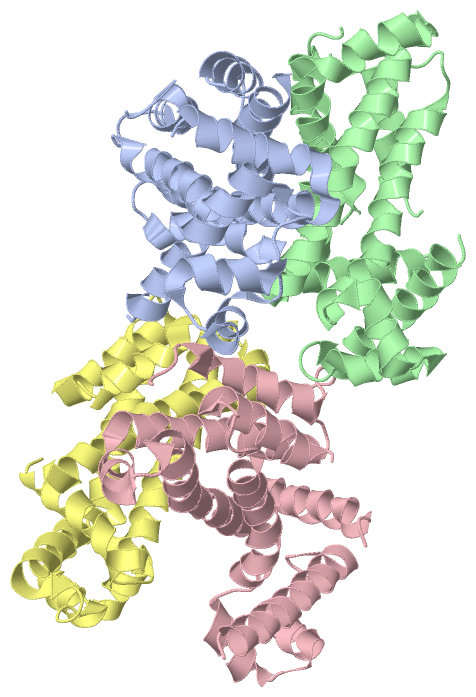

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

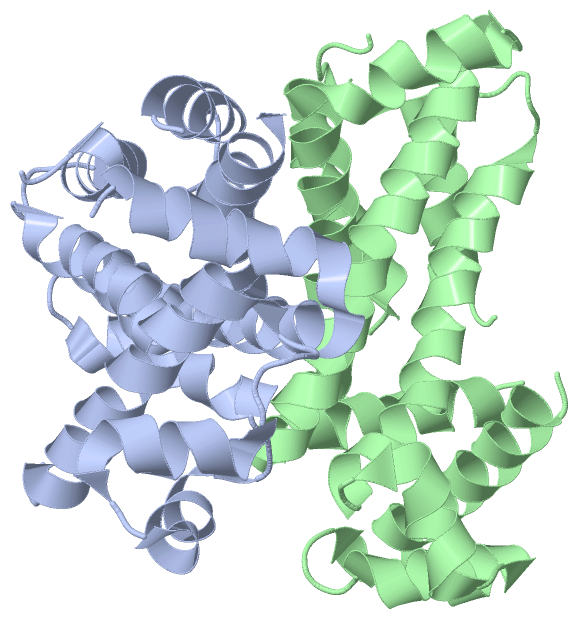

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  APO-FORM OF SCO3201

Authors :  P. Waack, W. Hinrichs
Date :  26 Oct 15  (Deposition) - 16 Nov 16  (Release) - 16 Nov 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Tetr-Regulator, Apo-Form, Hth-Motif, Bacterial Transcription Regulator, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Waack
Apo-Form Of Sco3201
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE TETR-FAMILY TRANSCRIPTIONAL REGULATOR
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: SCO3201
    Organism Scientific: STREPTOMYCES COELICOLOR
    Organism Taxid: 100226

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5EFY)

(-) Sites  (0, 0)

(no "Site" information available for 5EFY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 5EFY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5EFY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5EFY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5EFY)

(-) Exons   (0, 0)

(no "Exon" information available for 5EFY)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:190

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5efy A  26 TERRKAETRMEIARAAARLFVGQGLRATRAEDIARAAGVAPRTFYRYFATKEEAVAPLYALGAERWVRAVREAPAELSPPEALERAVRHTLTPGSWEWARTLIRLAESSPALRKVWAEVCHSTERGLVQALAARMSGGDDNVAVRLAASPRLHFAAAVAGASVRVAAEHWASSPLEQALLNLEVLRGFAW 228
                                    35        45        55        65        75        85        95       105       115   ||  131       141       151       161       171       181       191       201  ||   218       228
                                                                                                                       119|                                                                           204|
                                                                                                                        126                                                                            212


Chain B from PDB  Type:PROTEIN  Length:193

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5efy B  28 RRKAETRMEIARAAARLFVGQGLRATRAEDIARAAGVAPRTFYRYFATKEEAVAPLYALGAERWVRAVREAPAELSPPEALERAVRHTLTPSAPSWEWARTLIRLAESSPALRKVWAEVCHSTERGLVQALAARMSGGDDNVAVRLAASPRLHFAAAVAGASVRVAAEHWASSSRSPLEQALLNLEVLRGFAW 228
                                    37        47        57        67        77        87        97       107       117||     131       141       151       161       171       181       191       201   ||  215       225
                                                                                                                    118|                                                                               205|
                                                                                                                     123                                                                                210


Chain C from PDB  Type:PROTEIN  Length:197

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5efy C  26 TERRKAETRMEIARAAARLFVGQGLRATRAEDIARAAGVAPRTFYRYFATKEEAVAPLYALGAERWVRAVREAPAELSPPEALERAVRHTLTSAPSWEWARTLIRLAESSPALRKVWAEVCHSTERGLVQALAARMSGGDDNVAVRLAASPRLHFAAAVAGASVRVAAEHWASSSPQGARSPLEQALLNLEVLRGFA 227
                                    35        45        55        65        75        85        95       105       115 ||    130       140       150       160       170       180       190       200       210       220
                                                                                                                     117|
                                                                                                                      123


Chain D from PDB  Type:PROTEIN  Length:178

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhh....hhhhhhhhhh.hhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 5efy D  32 ETRMEIARAAARLFVGQGLRATRAEDIARAAGVAPRTFYRYFATKEEAVAPLYALGAERWVRAVREAPAELSPPEALERAVRHTLWEWARTLIRLAESSPALRKVWAEVCHSTERGLVQALAARMSGGDDNVAVRLAASPRLHFAAAVAGASVRVAAEHWASSEQALLNLEVLRGFAW 228
                                    41        51        61        71        81        91       101       111    || 131       141       151       161       171       181       191       201  ||   220
                                                                                                              116|                                                                          204|
                                                                                                               127                                                                           214
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5EFY)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5EFY)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5EFY)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
