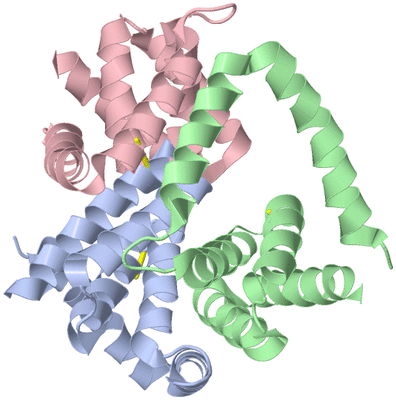

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF APO-LPG0406, A CARBOXYMUCONOLACTONE DECARBOXYLASE FAMILY PROTEIN FROM LEGIONELLA PNEUMOPHILA

Authors :  X. Chen, X. Gong, N. Zhang, H. Ge
Date :  01 Sep 15  (Deposition) - 14 Oct 15  (Release) - 27 Jan 16  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  A,B,C  (2x)
Keywords :  Alkylhydroperoxidase, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Chen, Y. Hu, B. Yang, X. Gong, N. Zhang, L. Niu, Y. Wu, H. Ge
Structure Of Lpg0406, A Carboxymuconolactone Decarboxylase Family Protein Possibly Involved In Antioxidative Response From Legionella Pneumophila
Protein Sci. V. 24 2070 2015
PubMed-ID: 26402328  |  Reference-DOI: 10.1002/PRO.2811

(-) Compounds

Molecule 1 - ALKYL HYDROPEROXIDE REDUCTASE AHPD
    Chains: A, B, C
    EC Number: 1.11.1.15
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: ROSETTA
    Expression System Taxid: 562
    Gene: LPTWR_00386, LPYMG_00422
    Organism Scientific: LEGIONELLA PNEUMOPHILA
    Organism Taxid: 446
    Synonym: ALKYLHYDROPEROXIDASE

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (2x): ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 5DIK)

(-) Sites  (0, 0)

(no "Site" information available for 5DIK)

(-) SS Bonds  (3, 3)

Asymmetric Unit
No.Residues
1A:61 -A:64
2B:61 -B:64
3C:61 -C:64

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 5DIK)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 5DIK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 5DIK)

(-) Exons   (0, 0)

(no "Exon" information available for 5DIK)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:112

               SCOP domains ---------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 5dik A   2 SDKFSHITKDITTQLAKFRKEMPELMTGFSSLAQAATKDGALDKKTKELIAMALAVAKQCPGCIGFHSQTLVKLQATREELLETLGMAVYMGGGPSLMYAAEALEAFEEFSK 113
                                    11        21        31        41        51        61        71        81        91       101       111


Chain B from PDB  Type:PROTEIN  Length:112

               SCOP domains ---------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 5dik B   2 SDKFSHITKDITTQLAKFRKEMPELMTGFSSLAQAATKDGALDKKTKELIAMALAVAKQCPGCIGFHSQTLVKLQATREELLETLGMAVYMGGGPSLMYAAEALEAFEEFSK 113
                                    11        21        31        41        51        61        71        81        91       101       111


Chain C from PDB  Type:PROTEIN  Length:112

               SCOP domains ---------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------- Transcript
                 5dik C   2 SDKFSHITKDITTQLAKFRKEMPELMTGFSSLAQAATKDGALDKKTKELIAMALAVAKQCPGCIGFHSQTLVKLQATREELLETLGMAVYMGGGPSLMYAAEALEAFEEFSK 113
                                    11        21        31        41        51        61        71        81        91       101       111
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 5DIK)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 5DIK)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 5DIK)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 5dik)

  Sites
(no "Sites" information available for 5dik)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 5dik)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
